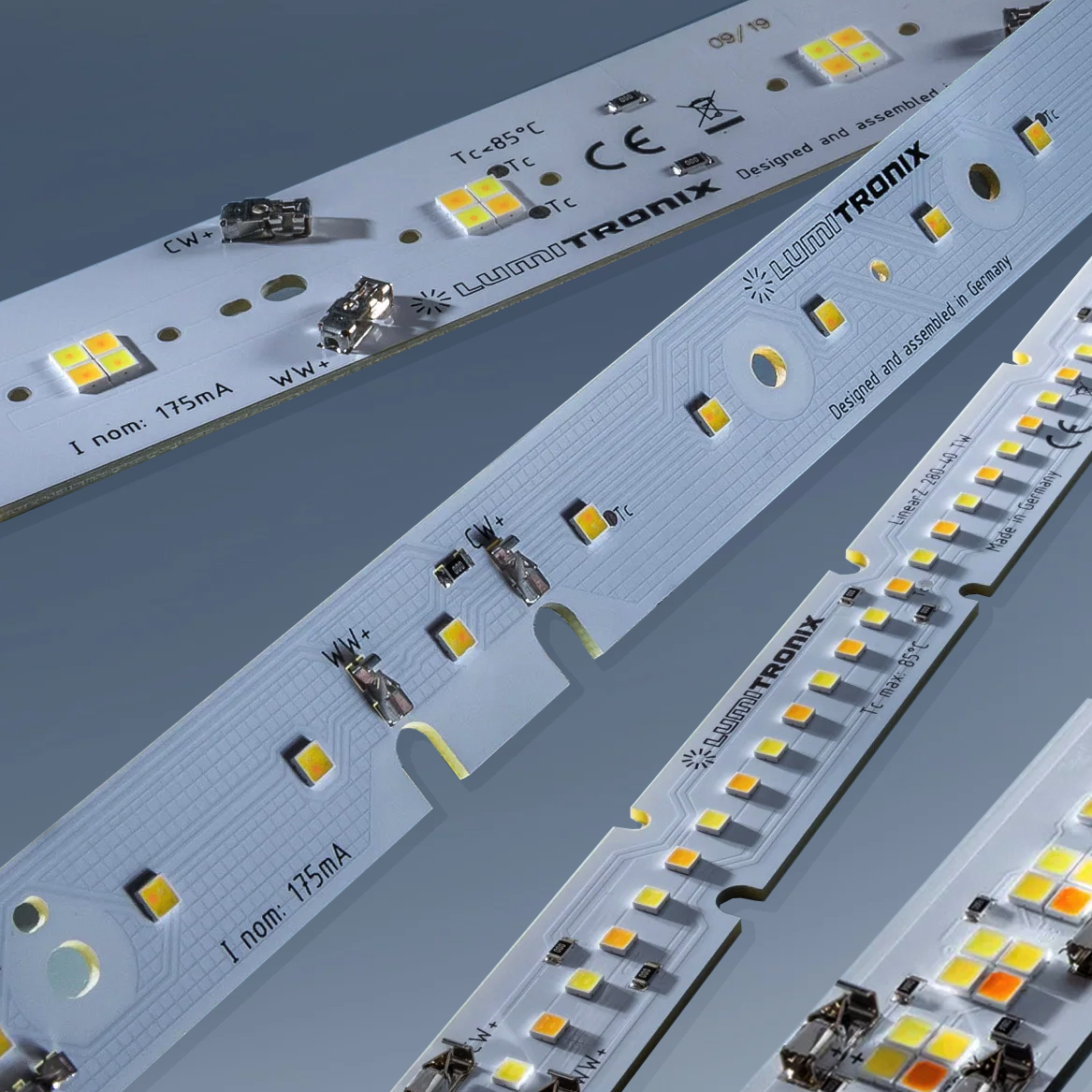

Build Your Own LumiBar-50 Plug & Play 50cm TW, Dynasolis, RGBW, RGB+TW LED Strip, Made in Germany, 12/24/48V

The LumiBar-50 RGB-TW LED strips are versatile and easy to use, ideal for a wide range of applications including commercial, industrial, general lighting, decorative lighting, exhibition stand construction, or task lighting. The available connector system allows the strips to be connected into long light strips without soldering, with evenly spaced LEDs that can be split to light even tight spaces.

LumiBar-50 RGB-TW is designed to use the Nichia 757 Series Mid-Power LEDs, a huge market success due to their highest luminous efficacy (222 lm/w), small size (3030 package), extreme lifetime (more than 100,000 hours) and high versatility. Being able to equip the LumiBar-50 with the complete selection of Nichia 757 LEDs, with CRI 80, 90 or 98 and color temperature from 1800K to 6500K, you will be empowered to create the perfect product for your application.

For increased application flexibility, LED options also include 2 in 1 Nichia Tunable White LED, 3 in 1 Osram RGB LED and Nichia Azure Dynasolis LED.

The available specifications for customization related to LED density and width allow the LumiBar-50 to meet the majority of requirements for linear lighting applications.

Made in Germany, the Lumibar-50 LED strip is a professional product designed for long-term use, with a 5-year warranty.

Simplified Customization Process & Professional Support

We make designing LED lighting easy with this specialized process to build your own custom rigid LED modules or strips, with options covering size, specifications, and electrical characteristics.

Starting a custom LED project might seem challenging, but we are here to help, offering comprehensive support for selecting LEDs, drive modes, controls, lens systems, thermal management, and connectivity.

Begin Your Custom LED Project

Ready to transform your vision into reality with the perfect LED module? Order now and let us illuminate your path to innovation, ensuring your project shines brighter than ever.

Custom LED Module Order Process explained & Technical details:

Build Your Own Plug & Play Multicolor LED Modules, Made in Germany, with Nichia 757 LED series and dimensions from 150mm to 600mm in length and 5mm to 400mm in width, with rigid PCB.

Step 1: Order Quantity (pcs)

How many modules do you need.  While there is no MOQ, we recommend at least 50 meters. The ordered quantity will be delivered in strips of 50 cm, that you can then cut to the desired length, based on the cutting unit.

The cutting unit is based on the number of LEDs per meter and the choice of voltage, and can range from 3mm to 50mm (see image for details).

Step 2: LED Strip Width (mm).

The LumiBar-50 LED strip can be ordered in standard widths, from 5mm to 20mm. For different dimensions to those on offer, please contact us.

Step 3: Multicolor LED Module Type

The type of LED module can be:

• Tunable White: Warm-Cold White = 2 channel LED module
• Tunable White: Warm-Cold-Neutral White = 3 channel LED module
• Dynasolis: Azure+Warm White LED = 2 channel LED module
• RGB: Red, Green, Blue = 3 channel LED module
• RGB-W: RGB-Warm White = 4 channel LED module
• RGBWW: RGB-Warm White-Cold White = 5 channel LED module

Step 4: Multicolor LED Configuration

A multicolor LED light module can have various LED configurations, based on the choice between single chip LEDs or multi-chip LEDs. Light output from single chip LEDs is significantly higher, while multi-chip LEDs make possible a more compact light system, with smooth colors. Here you can choose which types of LEDs you want to use, for RGB and/or the White light.

• RGB LED light can be obtained from a combination of three color LEDs (Red, Green, Blue) or a LED with three LED Chips (3:1 RGB)
• White Tunable LED Light can be obtained from a combination of two white LEDs (Warm White, Cold White) or a LED with two LED Chips (2:1 TW)

TW (Tunable-White) LED Configuration offers the following choices:

• 2 in 1 TW (Warm-Cold White): one Nichia 2:1 TW LED
• TW (Warm-Cold White): one warm white LED, one cold white LED
• Dynasolis (Azure-Warm White): one azure LED and one warm white LED
• TW (Warm-Neutral-Cold White): one warm white LED, one pure white LED, one cold white LED*


RGB LED configuration (Dynamic-Special Color LED Type) offers the following choices:

• Osram RGB 3:1, one LED with three colors
• Nichia 757 LEDs, one for each color

RGB-W LED Configuration offers the following choices:

• RGB-W (Warm White): one red LED, one green LED, one blue LED, one warm white LED
• 3 in 1 RGB-W (Warm White): one Osram RGB 3:1 with three colors, one warm white LED
• RGB-CW (Cold White): one red LED, one green LED, one blue LED, one warm white LED, one cold white LED*
• 3 in 1 RGB-CW (Cold White): one Osram RGB 3:1 with three colors, one cold white LED

Step 5: Dynamic-Special Color LED Type

The dynamic-special color component of the module can be built with:

1) Osram RGB 3:1 DISPLIX LED, with all colors inside:

• Red (612-630 nm)
• True Green (513-545 nm)
• Blue (450-480 nm)

2) Nichia Azure Dynasolis, a LED solution that regulates circadian rhythms by simultaneously adjusting melanopic illuminance¹ and color temperature while maintaining high CRI and high efficacy.

3) A pair of three Red, Green and Blue LEDs from the latest generation Nichia 757 COLOR LED series, the industry leading 3030 Mid-power LEDs. The 757 LED series have industry's highest luminous efficacy (up to 222 lm/w) and reliability (up to 100.000h L70 lifetime). Each LED has a typical consumption of 0.2W at 65mA, for a luminous flux up to 45 lm.

 Click here to see the current Nichia color LED line-up.

Nichia 757 Color LEDs include:

• BLUE: 465nm peak**
• GREEN: 515nm peak**
• RED: 635nm peak**

**See Nichia LED spectrum.

4) NF2W757G-MT (Tunable White): Nichia's 2-in-1 Tunable White LED, developed to emit and control the two color temperatures out of an LED's single light-emitting surface.  With CRI80 or 90

The datasheet will specify the LED part number.

5) Osram RGB 3:1 + Nichia TW 2:1 LEDs, for the complete color and white spectrum at CRI80 or 90.

Step 6: White LED Color temperature

Different color temperatures create different visual effects and are appropriate for different environments. Color temperature is measured in Kelvin (K) on a scale from 'warm' to 'cool': The 'warmer' the light, the lower the number of Kelvin. The 'cooler' the light, the higher the number of Kelvin. You can read more about the recommended color temperature for a project in our blog.

For warm, neutral or cold white, various color temperature choices are available.

Step 7: White LED CRI and Special Type

The white light component of the module, with single chip LEDs, can be built with:

1) The latest generation Nichia white 757 LED series, the industry leading 3030 Mid-power LEDs. The 757 LED series have industry's highest luminous efficacy (up to 222 lm/w) and reliability (up to 100.000h L70 lifetime). Each LED has a typical consumption of 0.2W at 65mA, for a luminous flux up to 45 lm.

 Click here to see the current Nichia line-up.

Special Nichia 757 LED types include:

• Optisolis 757 & CRI99: LEDs with a spectrum close to natural light, CRI99, R9 minimum 85
• H6 757 Series & CRI90: LEDs that achieve a color quality better than traditional LEDs (Ra≥90, R9≥50, R15≥85) while maintaining an efficacy better than Ra≥80 LEDs.
• Vitasolis 757 Series & CRI80: Vitasolis LEDs emit a natural white color with a high content of blue-green energy proven to stimulate awakening and supports a vibrant life.

*Not all color temperatures are available for every LED type or CRI.  The datasheet will specify Nichia LED part number.

2) The full spectrum option, CRI95+ Seoul Semiconductor 3030 SunLike LEDs.

Step 8: LED Module Forward Voltage (V)

To power a LED module and external power supply is required, that will ensure it receives the recommended current and voltage.  Without it, the current in the LEDs will rise exponentially with the applied voltage, as a small change in voltage leads to a large change in current, until the maximum current is reached and the module burns up.

The external power supply can be a 12/24/48VDC constant voltage power supply

You can choose the LED module to be built with a current regulation mode so it can function with constant voltage transformers for 12VDC, 24VDC or 48VDC. For this purpose, the LEDs will be placed in series, with the current regulation component after each group:

• 12VDC (3 LEDs in series + current regulation component)
• 24VDC (7 LEDs in series + current regulation component)
• 48VDC (15 LEDs in series + current regulation component)

 The options above, will determine the selection of the number of LEDs per module (at step 9), as the latter must be divisible by the number of LEDs in series. For example, for 24VDC you can have 70 LEDs per meter but not 60 LEDs. If you require 60 LEDs per meter, then the LED strip has to be at 12V or 48V.

For a project with large quantities of LED modules/strip connected in long rows, a constant voltage 24VDC circuit design is the best solution.

The Current Regulation component can be a simple resistor for Best Value Mode or a linear regulator for Premium Mode. The latter is recommended to achieve the maximum lifetime of the LEDs module.

In all cases, we will also recommend and can supply the LED drivers or transformers for your project.

Step 9: LED Quantity per Module for Each Color (pcs)

The LED Quantity per Module for each color (pcs). The module will have an equal number of LEDs for all colors/channels. Example for 15 LEDs:

• 2 in 1 TW (15 LEDs)
• TW (30 LEDs)
• 3 in 1 RGB (15 LEDs)
• 3 in 1 RGB + 2 in 1 TW (30 LEDs)
• RGB (45 LEDs)
• RGB-W (60 LEDs)
• RGB-WW (75 LEDs)
• RGB-2 in 1 TW (60 LEDs)

The LED Quantity per Strip (pcs) determines the total luminous flux and application.  Below some guidelines for Nichia 4000K CRI80 LEDs:

We recommend that the total number of LEDs that will be used to build your custom module to be as close as possible to a multiple of 5000 for each color.

Step 9: LED Module PCB Material & Quality

The LED module can have a FR-4 PCB, the choice for most LED module designs.

There are 3 quality levels:

• Economy PCB FR4: 1 PCB layer, 1mm PCB Material thickness, 1 oz PCB Copper thickness
• Best Value PCB FR4: 2 PCB layers, 1.6mm PCB Material thickness, 1 oz PCB Copper thickness
• Premium PCB FR4: 2 PCB layers, 1.6mm PCB Material thickness, 1.6 oz PCB Copper thickness

PCB has the following standard characteristics: White solder mask, black silk screen. HAL lead free surface finishing. Minimum trace spacing 0.2mm. Min hole size: 0.3mm. Minimum component spacing: 0.5mm. Minimum border spacing: 0.5mm

Step 11: Electrical Connection Type

• Solder Pads: the LED module will have 2 pairs of Solder Pads at each end, for + / - ... - connection. For LED modules with cutting unit, the 2 pairs will be present at each end of the cutting unit.
• Surface Connection: the LED module will have 2 pairs of Plug-in connectors at each end, for + / - ... - connection. For LED modules with cutting unit, the other connections points will be solder pads. The Plug-in connectors allow the cable with 18AWG...26AWG to be connected without using a soldering iron.
• Wire connection: The LED module can be built with a +/- ...- wire at one or both ends, with your specified length. We recommend 50cm maximum as to avoid voltage drop.

The multicolor LED module will have electrical circuits for each channel, with the positive being shared and the negative individual for each channel.

Step 15: Scope of Delivery

The order process and online payment can be made for the full Order Quantity (pcs) or for drawing, design or samples. Based on your choice, the scope of delivery and the payment will be:

• Order Quantity (pcs): the full quantity entered at step 1, including drawing, design and samples.
• Design and Samples Only: Drawing, Design and 5 samples of maximum 50 cm each, for the LED strip with the specifications from the order.
• Drawing Only: The drawing of the LED strips, including:

- Dimensional drawing, with position of the LEDs, solder pads, current regulation components, printed information of the PCB.

- Summary of the main characteristics (technical data of the cutting unit), including  dimensions, operation mode, voltage, current, power, color temperature, luminous flux, efficiency, CRI, LED type.

- PCB information: base material, layers, copper.

Step 16: Advanced Options

If you have the design of your LED module already made in detail or have special requirements, then we recommend filling the relevant details in the ADVANCED OPTIONS section. Only fill in the fields relevant to you. You can also provide this information via email, in the Design validation stage.

• Your part number: We can print your own part number that you fill, on the PCB of the LED strip, maximum length 10 characters. It will be printed in addition to the information required by European Union law: manufacturer, manufacturer part number, relevant technical information (such as voltage, current, color temperature, luminous flux, TC), CE, ROSH, Recycling logo.
• LED pitch: distance between center point of each LED in mm.
• LED Module max. row length (m): Many projects require multiple LED modules/strips to be powered together in a line. This information can help to properly design the PCB of the LED module.

The advanced options should not change the characteristics of the LED module and/or the order value.

OPTIONAL: Upload Files (after order is made):

Upload files: If you have specific design requirements for the custom LED module or strip, that does not change the characteristics of the LED module, you may upload them from the upload section or from the page at this link. Accepted files are PDF, Gerber, PCB file. We accept Zip, Rar format, maximum 10MB for all files. Only upload these files after you complete your order! Your order number and email address are required.
