Nichia UVC & UVB & UVC LED Modules for Industry or Healthcare

Professional Nichia UV LED solutions for Healthcare or Industrial applications

What is UV?

UV, or ultraviolet, is a type of electromagnetic radiation with wavelengths shorter than visible light, typically ranging from 100 to 400 nanometers (nm). The term "ultraviolet" refers to the fact that this radiation extends beyond the violet end of the visible light spectrum.

Nichia's UV LED Range

Nichia offers a comprehensive range of UV LEDs, covering UV-C, UV-B, and UV-A wavelengths. Each type serves specific applications, leveraging the unique properties of different UV wavelengths.

UV-C LED (280nm)

• Wavelength Range: 100-280nm
• Key Application: Disinfection
• Features:
  • UV-C LEDs, specifically those with a wavelength of 280nm or less, are renowned for their potent virucidal power.
  • Despite the potential danger to human health at high-energy levels, UV-C LEDs are extensively used for sterilization and disinfection purposes, effectively eliminating bacteria and viruses.

UV-B LED (308nm)

• Wavelength Range: 280-315nm
• Key Applications: Alternative to Mercury Lamps, Agriculture
• Features:
  • Nichia's UV-B LEDs, including the newly launched 308nm LEDs, are anticipated to replace traditional mercury lamps.
  • These LEDs are also expected to find applications in agriculture, benefiting from their specific wavelength properties.

UV-A LED (330-405nm)

• Wavelength Range: 315-405nm
• Key Applications: UV Curing, Inspection, Counterfeit Detection
• Features:
  • Nichia's UV-A LEDs, available in the 330-405nm range, have been in use for over 20 years.
  • They are essential in applications where defect tolerance is minimal, such as:
    • UV Curing: Used in semiconductor manufacturing processes to cure materials efficiently.
    • Inspection Equipment and Processes: Utilized for precise inspection tasks, including counterfeit detection and quality control.

Nichia UV LEDs: the highest output UV LEDs with long lifetime and high efficiency

UV LEDs are light-emitting diodes that emit ultraviolet radiation. Due to the high-energy levels of UV light, ensuring the reliability of UV LEDs is generally challenging. However, Nichia addresses this challenge by managing the entire production process, from wafer manufacturing to product shipment, ensuring the high reliability of its UV LEDs.

Key Features of Nichia's UV LEDs

1. High Reliability:

   • Nichia guarantees the reliability of its UV LEDs through comprehensive control over every stage of the production process. This integrated approach ensures consistent quality and performance.

2. Full Range of UV LEDs:

   • Nichia offers a complete range of UV LEDs, including UV-C, UV-B, and UV-A. This variety allows customers to select the appropriate wavelength for their specific applications, ensuring optimal performance and effectiveness.

3. Versatile Applications:

   • Nichia's UV LEDs are suitable for a wide range of uses, from medical treatments and sterilization processes to curing and analytical instruments. The availability of different UV wavelengths makes these LEDs highly versatile.

4. Advancing Mercury-Free Solutions:

   • Nichia's expansion of its LED portfolio to include the primary wavelengths emitted by UV mercury lamps is accelerating the shift towards LED technology. This transition supports the movement towards a mercury-free society, promoting safer and more environmentally friendly alternatives.

Applications of Nichia's UV LEDs

Nichia's UV LEDs are widely used for various applications, leveraging their specific wavelength properties to achieve desired results. Some common uses include:

• Sterilization and Disinfection: UV-C LEDs are particularly effective in killing bacteria and viruses, making them ideal for sanitizing water, air, and surfaces.
• Medical Treatments: UV LEDs are used in phototherapy for skin conditions and other medical applications.
• Curing Processes: UV LEDs are employed in curing adhesives, coatings, and inks, providing efficient and fast curing solutions.
• Analytical Instruments: UV LEDs are utilized in various scientific instruments for detecting and analyzing substances.

Compact LED Modules & Strips with Nichia UV LEDs

Our LED modules & strips feature the latest generation Nichia UV LEDs on Aluminum PCB are easy to install and allow smoother integration of UV light in many industrial, medical or commercial applications.

Multiple possibilities of UV application with our easy-to-use PCB LED Modules

With star or square PCB modules with one UVC, UVB or UVA Nichia LED you can design and easily build your UV lighting device, from large fixtures to small spotlights. Radiant flux ranges from 60mW to 5000mW, based on the LED. The compatible lens and drivers add to the ease of building a lighting fixture with many applications such as disinfection, lithography, curing, photocatalyst or agriculture.

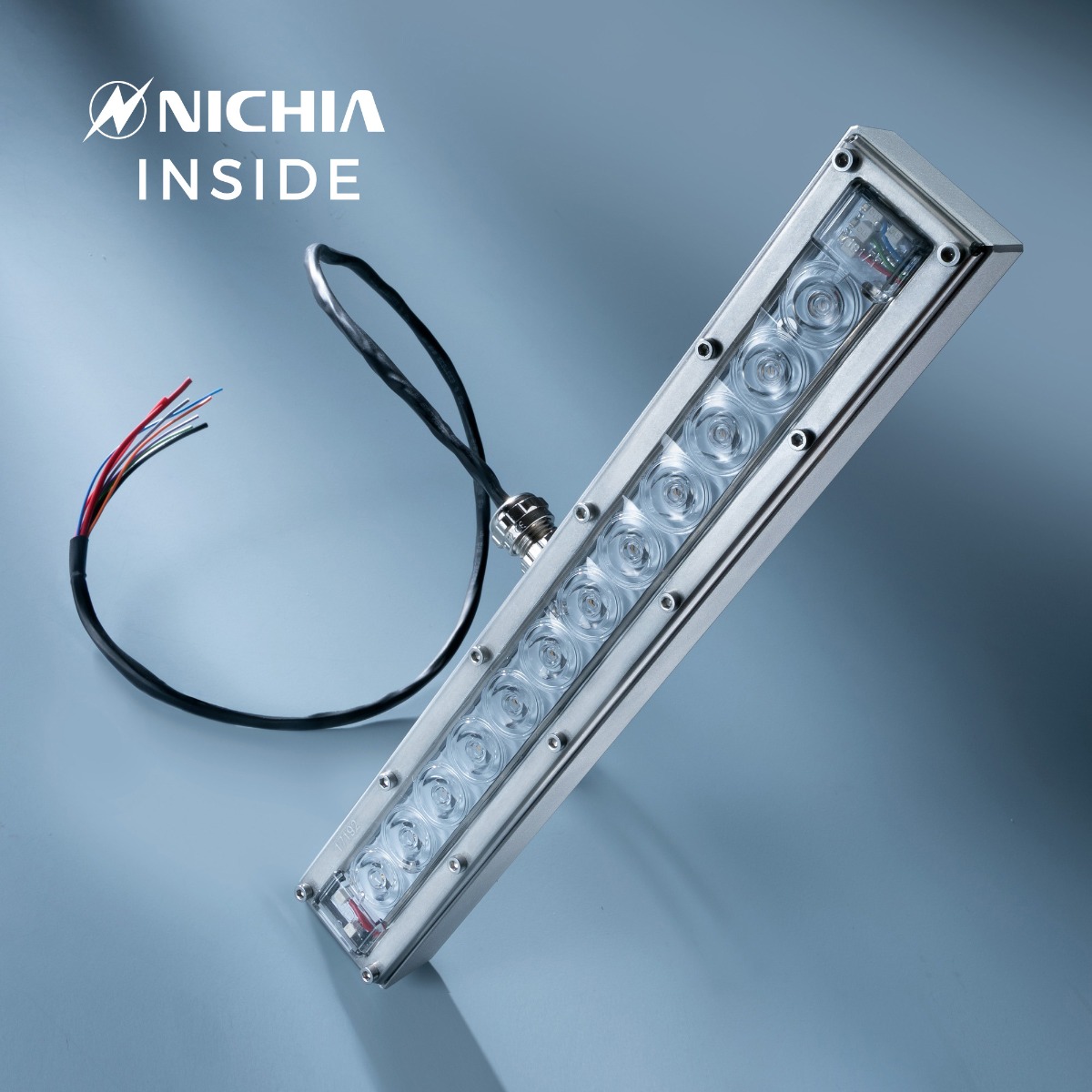

Nichia Violet UVC LED Module with Lens

The Violet UVC LED module is an effective and reliable solution for the decontamination and sterilisation of surfaces, air and liquids. Due to its high radiation output and special wavelength for killing bacteria, germs and viruses, it is an optimal solution for various professional applications.

The Violet UVB LED Module can be an alternative technology to mercury lamps or be used in agricultural applications and more.

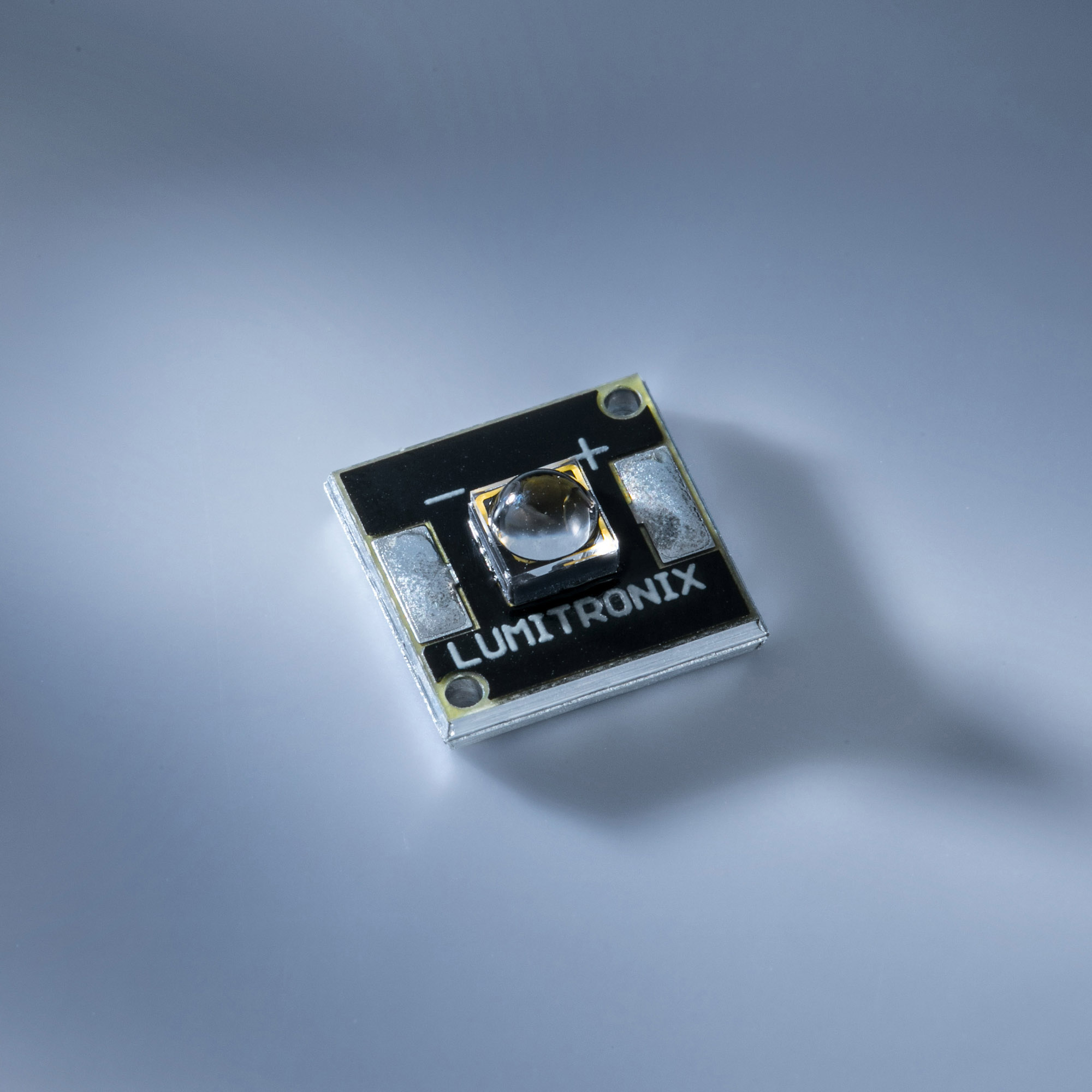

Nichia UVA LED Module

The Nichia UVA LED Module is equipped with one Nichia 434, 333, 276, 233 or 119 UVA Series LED, with PCB options 10x10mm, 21x19mm or 30x30mm and wavelength options: 330nm, 365nm, 375nm, 385nm, 395nm or 405nm.

Nichia UVB & UVC LED Module

The Nichia UV LED Module is equipped with one Nichia 434, 334 UVC or UVB Series LED, with PCB options 10x10mm, 21x19mm or 30x30mm and wavelength options: 280nm or 308nm.



PowerBar V3 UVA Nichia LED Module With Lens System

The PowerBar V3 UVA LED modules are high-quality lighting solutions designed for applications demanding significant radiant power per square meter, including medical, industrial or commercial. Each 28 cm module features 12 powerful Nichia UVA LEDs, delivering an impressive UV light output of up to 20,000 mW at a 120° angle. The aluminum PCB enhances heat management, and an NTC resistor allows for temperature monitoring via an external control unit.

One PowerBar consists of 12 connected segments, each measuring 28.5 x 23.85 mm, which can be separated and used individually. Terminals on the first and last sections simplify connection without soldering, enhancing ease of use.

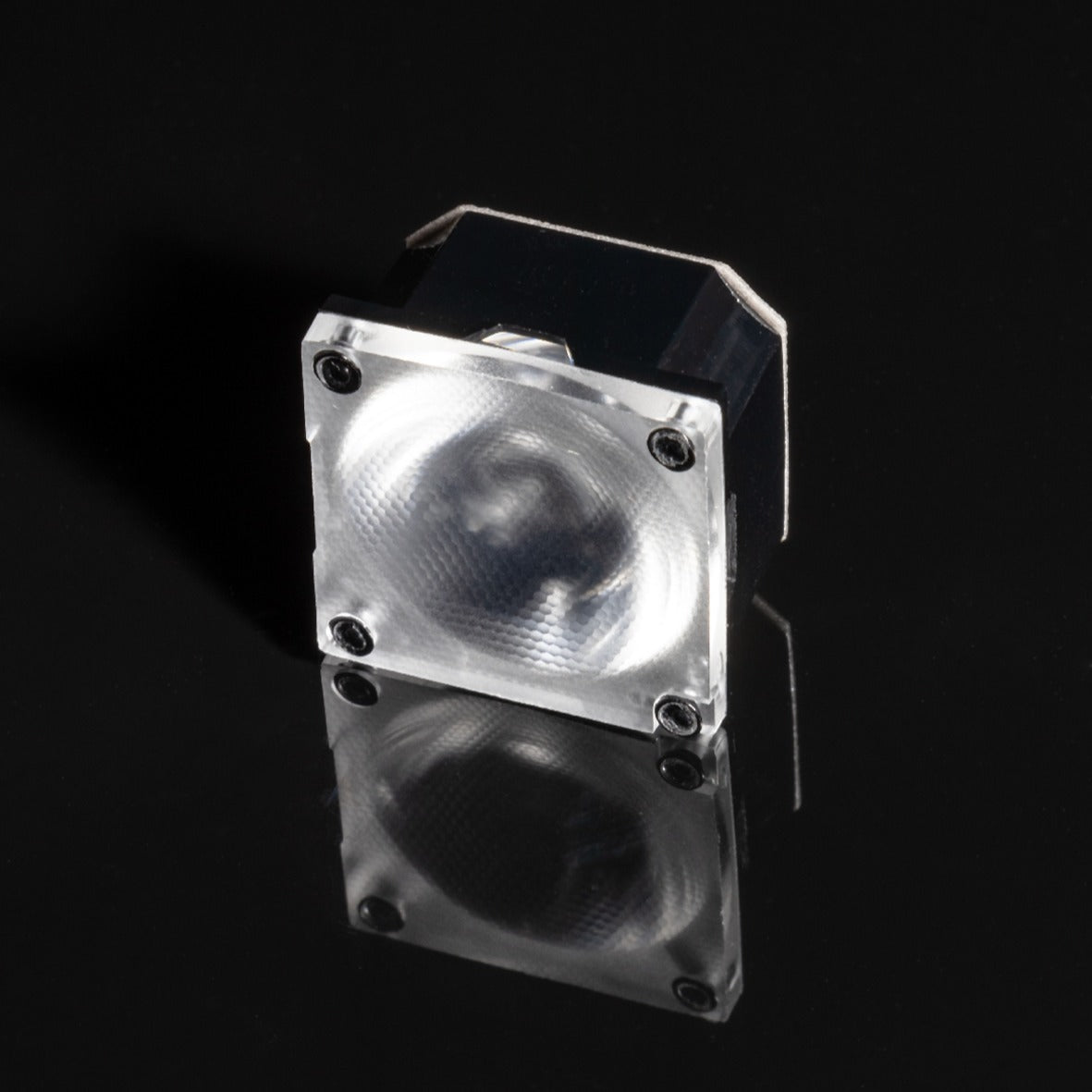

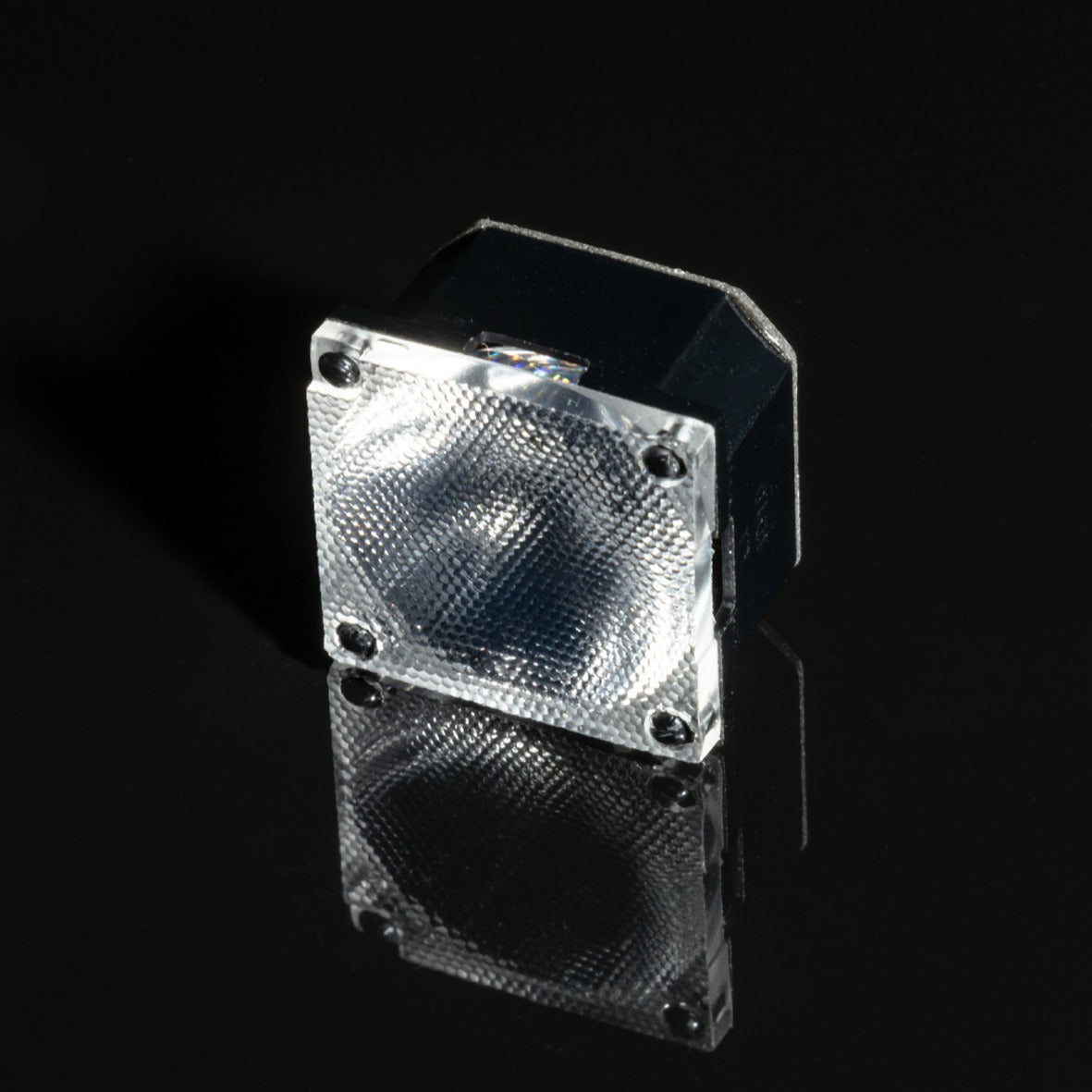

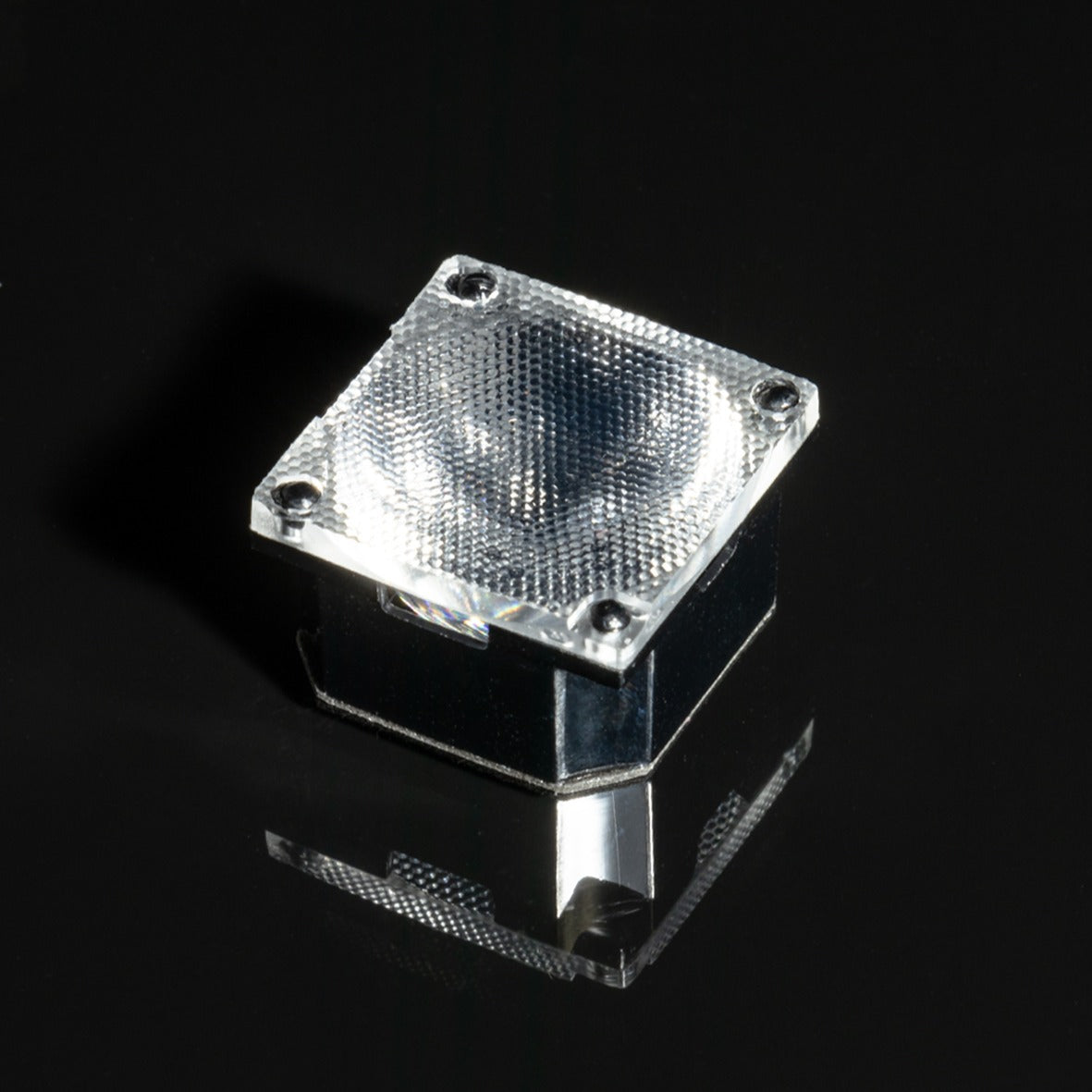

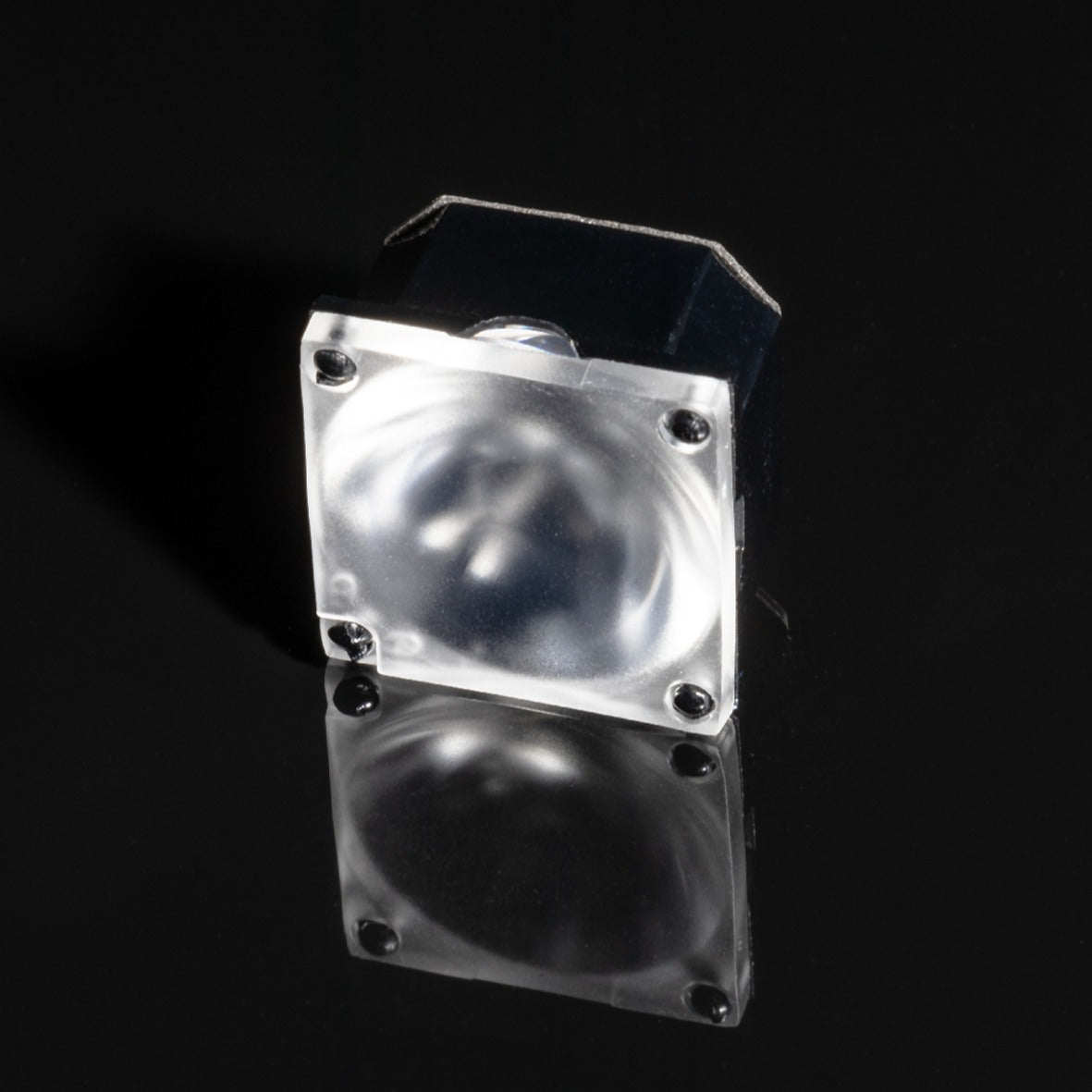

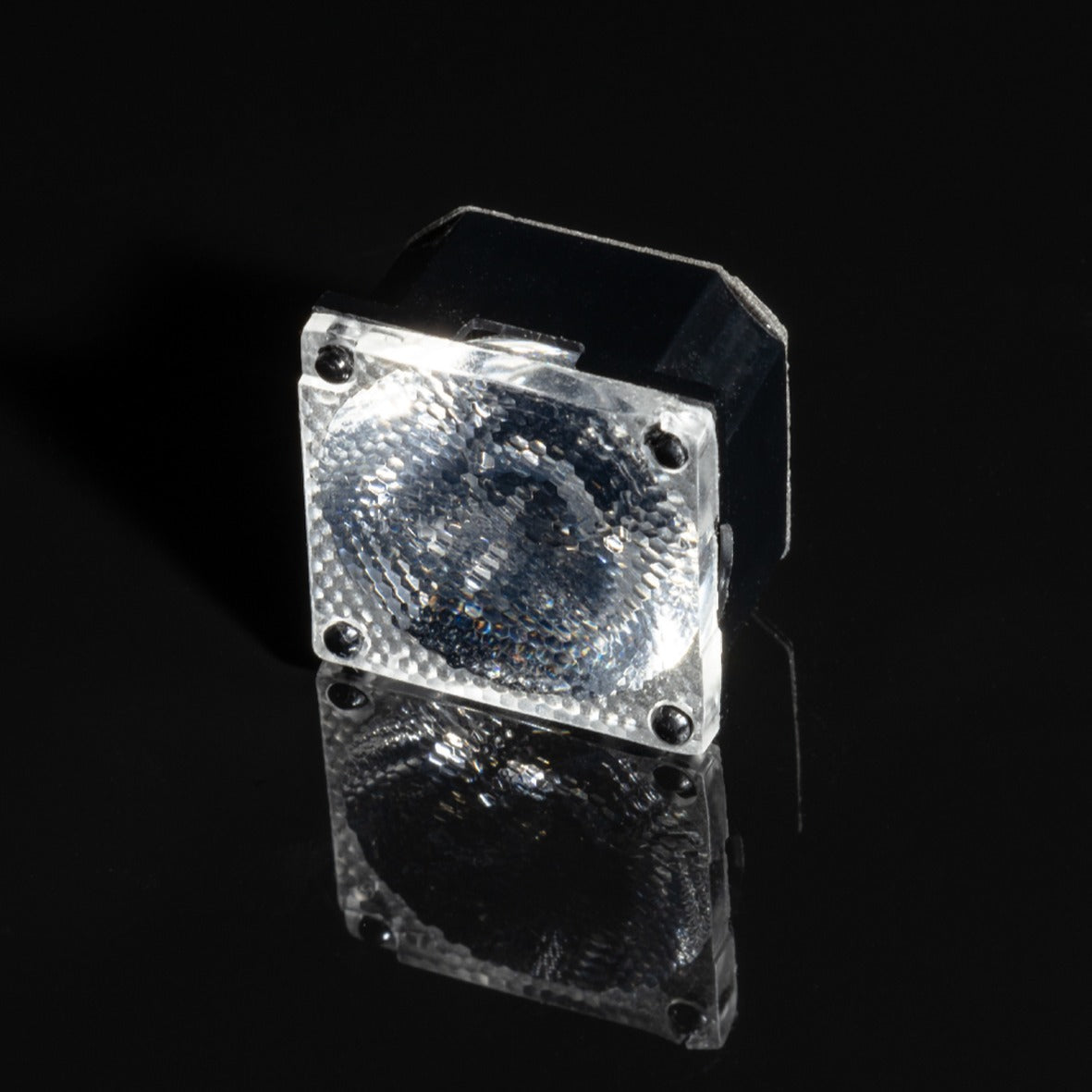

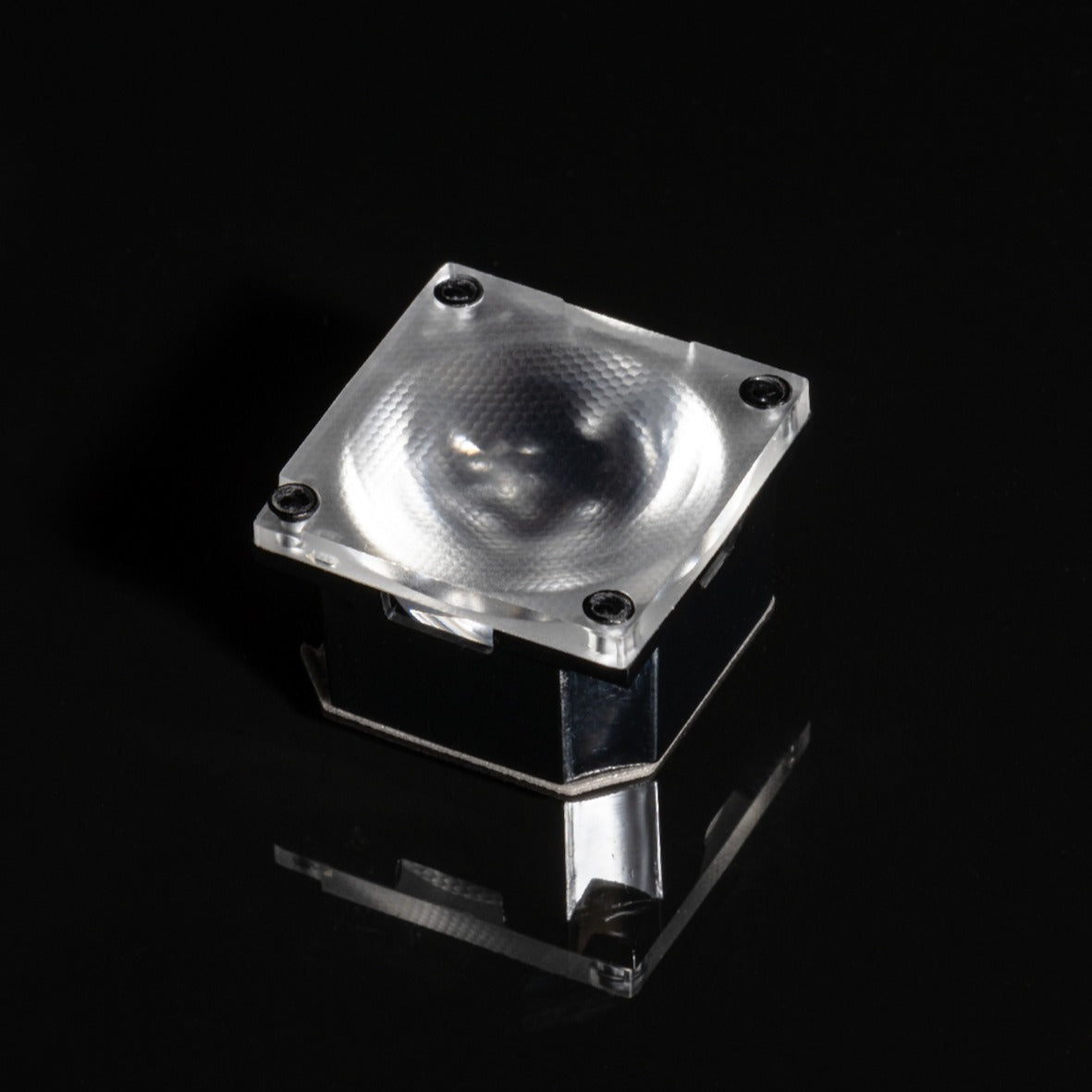

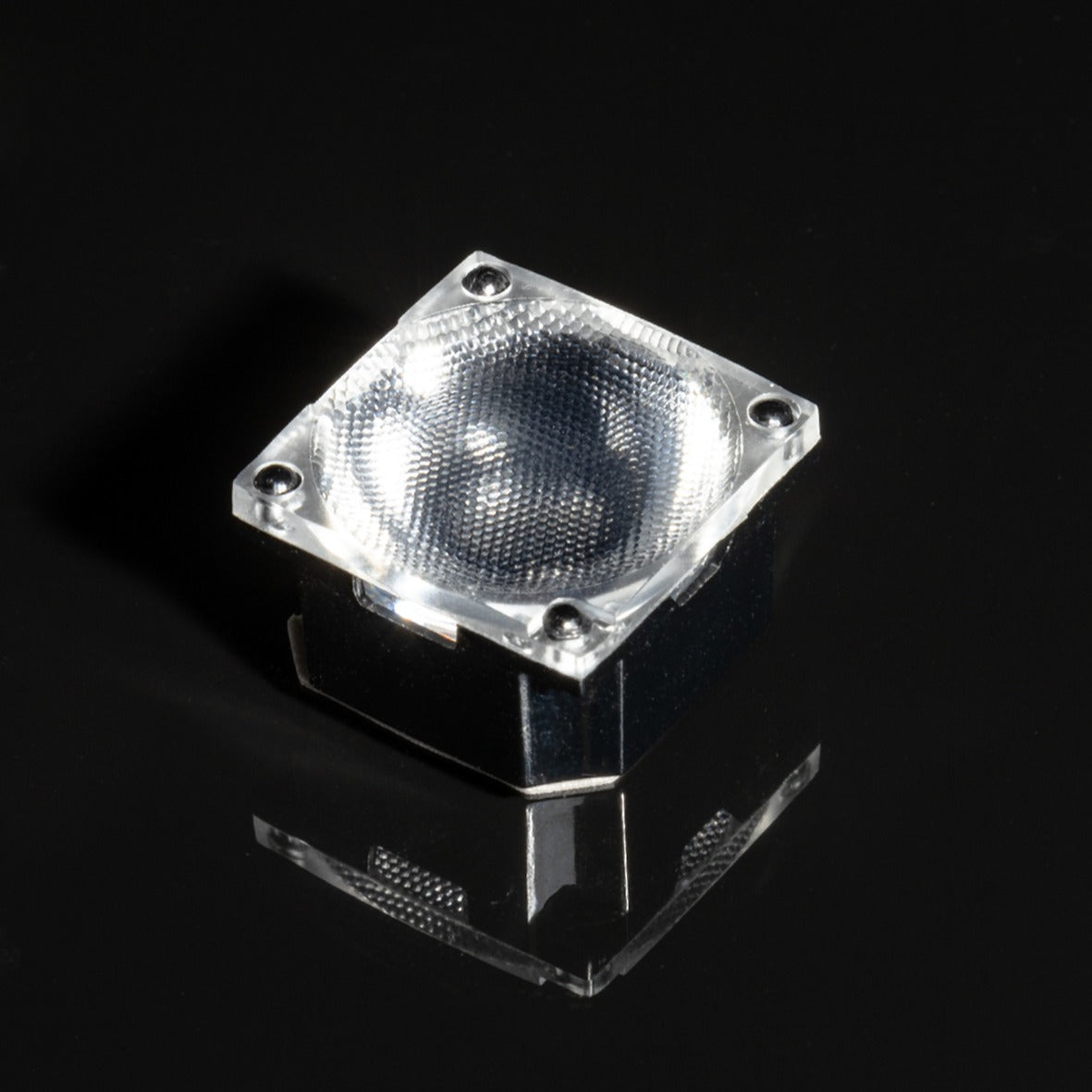

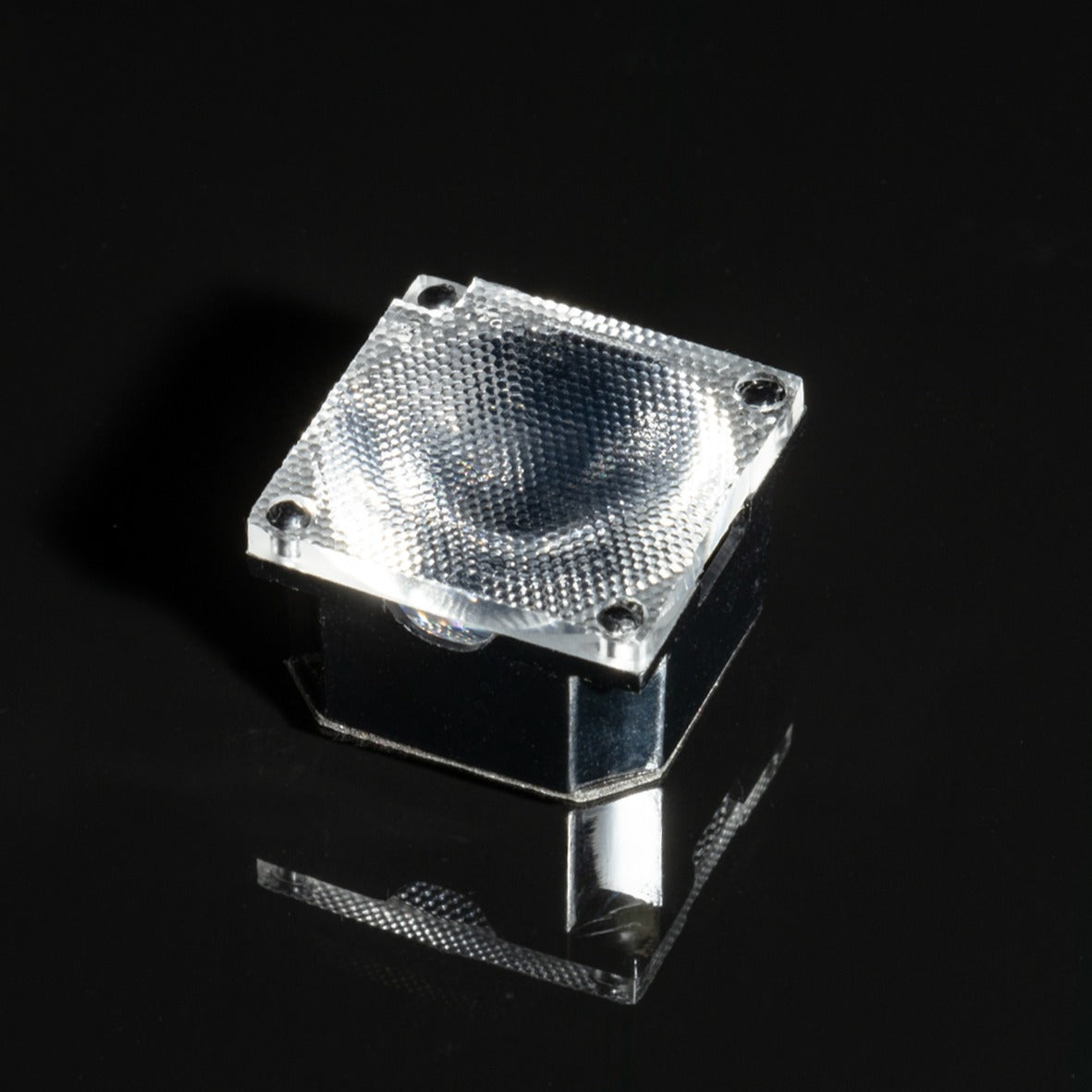

To increase versatility, the PowerBar V3 modules include holes for easy lens mounting, compatible with lenses from Ledil and Carclo available in our shop. These modules are designed for dimming and constant current operation, ensuring consistent performance. The PowerBar V3 system's accessories, such as various heat sinks, mounting clips, and individual lenses, allow for the creation of custom luminaires tailored to specific needs.

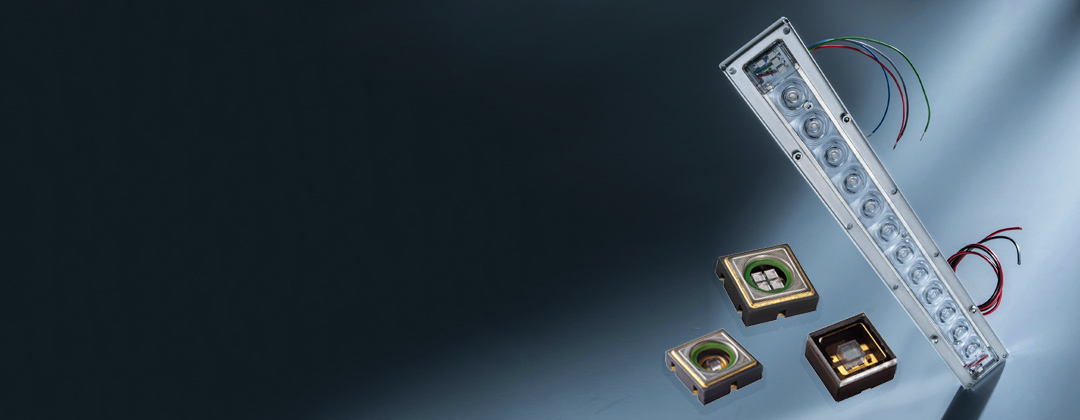

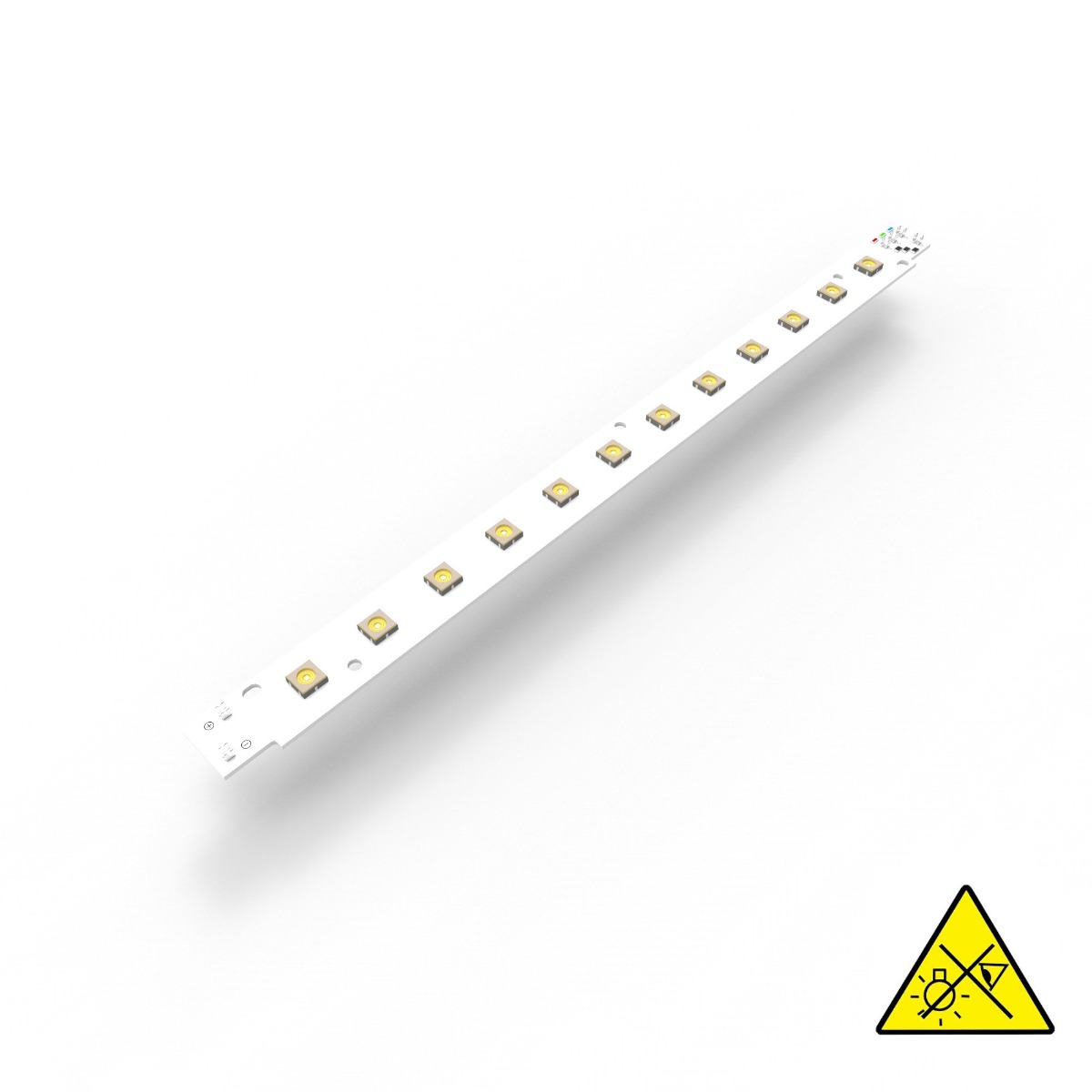

Violet UV LED Strips & Irradiation System

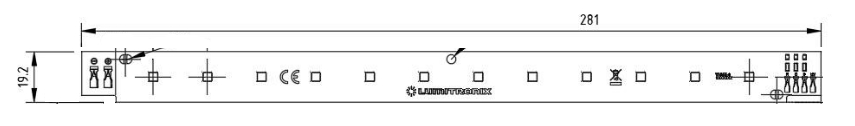

The Violet UV LED strips are the platform on which complete UV irradiation systems are built. Each strip is 281 mm long and carries 12 UV LEDs on an aluminium PCB, at a fixed pitch matched to the LEDiL VIOLET-12X1 optics family. Because the optic is designed around the board, the beam is defined and repeatable — the irradiance reaching your target can be calculated from the optical data instead of estimated on site.

Wavelengths cover the full germicidal and photobiological range: UVC at 265nm, 275nm and 280nm for disinfection and sterilisation of surfaces, air and liquids; UVB at 295nm, 308nm and 310nm as a mercury-lamp alternative for phototherapy, material testing and agriculture; and UVA at 330nm for curing, fluorescence and inspection. Radiant output reaches 1800mW per strip, with LEDs from Nichia, Bolb, ams OSRAM, Seoul Viosys and NKFG. All wavelengths are above the ozone-formation threshold, so the systems operate ozone-free.

The Violet strip can be used as an individual LED module or as the basis of a complete UV irradiation fixture. A dedicated aluminium housing, matched optics, constant-current drivers and dimming/control solutions are available, including configurations with PowerController V2, LEDIM/D1, LEDIM/D2 or Mean Well LCM drivers. This makes it possible to build anything from a simple dimmable UV source to a controlled multi-module irradiation system.

For OEM projects, we can also assist with selecting the wavelength, optics, working distance, number of modules and driver configuration according to the required irradiation area and target irradiance.

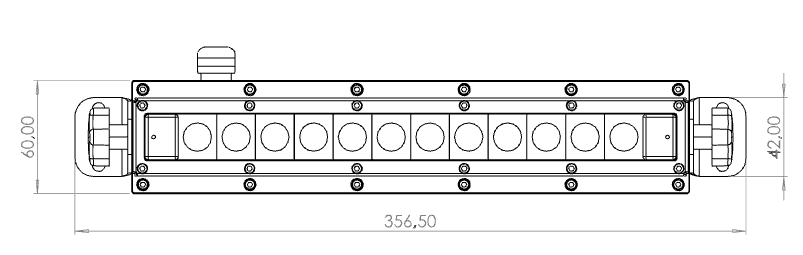

Violet300–1200 Complete UV Light System

The Violet UV light systems take the Violet strip platform and deliver it as a finished, sealed luminaire with the driver and control electronics already built in. Each fixture combines the 12-LED UV boards with matched LEDiL optics inside a hard-anodised aluminium housing rated IP65, cooled passively by free convection with no fans and no maintenance. Connect a 30-50V DC supply to the 3m silicone cable and the system runs — no external driver to specify, no constant current to calculate, no optic to align.

Four sizes scale by repeating the same module: Violet300 (12 LEDs, 296.5mm, <29W), Violet600 (24 LEDs, 593mm, <58W), Violet900 (36 LEDs, 889.5mm, <86W) and Violet1200 (48 LEDs, 1186mm, <116W). Each is available in four wavelengths — 265nm and 280nm UVC for disinfection and sterilisation, 308nm UVB as a mercury-lamp alternative for phototherapy and material testing, 330nm UVA for curing, photocatalysis and fluorescence — and in four beam patterns including an oval optic for conveyors and continuous web material. Radiant output ranges from 680mW to 4100mW depending on configuration, all ozone-free.

64 configurations are available, built to order. Tell us the target, distance, area and required dose and we will calculate the configuration for you.

Compact UVA / UVC Nichia PCB LED Modules

Several types of Nichia UV LED Modules equipped with one Nichia with PCB options 10x10mm, 21x19mm or 30x30mm are available for small projects or sample testing.

Compact UVC Bolb LED Modules

Bolb Inc. is a U.S.-based manufacturer that ranks as a leading developer of the industry's most efficient UVC LEDs. Its technical expertise ranges from epitaxy to the manufacture of equipment and complete UV systems. Bolb's ultra-efficient LEDs are being integrated into a new generation of UVC LED Modules for home appliances, medical devices and industrial processing equipment.

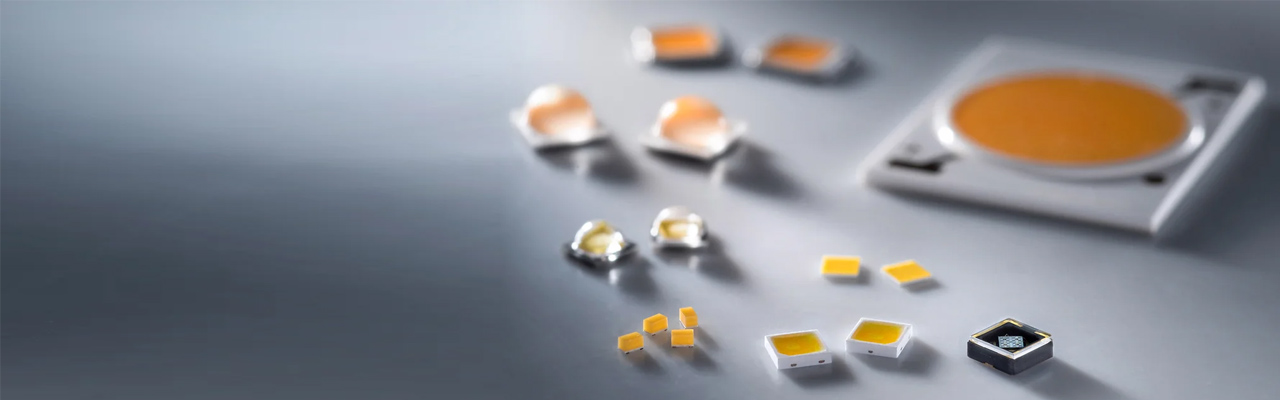

LEDs from Nichia, the pioneer in the LED industry

Nichia is not only the inventor of the blue light-emitting diode, which is the basis of today's white LEDs. The Japanese company is considered a pioneer in the LED industry. As a competent supplier of LED technology, we supply one of the widest LED ranges of all leading manufacturers for every lighting solution.

Nichia UVA and UVC LEDs

We can supply the complete range of UV LEDs from Nichia UVC LED. Delivery for out of stock LEDs is 2–4 weeks. UVA or UVC emitter LEDs from our stock in Germany can be found below:

Bolb UVC LEDs

US-based Bolb is a leading supplier of high-power UVC solid-state lamps and is dedicated to helping create a healthier world through highly specialized UV solutions. Bolb Inc. has deep expertise in all areas of UV LED technology, from epitaxy to device manufacturing.

The 265nm and 275nm High-Power UV-C LEDs by Bolb, have remarkable efficiency and performance, makeing them perfectly suited for industrial disinfection and sterilization applications.

Technical support for building your UV system

We can recommend the components to build a UV system for your application. Please contact us for details on your project.

Important information:

• Safety precautions when using UV light sources must be respected, as detailed in  IEC Standard 62471:2006, ‘Photobiological Safety of Lamps and Lamp Systems’, EU-Directive-2006-25-EC or the applicable standard for your country
• We are not responsible for the damage, on the health of well-being or to property for the incorrect use of UV light sources
• For killing viruses or bacteria with UV, they must be directly exposed to the radiation. Dirt and other impurities that shade the microorganisms will severely limit the effectiveness of UV disinfection
• UV disinfection is only one of the weapons to fight virus and bacteria. Personal hygiene (washing of hands), not touching the face, using disinfection on dirty surfaces must also be practiced when fighting a pandemic.
• The percentage of the disinfection for any given virus or bacteria on a surface, object, in the air, water or on clothes is depended on the type of pathogen, the wavelength of the UV radiation, its irradiance in Watts/m2 and the time of exposure, measured in seconds, minutes or hours.
• 100% disinfection is not guaranteed. Similarly, no vaccine, medicine or surgical procedure is 100% effective. UV radiation will just reduce the chance of contamination of the surface, air or objects with viruses or bacteria to cause a disease
• Examples of combination of wavelength, radiance and exposure time for some common pathogens are found in the article in our blog
