4-Channel LED Strips & Modules (RGB-W, Multi-Color)

4-Channel LED Strips & Modules for RGBW, Tunable White, Dynasolis or Multicolour applications

Nichia 4-Channel LED Modules: High-Tech LED Lighting in White or Color

Our range of 4-channel LED modules and strips can meet a wide range of dynamic lighting applications, including RGB-White or Multi-Color.

These LED modules use Nichia 757 LEDs or direct mountable, packageless, Direct Mountable Chip LEDs, both with cutting edge innovative technologies such Nichia Optisolis, Vitasolis or H6 (Highest Efficacy CRI90 LEDs).

• Nichia 757 LEDs are the Industry leading 3030 Mid-power LED, with the highest luminous efficacy (up to 222 lm/w) and reliability (up to 100.000h L70 lifetime). Each LED has a typical consumption of 0.2W at 65mA, for a luminous flux up to 45 lm.
• Nichia Direct Mountable Chip is a chip scale LED which has been developed through Nichia's technology and expertise in phosphors and LEDs. By making the LED package size equal to the light-emitting surface size, it is possible to achieve the largest class of luminous flux density in a limited space within a luminaire.

RGB lighting

RGB lighting uses a combination of three colors (Red, Green, Blue) to obtain all the other colors on the visible spectrum. White color is also possible, although with a narrow spectrum and low CRI.

RGB LED strips or modules can use individual Red, Green and Blue LEDs placed closely to each other or a 3:1 LED with Red, Green and Blue Chips.

Individual color LEDs have a significantly higher luminous flux but struggle to deliver pure combined colors when installed into narrow light fixtures, such as linear lights or slim LED panels.

3:1 RGB LEDs have pure combined colors, but their reduced luminous flux limits their application to architectural or display lighting.

RGB lighting requires a 3-Channel LED module or strip.

You can configure LED modules or strips with both of the above systems for RGB light.

RGB-White lighting

By adding a White LED to the combination of RGB LEDs or chips, white light with a high-quality spectrum can be obtained, at the color temperature of the LED.

4-channel LED module is required for this purpose and our customizable modules allow the selection of white LED from 1800K to 7800K.

With our 4- channel LED strip or modules and Powercontroler light control system, you have a complete, high-quality system for RGB-White or Multicolor Lighting, with easy control, best light quality, the highest energy efficiency and the longest life possible, up to 100,000 hours.

You can choose from:

• SmartArray 4-channel compact LED module for RGB-White or Multicolor light for spotlights
• BackMatrix 4-channel 28x28 cm LED modules for RGB-White or Multicolor light for back-lighting applications

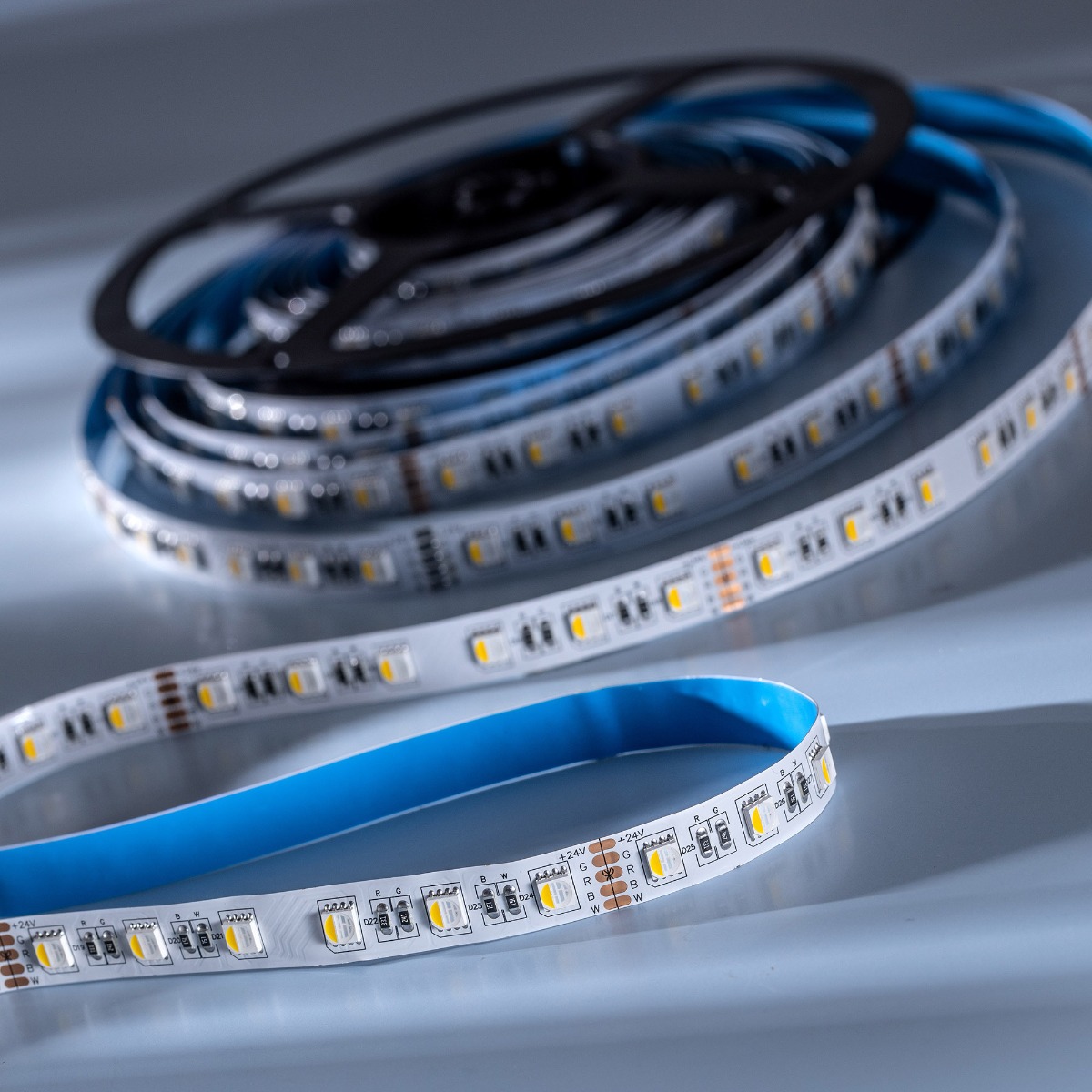

• LumiFlex 4-channel LED strips for RGB-White Lighting via cove lights with indirect light or linear lighting systems with direct light

Multi-Color Lighting

Special Multi-Color LED modules can be configured with our customizable LED modules. For example, a module with warm white LED for morning light, a pure white and cold white for daylight lighting and a Red LED for night lighting or certain emergency scenarios.

Enhanced Horticulture LED modules can be built with Hortisolis LEDs combined with Blue and Red LEDs.

Ready to transform your vision into reality with the perfect 4-channel LED system? Order now and let us illuminate your path to innovation, ensuring your project shines brighter than ever.

Customizable 4-Channel LED Modules, Made in Germany

BackMatrix 4-CH Nichia LED Modules

BACKMATRIX 4-CHANNEL NICHIA LED MODULES

(49+49+49+49) x Nichia 757 LED

White 1800-7800K with CRI70-99 & Color LEDs

Build Light shapes with 290 x 290mm module size

FR4 PCB with Plug & Play system

CUSTOMIZE & BUY

SmartArray Q4 4-CH Nichia LED Modules

SMARTARRAY Q4 4-CHANNEL NICHIA LED MODULES

(1 + 1 + 1 + 1) x Nichia CSP 1W LED, up to 225 lm / channel

White 1800-6500K with CRI80-90 & Color LEDs

Aluminum PCB, 13x13mm Square, optional COB holder

Constant current 300-700mA

CUSTOMIZE & BUY

Ready-made 4-Channel LED modules, Made in Germany

For sample evaluation, prototypes or small-scale projects, our ready-made 4-channel LED modules or strips are available in several configurations.

PowerControler for multichannel control

With our new PowerControler range of control units, you are empowered to control 4-channel LED modules, including the color, white color temperature and intensity levels of light in all the required ways of Human Centric Lighting and beyond. Tunable White, RGBW and even single color LEDs can be controlled via dimmers, switches, your smartphone or the DALI protocol.

The PowerControler can control constant voltage 12V or 24V LED strips by using only a dimmable power supply, or modules with constant current (in connection with the compatible LED driver as below).

Accessories for LED strips

The LumiFlex LED strips that are 8mm wide can be combined with profiles, to create luminaires with a minimalist design. Our profiles use high-quality materials and finishes, being aimed at the German market. The profiles protect the strips from dust, mechanical shocks and provide cooling for even longer life.

The Nichia LED quality

The Japanese company Nichia, our recommended choice for the LEDs used on LED strips or modules, is the world leader in the LED market, with a market share of over 25% and the longest experience in the field. Nichia is the inventor of the white LED production technology, receiving the Nobel Prize for this invention.

The very long life of Nichia 757 LEDs (minimum 100,000 hours), exceptional luminous efficacy, superior light output and spectrum qualify our LED strips for long-term use even for the most demanding applications.

The difference between the quality and performance of the strip with Nichia LEDs and a low-cost LED strip, is evident from the first light, and in time the gap increases even more.

1. Longest-lasting light: Nichia LEDs last 90% longer

After 10,000 hours of operation, a Nichia 757 LED keeps 97% of the initial luminous flux, under high operating conditions, shining like in the beginning, while 90% is maintained even after 60.000 hours.

In most applications, this translates into an effective 100,000 hours lifetime or 10 years of continuous operation in a shopping center, decades of operation in a home.

In contrast, a low-cost LED loses up to 60% of the initial value in less than 10,000 hours, approximately one year of operation. It becomes too weak for the initial purpose in just 1,000-3,000 hours.

The evolution of light output for the Nichia 757 LEDs is demonstrated by 10,000 hours of testing, according to the LM-80 standard. Lifetime (light at 70%, 80% and 90%) is calculated using TM-21, both internationally recognized standards and used by all major manufacturers.

Click here to download the 10000 hours, Nichia 757 LED L80 lifetime test.

2. More light for less power: Nichia LEDs are 65% more energy efficient

The design and material quality influence the luminous efficacy and the LED light output. Nichia 757 LEDs have the highest luminous efficacy on the market, more than 230 lumens per watt, compared to a low-cost LED that has less than 80 lumens per watt.

The difference of more than 65% in luminous efficacy is outstanding when seen in practice. After a cove light retrofit from low-cost LED strips to Nichia LED strips, the illumination increased by three to five times for the same power consumption:

3. Uniform white light: Nichia 757 LEDs are color temperature sorted

By implementing the 3 Macadam Elipse sorting standard in our manufacturing, ensures that Nichia LED strips for a project will have the same white color temperature. Uniformity is also be maintained for future projects.

In contrast, low-cost LED strips are not manufactured with the Macadam Elipse sorting standard, being delivered with many different color temperatures of white. Often, differences are even on the same reel. Moreover, after just a few thousand hours, the low-cost LEDs change their color temperature, resulting in a rainbow effect with yellow and blue hues.

After a cove-light retrofit from low-cost LED strips to Nichia LED strips, the importance of the 3 Macadam Elipse sorting standard is clear.

4. Natural light spectrum: Nichia 757 LEDs have CRI up to 99

Nichia LEDs, with CRI up to 99, reproduce colors as naturally as possible, closely matching the spectrum of sunlight. This capability ensures that colors are rendered accurately and vividly, enhancing the visual experience in any application

Low-cost LEDs only have a maximum CRI of 80, their light distorting color shades, especially warm colors, such as red, orange or brown.
