LumiFlex Nichia, Samsung, Seoul, Cree LED strips, CRI70-99

Professional LumiFlex Flexible LED Strips, Made in Germany, Nichia/Cree/Samsung/Seoul LEDs, CRI70-99, 1800-7800K, 12/24/48V

Reel to Reel Flex production line in Germany, with State-of-the-art machines and the latest Technology.

LumiFlex LED strips, innovation that bring your visions to life

LumiFlex Flexible LED Strips can meet your requirements perfectly, from light intensive, full spectrum lighting for commercial, industrial applications, to energy efficient, long-lasting lighting for residential and hospitality applications.

Designed and built in our Reel-to-Reel Flex production center in Germany, they embody precision and innovation that bring your visions to life with cutting-edge LED technology.

Your project's specific needs perfectly met

Our "Build Your Own" Flexible LED strips can be tailored to your project's specific needs including light characteristics, intensity, dimensions, connections, and systems, ensuring a perfect match for your requirements.

Light characteristics of LumiFlex can be defined in terms of CRI from 70 to 99 and color temperature from 1800K to 7800K for White LED. LumiFlex with Colored Nichia 757 LEDs is also available, in Azure, Blue, Blue-Green, Green, Yellow and Red.

Such extensive choice is made possible by the best quality, most competitive LEDs from the leading manufacturers, such as Nichia, Cree, Samsung, or Seoul Semiconductor. Our "Build Your Own" Flexible LED strips will always use the latest version of these LEDs.

The light intensity of LumiFlex LED strips is determined by the number of LEDs per meter. Choices include low density (up to 60 LEDs per meter), medium density (60 to 140 LEDs per meter) or high density (up to 240 LEDs per meter).

Technical personalization choices include all common LED strip widths (5mm to 20mm) and voltage options (12V, 24V or 48V). Additionally, the LumiFlex strip can be made waterproof, IP65 or IP67.

Cutting-edge LED lighting

LumiFlex can be built with the latest high-tech LED lighting technology from Nichia or Seoul Semiconductor, for a truly amazing result:

1. Nichia Optisolis Full Spectrum CRI99 (READ MORE)

2. Seoul Semiconductor SunLike Full Spectrum CRI95+ (READ MORE)

3. Nichia H6, the highest efficacy CRI90 LEDs (READ MORE)

4. Nichia Vitasolis, special lighting for a vibrant life (READ MORE)

5. Nichia HPS, special lighting for road and outdoor lighting (READ MORE)

LumiFlex IP67 LED strips with innovative lamination system

Flexible LED modules can be made waterproof IP67 with our innovative LumProtect® waterproof protection system.

LumProtect® - Innovative Lamination Technology for IP67 waterproof LED strips (READ MORE)

Ready to transform your vision into reality with the perfect LED strips? Order now and let us illuminate your path to innovation, ensuring your project shines brighter than ever.


Banner
Customizable Flexible LED Modules & Strips, Made in Germany
Nichia / Samsung / Seoul / Cree / Osram LEDs
30 - 240 LEDs/m, up to 6000lm/m
5-50 meters Length, 5-20 mm Width
12V / 24V / 48V, with optional IP67 Lumprotect
Azure, Blue, Blue-Green, Green, Yellow or Red
30 - 240 Nichia 757 3030 LEDs/m
5-50 meters Length, 5-20 mm Width
12V / 24V / 48V, with optional IP67 Lumprotect
Banner
Ready-made Flexible LED Strips, Made in Germany

For sample evaluation, prototypes or small-scale projects, our ready-made LumiFlex flexible LED strips are available in several configurations.

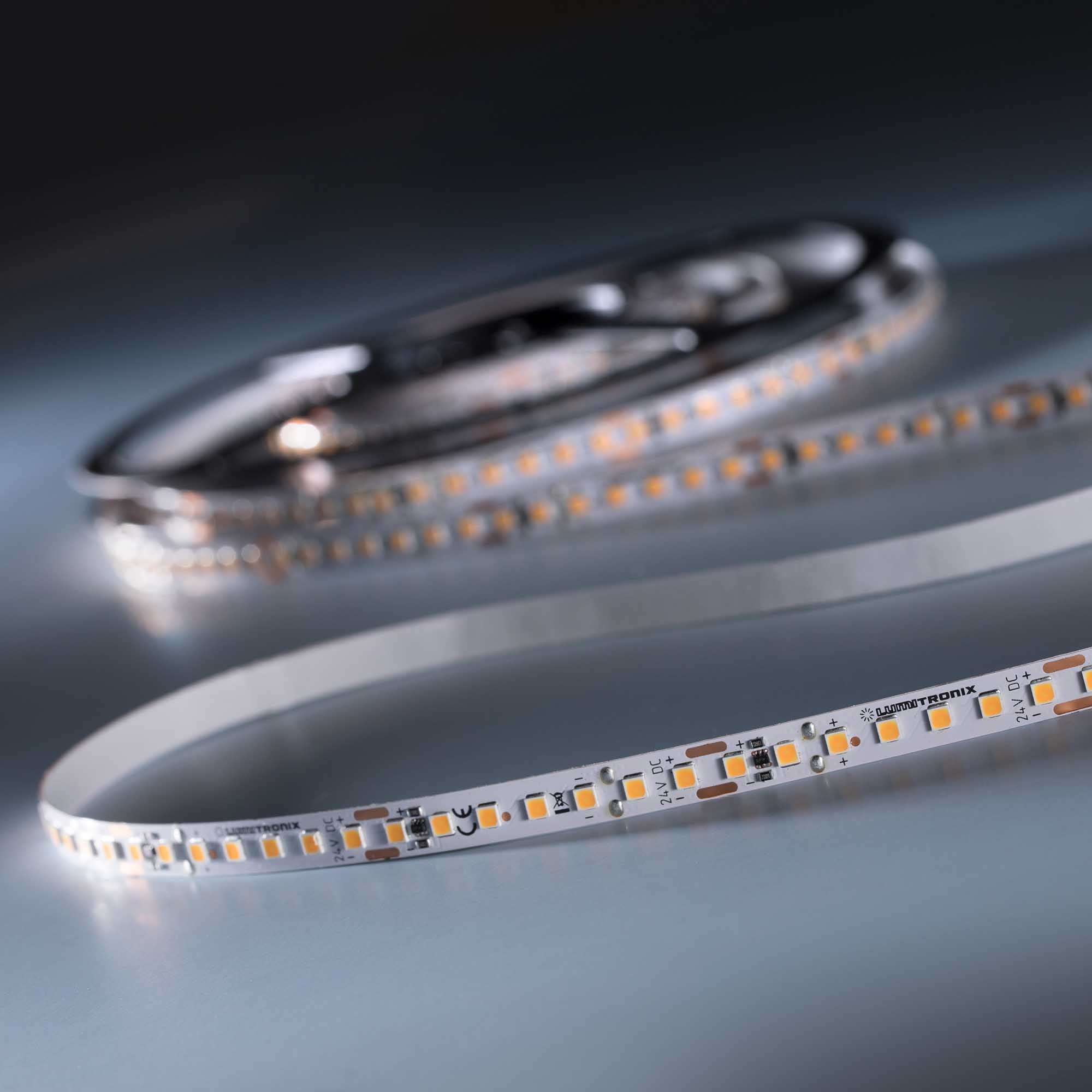

LumiFlex3098+ Toshiba-SSC LED Strip Sunlike, CRI98, 5m reel, 8mm wide, 24V, 140 LEDs/m, 19.2W/m

LumiFlex3095 Seoul Flexible LED strips, CRI95, 5m reel, 8mm wide, 24V, 140 LEDs/m, 19.2W/m

LumiFlex3080 Seoul Flexible LED strips, CRI80, 5m reel, 8mm wide, 24V, 140 LEDs/m, 19.2W/m

LumiFlex2090 Samsung Flexible LED strips, CRI90, 5m reel, 8mm wide, 24V, 70 LEDs/m, 12.6W/m

LumiFlex2080 Nichia or Samsung Flexible LED strips, CRI80, 5m reel, 8mm wide, 24V, 70 LEDs/m, 12.6W/m

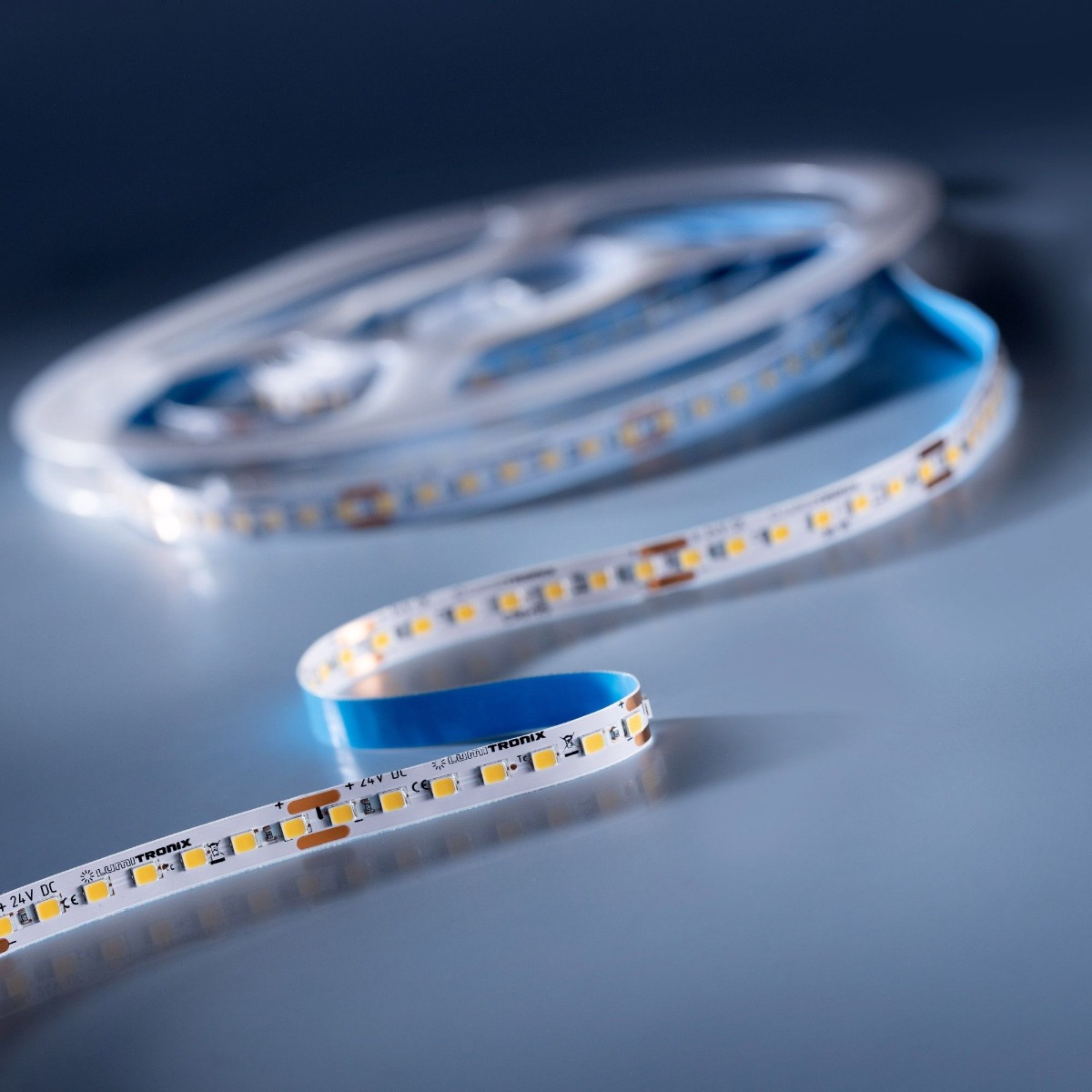

LumiFlex1095 Seoul Flexible LED strips, CRI80, 5m reel, 8mm wide, 24V, 140 LEDs/m, 7.2W/m

LumiFlex1080 Seoul Flexible LED strips, 8mm wide, 4.14W/m



The Nichia LED quality

The Japanese company Nichia, our recommended choice for the LEDs used on LumiFlex strips, is the world leader in the LED market, with a market share of over 25% and the longest experience in the field. Nichia is the inventor of the white LED production technology, receiving the Nobel Prize for this invention.

The very long life of Nichia 757 LEDs (minimum 100,000 hours), exceptional luminous efficacy, superior light output and spectrum qualify our LED strips for long-term use even for the most demanding applications.

The difference between the quality and performance of the LumiFlex strip with Nichia LEDs and a basic LED strip, with low-cost LEDs, is evident from the first light, and in time the gap increases even more.

1. Longest-lasting light: Nichia LEDs last 90% longer

Longest-lasting light: Nichia LEDs last 90% longer

After 10,000 hours of operation, a Nichia 757 LED keeps 97% of the initial luminous flux, under high operating conditions, shining like in the beginning, while 90% is maintained even after 60.000 hours.

In most applications, this translates into an effective 100,000 hours lifetime or 10 years of continuous operation in a shopping center, decades of operation in a home.

In contrast, a low-cost LED loses up to 60% of the initial value in less than 10,000 hours, approximately one year of operation. It becomes too weak for the initial purpose in just 1,000-3,000 hours.

The evolution of light output for the Nichia 757 LEDs is demonstrated by 10,000 hours of testing, according to the LM-80 standard. Lifetime (light at 70%, 80% and 90%) is calculated using TM-21, both internationally recognized standards and used by all major manufacturers.

Click here to download the 10000 hours, Nichia 757 LED L80 lifetime test.

2. More light for less power: Nichia LEDs are 65% more energy efficient

More light for less power: Nichia LEDs are 65% more energy efficient

The design and material quality influence the luminous efficacy and the LED light output. Nichia 757 LEDs have the highest luminous efficacy on the market, more than 230 lumens per watt, compared to a low-cost LED that has less than 80 lumens per watt.

The difference of more than 65% in luminous efficacy is outstanding when seen in practice. After a cove light retrofit from low-cost LED strips to Nichia LED strips, the illumination increased by three to five times for the same power consumption:

3. Uniform white light: Nichia 757 LEDs are color temperature sorted

By implementing the 3 Macadam Elipse sorting standard in our manufacturing, ensures that Nichia LED strips for a project will have the same white color temperature. Uniformity is also be maintained for future projects.

In contrast, low-cost LED strips are not manufactured with the Macadam Elipse sorting standard, being delivered with many different color temperatures of white. Often, differences are even on the same reel. Moreover, after just a few thousand hours, the low-cost LEDs change their color temperature, resulting in a rainbow effect with yellow and blue hues.

After a cove-light retrofit from low-cost LED strips to Nichia LED strips, the importance of the 3 Macadam Elipse sorting standard is clear.

4. Natural light spectrum: Nichia 757 LEDs have CRI up to 99

Nichia LEDs, with CRI up to 99, reproduce colors as naturally as possible, closely matching the spectrum of sunlight. This capability ensures that colors are rendered accurately and vividly, enhancing the visual experience in any application

Low-cost LEDs only have a maximum CRI of 80, their light distorting color shades, especially warm colors, such as red, orange or brown.

Accessories for LED strips

The LumiFlex LED strips that are 8mm wide can be combined with profiles, to create luminaires with a minimalist design. Our profiles use high-quality materials and finishes, being aimed at the German market. The profiles protect the strips from dust, mechanical shocks and provide cooling for even longer life.

Aluflex flat profile for Lumiflex LED Strips

Aluflex deep profile for Lumiflex LED Strips

Aluflex profile corner for Lumiflex LED strips

Covers for Aluflex profiles



About Ledrise and the Lumitronix group

Ledrise is the specialized division of the Lumitronix group, focusing on Nichia LEDs and high-performance LED strips and modules, expertly built at our own facility in Germany. Our German-made quality promises precision and durability, right from our production line to global delivery. Founded in 2005, our headquarters in Germany has been a key player in the LED industry's evolution, accumulating a wealth of experience across various industries.

Our dedicated team, from offices in Germany, Romania and Hong Kong, numbers over 70 experts—all working together to bring your custom LED lighting projects to life. From the drawing board to final production, we offer comprehensive support to ensure high-efficiency LED solutions that meet your exact standards.

Learn more about our decades long journey into LED lighting and services in our detailed company presentation.
