70 x Nichia 757 LED
1800-7800K with CRI70-99, up to 9,000 lm/m
280 mm Length, 16.5 mm Width
Aluminum PCB with Plug & Play system
MaxLine Nichia LED Strips Aluminum PCB CRI70-99 (9000 lm/m)
Professional MaxLine Nichia LED Strip, Aluminum PCB, CRI 70-99, 1800-7800K, 100.000h lifetime, up to 9000lm/m

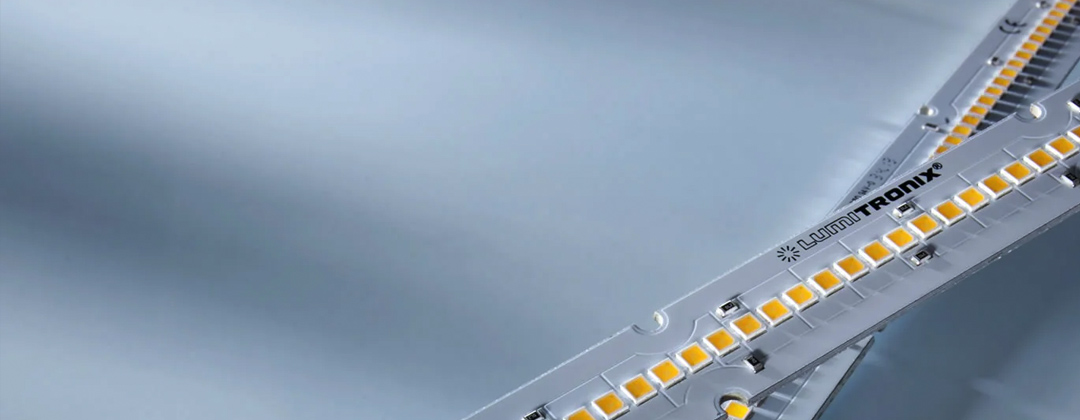

Nichia MaxLine LED Modules: Bright, High-Tech LED Lighting
The MaxLine LED modules combine the top performance of the Nichia 757 series with efficient thermal management, so you can easily build luminaries with exceptionally high luminous flux.
The MaxLine LED modules are specifically designed to create high brightness linear lamps or fixtures. With an aluminum PCB that optimizes the use of the best Mid-Power LEDs on the market, the MaxLine modules can easily outperform fluorescent LED tubes when integrated into a linear luminaire.
The MaxLine can deliver an impressive output of 9000 lm per meter (equivalent to a 800 Watt bulb) at a consumption of only 49 watts, using just 250 Nichia 757 LEDs. These features make it the ideal choice for building bright and compact luminaries for commercial spaces, warehouses, factories, indoor farms or offices. With a lifetime of more than 100,000 hours, the Maxline LED strips guarantee longevity and energy efficiency.
Available with 2 LED densities: 35 and 70 LEDs, on an aluminum PCB with a standard size of 280 x 13 mm, the MaxLine modules can be quickly integrated into linear LED fixtures.
The strips come in a constant voltage or constant current version. The constant voltage version (24 V) is designed for maximum flexibility in use, while the constant current version is designed for maximum efficiency. With the constant voltage version, many modules can be operated with one power unit in a row. The exact number depends on the version and the power unit.
The Maxline LED Nichia Strips have a 5-year warranty and are made in Germany, making them a reliable and professional product for long-term use.
Cutting-edge LED lighting
MaxLine LED modules can be built with the latest high-tech LED lighting technology from Nichia, for amazing linear-lighting:
1. Nichia Optisolis Full Spectrum CRI99 (READ MORE)
2. Nichia H6, the highest efficacy CRI90 & CRI95 LEDs (READ MORE)
3. Nichia Vitasolis, special lighting for a vibrant life (READ MORE)
4. Nichia HPS, special lighting for road and outdoor lighting (READ MORE)
5. Nichia Rs060 Hortisolis, lighting with ideal spectrum for Horticulture (READ MORE)
6. Nichia Special Color Rendition: Light that brings out the best in the products (READ MORE)
MaxLine, a feature packed LED lighting system
In addition to the latest LED lighting technology, the MaxLine has many features, making it our recommended choice for the most demanding linear lighting:
- Plug & Play Connection System: Say goodbye to cumbersome installation processes. The Nichia MaxLine LED modules have connectors designed for quick setup, ensuring a hassle-free experience.
- Power-packed Performance: One MaxLine 70 LED module provides a huge light output of 2500lm at 5000K, CRI80, enough for industrial, horticulture or other light intensive applications.
- Incredible Longevity: Designed to outlast, the MaxLine has a lifespan of over 100,000 hours.
- Maintenance Ease: Gone are the days of soldering guns and tangled cables. With the MaxLine, you're guaranteed an easy maintenance experience.
- Value for Money: the 5-year warranty coupled with energy efficiency ensures a quick return on investment. Not only do you save on maintenance, but you also witness a notable reduction in energy bills.
Applications:
Nichia MaxLine LED modules aren't just another linear solution; they represent the latest of LED technology paired with long-term reliability. Be it for commercial success or productive factories, choosing MaxLine ensures that your space is not only well-lit but also exudes an ambiance of quality and sophistication:
- Retail Brilliance: Attract attention or convey a message with high brightness linear lights
- Industrial efficiency: Illuminate work spaces with linear light fixtures, ensuring clarity while adding a touch of sophistication.
- Full Spectrum Light for Home, Office, Hospitality, Healthcare or Schools: Whether creating linear pendant-lights at home or energetic light fixtures in the office, healthcare or school, MaxLine caters to all.
- Professional Settings: Ideal for settings demanding consistent and durable lighting such as warehouses, TV studios, clinics, theaters, and more.
- Horticulture Mastery: Illuminate plants with MaxLine using Hortisolis Nichia LEDs for record-breaking harvest.
Customizable MaxLine LED Strips, Made in Germany
35 x Nichia 757 LED
1800-7800K with CRI70-99, up to 4,500 lm/m
280 mm Length, 16.5 mm Width
Aluminum PCB with Plug & Play system
Ready-made MaxLine LED Strips, Made in Germany
For sample evaluation, prototypes or small-scale projects, our ready-made MaxLine LED strips are available in several configurations.
-
Maxline-70-4080 Nichia LED Strip pure white 4000K 2250lm 700mA 70 LEDs 28cm module (8036lm/m 50W/m)was €25.24 Special Price €20.19Low Stock Germany, only 8 pcs. -
Maxline-70-4080 Nichia LED Strip warm white 3000K 2080lm 700mA 70 LEDs 28cm module (7429lm/m 50W/m)was €25.24 Special Price €20.19Stock Germany >10 pcs -
Maxline-70-4080 Nichia LED Strip warm white 3000K 2150lm 24V 70 LEDs 28cm module (7679lm/m 60W/m)was €25.24 Special Price €20.19Stock Germany >10 pcs
-
Maxline-35-4080 Nichia LED Strip pure white 4000K 1090lm 350mA 35 LEDs 28cm module (3893lm/m 25W/m)was €16.81 Special Price €13.45Stock Germany >10 pcs -

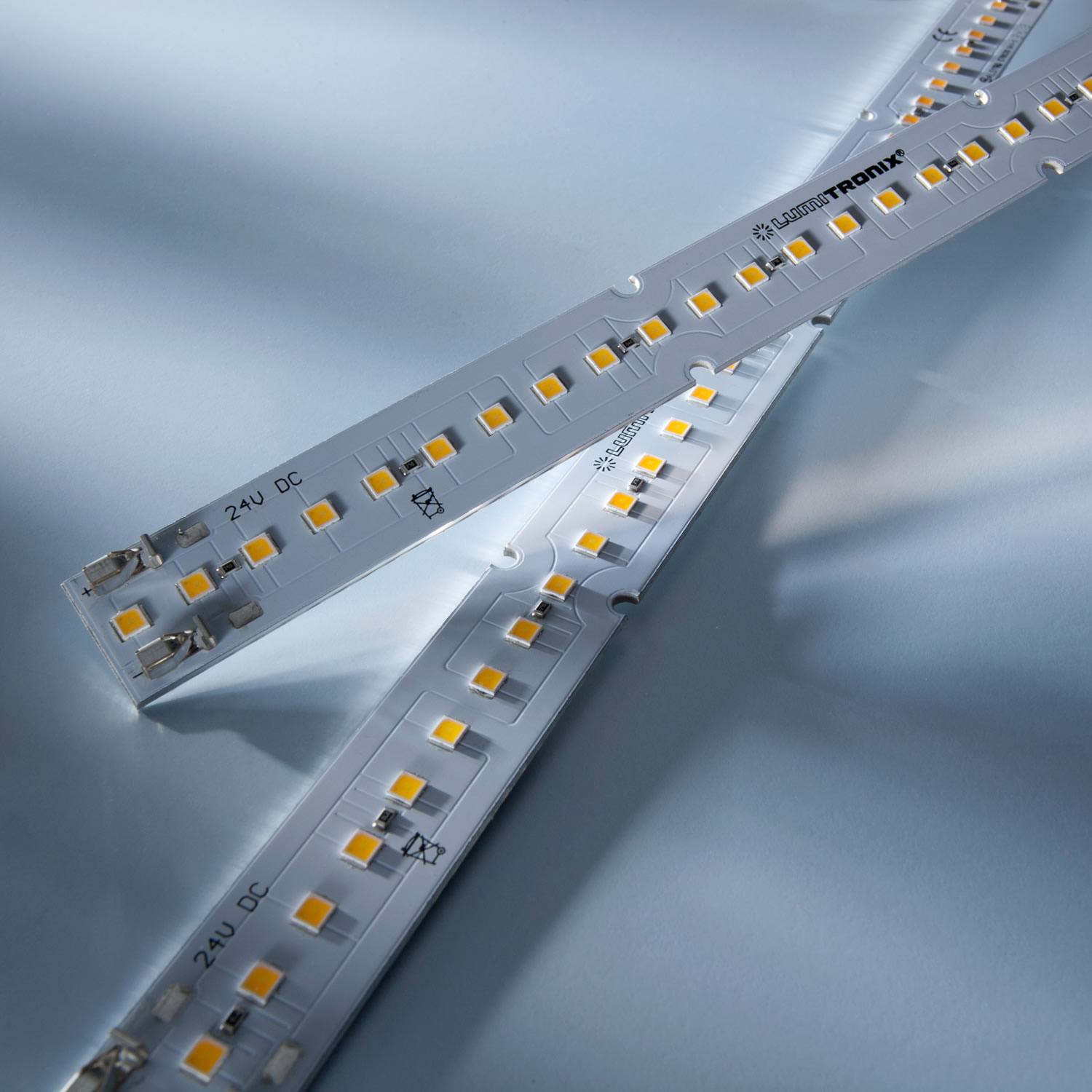

Maxline-35-4080 Nichia LED Strip warm white 3000K 1040lm 350mA 35 LEDs 28cm module (3715lm/m 25W/m)was €16.81 Special Price €13.45Stock Germany >10 pcs
The Nichia LED quality
The Japanese company Nichia, our recommended choice for the LEDs used on MaxLine strips, is the world leader in the LED market, with a market share of over 25% and the longest experience in the field. Nichia is the inventor of the white LED production technology, receiving the Nobel Prize for this invention.
The very long life of Nichia 757 LEDs (minimum 100,000 hours), exceptional luminous efficacy, superior light output and spectrum qualify our LED strips for long-term use even for the most demanding applications.
There is a significant difference between the quality and performance of the LED strip with Nichia LEDs and a strip with low-cost LEDs.
1. Longest-lasting light: Nichia LEDs last 90% longer
After 10,000 hours of operation, a Nichia 757 LED keeps 97% of the initial luminous flux, under high operating conditions, shining like in the beginning, while 90% is maintained even after 60.000 hours.
In most applications, this translates into an effective 100,000 hours lifetime or 10 years of continuous operation in a shopping center, decades of operation in a home.
In contrast, a low-cost LED loses up to 60% of the initial value in less than 10,000 hours, approximately one year of operation. It becomes too weak for the initial purpose in just 1,000-3,000 hours.
The evolution of light output for the Nichia 757 LEDs is demonstrated by 10,000 hours of testing, according to the LM-80 standard. Lifetime (light at 70%, 80% and 90%) is calculated using TM-21, both internationally recognized standards and used by all major manufacturers.
Click here to download the 10000 hours, Nichia 757 LED L80 lifetime test.
2. More light for less power: Nichia LEDs are 65% more energy efficient
The design and material quality influence the luminous efficacy and the LED light output. Nichia 757 LEDs have the highest luminous efficacy on the market, more than 230 lumens per watt, compared to a low-cost LED that has less than 80 lumens per watt.
The difference of more than 65% in luminous efficacy is outstanding when seen in practice. After a cove light retrofit from low-cost LED strips to Nichia LED strips, the illumination increased by three to five times for the same power consumption:
3. Uniform white light: Nichia 757 LEDs are color temperature sorted
By implementing the 3 Macadam Elipse sorting standard in our manufacturing, ensures that Nichia LED strips for a project will have the same white color temperature. Uniformity is also be maintained for future projects.
In contrast, low-cost LED strips are not manufactured with the Macadam Elipse sorting standard, being delivered with many different color temperatures of white. Often, differences are even on the same reel. Moreover, after just a few thousand hours, the low-cost LEDs change their color temperature, resulting in a rainbow effect with yellow and blue hues.
After a cove-light retrofit from low-cost LED strips to Nichia LED strips, the importance of the 3 Macadam Elipse sorting standard is clear.
4. Natural light spectrum: Nichia 757 LEDs have CRI up to 99
Nichia LEDs, with CRI up to 99, reproduce colors as naturally as possible, closely matching the spectrum of sunlight. This capability ensures that colors are rendered accurately and vividly, enhancing the visual experience in any application
Low-cost LEDs only have a maximum CRI of 80, their light distorting color shades, especially warm colors, such as red, orange or brown.
Accessories for MaxLine LED strips
Maxline Nichia LED strips can be combined with profiles to produce compact and very bright luminaires. The quality of the profiles in our offer is the highest, being destined for the German market.
The Maxline has an aluminum PCB for efficient LED cooling in combination with the profiles below.
-
Heat conductive adhesive pad for MaxLine 35 & 70 Nitto TR5320F 280x16.5mm€3.02Stock Germany >10 pcs -
-
-
Constant Voltage Power Supply Mean Well PLC-100-24 IP20 230V to 24V 4A 100W€63.41 From only €34.63Low Stock Germany, only 2 pcs. -
Constant Voltage Power Supply Mean Well LPV-60-24 IP67 230V to 24V 2.5A 60W€20.40Low Stock Germany, only 6 pcs. -
Constant Voltage Power Supply Mean Well HLG-150H-24B IP67 230V to 24V 6.3A 150W DIM€71.75 From only €53.64Low Stock Germany, only 1 pcs.
-
Constant current LED driver Mean Well LCM-40 350 > 1050 mA 230V to 2 > 100VDC DIM€38.52Low Stock Germany, only 10 pcs. -
Constant Current LED Driver Mean Well LCM-40BLE 230V to 2-100V 350 > 1050mA Dimmable via Casambi App€143.00Low Stock Germany, only 4 pcs. -
Constant Current LED Driver Mean Well LCM-60BLE 230V to 2-90V 500 > 1400mA Dimmable via Casambi App€149.00Low Stock Germany, only 4 pcs.
