PowerBar V3 Osram Oslon Black LED Module Aluminium Infrared 850nm 12 LEDs 700mA 23.52W 28.6cm
€59.90
Low Stock Germany, only 7 pcs.
SKU
41697
- 12 high-power infrared LEDs from ams OSRAM Oslon Black
- Peak wavelength 850 nm, 90° beam angle
- Constant current 700 mA at 33.6 V, 23.52 W, dimmable
- Aluminum circuit board with NTC for temperature monitoring
- Solderless terminals, divisible at each LED
- Mounting holes for optics
- Lifetime of 33,000 hours (L80B10)
- Made in Germany, 1-year warranty
PowerBar V3 LED Module Infrared 850 nm, 12 ams OSRAM Oslon Black LEDs, 700 mA, 23.52 W, 28.6 cm

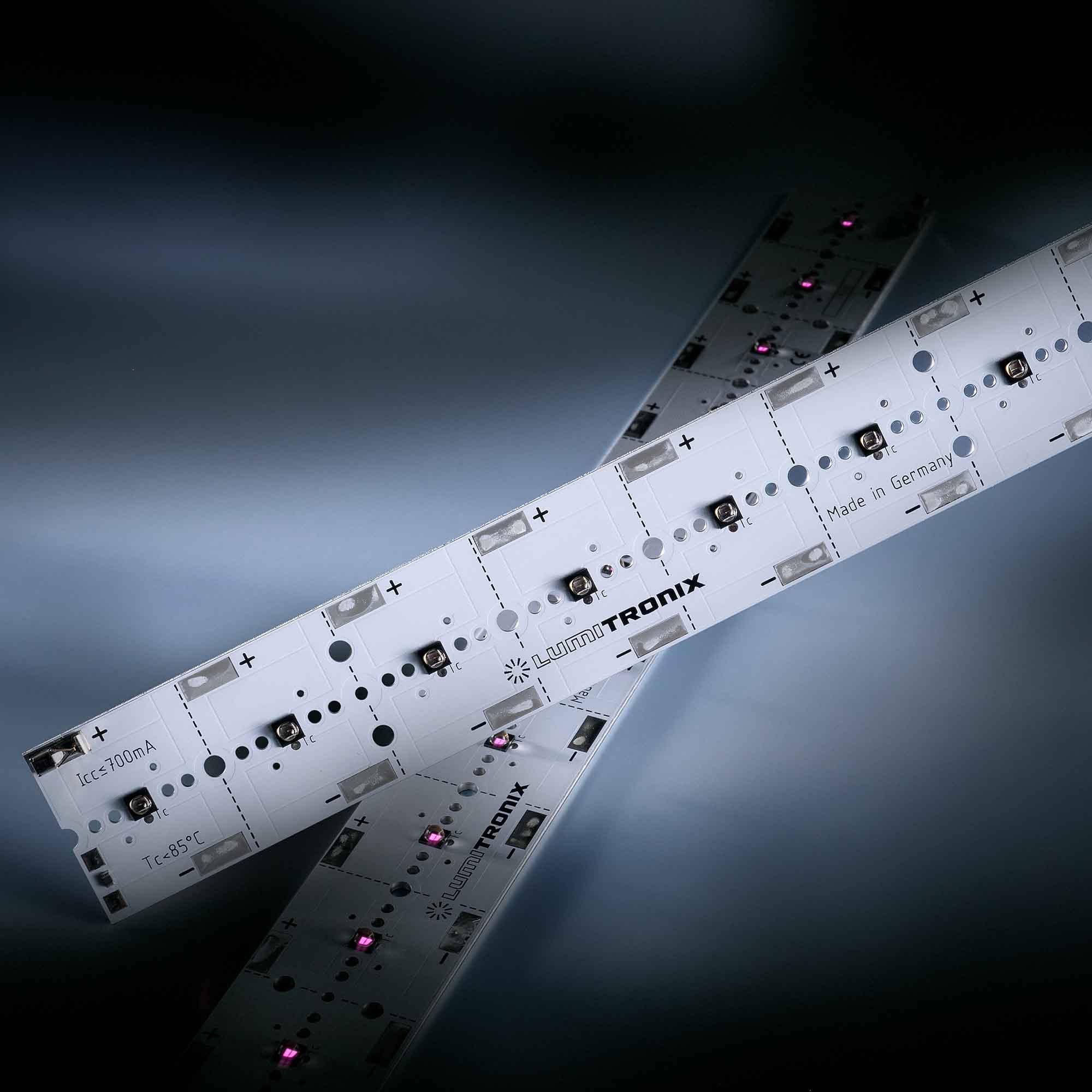

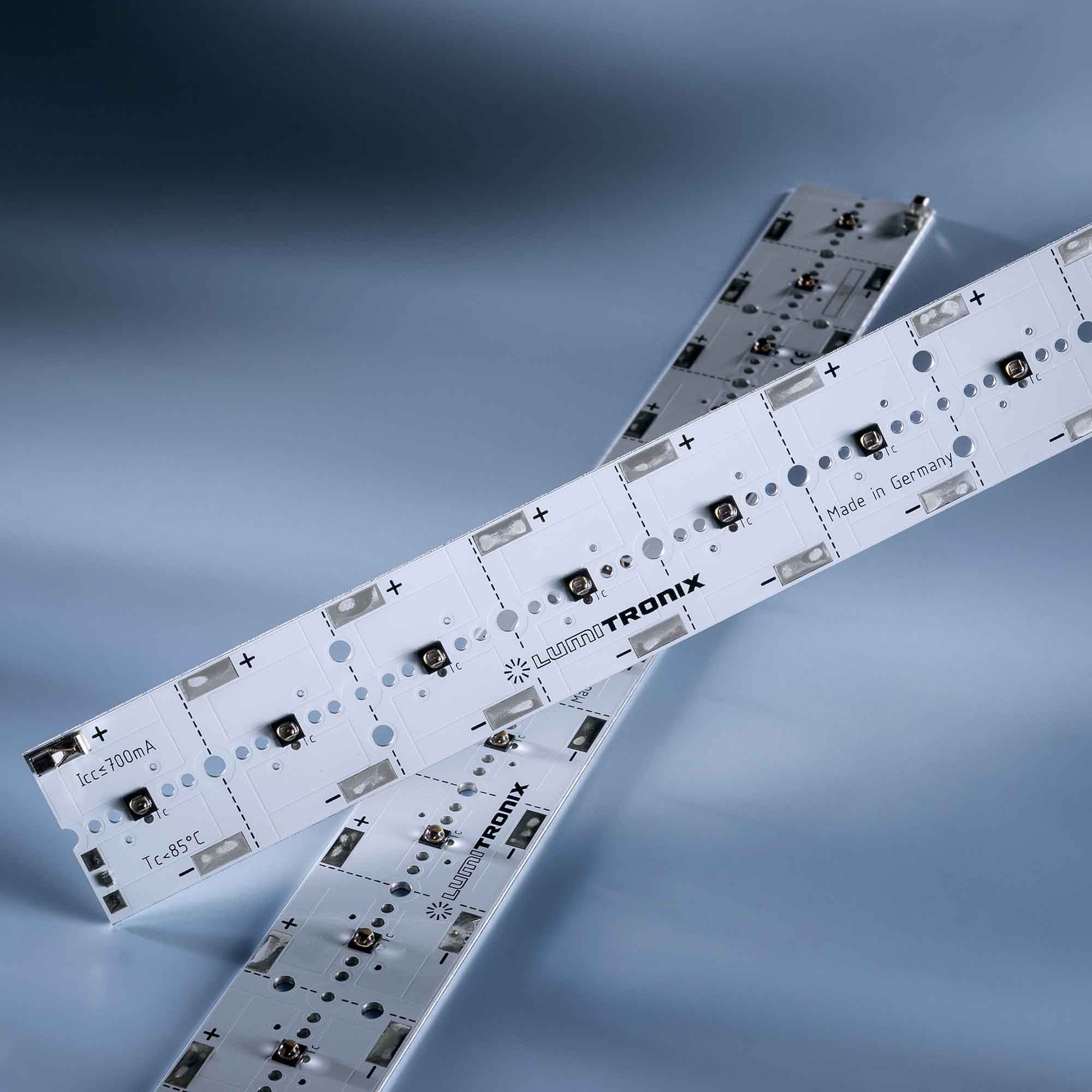

The PowerBar V3 Infrared 850 nm is a high-power infrared light source with twelve ams OSRAM Oslon Black LEDs on a 286 mm aluminum circuit board. At 700 mA and 23.52 W, it emits 850 nm radiation in a 90° beam: invisible to the eye, but captured by standard surveillance and machine vision cameras. Together with the matching heat sink, optics and Mean Well drivers, it becomes a compact, powerful infrared illuminator.
Features of the PowerBar V3 Infrared 850 nm LED Module
- 12 high-power infrared LEDs from ams OSRAM Oslon Black
- Peak wavelength 850 nm, 90° beam angle
- Constant current 700 mA at 33.6 V, 23.52 W, dimmable
- Aluminum circuit board with NTC for temperature monitoring
- Solderless terminals, divisible at each LED
- Mounting holes for optics
- Lifetime of 33,000 hours (L80B10)
- Made in Germany
- 1-year warranty
Applications of the PowerBar V3 Infrared 850 nm LED Module
As a compact, high-power light source, the PowerBar V3 Infrared 850 nm is designed for the following main applications:
- Infrared illuminators for video surveillance: 850 nm radiation is invisible to the human eye but captured by standard CCTV and night vision cameras. With suitable optics, the module becomes a powerful infrared floodlight that illuminates buildings, perimeters and yards in total darkness. See our LED modules for floodlights.
- Area surveillance: Several modules in weatherproof housings illuminate parking lots, logistics areas and industrial sites for cameras without disturbing light. See our LED modules for area lights.
- Machine vision and sensing: As a linear infrared light source, the PowerBar V3 is suited to line-scan and machine vision systems, light barriers, sorting and inspection equipment, where infrared light suppresses visible interference.
Build a Complete Luminaire with the PowerBar V3 System
The PowerBar V3 is more than an LED module: together with its matching heat sink, optics and drivers, it becomes a complete high-power luminaire that you can assemble to your requirements:
- Heat sink: the black aluminum PowerBar V3 heat sink (SKU 31631, 290 x 57.2 x 40 mm) is made to fit the module and dissipates its heat. The module is fixed with the optional mounting clips (SKU 32381) and a heat-conductive adhesive pad. See the PowerBar V3 heat sink with mounting clips and adhesive pad.
- Optics: LEDiL FLORENTINA rod lenses cover all 12 LEDs with a single part and are available with beam angles from 10° to 45°, completed by the FLORENTINA-SHD glare shield (SKU 30141) and the insert for the heat sink (SKU 32615). Alternatively, individual lenses such as LEDiL TINA3, HEIDI and STRADA or Carclo optics can be fitted using the mounting holes on the board. See our optics for white and color LEDs.
- Driver: Mean Well LCM constant current drivers with selectable output current, also available with DALI and Casambi Bluetooth control, power one or more modules. See our compatible Mean Well LED drivers.
Technical Data of the PowerBar V3 Infrared 850 nm LED Module
- Article number (SKU): 41697
- LED: ams OSRAM Oslon Black
- Number of LEDs: 12
- Wavelength: 850 nm (infrared)
- Beam angle: 90°
- Lifetime: 33,000 h (L80B10C1)
- Operating mode: Constant current, dimmable
- Operating point: 700 mA at 33.6 V
- Power: 23.52 W
- Dimensions: 286 x 28.5 x 4.5 mm
- Segments: 12 x (28.5 x 23.85 mm)
- Circuit board: Aluminum, rigid, with NTC
- Weight: 34 g
- Operating temperature at Tc: -40°C to +85°C
- Ambient temperature: -40°C to +50°C
Installation and Operation
- Cooling: always operate the module on a heat sink, such as the PowerBar V3 heat sink, with a heat-conductive pad between board and heat sink, and make sure that the Tc point stays within the specified limits in the finished luminaire, especially at high drive currents. An NTC resistor on the board allows temperature monitoring via an external control unit.
- Connection: terminals on the first and last segment allow connection without soldering.
- Dividing: the module consists of 12 segments of 28.5 x 23.85 mm; if needed, it can be divided with a saw, and each segment can also be used individually.
- LED driver: operate the module with a constant current LED driver set to 700 mA; never connect it directly to a constant voltage supply. Several modules can be connected in series: the current stays the same and the voltages add up (33.6 V per module), so the output voltage range of the driver at the selected current must cover the sum.
- Infrared radiation: the 850 nm radiation is almost invisible, so the natural blink reflex does not protect the eyes. Do not look into the operating module at close range, and assess the photobiological safety of the finished device according to EN 62471.
- Handling: do not touch or press the LEDs, observe standard ESD precautions, and keep the module away from aggressive chemicals. The module is not waterproof; for humid or outdoor environments, install it in a closed, suitable luminaire housing.
- Safety: installation must comply with all applicable electrical and safety standards and should be carried out by a qualified electrician.
Why Choose the PowerBar V3 Infrared 850 nm
- High power density: 12 high-power LEDs on only 286 x 28.5 mm deliver the output of a complete luminaire from a very compact light source, ideal for optics with narrow beams.
- Thermal design: the aluminum circuit board conducts the heat of the LEDs directly into the heat sink, keeping the junction temperature low, which protects lifetime and keeps the output stable; the on-board NTC allows active temperature monitoring.
- Brand-name LEDs: we use ams OSRAM Oslon high-power LEDs, one of the most widely used and best documented high-power LED platforms in professional lighting, instead of LED chips of unknown origin whose data and quality vary from batch to batch.
- Complete system: matching heat sink, optics and drivers make it easy to design and build your own luminaire, from a single prototype to series production.
- Made in Germany: developed and manufactured at our production site in Germany, with specified, traceable components and electrical testing.
Who We Are: Ledrise, Professional LED Strips Made in Germany
Ledrise is the international online shop for high-performance LED strips and modules that we develop and manufacture in our own production facility in Germany and ship directly from there. With more than 20 years of experience in LED technology, our team of more than 70 people in Germany, Hong Kong and Romania has gained extensive application knowledge across many sectors, and thousands of business customers and consumers on five continents rely on us as their LED technology partner.
We use only LEDs from market leaders such as Nichia, Seoul Semiconductor, Cree, Samsung and ams OSRAM. Beyond standard products, we design and prototype custom LED modules, select and integrate optics, housings and drivers, and test and validate every solution in our in-house measuring and testing laboratory, supporting you from the first lighting concept to serial production.
Our Quality Promise
- Certified quality: our quality management is certified to DIN EN ISO 9001 and covers every step, from product development to customer service. Our manufacturing center in Germany is also certified to ISO 14001 for environmental management and ISO 45001 for occupational health and safety.
- Reel-to-reel manufacturing, unique in Europe: our fully automated reel-to-reel flex line uses plasma direct metallization to produce robust, flexible circuit boards in continuous lengths of up to 100 meters, with fewer interconnections and less material waste.
- Precision at every step: automated solder paste printing with inline inspection, high-speed ASM SIPLACE component placement, controlled reflow soldering, and automatic optical inspection that detects missing, offset or misaligned components.
- Full traceability: production batches are marked and tracked with laser-engraved barcodes.
- Honest data: the performance values in our datasheets match those in real-world applications.
- Long-term security: a 1-year warranty on this LED module (see our warranty terms) and professional support for your lighting projects.
Learn more about Ledrise and our reel-to-reel flexible LED strip manufacturing in Germany.
| SKU | 41697 |
|---|---|
| Weight brut (g) | 34.000000 |
| Color | Infrared |
| Power (W) | 23.52 |
| Dimmable | Dimmable |
| Viewing Angle | 90° |
| Warranty (months) | 12 |
| Lifetime for residential, 3h daily (yrs) | 31 |
| Product lifetime (h) | 33000 |
| Lifetime for commercial, 12h daily (yrs) | 8 |
| Wavelength (nm) | 850 |
| Manufacturer Product Code | 41697 |
| Product Family | PowerBar V3 LED Strip |
| Strip Type | Rigid |
| LEDs number per sales unit | 12 |
| Dimensions | 286 x 28.5 x 4.5 mm |
| Dimensions: Length (cm) | 28.6 |
| Dimensions: Width (mm) | 28.5 |
| Dimensions: Height (mm) | 4.5 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127453622 |
| Forward Voltage Typ (V) | 33.6 |
