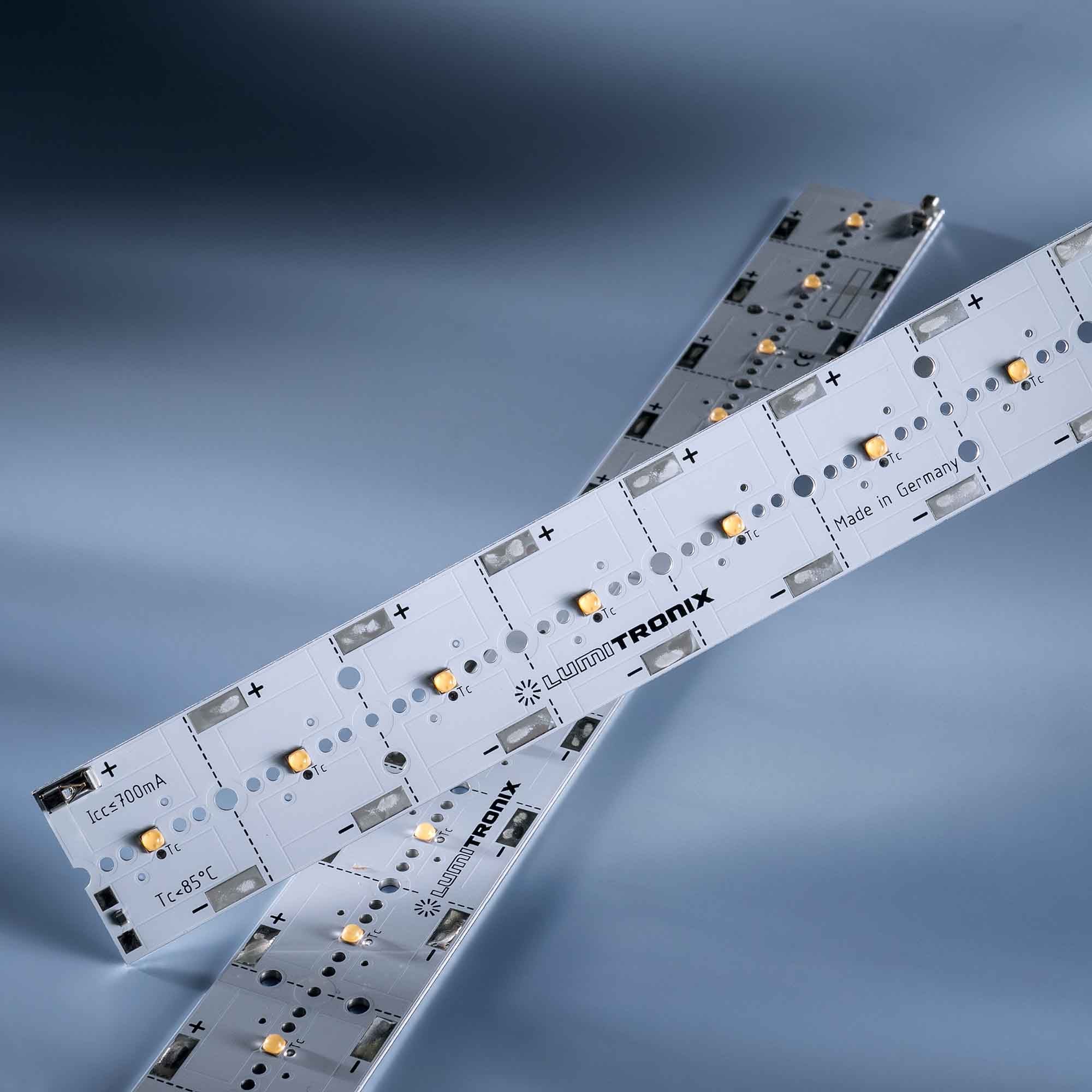

PowerBar V3 Osram Oslon Square LED Module Aluminium Cold White 5700K CRI70 3250lm 12 LEDs 700mA 25.55W 28.6cm

PowerBar V3 LED Module Cold White 5700K CRI70, 3250 lm, 12 ams OSRAM Oslon Square LEDs, 700 mA, 28.6 cm

The PowerBar V3 Cold White 5700K is a high-power linear LED module for luminaires that need a lot of light from a compact light source. Twelve ams OSRAM Oslon Square LEDs on a 286 mm aluminum circuit board deliver 3250 lm of cold white light with a color rendering index above 70, at 25.55 W and an efficacy of 127 lm/W. Together with the matching heat sink, optics, cover and Mean Well drivers, it becomes a complete high-power luminaire for high bay, spot, flood and area lighting, linear luminaires and horticulture.

Features of the PowerBar V3 Cold White 5700K LED Module

• 12 high-power LEDs from ams OSRAM Oslon Square
• Cold White 5700K, CRI above 70
• 3250 lm at 25.55 W, efficacy of 127 lm/W, energy efficiency class D
• Constant current 700 mA at 36.5 V, dimmable
• Color consistency to a 3-step MacAdam ellipse
• 120° beam angle
• Aluminum circuit board with NTC for temperature monitoring
• Solderless terminals, divisible at each LED
• Mounting holes for LEDiL and Carclo optics
• Lifetime of more than 60,000 hours (L80B10)
• Made in Germany
• 5-year warranty

Applications of the PowerBar V3 Cold White 5700K LED Module

As a compact, high-power light source, the PowerBar V3 Cold White 5700K is designed for the following main applications:

• Linear lighting: Mounted end to end in a linear luminaire body or on the PowerBar V3 heat sink, PowerBar V3 Cold White 5700K modules create powerful lines of light for pendant, batten and industrial luminaires, where a single row already delivers the output of a conventional high-power luminaire. Read more in our guides on creating lines of light with LED strips and designing efficient LED linear lamps.
• High bay lighting: With about 3250 lm per module and narrow or medium beam optics, PowerBar V3 modules bring the light from high ceilings down to the working plane in warehouses, factories, logistics centers and sports halls. See our LED modules for high bay lighting.
• Spotlights: With LEDiL rod lenses or individual lenses, the module becomes a high-output spotlight for accent, display and task lighting, or for illuminating machines and large objects. See our LED modules for spotlights.
• Floodlights: In compact floodlights for facades, signs, construction sites and sports areas, wide or asymmetric optics distribute the high luminous flux evenly. See our LED modules for floodlights.
• Area lighting: For yards, parking lots, loading zones and industrial outdoor areas, several modules in a closed housing provide uniform, efficient area lighting. See our LED modules for area lights.
• Horticulture: supplemental daylight: With CRI 70 white light covering the whole visible spectrum, PowerBar V3 grow fixtures can extend the day length and raise the daily light integral of fruiting crops such as strawberries and tomatoes in greenhouses, while keeping plants in natural colors for easy inspection. Read more about strawberry cultivation with LED grow lights.
• White light: Binned to a 3-step MacAdam ellipse, the 5700K light stays consistent from module to module. The 5700K color temperature gives a fresh, daylight white light that supports alertness and concentration. Find out which color temperature suits your project in our guide Choosing the right color temperature for LED lighting.

Build a Complete Luminaire with the PowerBar V3 System

The PowerBar V3 is more than an LED module: together with its matching heat sink, optics, cover and drivers, it becomes a complete high-power luminaire that you can assemble to your requirements:

• Heat sink: the black aluminum PowerBar V3 heat sink (SKU 31631, 290 x 57.2 x 40 mm) is made to fit the module and dissipates its heat. The module is fixed with the optional mounting clips (SKU 32381) and a heat-conductive adhesive pad. See the PowerBar V3 heat sink with mounting clips and adhesive pad.
• Optics: LEDiL FLORENTINA rod lenses cover all 12 LEDs with a single part and are available with beam angles from 10° to 45°, completed by the FLORENTINA-SHD glare shield (SKU 30141) and the insert for the heat sink (SKU 32615). Alternatively, individual lenses such as LEDiL TINA3, HEIDI and STRADA or Carclo optics can be fitted using the mounting holes on the board. See our optics for white and color LEDs.
• Cover: the optional plastic cover (SKU 32176, 290 x 39.4 x 2 mm) closes the heat sink and turns it into a finished luminaire housing. See the plastic cover for the PowerBar V3 heat sink.
• Driver: Mean Well LCM constant current drivers with selectable output current, also available with DALI and Casambi Bluetooth control, power one or more modules. See our compatible Mean Well LED drivers.

Technical Data of the PowerBar V3 Cold White 5700K LED Module

• Article number (SKU): 42304
• LED: ams OSRAM Oslon Square
• Number of LEDs: 12
• Light color: Cold White, 5700K
• Color rendering index: CRI (Ra) >70
• Binning: 3-step MacAdam ellipse
• Photometric code: 757/359
• Luminous flux: 3250 lm (typical)
• Efficacy: 127 lm/W (mains voltage luminous efficacy 138.5 lm/W)
• Beam angle: 120°
• Lifetime: >60,000 h (L80B10C1)
• Operating mode: Constant current, dimmable
• Operating point: 700 mA at 36.5 V
• Power: 25.55 W
• Dimensions: 286 x 28.5 x 4.6 mm
• Segments: 12 x (28.5 x 23.85 mm)
• Circuit board: Aluminum, rigid, with NTC
• Operating temperature at Tc: -40°C to +85°C
• Ambient temperature: -40°C to +50°C
• Energy efficiency class: D

Installation and Operation

• Cooling: always operate the module on a heat sink, such as the PowerBar V3 heat sink, with a heat-conductive pad between board and heat sink, and make sure that the Tc point stays within the specified limits in the finished luminaire, especially at high drive currents. An NTC resistor on the board allows temperature monitoring via an external control unit.
• Connection: terminals on the first and last segment allow connection without soldering.
• Dividing: the module consists of 12 segments of 28.5 x 23.85 mm; if needed, it can be divided with a saw, and each segment can also be used individually.
• LED driver: operate the module with a constant current LED driver set to 700 mA; never connect it directly to a constant voltage supply. Several modules can be connected in series: the current stays the same and the voltages add up (36.5 V per module), so the output voltage range of the driver at the selected current must cover the sum.
• Eye safety: do not look directly into the operating LEDs.
• Handling: do not touch or press the LEDs, observe standard ESD precautions, and keep the module away from aggressive chemicals. The module is not waterproof; for humid or outdoor environments, install it in a closed, suitable luminaire housing.
• Safety: installation must comply with all applicable electrical and safety standards and should be carried out by a qualified electrician.

Why Choose the PowerBar V3 Cold White 5700K

• High power density: 12 high-power LEDs on only 286 x 28.5 mm deliver the output of a complete luminaire from a very compact light source, ideal for optics with narrow beams.
• Thermal design: the aluminum circuit board conducts the heat of the LEDs directly into the heat sink, keeping the junction temperature low, which protects lifetime and keeps the output stable; the on-board NTC allows active temperature monitoring.
• Brand-name LEDs: we use ams OSRAM Oslon high-power LEDs, one of the most widely used and best documented high-power LED platforms in professional lighting, instead of LED chips of unknown origin whose data and quality vary from batch to batch.
• Complete system: matching heat sink, optics, cover and drivers make it easy to design and build your own luminaire, from a single prototype to series production.
• Made in Germany: developed and manufactured at our production site in Germany, with specified, traceable components and electrical testing.
