Pollux 7x1 Nichia 219CT_V2 LED Module Neutral White 4000K CRI80 2000lm 700mA 13.8W 27.4cm

Pollux 7x1 Nichia 219CT_V2 LED Module Neutral White 4000K CRI80, 2000 lm, 700 mA, 13.8 W, 27.4 cm

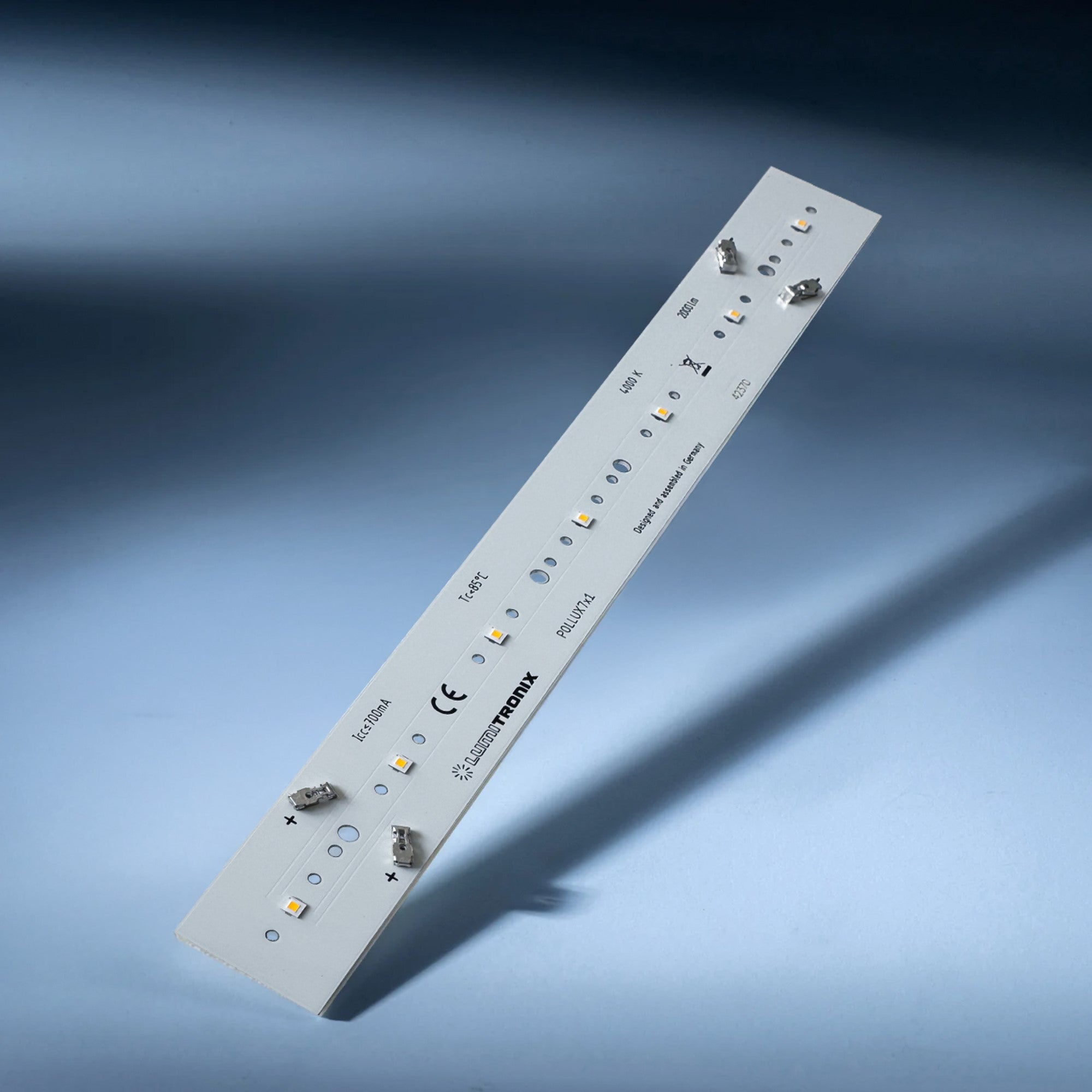

The Pollux 7x1 219CT_V2 is a linear LED module with 7 Nichia 219CT_V2 LEDs, one under each lens position, on a 274 mm board. It delivers 2000 lm of neutral white 4000K light with a color rendering index above 80, at 13.8 W and an efficacy of 145 lm/W. Designed to be compatible with Gaggione POLLUX7X1 optics, it is a powerful module for floodlights, wall grazers and linear luminaires with high light output: a change of lens turns the same module into a wall grazer, an elliptical wall washer or a wide floodlight.

Features of the Pollux 7x1 219CT_V2 LED Module

• 7 Nichia 219CT_V2 LEDs, one under each lens position
• Neutral White 4000K, CRI above 80
• 2000 lm at 13.8 W, efficacy of 145 lm/W, energy efficiency class D
• Constant current 700 mA at 19.7 V
• Compatible with Gaggione POLLUX7X1 lenses and lens holders
• Color consistency to a 3-step MacAdam ellipse
• Wide 120° beam angle without optics
• Lifetime of more than 60,000 hours (L80B10)
• Made in Germany
• 5-year warranty

Applications of the Pollux 7x1 219CT_V2 LED Module

Combined with Gaggione optics, the Pollux 7x1 219CT_V2 is designed for the following main applications:

• Linear lighting: Mounted end to end, Pollux 7x1 219CT_V2 modules create continuous lines of light for linear luminaires and architectural light lines; with the Gaggione lenses, the light is directed exactly where it is needed. Read more in our guides on creating lines of light with LED strips and designing efficient LED linear lamps.
• Wall grazing and wall washing: With the 20° POLLUX7X1G wall grazer lens, the light skims along stone, brick and concrete surfaces and brings out their texture; the elliptical 20 x 75° POLLUX7X1E lens spreads it evenly over the wall for uniform wall washing in shops, museums, hotels and lobbies.
• Floodlights: With the wide 55°, 63° and 80° lenses, Pollux modules become compact linear floodlights for facades, signs, columns, landscape features and building details. See our LED modules for floodlights.
• White light: Nichia LEDs binned to a 3-step MacAdam ellipse keep the light consistent from module to module, with a color rendering index above 80. The 4000K color temperature gives a clean, focused pure white light that supports concentration and alertness. Find out which color temperature suits your project in our guide Choosing the right color temperature for LED lighting.

Gaggione POLLUX7X1 Optics: One Module, Many Light Distributions

The Pollux 7x1 219CT_V2 is built to be compatible with the Gaggione POLLUX7X1 linear lens system: the seven LED positions and the board outline match the seven lens elements of the POLLUX7X1 optic. The same module therefore becomes a narrow wall grazer, an elliptical wall washer or a wide floodlight simply by choosing a different lens, with no change to the electronics or the luminaire mechanics:

• Gaggione POLLUX7X1G: wall grazer, 20° (SKU 44712)
• Gaggione POLLUX7X1E: elliptical, 20 x 75° (SKU 44713)
• Gaggione POLLUX7X1W: wide, 55° (SKU 44709)
• Gaggione POLLUX7X1L: wide, 63° (SKU 44711)
• Gaggione POLLUX7X1VL: very wide, 80° (SKU 44710)
• Lens holders: LVRPOLLUX7X101 glossy white (SKU 44715) and LVRPOLLUX7X102M matte black (SKU 44714)

See all Gaggione optics for Pollux modules.

Technical Data of the Pollux 7x1 219CT_V2 LED Module

• Article number (SKU): 42370
• LED manufacturer: Nichia (219CT_V2)
• Number of LEDs: 7 (7 positions)
• Light color: Neutral white, 4000K
• Color rendering index: CRI (Ra) >80
• Binning: 3-step MacAdam ellipse
• Photometric code: 840/339
• Luminous flux: 2000 lm
• Efficacy: 145 lm/W (mains voltage luminous efficacy 157.8 lm/W)
• Beam angle: 120° (without optics)
• Operating mode: Constant current
• Operating point: 700 mA at 19.7 V
• Power: 13.8 W
• Lifetime: >60,000 h (L80B10C1)
• Dimensions: 274 x 28 x 4 mm
• Operating temperature at Tc: -40°C to +85°C
• Ambient temperature: -40°C to +50°C
• Storage temperature: -40°C to +100°C
• Certifications: CE, RoHS, REACH
• Energy efficiency class: D
• Photometric reference: Values measured at TJ = 65°C, ±10%

Installation and Operation

• Cooling: mount the module on a heat sink or the metal body of the luminaire, with thermal interface material, and make sure the Tc point stays within the specified limits (up to +85°C) in the finished luminaire.
• Optics: position the Gaggione POLLUX7X1 lens precisely over the seven LED positions and fix it with a lens holder.
• LED driver: operate the module with a constant current LED driver set to 700 mA; never connect it directly to a constant voltage supply. Several modules can be connected in series: the current stays the same and the voltages add up (19.7 V per module), so the output voltage range of the driver must cover the sum. Dimming is done with a dimmable driver.
• Protection: the module has no integrated overload, overtemperature or short-circuit protection; these must be provided by the driver.
• Handling: do not touch or press the LEDs, observe standard ESD precautions, and keep the module away from aggressive chemicals.
• Safety: installation must comply with all applicable electrical and safety standards and should be carried out by a qualified electrician.

Why Choose a Pollux Module

• Ready-made optics: designed around the Gaggione POLLUX7X1 lens system, so you do not need to develop or adapt optics yourself.
• One platform, many light levels: the same board outline is available with different Nichia LEDs, from 400 lm high-CRI and tunable white versions to 4000 lm high-output CSP versions, so one luminaire design can cover a whole product range.
• Realistic data: all values are specified at a junction temperature of 65°C, so the datasheet performance matches the finished luminaire.

Why the Pollux 7x1 219CT_V2 Outperforms Low-Cost LED Modules

Compared with low-cost LED modules, the Pollux 7x1 219CT_V2 differs in three areas that decide how long a lighting installation performs well:

• LED quality: we use only brand-name LEDs from Nichia, the Japanese LED market leader whose researchers invented the blue and white LED technology, with full manufacturer datasheets and performance tested in the lab and in real applications. Low-cost modules often use LED chips of unknown origin, without certified data, so their quality and color vary from one purchase to the next.
• PCB design and materials: high-quality materials and a design without mechanical and electrical weak points, for good current flow, heat transfer and long-term reliability.
• Realistic specifications: all values are measured at a junction temperature of 65°C, so the performance in our datasheet matches what you get in a real installation.
