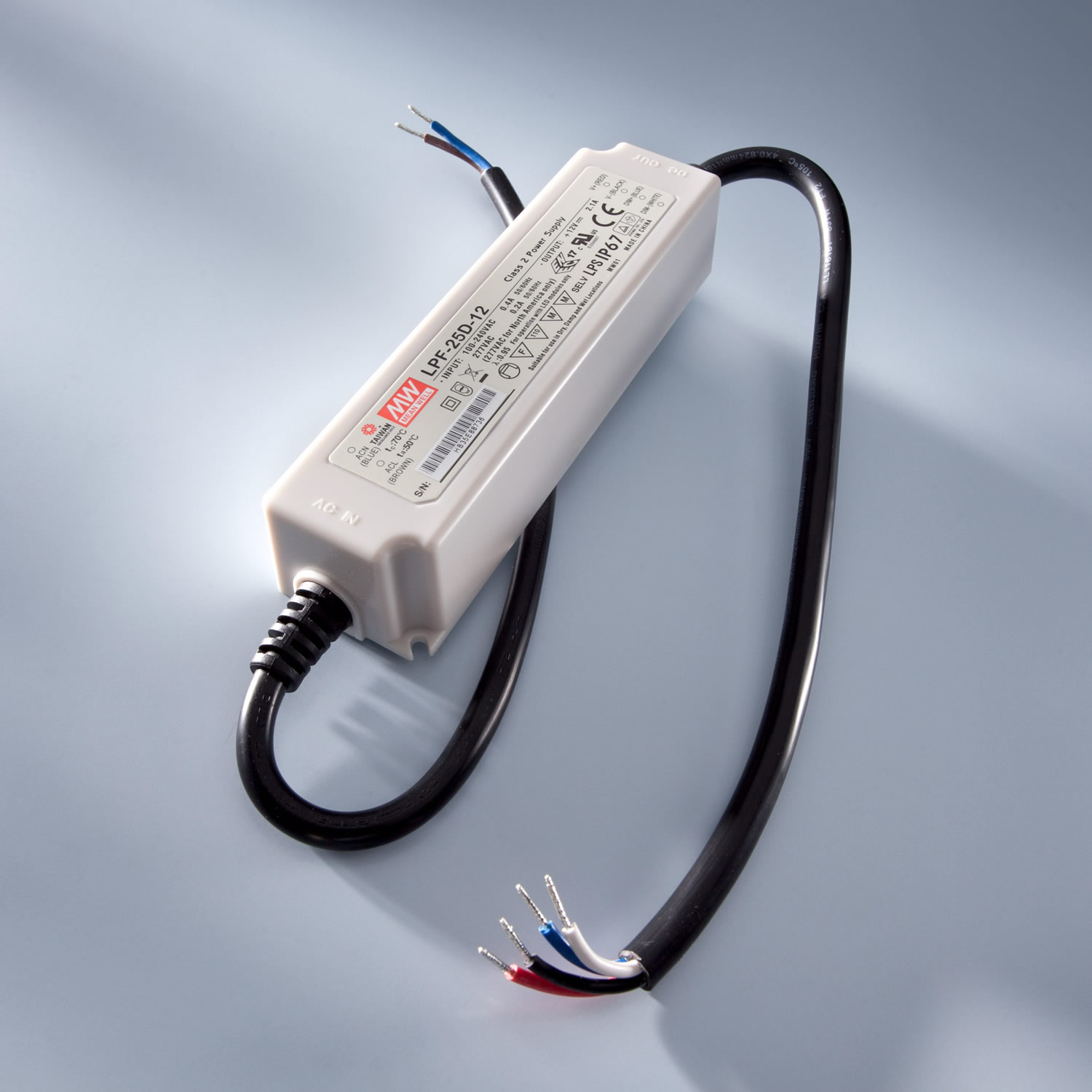

Constant Voltage Power Supply Mean Well LPF-16D-24 IP20 230V to 24V 6.7A 16W
€27.85
Low Stock Germany, only 5 pcs.
SKU
95297
- Buy 5 for €19.76 each and save 29%
Constant Voltage Power Supply Mean Well LPF-16D-24 IP20 230V to 24V 6.7A 16W
Mean Well constant voltage LED transformer for use with LED modules and strips that require 24VDC voltage. The components can be connected in parallel so the total power of the chain is max 6700mA or 16 W. Compact size, dimensions(mm): 148*40*32mm .Features:
- Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)
- Fully encapsulated with IP67 level
- Protections: Short circuit/ Overload/ Over voltage/ Over temperature
- 90~305VAC input, built-in active PFC function (200~400VAC for LPFH-60/60D)
- Built-in active PFC function
- Fully isolated plastic case
- Isolation class II, no F.G.
- Class 2 power unit
- Suitable for dry, damp, wet location
- 5 years warranty
| SKU | 95297 |
|---|---|
| Weight brut (g) | 210.000000 |
| Brand | Mean Well |
| Manufacturer Part Number | 4021087007900 |
| Manufacturer Product Code | LPF-16D-24 |
| Output Current (Range) | max 6700mA |
| Transformer Output Voltage | 24V |
| Power (W) | 16 |
| IP Protection | IP20 |
| Dimmable | Dimmable |
| Dimensions | 148x40x32mm |
| Dimensions: Length (cm) | 14 |
| Dimensions: Width (mm) | 40 |
| Dimensions: Height (mm) | 32 |
| Product Family | LPF |
| Availability beyond shown stock: | YES |
