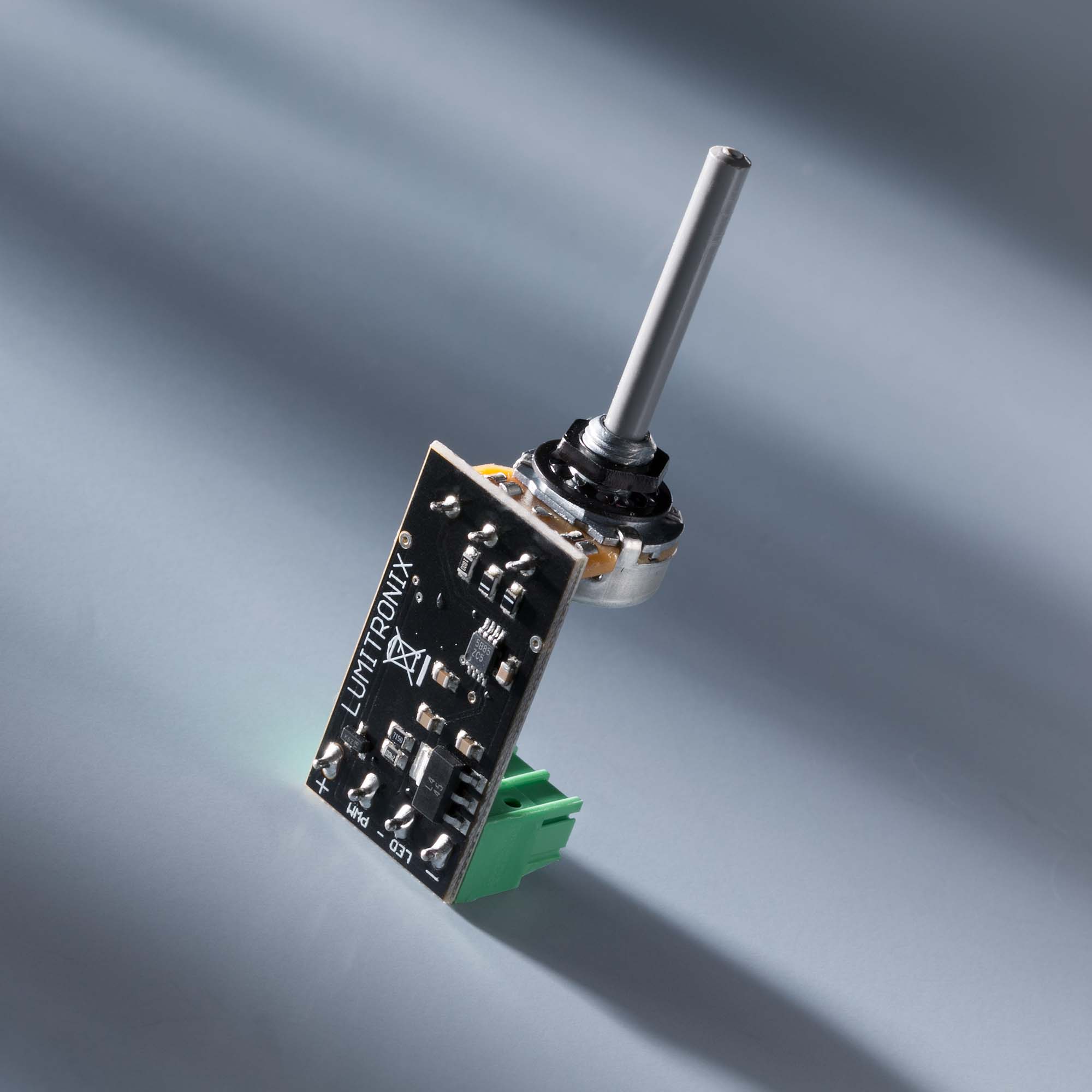

Dimmer for LEDs and LED modules (PWM) with rotary control
€22.30
Low Stock Germany, only 2 pcs.
SKU
95019
- Buy 10 for €10.67 each and save 52%
- Buy 50 for €9.01 each and save 60%
- Buy 100 for €8.19 each and save 63%
Adjustable dimmer for almost all LED controls with ultra bright LEDs, LED modules, LED strips, HighPower-LeDs (e. g. LUXEON, Seoul, etc).
The module is equipped with screw terminals (incl. wire protection) for an easy interconnection. The twist potentiometer can be set with ordinary switches.
Technical data:
- operating voltage: min. 7V , max. 30V DC
- input: polarised up to a maximum of 60V
- visual indicator for reserve polarity
- almost steplessly dimmable (in 256 steps)
- output current: up to 5000mA, cooling required
- dim area: 0 to 100% in 256 steps, digital
- drop: few millivolt, depending on the load
- switching frequency: 250Hz (suitable for photo, video, etc.)
- output PWM: for the control of extern modules and circuits with TTL-level, MSModules etc.
- Connection: solderless connection with screw terminals with wire protection. Connection support see data sheet & downloads.
- for the connection to the negative pole of LED strips etc.
- measures: 20mm (B) x 38mm (L) x 25mm (H) (without controller)
- controller axis: length 29mm/diameter 4mm
- drilling: 7mm diameter for the controller.
- the axis of the controller can be cut if necessary.
| SKU | 95019 |
|---|---|
| Weight brut (g) | 1.000000 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127453004 |
| Manufacturer Product Code | 95019 |
| Availability beyond shown stock: | YES |
