Nichia LED Module SmartArray L9V2 Cold White 5000K CRI83 932lm 700mA 8.25V 5.75W 5cm
- Compact linear LED module – COB replacement with Nichia LEDs
- Luminous flux 932 lm at 5000K, CRI 83
- Power consumption 5.75 W at an efficacy of 162 lm/W
- 9 brand LEDs from Nichia
- Beam angle 120°
- Dimensions 50 x 7 x 2 mm
- Made in Germany with brand LEDs, automated placement and full electrical testing
- 5 years warranty
Nichia LED Module SmartArray L9V2 Cold White 5000K CRI83 932lm 700mA 8.25V 5.75W 5cm
This product is a member of our SmartArray L9V2 family of compact rigid LED modules, designed as a direct and more flexible replacement for COB light sources. This variant delivers 932 lm at 5000K with CRI 83, 5.75 W of power consumption and an efficacy of 162 lm/W.

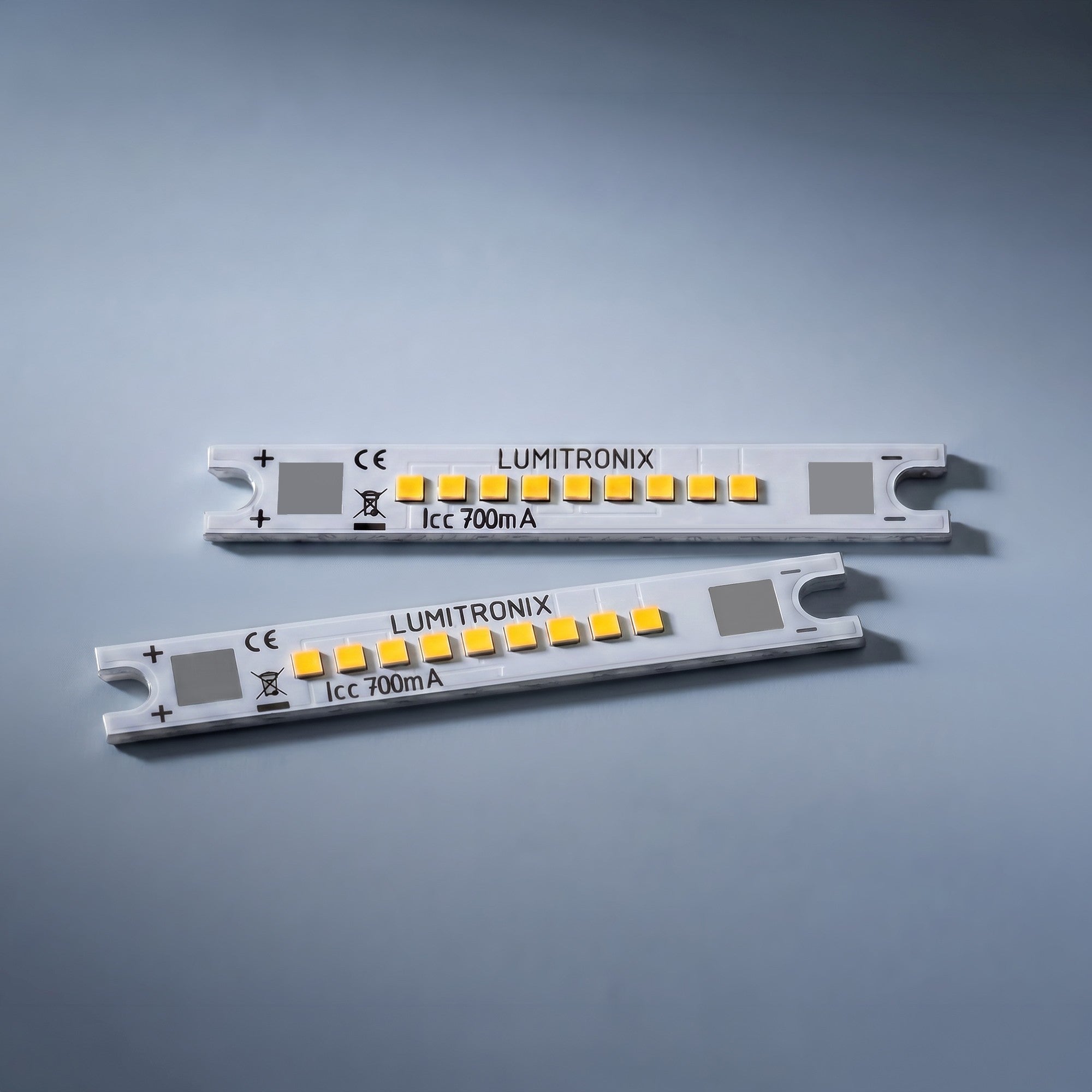

The SmartArray L9V2 builds on a linear 50 mm board with nine LEDs carrying high-quality Nichia LEDs. Concentrating the LEDs on a small area gives a high luminous flux density, which is exactly what a secondary optic needs in order to produce a tight, well-defined beam. At the same time the multi-LED layout spreads the heat over a larger area of the board than a single COB die does, so the junction temperature stays lower at the same output.
Because the module is so small and completely flat, it integrates into designer luminaires, industrial high-bay fittings, spotlights and machine lights without any mechanical adaptation. It is operated with a constant current driver and mounted directly onto a heat sink, and a wide selection of colour temperatures and CRI classes is available across the family so that a whole luminaire range can be built on one mechanical platform.
Why we build with Nichia LEDs
Nichia is a major Japanese LED manufacturer and one of the companies closely associated with the development and commercialisation of high-brightness blue and white LED technology. Its professional lighting LEDs are selected for well-documented optical and electrical characteristics, tight binning options and long-term characterisation. For a luminaire maker, that means the PCB, driver and thermal design can be built around defined forward-voltage, flux, colour and temperature limits instead of anonymous components whose behaviour may change from one batch to the next.
The SmartArray L9V2 comes with a 5-year warranty. A warranty period of that length is only possible because the components, the thermal design and the production process are under our own control, and it gives you real investment security on a component that will be built into an installation.
Made in Germany – for reliable quality
This Lumistrips light engine is developed and manufactured at our production site in Germany. The PCB is assembled on controlled SMD equipment and the finished boards are visually inspected and electrically tested. We use specified, traceable LED components and defined production parameters so that current, voltage, light output and colour remain reproducible from batch to batch.
The difference from generic LED tape or anonymous modules is control of the complete light engine: copper layout, soldering quality, LED spacing, component selection and thermal path are defined together. That gives luminaire makers a more predictable component for continuous operation, easier qualification and repeat orders that behave like the original build.
Technical features
- 9 LEDs from Nichia
- Colour temperature: 5000K (Cold White)
- Colour rendering index: CRI 83
- Luminous flux: 932 lm (typical)
- Power consumption: 5.75 W
- Luminous efficacy: 162 lm/W
- Operating point: 700 mA at 8.25 V
- Beam angle: 120°
- Board type: Rigid
- Dimensions: 50 x 7 x 2 mm
- Dimmable
- Rated lifetime: 60000 h
- Warranty: 5 years
- Weight: 8 g
- EAN: 4062986000371
Applications
- Spotlights and downlights
- Industrial and machine lighting
- Shop and accent lighting
- Architectural lighting
- Custom luminaire development
| SKU | 45071 |
|---|---|
| Weight brut (g) | 8.000000 |
| Color | Cold White |
| Color Temperature | 5000K |
| Color Rendering Index | 83 |
| Bright like (W) | 63 |
| Luminous Flux Typ (lm) | 932 |
| Efficacy (lm per W) | 162 |
| Energy Class 2022 | D |
| Power (W) | 5.75 |
| Dimmable | Dimmable |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 55 |
| Product lifetime (h) | 60000 |
| Lifetime for commercial, 12h daily (yrs) | 14 |
| Manufacturer Product Code | 45071 |
| Product Family | Smart Array LED strip |
| Strip Type | Rigid |
| LEDs number per sales unit | 9 |
| Dimensions | 50 x 7 x 2 mm |
| Dimensions: Length (cm) | 5 |
| Dimensions: Width (mm) | 7 |
| Dimensions: Height (mm) | 2 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4062986000371 |
| Forward Voltage Typ (V) | 8.25 |
