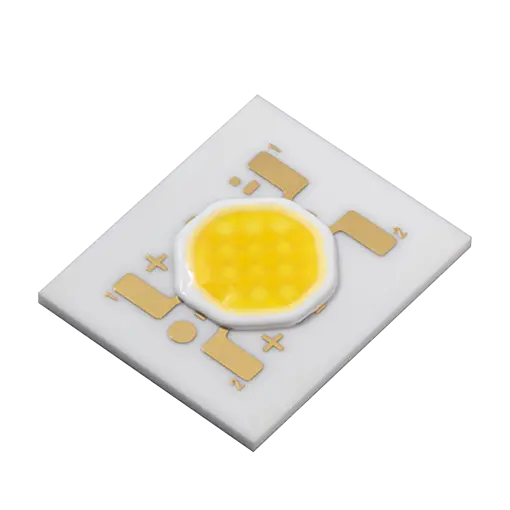

Nichia COB LED NJCWL024Z-V1MT Tunable White 2700-5000K CRI90 1120lm 250mA 8.95W
- Chip-on-Board LED – one uniform emitting surface, ideal for reflectors
- Luminous flux 1120 lm at 2700-5000K, CRI 90
- Power consumption 8.95 W at an efficacy of 126 lm/W
- Original Nichia LED package
- Beam angle 120°
- Dimensions 19 x 16 x 2 mm
- Uniform emitting surface gives a clean beam with no colour fringes
Nichia COB LED NJCWL024Z-V1MT Tunable White 2700-5000K CRI90 1120lm 250mA 8.95W
This product is a Chip-on-Board LED module delivering 1120 lm at 2700-5000K with CRI 90, 8.95 W of power consumption and an efficacy of 126 lm/W from a single compact emitting surface.
In a COB LED many small chips are mounted directly on the substrate and covered by a common phosphor layer, so the whole array appears as one homogeneous light source. That is precisely what a reflector or a lens needs: a small, uniform emitting surface with a sharply defined edge produces a clean beam with no colour fringes and no multiple shadows, which is why COB remains the standard light source for spotlights and downlights.
The module is driven by constant current and mounted on a heat sink, usually with a COB holder that provides both the thermal contact pressure and the solderless electrical connection. Thermal design is critical: the entire heat of the module is generated in a few square millimetres, and both the luminous flux and the lifetime depend directly on keeping the case temperature within specification.
Why we build with Nichia LEDs
Nichia is a major Japanese LED manufacturer and one of the companies closely associated with the development and commercialisation of high-brightness blue and white LED technology. Its professional lighting LEDs are selected for well-documented optical and electrical characteristics, tight binning options and long-term characterisation. For a luminaire maker, that means the PCB, driver and thermal design can be built around defined forward-voltage, flux, colour and temperature limits instead of anonymous components whose behaviour may change from one batch to the next.
Technical features
- Nichia NJCWL024Z-V1MT LED package
- Colour temperature: 2700-5000K (Tunable White)
- Colour rendering index: CRI 90
- Luminous flux: 1120 lm (typical)
- Power consumption: 8.95 W
- Luminous efficacy: 126 lm/W
- Operating point: 250 mA at 35.8 V
- Beam angle: 120°
- Dimensions: 19 x 16 x 2 mm
- Weight: 0 g
- Manufacturer part number: NJCWL024Z-V1MT
Applications
- Spotlights and downlights
- Industrial and machine lighting
- Shop and accent lighting
- Architectural lighting
- Custom luminaire development
| SKU | 45123 |
|---|---|
| Weight brut (g) | 0.000000 |
| Factory Pack Quantity (Reel or Tray) | 1 |
| LEDs number per sales unit | 1 |
| LED Size | 19x16 mm |
| LED Family | Nichia Standard COB |
| LED Installation Package | Chip on Board |
| Color Rendering Index | 90 |
| Color | Tunable White |
| Color Temperature | 2700-5000K |
| Viewing Angle | 120° |
| Luminous Flux Typ (lm) | 1120 |
| Forward Current Typ | 250ma |
| Forward Voltage Typ (V) | 35.8 |
| LED Power (W) | 8.95 |
| Efficacy (lm per W) | 126 |
| Manufacturer Product Code | NJCWL024Z-V1MT |
| Brand | Nichia |
| Dimensions: Length (cm) | 1.9 |
| Dimensions: Width (mm) | 16 |
| Dimensions: Height (mm) | 2 |
