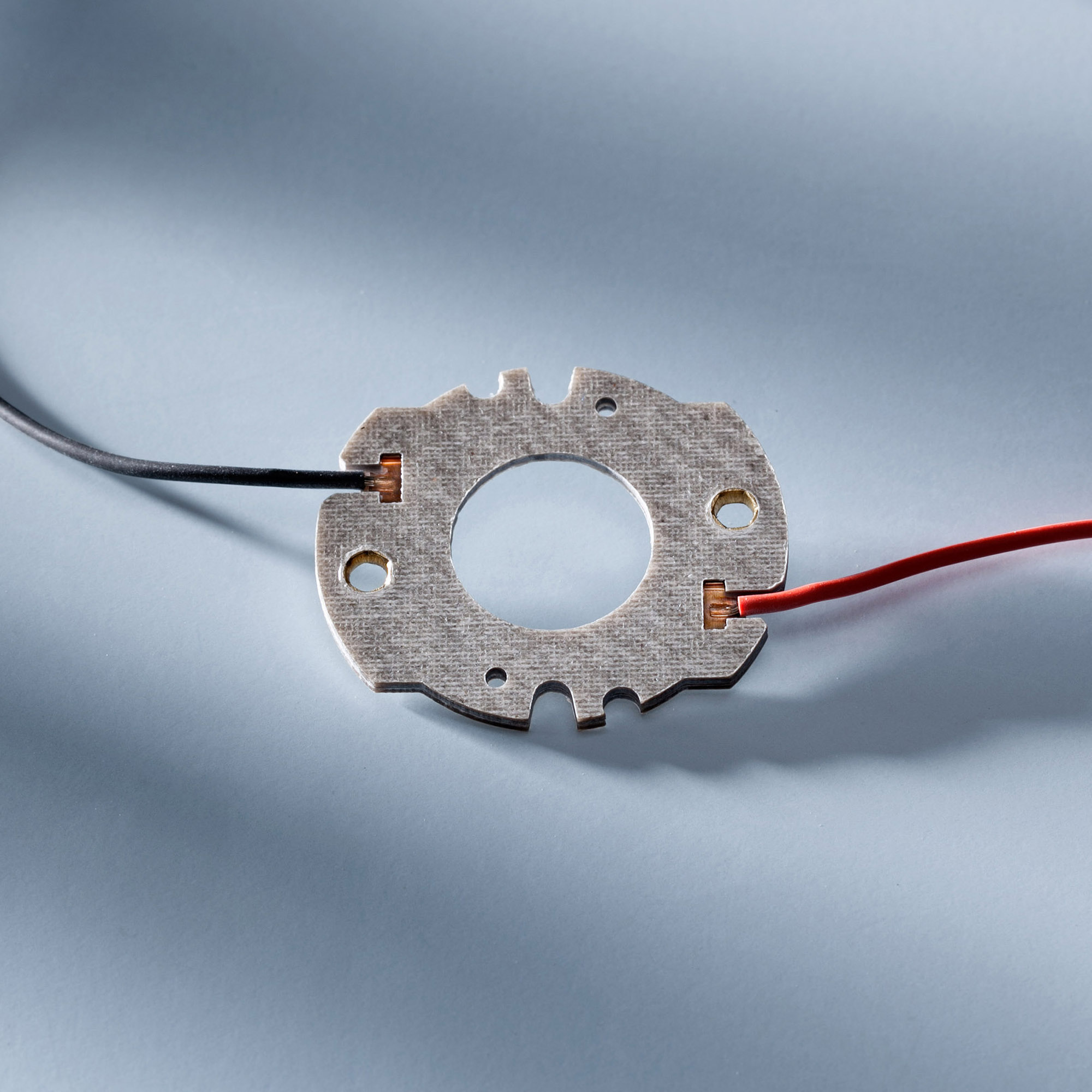

Bender&Wirth Connector element for Nichia COB-B family 19x16mm, type 036/048/060/072
€6.77
Stock Germany >100 pcs
SKU
60807
This connecting element by Bender + Wirth is perfectly suited for the fast and uncomplicated installation of Nichia Chip on Board series 19x16mm on a fitting cooling device. Thanks to the screw connection with M3 screws no soldering is required.
Features
- Safe heat management for long-term operation
- Fast and efficient cabling with push wire contacts
- Easy replacement of the LED modules
Technical data
- Screw connection
- Casing: Mica
- Contact: CuSn gilded
- Screw connection for M3 screws
- Max. torque for screw connection 0.3Nm
Please mind the polarity of the LEDs when installing the connecting element.
| SKU | 60807 |
|---|---|
| Weight brut (g) | 1.000000 |
| Manufacturer Product Code | 438 Typ L1 438/44482/TypL1 |
| Availability beyond shown stock: | YES |
