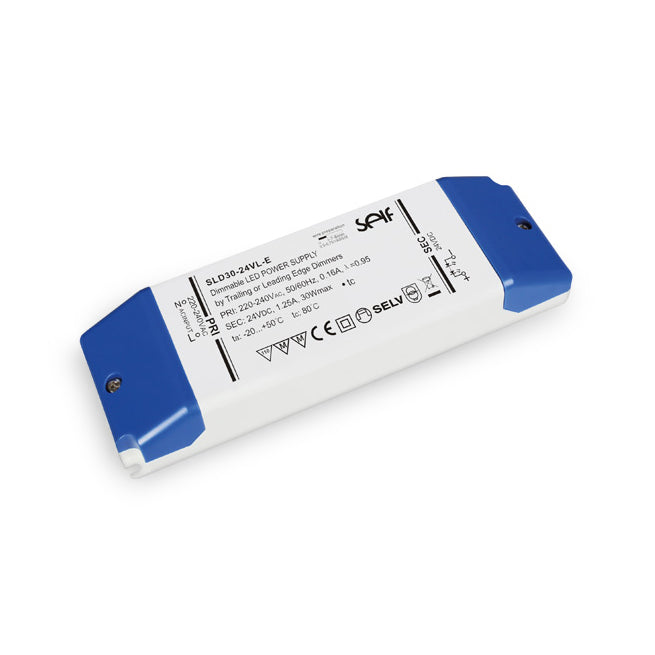

Self SLD30-24VL-E (24 V - 30 W), Dimmable Power supply

Self SLD30-24VL-E (24 V - 30 W), Dimmable Power supply

This product is a compact constant voltage power supply delivering 24 V DC with an output power of up to 30 W.

Constant voltage supplies are the standard way to run LED strips and modules that have their own current limiting on board. Several strips are simply connected in parallel until the rated output power of the supply is reached, which makes planning an installation straightforward: add up the wattage of the strips, leave some headroom, and choose the supply.

This version is dimmable, so the brightness of the whole connected installation can be controlled from the supply side without any additional dimming module in the low-voltage wiring. For furniture and shopfitting applications that is usually the simplest and cleanest solution.

The flat housing is designed to be built into furniture, display systems and shopfitting, where the depth of the supply often decides whether an installation is possible at all.

About SELF Electronics

SELF Electronics develops and manufactures LED power supplies and lighting electronics for the furniture and shopfitting industry, with a European engineering and distribution base in Germany. Its compact constant-voltage supplies are designed to be built into furniture and display systems, where the housing depth and the acoustic behaviour of the supply matter as much as its electrical data.

Technical features

• Power consumption: 30 W
• Maximum output current: 1250 mA
• Output voltage: 24 V constant voltage
• Dimensions: 145 x 50 x 22 mm
• Protection class: IP20
• Dimmable
• Weight: 230 g
• Manufacturer part number: SLD30-24VL-E
• EAN: 4021087047227

Applications

• Furniture and shopfitting lighting
• LED strip and module installations
• Display and retail lighting
• Custom luminaire construction
