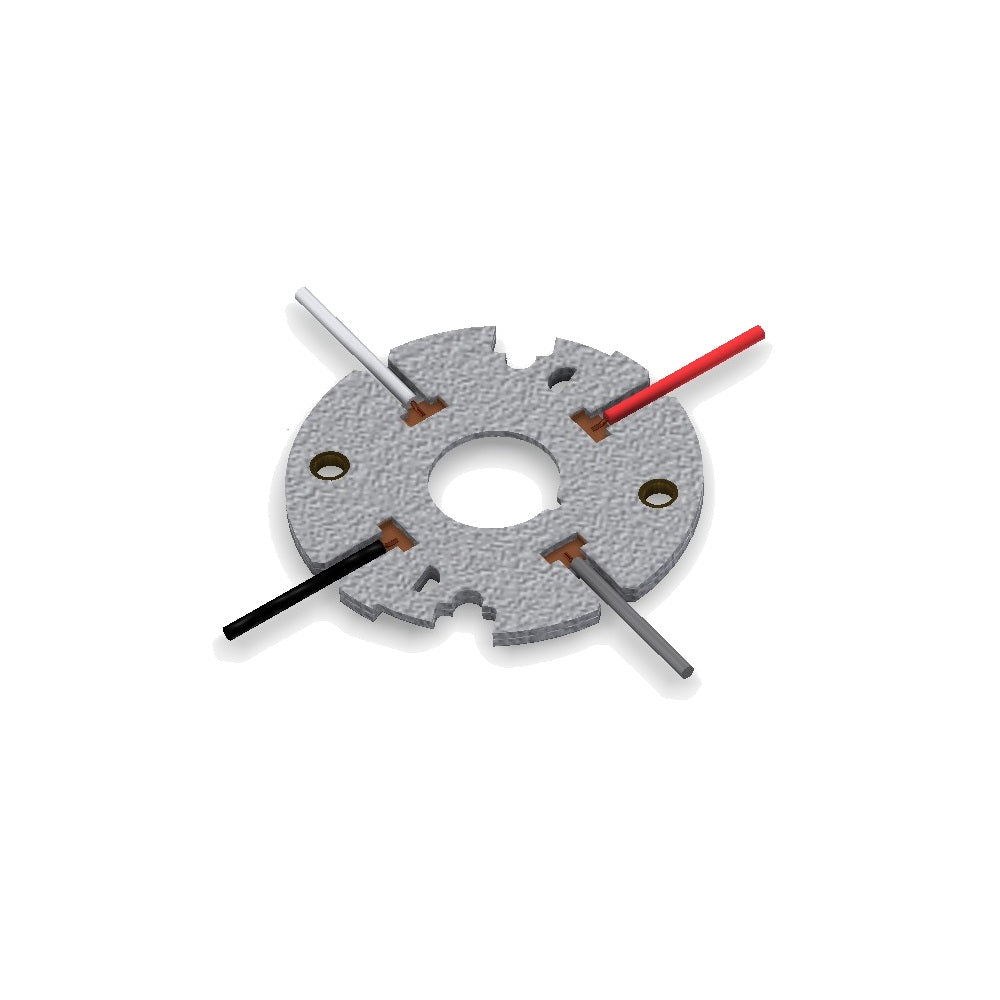

Bender + Wirth Mica Holder 495 Type L8

Bender + Wirth Mica Holder 495 Type L8

This product is a holder for COB LED modules from Bender + Wirth, providing precise mechanical positioning and a solderless electrical connection.

A COB holder does three jobs simultaneously. It centres the COB on the heat sink so that the optic sees the emitting surface exactly where it expects it. It applies an even, defined pressure across the thermal interface, which is what actually determines the thermal resistance between the COB and the heat sink. And it makes the electrical connection with spring contacts, so the COB can be fitted and replaced without any soldering.

For a manufacturer this means faster and, more importantly, repeatable assembly. For a maintenance technician it means a COB can be exchanged in the field with nothing more than a screwdriver.

About Bender + Wirth

Bender + Wirth is a German manufacturer of LED holders and sockets with more than a century of experience in lamp components. Its COB holders solve three problems at once: they position the COB precisely on the heat sink, they apply an even, defined contact pressure for the thermal interface, and they provide a solderless electrical connection. That makes assembly faster and, more importantly, repeatable, and it allows a COB to be replaced in the field without any rework on the board.

Technical features

• Dimensions: 44 x 44 x 3.5 mm
• Weight: 25 g
• Manufacturer part number: 46651

Applications

• Spotlights and downlights
• Machine and inspection lighting
• Shop and accent lighting
• Custom luminaire development
