Carclo 10mm LED Lens Frosted 24-59deg for Nichia Cree

Carclo 10mm LED Lens Frosted 24-59deg for Nichia Cree

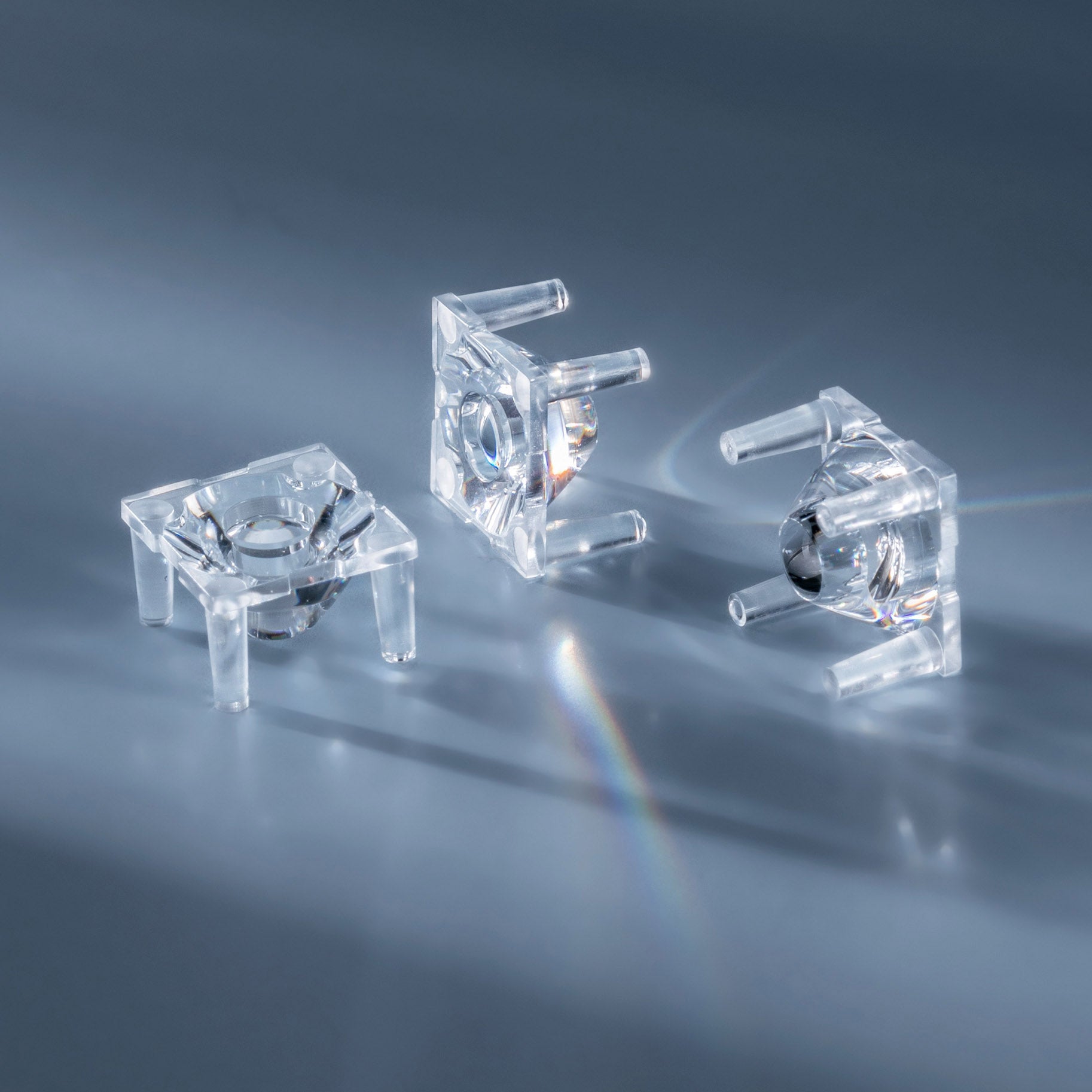

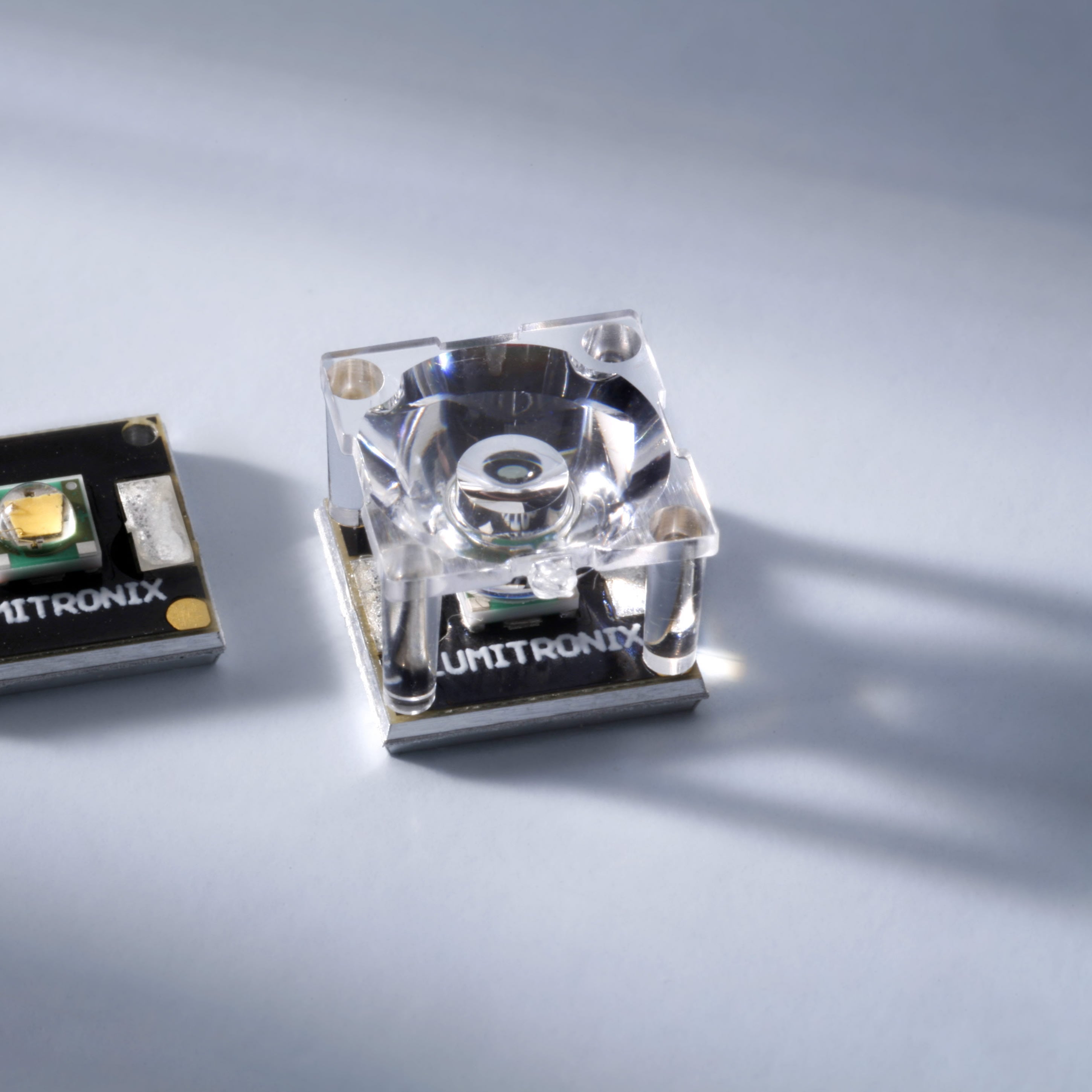

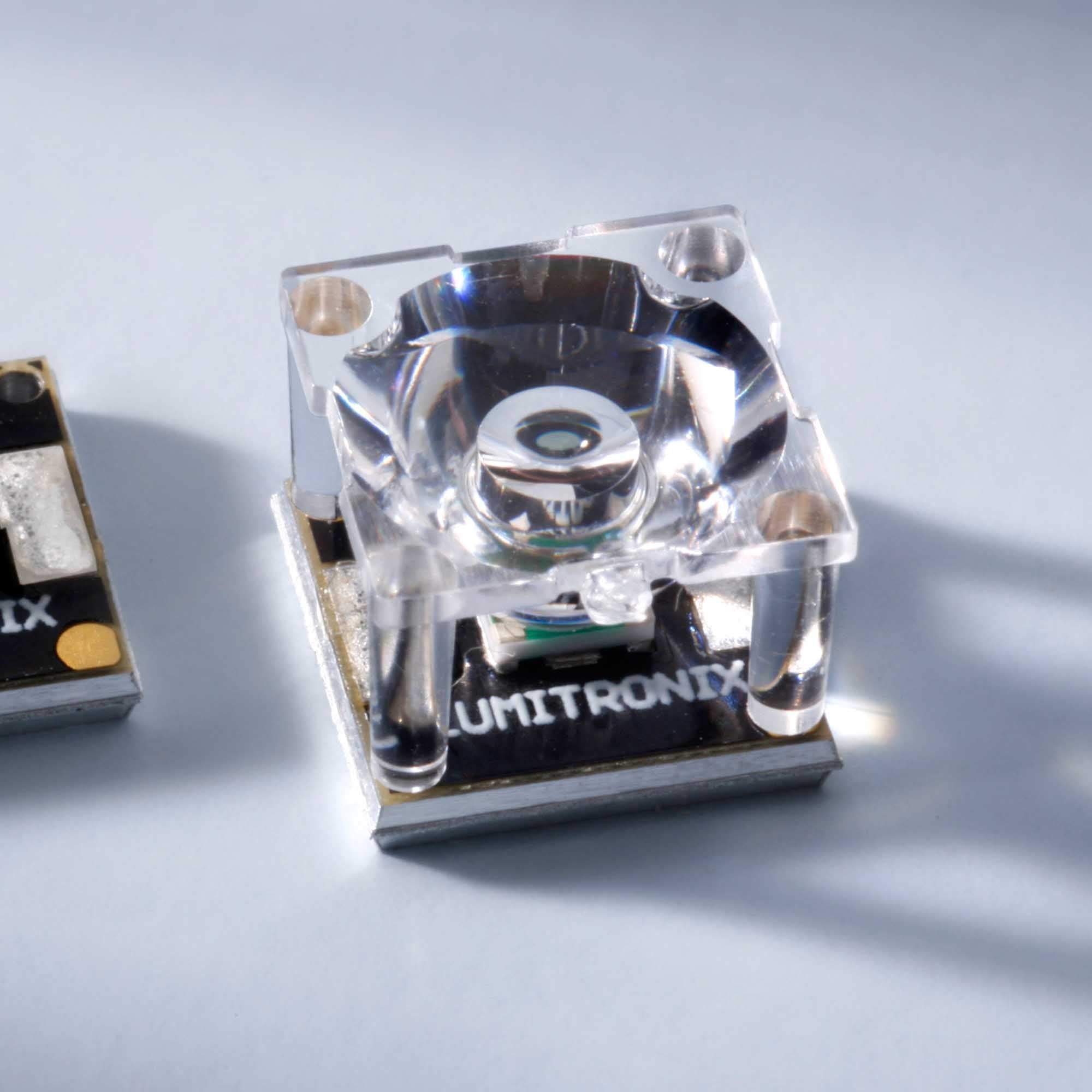

This product is a precision LED optic from Carclo. It shapes the light of the matching LED into a defined beam of 24-59.

The Carclo 10mm and 20mm ranges are among the most widely used LED optics in professional lighting. The value of the range is its consistency: every lens in a family shares the same mechanical footprint and mounting method, so a whole product line of spotlights can be built on one board and one holder, with the beam angle chosen per variant simply by fitting a different lens.

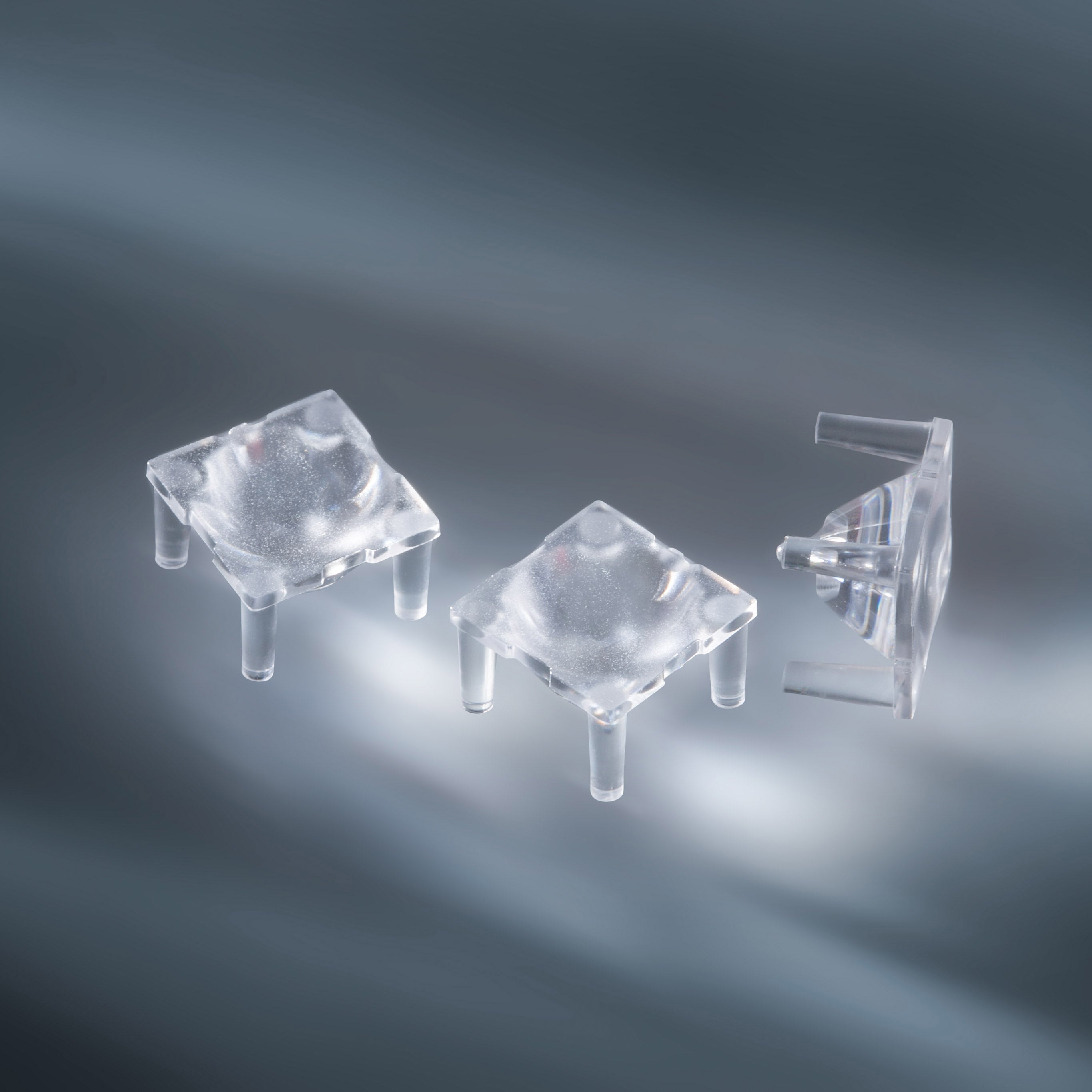

This is the frosted version. The textured surface scatters the light slightly, which widens the beam a few degrees and, more importantly, removes the hotspot and the coloured fringes that a clear lens can produce. Where the beam falls on a visible surface, or where several luminaires overlap, the frosted version gives a noticeably cleaner result.

About Carclo Optics

Carclo is a British optics manufacturer and one of the oldest names in LED secondary optics. Its 10mm and 20mm lens ranges are a de facto standard for compact spotlights, flashlights and machine-vision illumination: a single mechanical footprint is available with a wide selection of beam angles, so the same board and holder can be used across an entire product family and the beam is changed simply by swapping the lens. Clear versions produce a defined beam with a visible hotspot, frosted versions trade a few degrees of beam angle for a smooth, artefact-free light distribution.

Technical features

• Beam angle: 24-59°
• Compatible with: Nichia Cree LEDs
• Dimensions: 9.9 x 9.9 x 6.4 mm
• Manufacturer part number: 10414

Applications

• Spotlights and downlights
• Machine and inspection lighting
• Shop and accent lighting
• Custom luminaire development
