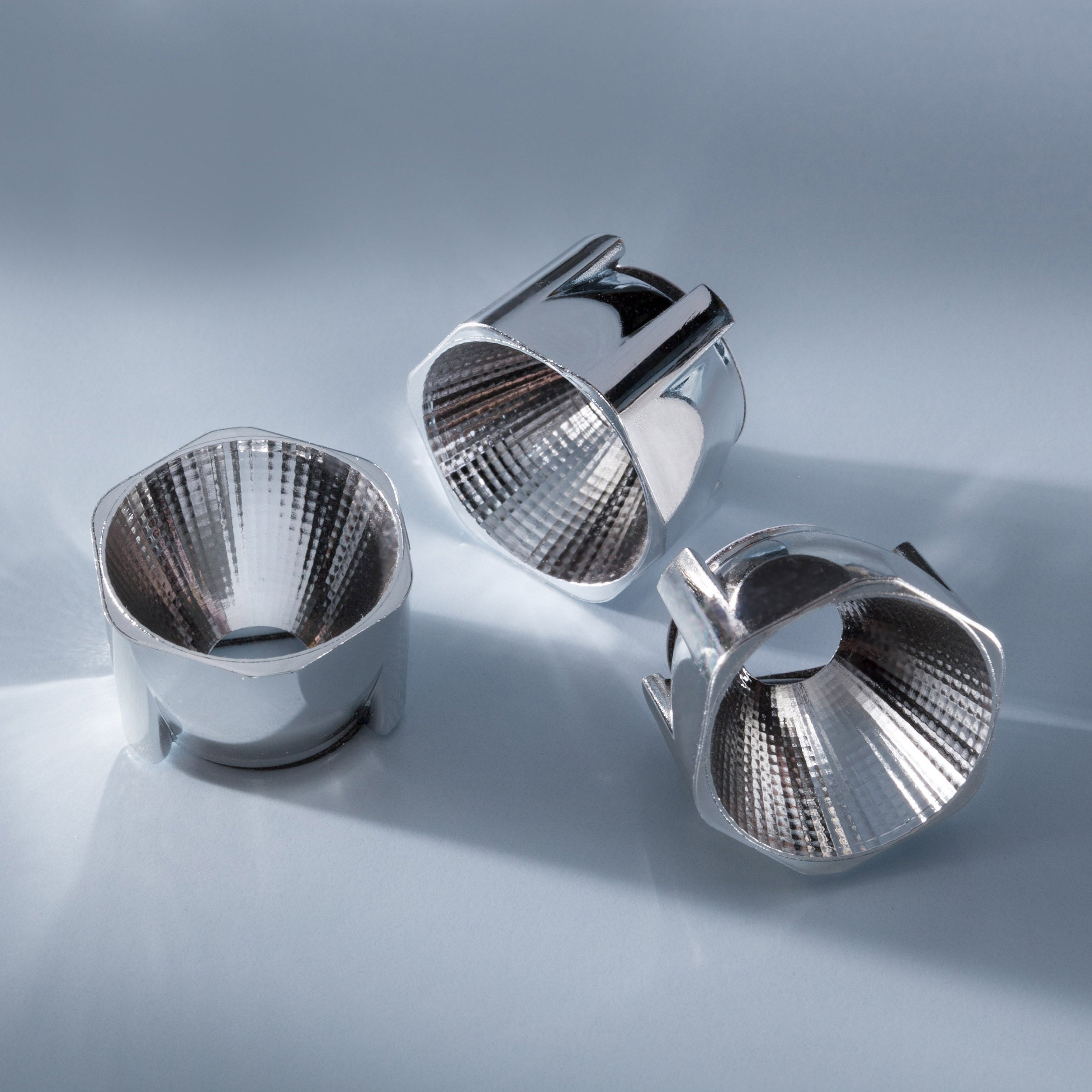

LEDiL BOOM COB Reflector 25-36deg for Cree
- LEDiL COB reflector for a clean, low-glare beam
- Beam angle 25-36°
- Shallow build with a controlled cut-off and low glare
- Photometric files (IES/LDT) published by LEDiL for luminaire simulation
LEDiL BOOM COB Reflector 25-36deg for Cree
This product is a precision LED reflector from LEDiL. It shapes the light of the matching LED into a defined 25-36° beam.
A reflector collects the light of a COB emitter by total reflection off a polished inner surface. Compared with a lens of the same beam angle it is usually shallower, more efficient at wide angles and easier to combine with a large emitting surface, which is exactly the situation with a COB. The result is a clean beam with a controlled cut-off and low glare.
About LEDiL
LEDiL is a Finnish manufacturer and one of the leading specialists worldwide for LED secondary optics. Its catalogue covers well over a thousand lenses, reflectors and holders, each of them designed and simulated for a specific LED footprint, which is why LEDiL optics reach the beam angle and the efficiency stated in the datasheet instead of an approximation. Photometric data in IES and LDT format is published for every article, so a luminaire can be simulated before the first sample is built.
Please select your optic with the radiation characteristics and the LED compatibility in mind. Full optical data and mechanical drawings are available in the LEDiL datasheet.
Technical features
- Beam angle: 25-36°
- Compatible with: Cree LEDs
Applications
- Spotlights and downlights
- Machine and inspection lighting
- Shop and accent lighting
- Custom luminaire development
| SKU | 60773 |
|---|---|
| Lens Usage | Cree |
| Lens Viewing Angle | 25-36 |
| Brand | Ledil |
| Lens Dimensions | Ø22.2 mm |
