Established in 1982, MEAN WELL is considered a pioneer and a leader in standard switching power supplies all over the world.
MEAN WELL is ranked the 6th in global power supply (DC output) makers according to a report by Micro Technology Consultant released in March 2016. For the product coverage of industrial power supplies and the sales volume of LED drivers, we have the confidence to say that MEAN WELL is ranked the No.1 standard power supply manufacturer in the world.

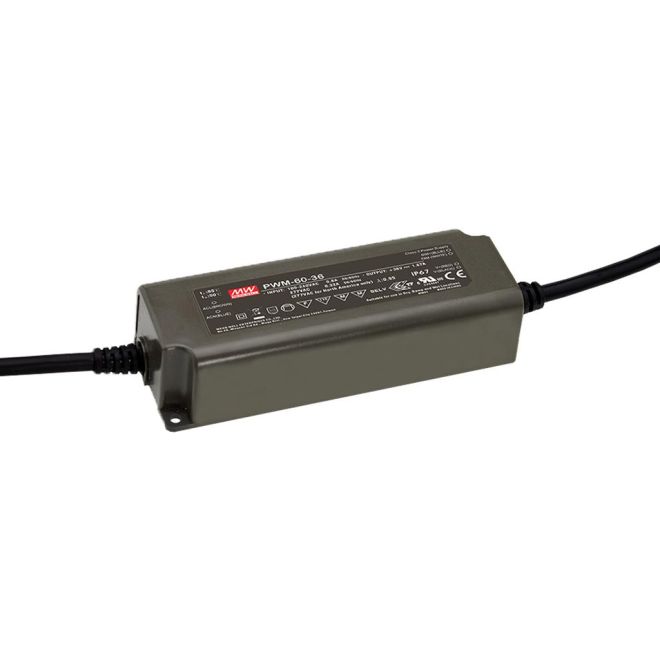

With the Meanwell PWM-60-24BLE, the connected modules, strips or luminaires can be conveniently controlled and dimmend via smartphone or tablet. This is made possible by the built-in Casambi module, which transmits the signals from the app directly to the connected light source via Bluetooth. The Casambi app is available free of charge for both iOS- and Android-based devices.
Casambi enables indoor and commercial luminaires to be controlled via Bluetooth Low Energy 4.0 mesh protocol. Casambi's Bluetooth mesh network solution integrated into the series automatically connects to wireless mesh networks, allowing control of numerous luminaires from a single point without additional gateways. The Casambi Bluetooth app even connects to the cloud for data storage, and many Bluetooth control devices are available for instant use.
Before starting, all that is required is to download the app to a smartphone or tablet for setting up scenes, timers, etc. To expand the network and develop personalized intelligent lighting control systems, it is also possible to connect PWM-60-24BLE to all Casambi-compatible devices such as wall switches or light sensors.
The constant voltage source operates with 90-305 VAC input voltage and provides 24 V at the output. Thanks to its high efficiency of up to 90% and fanless design, the PWM-60-24BLE can operate at -20°C to +90°C case temperature under free air convection. The constant voltage driver has IP67 protection and is suitable for use in dry, damp or wet rooms.
SKU | 40194 |
---|---|
Brand | Mean Well |
Manufacturer Product Code | 4062986003556 |
Transformer Output Voltage | 24V |
Power (W) | 60 |
IP Protection | IP67 |
Dimmable | Dimmable, Wifi control |
Dimensions | 150x53x35mm |
Dimensions: Length (cm) | 15 |
Dimensions: Width (mm) | 53 |
Dimensions: Height (mm) | 35 |
Availability beyond shown stock: | YES |
