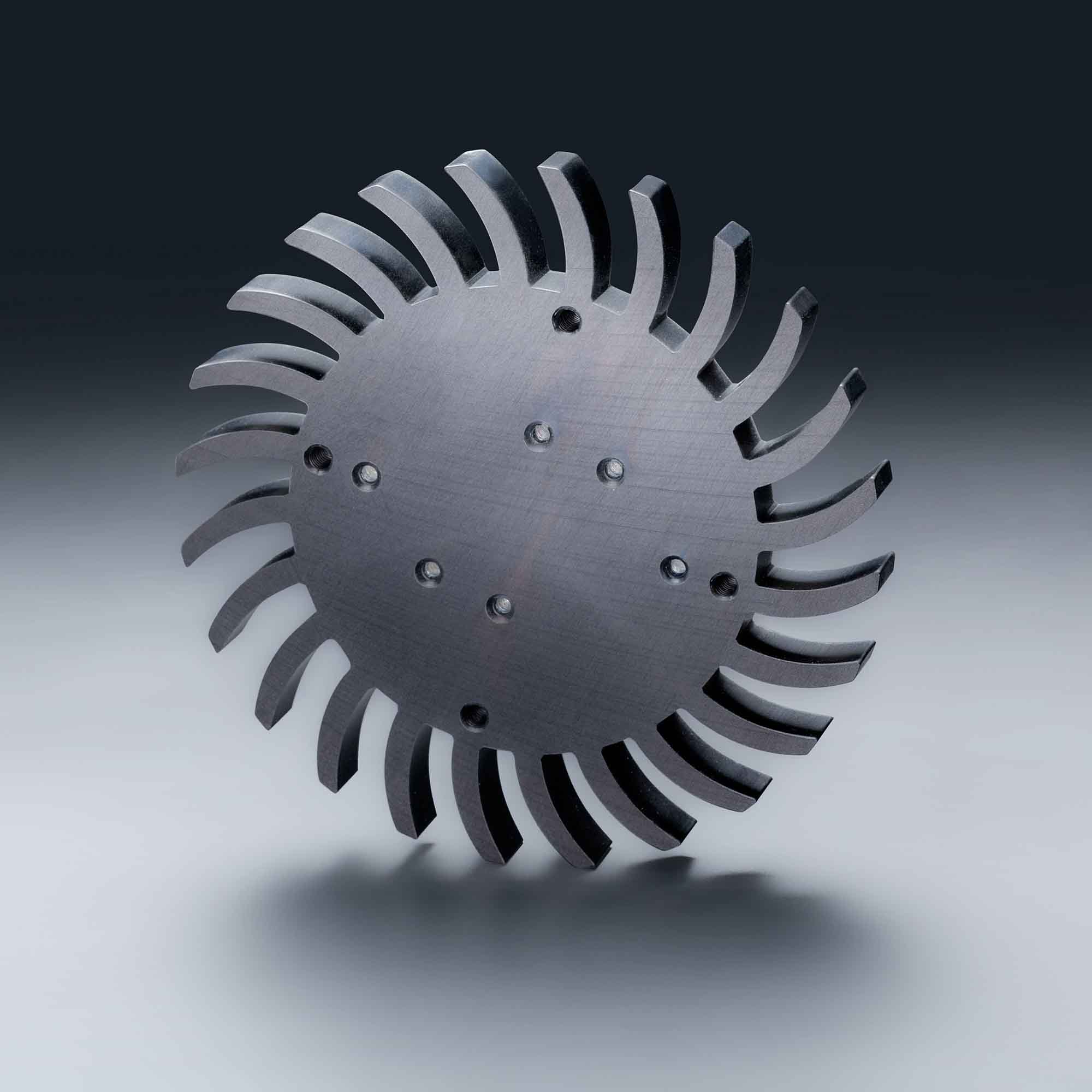

Heatsink round 10.5cm for SmartArray Q3-Q16, L3, L6 or LED < 2000lm
€29.49
Stock Germany >10 pcs
SKU
59997
Heatsink for SmartArray Q3-Q16, L3, L6 or LED up to 2000lm
The heat sink is mechanically prepared for the modules listed below and fitted with mounting holes.
When using several modules with full power supply on a heat sink, it is sometimes not possible to cool the modules sufficiently. Further modules can also be used with this heat sink, but must be glued or mechanically processed.
Note: In order to ensure proper cooling, the heat sink be in closed housings.
Features
- Dimensions: 105x10mm
- Thermal resistance: 2.0K/W
Heat sink is suitable for the following modules:
SmartArray Q3 (max. 1 Modul):
- 53651
- 53652
SmartArray Q6 (max. 1 Modul):
- 53656
- 53657
SmartArray Q9 (max. 1 Modul):
- 53661
- 53662
SmartArray Q12 (max. 1 Modul):
- 53666
- 53667
SmartArray Q16 (max. 1 Modul):
- 53671
- 53672
SmartArray 24V (max. 1 Modul):
- 53683
SmartArray 24V TW (max. 1 Modul):
- 53684
SmartArray TW (max. 1 Modul):
- 5368653686
SmartArray L3 (max. 1 Modul):
- 53611
SmartArray L6 (max. 1 Modul):
- 53783
- 53784
- 53785 5378653786
- 53787
- 53788
- 53781
- 53782
- 53616
- 53617
- 53791
- 53792
SmartArray L12 (max. 1 Modul):
- 53761
- 53762
- 53771
- 53772
Luxeon 20x20 (max. 5 Modul):
- 64125
- 64126
- 64072
| SKU | 59997 |
|---|---|
| Weight brut (g) | 1.000000 |
| Brand | Fischer Elektronik |
| Manufacturer Part Number | (SK584 10 SA-SL) |
| Manufacturer Product Code | SK584 10 SA-SL |
| Availability beyond shown stock: | YES |
