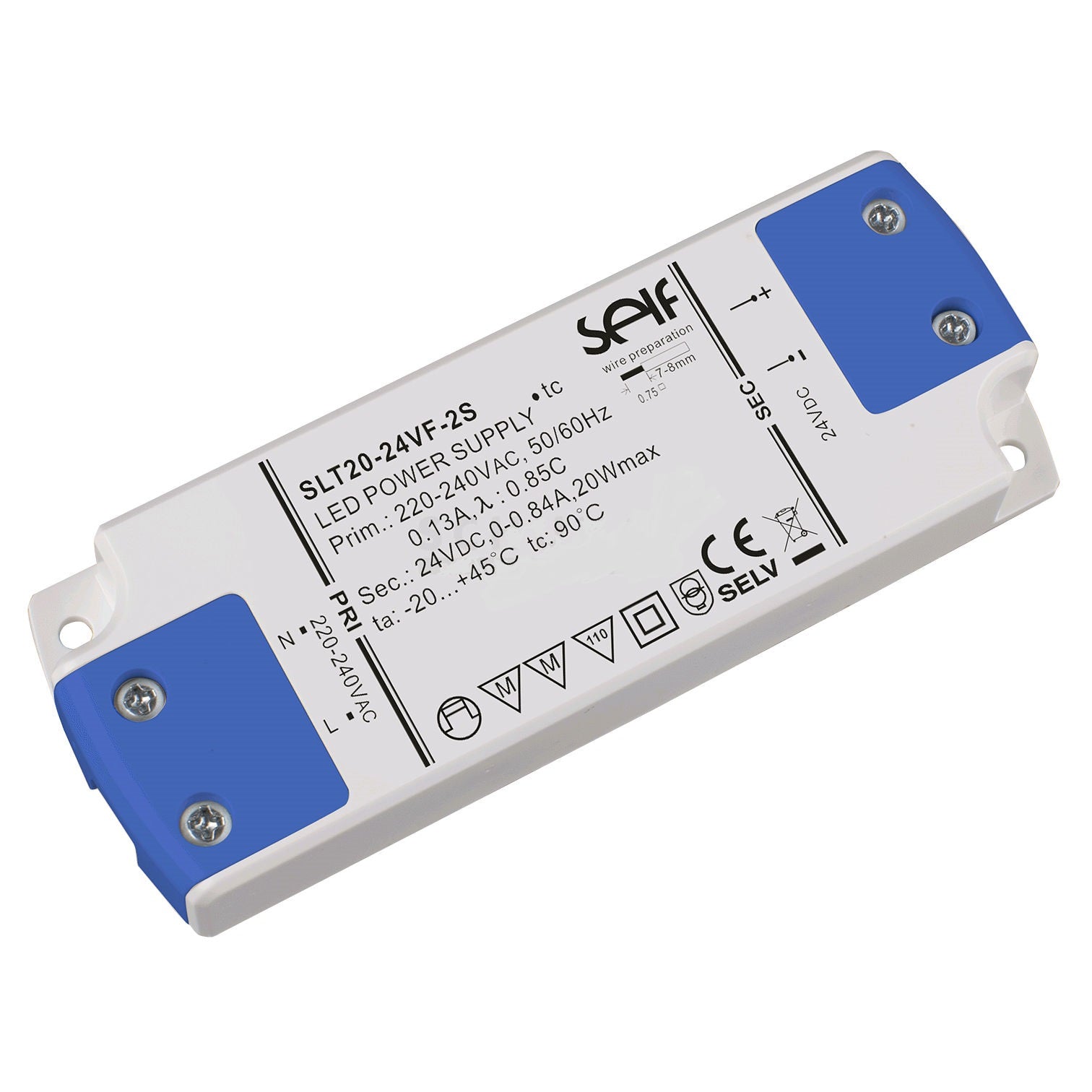

Self SLT20-24VFGS (24 V - 20 W), Power supply

Self SLT20-24VFGS (24 V - 20 W), Power supply

Self SLT20-24VFGS (24 V - 20 W), Power supply
Self SLT20-24VFGS (24 V - 20 W), Power supply

Self SLT20-24VFGS (24 V - 20 W), Power supply

€16.06
Ships in 2-4 weeks
SKU
32140
Blog Posts (2)

This type of power supply is an exclusively designed stabilized power supply for LED lamp. With constant voltage (CV) technology, it is suitable for constant voltage lamps (12/24V DC) connected in parallels. As an advantage of constant voltage (CV) technology, a switch can be installed between secondary side and lamps. The built-in protection circuit will shut down the power supply in case of such faults as: open circuit, short circuit, over load or over temperature. The power supply will restart automatically after fault correction.

Features

  • Input voltage: 220-240 VAC
  • Input frequency: 50/60 Hz
  • Input current: 0.20 A
  • Constant output voltage: 24 VDC
  • Output current: 0-0.84 A
  • Rated power: 0-20 W
  • Independent power supply for constant voltage LED lamp
  • Special design screw terminal for field connection
  • Class II protection against electric shock from direct and indirect contact
  • SELV output
  • Open circuit,short circuit,over load and over temperature protection
  • Auto restart after fault conditions removal
  • Quiet design,working noise is less than 20dB
  • No load power consumption =0.3W
  • Efficiency =83%(AC230V,full load)
Technical Data
SKU 32140
Weight brut (g) 90.000000
Manufacturer SELF Electronics Co.,Ltd.
Manufacturer Product Code SLT20-24VFGS
Transformer Output Voltage 24V
Power (W) 20
IP Protection IP20
Dimmable Not Dimmable
Dimensions: Length (cm) 16.6
Dimensions: Width (mm) 40
Dimensions: Height (mm) 14
Availability beyond shown stock: YES
