Aventrix 4x4 V2 LED Module 16x Nichia 757 LEDs 4000K CRI 80 1270lm 7.8W
- 16 Nichia 757 series LEDs in a 4 x 4 layout
- 1270 lm, neutral white 4000K, CRI 80
- Efficacy of 163 lm/W at 7.8 W
- Compact 50 x 60 x 6 mm aluminum-core (IMS) PCB
- Interconnectable with Wago 2060 connectors, keeping the same LED spacing
- Compatible with Ledil Stradella lenses
- ESD protection and surge protection up to 4000 V
- Made in Germany, 5-year warranty
Aventrix 4x4 V2 LED Module, 16 Nichia 757 LEDs, 1270 lm, Neutral White 4000K CRI80

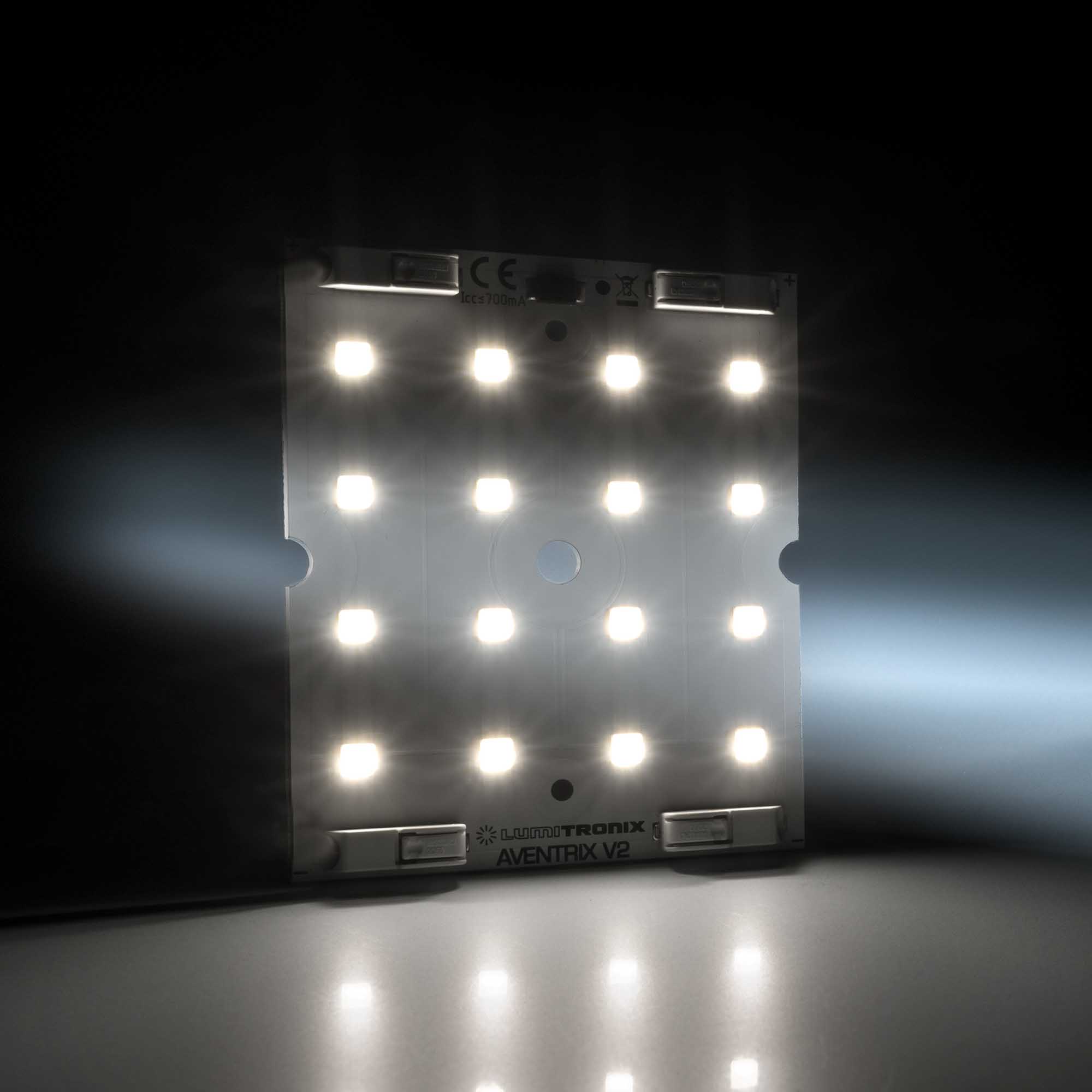

The Aventrix 4x4 V2 is a compact, highly efficient LED module for modular luminaire construction in street, tunnel and hall lighting. Its 16 Nichia 757 series LEDs on a 50 x 60 mm aluminum-core (IMS) circuit board deliver 1270 lm of neutral white 4000K light at only 7.8 W, an efficacy of 163 lm/W, with a color rendering index of 80 and binning to a 3-step MacAdam ellipse.

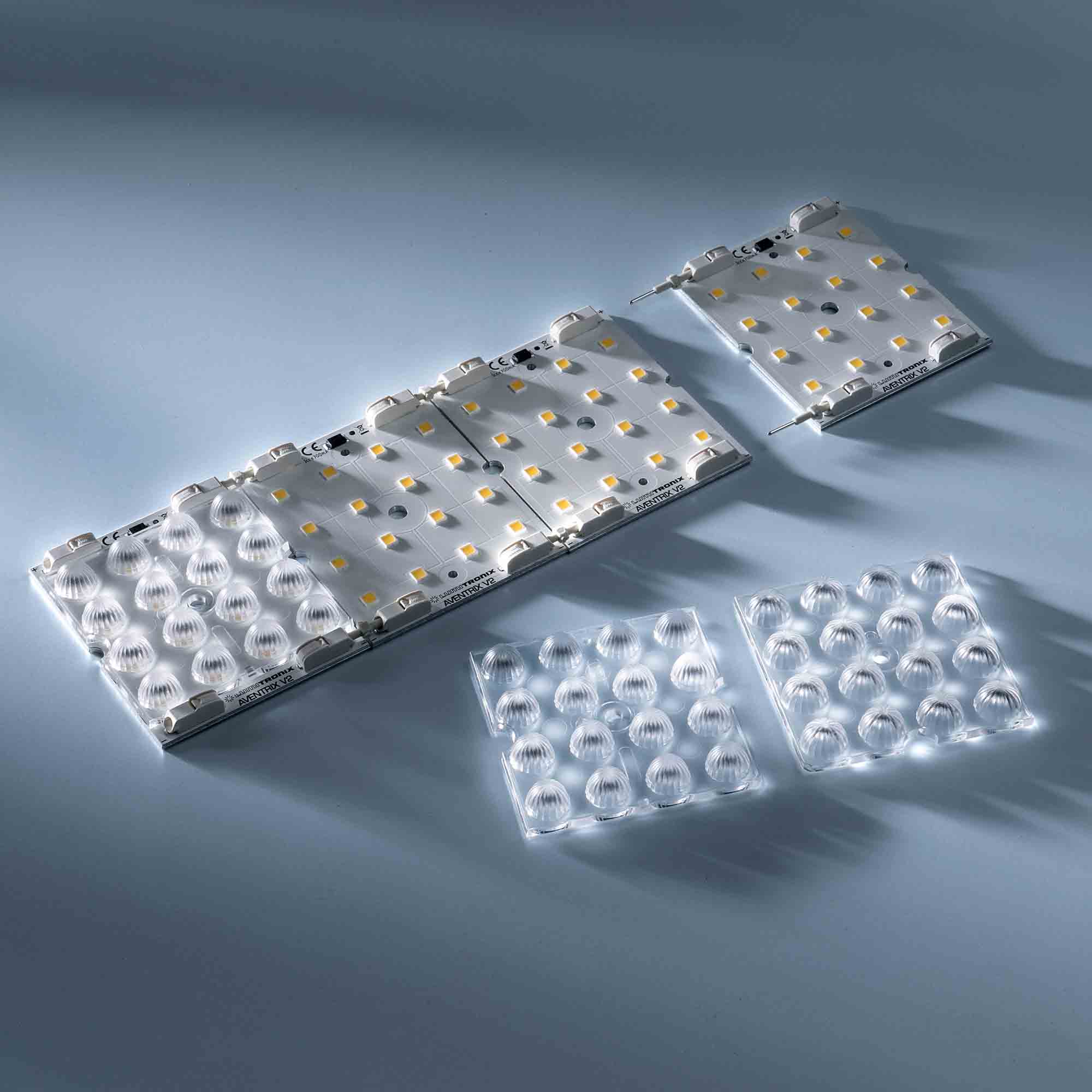

Modules can be connected to each other with two Wago 2060 connecting elements while keeping the same LED spacing, so larger light engines can be built from several modules, and the new arrangement of the connection poles gives more design freedom. The module is compatible with Ledil lenses of the Stradella series, has ESD protection and protection against mains transients up to 4000 V, and is made in Germany with a 5-year warranty.
Features of the Aventrix 4x4 V2 LED Module
- 16 Nichia 757 series LEDs in a 4 x 4 layout
- 1270 lm, neutral white 4000K, CRI 80
- Efficacy of 163 lm/W at 7.8 W
- Color consistency to a 3-step MacAdam ellipse
- Compact 50 x 60 x 6 mm aluminum-core (IMS) PCB
- Interconnectable with Wago 2060 connectors, keeping the same LED spacing
- Compatible with Ledil Stradella lenses
- ESD protection and surge protection up to 4000 V
- Constant current operation, dimmable
- Made in Germany
- 5-year warranty
Applications of the Aventrix 4x4 V2 LED Module
Built for high-power luminaires with optics, the Aventrix 4x4 V2 is designed for the following main applications:
- High bay lighting: In high bay luminaires for warehouses, factories, logistics centers and sports halls, the compact, efficient module combined with lenses delivers the light where it is needed, even from great mounting heights. See our LED modules for high bay lighting.
- Street lighting: With street-light optics, the modules create the asymmetric light distributions required for roads, tunnels and paths; the built-in surge protection up to 4000 V increases reliability in outdoor installations. Configure your own module with our Build Your Own Aventrix Nichia LED module configurator.
- Area lighting: For parking lots, yards, industrial areas and public spaces, the modules provide uniform, efficient area lighting. See our LED modules for area lights.
- Floodlights: In floodlights for facades, sports fields and construction sites, narrow-beam optics turn the module into a powerful directed light source. See our LED modules for floodlights.
- Downlights and spotlights: With suitable optics, the modules are also used in high-output downlights and spotlights for commercial and industrial buildings. See our LED modules for downlights and LED modules for spotlights.
Technical Data of the Aventrix 4x4 V2 LED Module
- Article number (SKU): 31989
- Equivalent model: Aventrix V2
- LED manufacturer: Nichia (757 series)
- Number of LEDs: 16 (4 x 4)
- Light color: Neutral white, 4000K
- Color rendering index: CRI (Ra) 80
- Binning: 3-step MacAdam ellipse
- Luminous flux: 1270 lm
- Power: 7.8 W
- Efficacy: 163 lm/W
- Operating mode: Constant current, dimmable
- PCB: Aluminum core (IMS)
- Dimensions: 50 x 60 x 6 mm
- Optics: Ledil Stradella series
- Connection: Wago 2060 connecting elements
- Protection: ESD and surge protection up to 4000 V
Installation and Operation
- Cooling: mount the module with thermal interface material on a heat sink or the luminaire body, using the screw holes, and size the heat sink for the module power and the ambient temperature of the luminaire.
- Optics: select lenses for the required light distribution and fix them in their positions over the LEDs.
- Connection: connect the wires with the Wago 2060 board clamps, without soldering.
- LED driver: operate the module with a constant current LED driver (7.8 W per module) with short-circuit, overload and overtemperature protection; for several modules in series, the driver must cover the sum of the module voltages.
- Handling: do not touch or press the LEDs, observe standard ESD precautions and keep the module away from aggressive chemicals.
- Safety: installation must comply with all applicable electrical and safety standards and should be carried out by a qualified electrician.
Why the Aventrix 4x4 V2 Outperforms Low-Cost LED Modules
Compared with low-cost LED modules, the Aventrix 4x4 V2 differs in three areas that decide how long a lighting installation performs well:
- LED quality: we use only brand-name LEDs from Nichia, the Japanese LED market leader whose researchers invented the blue and white LED technology, with full manufacturer datasheets and performance tested in the lab and in real applications. Low-cost strips often use LED chips of unknown origin, without certified data, so their quality and color vary from one purchase to the next.
- PCB design and materials: high-quality materials and a design without mechanical and electrical weak points, for good current flow, heat transfer and long-term reliability.
- Realistic specifications: all values are measured at a junction temperature of 65°C, so the performance in our datasheet matches what you get in a real installation.
Who We Are: Ledrise, Professional LED Strips Made in Germany
Ledrise is the international online shop for high-performance LED strips and modules that we develop and manufacture in our own production facility in Germany and ship directly from there. With more than 20 years of experience in LED technology, our team of more than 70 people in Germany, Hong Kong and Romania has gained extensive application knowledge across many sectors, and thousands of business customers and consumers on five continents rely on us as their LED technology partner.
We use only LEDs from market leaders such as Nichia, Seoul Semiconductor, Cree, Samsung and ams OSRAM. Beyond standard products, we design and prototype custom LED modules, select and integrate optics, housings and drivers, and test and validate every solution in our in-house measuring and testing laboratory, supporting you from the first lighting concept to serial production.
Our Quality Promise
- Certified quality: our quality management is certified to DIN EN ISO 9001 and covers every step, from product development to customer service. Our manufacturing center in Germany is also certified to ISO 14001 for environmental management and ISO 45001 for occupational health and safety.
- Reel-to-reel manufacturing, unique in Europe: our fully automated reel-to-reel flex line uses plasma direct metallization to produce robust, flexible circuit boards in continuous lengths of up to 100 meters, with fewer interconnections and less material waste.
- Precision at every step: automated solder paste printing with inline inspection, high-speed ASM SIPLACE component placement, controlled reflow soldering, and automatic optical inspection that detects missing, offset or misaligned components.
- Full traceability: production batches are marked and tracked with laser-engraved barcodes.
- Honest data: the performance values in our datasheets match those in real-world applications.
- Long-term security: a 5-year warranty on this LED strip (see our warranty terms) and professional support for your lighting projects.
Learn more about Ledrise and our reel-to-reel flexible LED strip manufacturing in Germany.
| SKU | 31989 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color | Neutral White |
| Color Temperature | 4000K |
| Color Rendering Index | 80 |
| Luminous Flux Typ (lm) | 1270 |
| Efficacy (lm per W) | 163 |
| Energy Class 2022 | C |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 55 |
| Product lifetime (h) | 60000 |
| Lifetime for commercial, 12h daily (yrs) | 14 |
| Manufacturer Product Code | 31989 |
| Product Family | Aventrix Nichia LED Module |
| Strip Type | Rigid |
| LEDs number per sales unit | 16 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127453271 |
| Forward Voltage Typ (V) | 22.3 |
