BackMatrix-49-3080 Nichia LED Module RGBW 4000K 4300lm 196 LEDs 24V 58W 120° 28x28cm (54000 lm/sqm)

BackMatrix-49-3080 Nichia RGBW LED Module, 4 Channels with 4000K White, 28 x 28 cm

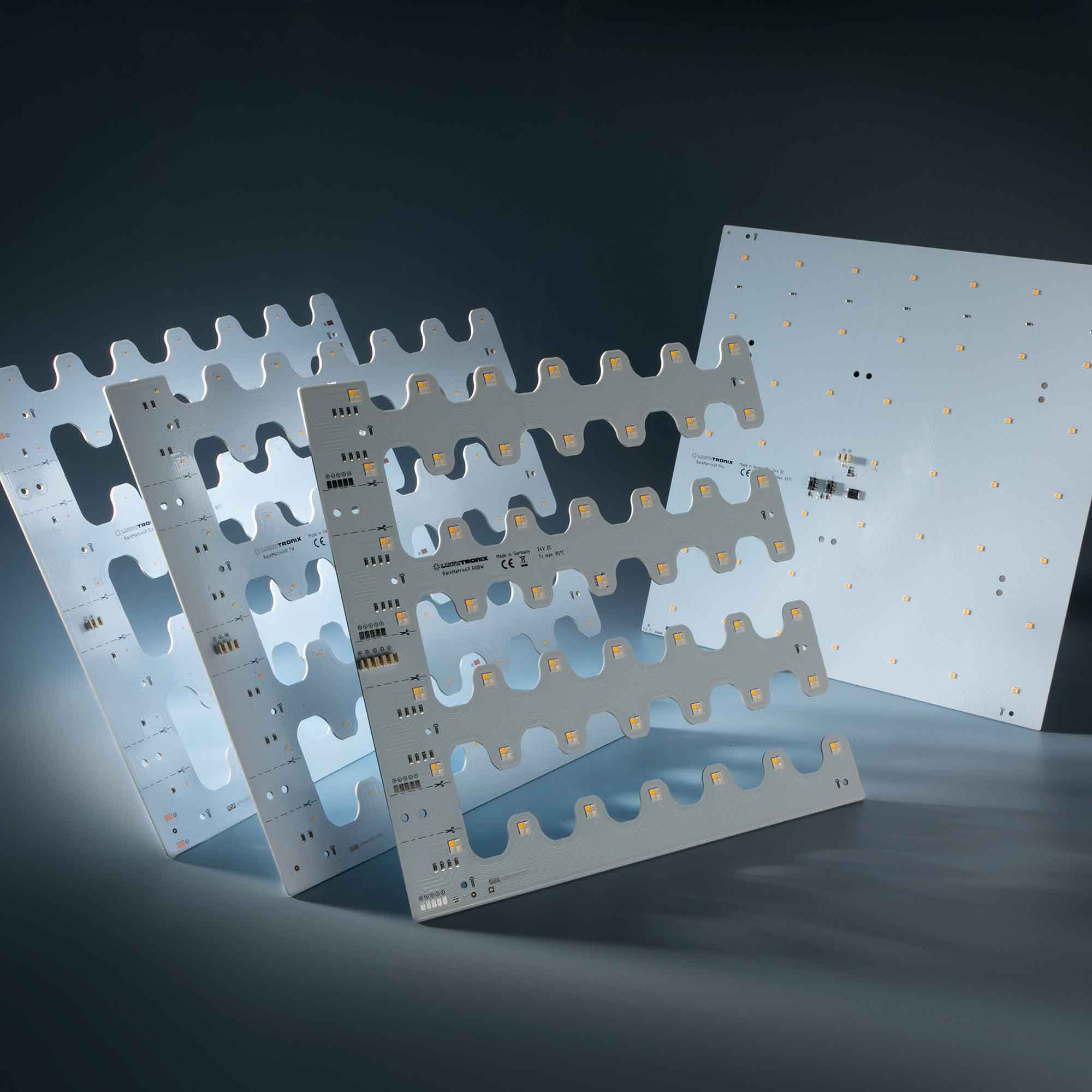

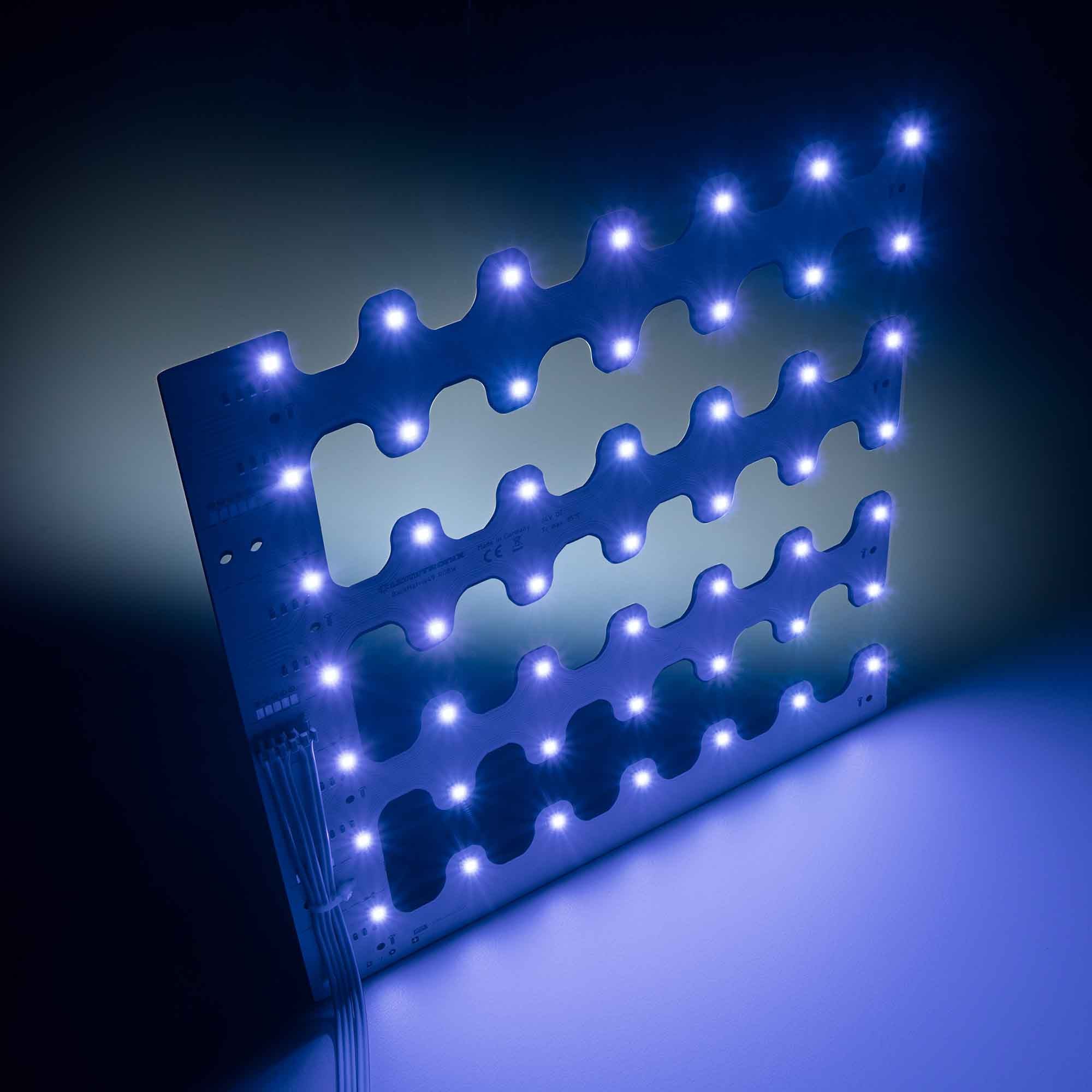

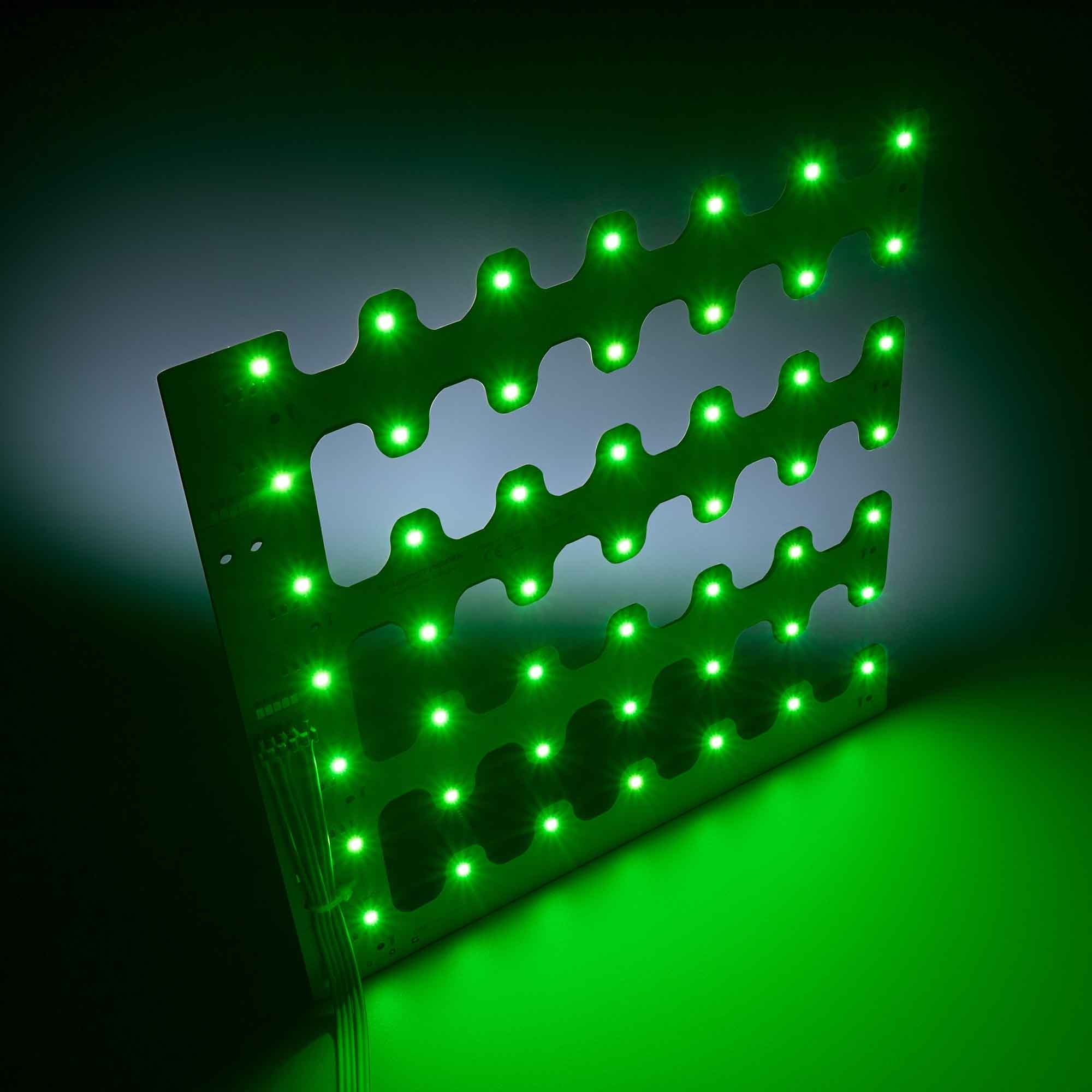

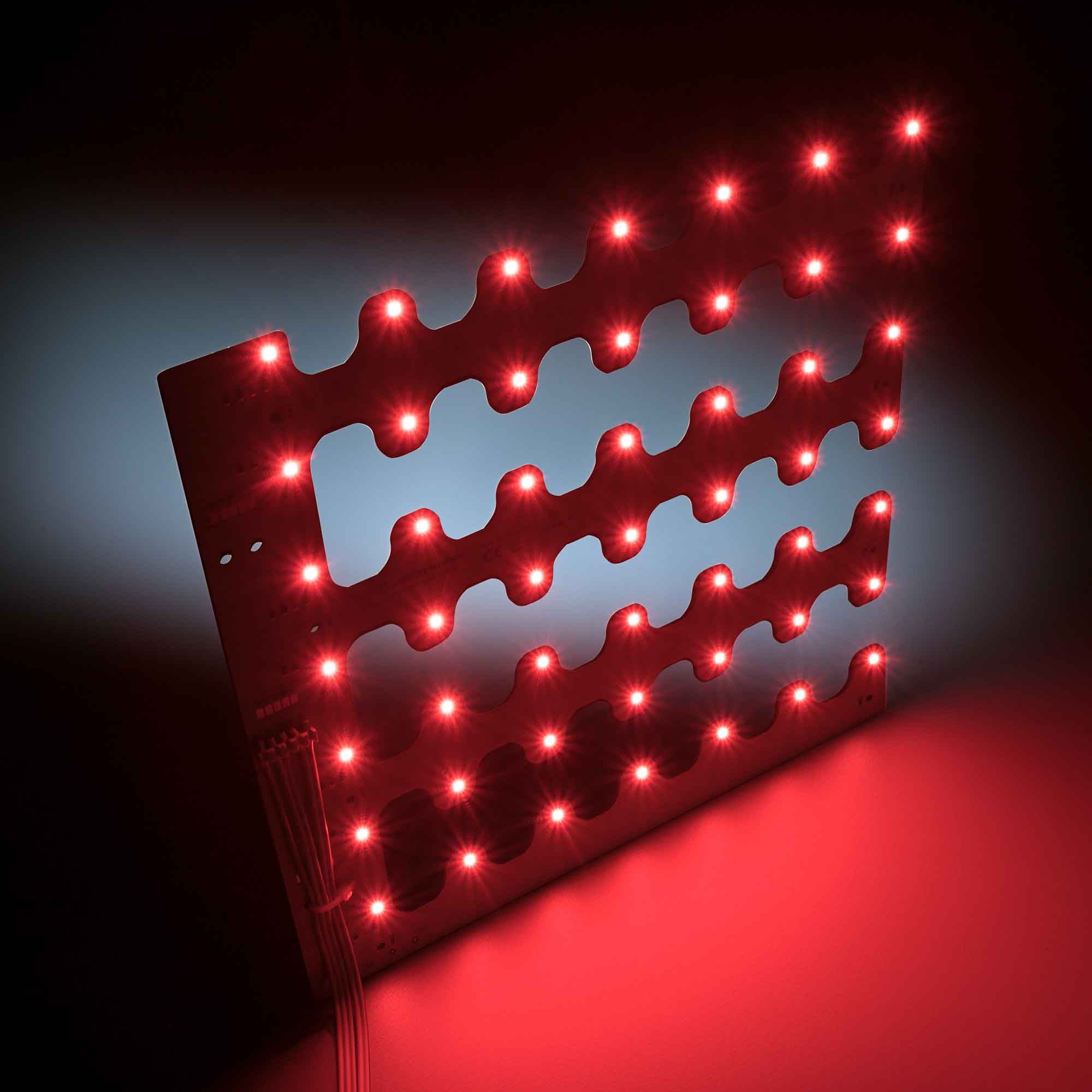

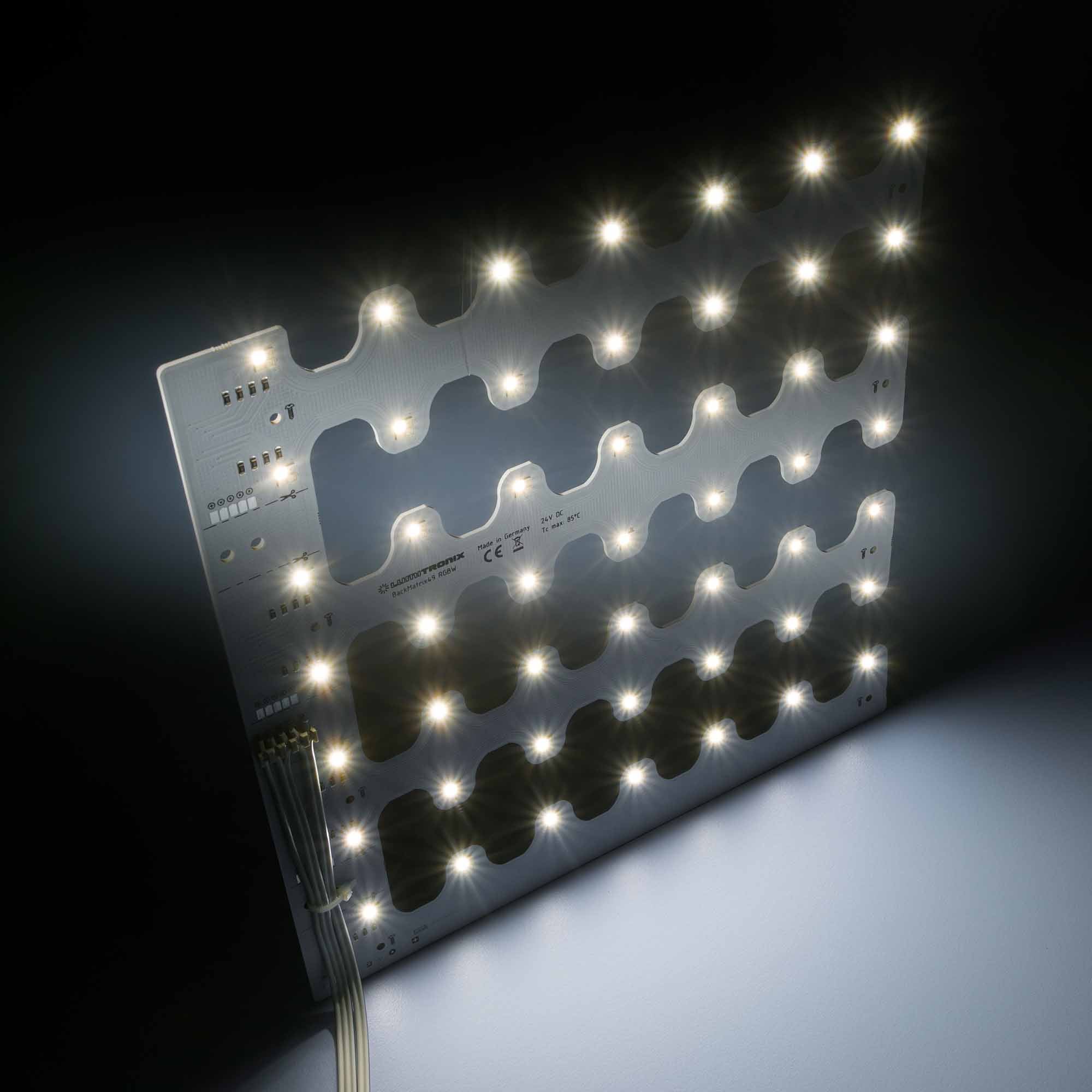

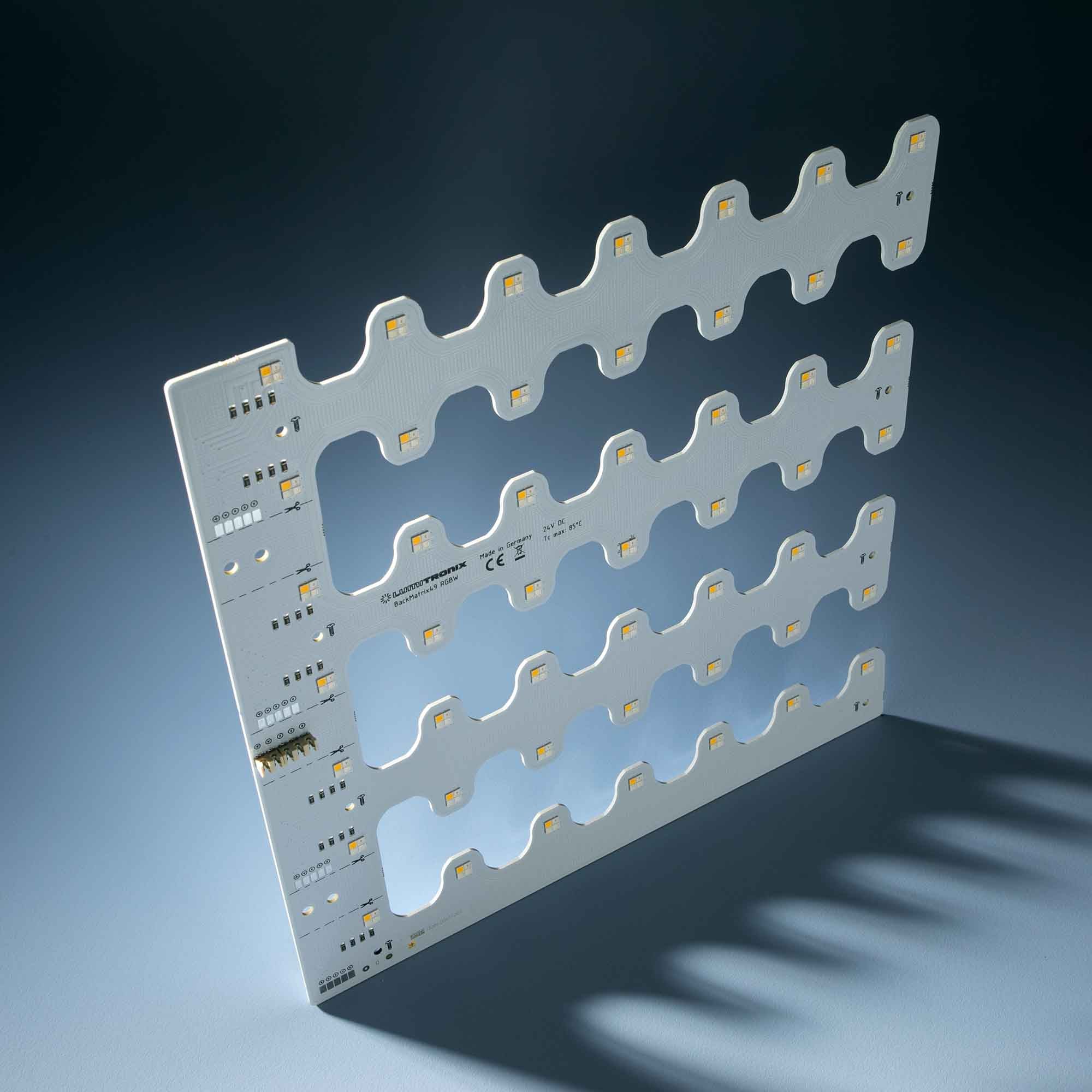

The BackMatrix-49-3080 RGBW turns light boxes, illuminated signs, billboards and luminous ceilings into dynamic, colored surfaces. Its 196 Nichia LEDs, 49 each in red, green, blue and neutral white 4000K, are distributed evenly over a 280 x 280 mm board and controlled in four independent channels. Colors, pastel tones and clean white light can be mixed freely, and a dedicated white channel with CRI above 80 provides real white light instead of a mixed RGB white.

With up to 4300 lm per module (2390 lm white, 920 lm green, 580 lm red and 410 lm blue), the module is bright enough for vivid colors even behind dense diffusers and printed graphics. It operates at 24 V constant voltage with an RGBW controller, is made in Germany and backed by a 5-year warranty.

Features of the BackMatrix-49-3080 RGBW LED Module

• 196 Nichia LEDs: 49 red, 49 green, 49 blue and 49 neutral white 4000K
• Four independently controllable channels (RGBW)
• Up to 4300 lm per module: white 2390 lm, green 920 lm, red 580 lm, blue 410 lm
• Dominant wavelengths: red 631 nm, green 518 nm, blue 466 nm
• White channel: 4000K, CRI above 80, 142 lm/W, 3-step MacAdam ellipse
• 24 V DC constant voltage, up to 58.8 W per module with all channels on
• Wide 120° beam angle
• Solder-free insulation displacement terminal
• Dimensions: 280 x 280 x 6.6 mm
• Made in Germany
• 5-year warranty

Applications of the BackMatrix-49-3080 RGBW LED Module

Designed for even backlighting of large surfaces, the BackMatrix-49-3080 RGBW is used in the following main applications:

• Billboards and luminous ceilings: For backlit billboards, large light boxes and luminous ceilings, BackMatrix-49-3080 RGBW modules are mounted side by side behind the translucent surface to light it evenly from edge to edge. See our LED modules for luminous ceilings.
• Signage: In illuminated signs, logos and display boxes, the modules provide bright, uniform backlighting with a low number of components. Color changes and dynamic effects make signs and displays stand out. More about LED modules for signage backlighting.
• Backlighting behind translucent materials: Behind stretch ceilings, acrylic, onyx, marble, textiles or printed graphics, BackMatrix modules create evenly lit walls, ceilings, counters and 3D elements, as well as displays at trade fairs and exhibitions. Read our guide on how to create a light ceiling with LED modules.
• Multi-color lighting with 4 channels: With an RGBW controller, colors and white are mixed freely for color changes, brand colors, event lighting and dynamic scenes on large surfaces. Discover our 4-channel LED strips and modules (RGB-W, multi-color).

Why BackMatrix for Large Illuminated Surfaces

• Fewer parts per square meter: each module covers 280 x 280 mm with an even grid of Nichia LEDs, so about 13 modules light one square meter, much faster to install than rows of LED strips or many small modules.
• Even light distribution: the regular LED grid blends into a uniform surface behind a diffuser, without visible hotspots, the basis for homogeneous light boxes, signs and luminous ceilings. Match the distance to the diffuser to the LED spacing and the beam angle, as described in our guide on LED pitch and distance to cover for optimum backlighting.
• Solder-free connection: an insulation displacement terminal accepts connection cables of up to 1 mm² (AWG 18), for example our cable SKU 37592, without soldering; we recommend the BackMatrix tool bit (SKU 95402). Holes on the board allow the cables to be fixed with cable ties.
• Simple 24 V system: modules are connected in parallel to one 24 V constant voltage power supply, so any number of modules can be combined to the size of the surface, limited only by the power supply and the cable cross-section.
• Consistent color: Nichia LEDs binned to a 3-step MacAdam ellipse keep brightness and light color uniform across all modules of a large surface.

Technical Data of the BackMatrix-49-3080 RGBW LED Module

• Article number (SKU): 40919
• Equivalent model: BackMatrix 49 RGBW
• LED manufacturer: Nichia
• Channels: 4: red, green, blue, white 4000K
• Dominant wavelength: Red 631 nm, green 518 nm, blue 466 nm
• White channel: CRI (Ra) >80, 3-step MacAdam ellipse, photometric code 840/339
• Luminous flux: Red 580 lm, green 920 lm, blue 410 lm, white 2390 lm
• Efficacy: Red 34 lm/W, green 109 lm/W, blue 24 lm/W, white 142 lm/W
• Beam angle: 120°
• Lifetime (L80B10C1): White >60,000 h, red and green >40,000 h, blue >37,500 h
• Operating mode: Constant voltage, 24 V DC, 4 channels, dimmable
• Current per channel: Red 700 mA, green 350 mA, blue 700 mA, white 700 mA
• Power per channel: Red 16.8 W, green 8.4 W, blue 16.8 W, white 16.8 W (58.8 W total)
• Number of LEDs: 196
• Dimensions: 280 x 280 x 6.6 mm
• Operating temperature at Tc: -40°C to +85°C
• Ambient temperature: -40°C to +50°C
• Storage temperature: -40°C to +100°C
• Certifications: CE, RoHS, REACH
• Photobiological safety (EN 62471): Risk group RG0
• Photometric reference: Values measured at TJ = 65°C, ±10%

Installation and Operation

• Mounting: fix the module flat on a stable surface, supporting the board at suitable mounting points; do not bend the board or clamp the components. No additional cooling is required.
• Connection: connect the modules with the solder-free insulation displacement terminal, using cables of up to 1 mm² (AWG 18), and fix the cables with cable ties through the holes on the board; soldering is possible as an alternative.
• Power supply: connect several modules in parallel to a stabilized 24 V DC constant voltage LED driver with short-circuit, overload and overtemperature protection, sized for the total load (up to 58.8 W per module with all channels on (about 2.45 A); connect the four channels to an RGBW controller, observing channel assignment and polarity) plus a safety margin. For large surfaces, feed the modules in groups with adequately sized cables to keep the voltage drop low.
• Handling: observe standard ESD precautions, keep the modules away from aggressive chemicals, and store and operate them at 10% to 60% relative humidity.
• Safety: installation must comply with all applicable electrical and safety standards and should be carried out by a qualified electrician.

Why the BackMatrix-49-3080 RGBW Outperforms Low-Cost LED Modules

Compared with low-cost LED modules, the BackMatrix-49-3080 RGBW differs in three areas that decide how long a lighting installation performs well:

• LED quality: we use only brand-name LEDs from Nichia, the Japanese LED market leader whose researchers invented the blue and white LED technology, with full manufacturer datasheets and performance tested in the lab and in real applications. Low-cost strips often use LED chips of unknown origin, without certified data, so their quality and color vary from one purchase to the next.
• PCB design and materials: high-quality materials and a design without mechanical and electrical weak points, for good current flow, heat transfer and long-term reliability.
• Realistic specifications: all values are measured at a junction temperature of 65°C, so the performance in our datasheet matches what you get in a real installation.
