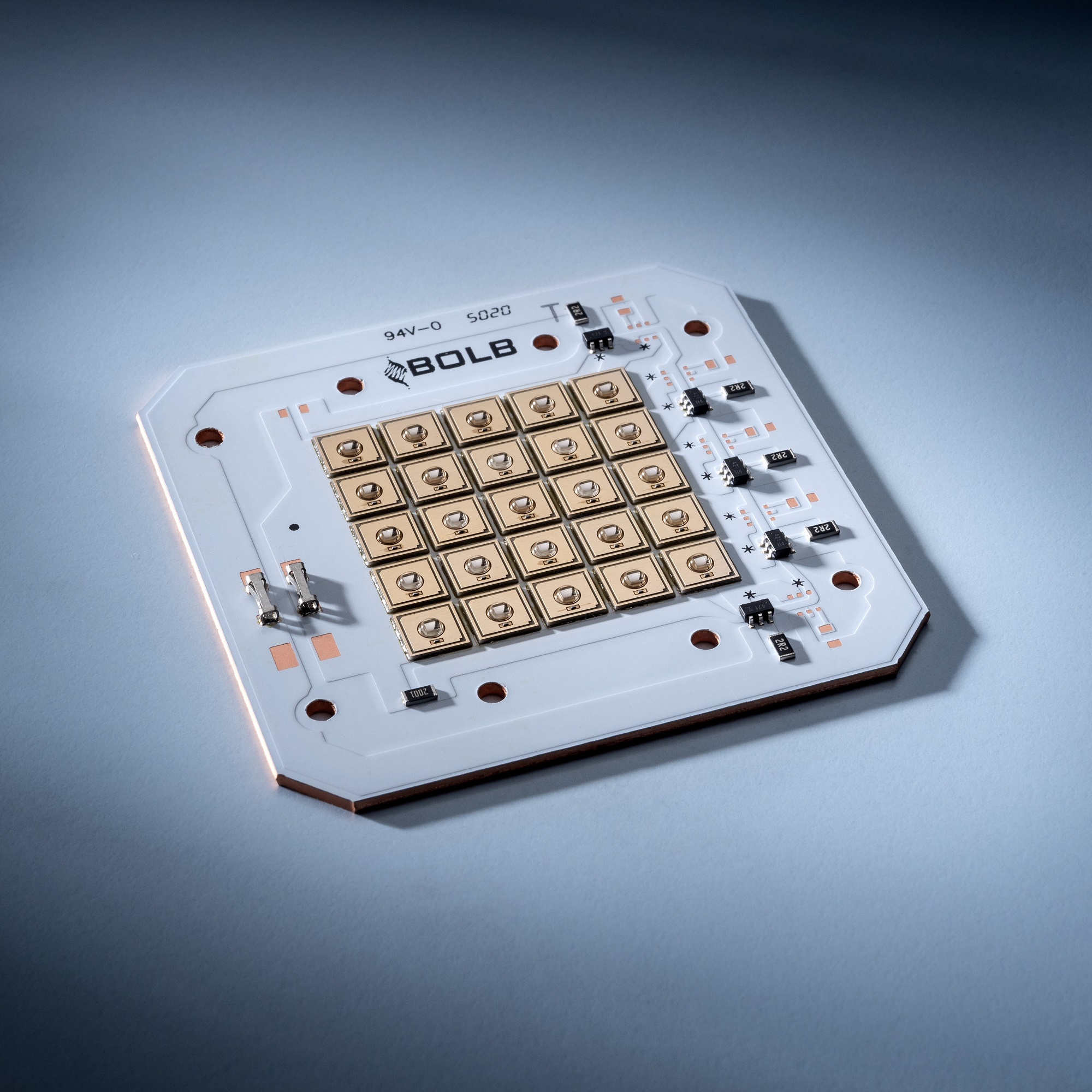

UVC Bolb 5S5P-S6060 LED Module 25 LEDs 275nm 2200mW 57W 6.4 cm
- Equipped with 25 high-power UV-C LEDs from the 6060 series, delivering an optical output of 2200 mW
- Bolb's S6060 High-Power UV-C LEDs have the highest energy conversion efficiency in the UV-C sector, making them ideal for industrial applications
- 275 nm wavelength enables inactivation of viruses, bacteria, and other germs with up to 99.99999% accuracy
- Ideal for water disinfection, surface sterilization, and air sterilization
- Risk group rating of 3 (EN 62471) for safety
- Made by US-based manufacturer Bolb, with technical expertise in the entire UV system manufacturing process
- Protective clothing and goggles must be worn at all times during use, and precautions should be taken with reflective surfaces to prevent skin and eye damage.
The Bolb UV-C LED module is equipped with the most efficient UV-C LEDs in the industry. With 25 high-power UV-C LEDs from the 6060 series, this square LED array delivers an optical output of an impressive 2200 mW. Bolb's S6060 High-Power UV-C LEDs have the highest energy conversion efficiency in the UV-C sector, making them ideal for industrial applications such as disinfection and sterilization.
The 275 nm wavelength of the Bolb UV-C LEDs enables the inactivation of viruses, bacteria and other germs with up to 99.99999% accuracy. Bolb's ultra-efficient LEDs are being integrated into portable and home appliances, medical devices, and industrial processing equipment, making a significant contribution to creating a healthier world.
Bolb Inc. is a US-based manufacturer of high-power solid-state UVB/C lamps and a leading developer of the industry's most efficient UVC LEDs. Bolb has technical expertise in everything from epitaxy to the manufacture of equipment and complete UV systems.
The Bolb 5S5P-S6060 UV-C LED module has a risk group rating of 3 (EN 62471) and measures 64 x 64 x 3 mm, with each LED measuring 6 x 6 x 1.35 mm. The module is ideal for applications such as water disinfection, surface sterilization, and air sterilization.
Features of the Bolb 5S5P-S6060 UV-C LED module
- Square LED module with 25 high-power Bolb UV-C LEDs
- 6060 series
- Wavelength: 275 nm
- Radiant UVC power: 2200 mW
- 1750mA at 33V, input power 57W
- Extremely high efficiency
- Inactivation rate of up to 99.99999%
- Excellent price-performance ratio
- Risk group 3 (EN 62471)
- LED dimensions (L x W x H): 6 x 6 x 1.35 mm
- Dimensions of the module: 64 x 64 x 3 mm
Application areas
- Disinfection (e.g. water)
- Sterilization (e.g. surfaces, air)
Warnings
- The article is a powerful UV-C LED which can be used for the disinfection of surfaces. It emits at a wavelength of 275 nm which is not visible to the human eye.
- It is imperative to ensure that users wear suitable protective clothing against UV radiation at all times. All skin and eye contact must be avoided.
- We recommend the use of the following protective agents:
- Safety goggles
- Gloves
- Face Shield
- Protective clothing that shields UV light from the skin
- Wear protective clothing at all times during use and ensure that no other persons are within reach of the radiation source without taking appropriate safety precautions.
- Light can reflect, therefore special precautions have to be taken with reflecting surfaces (e.g. mirrors).
- If skin tissue is exposed to the light source, skin irritation comparable to sunburn may occur. If necessary, treat the affected areas with a suitable cream or consult a physician.
- Low wavelength UV light can cause permanent damage to the retina in severe cases. Make sure to wear protective goggles at all times when using the device.
| SKU | 38265 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color | UVC Ultraviolet |
| Viewing Angle | 150° |
| Warranty (months) | 24 |
| Wavelength (nm) | 275 |
| Manufacturer Product Code | 3044309 UV-C |
| LEDs number per sales unit | 25 |
| Dimensions: Length (cm) | 6.4 |
| Dimensions: Width (mm) | 64 |
| Dimensions: Height (mm) | 3 |
| Brand | Bolb |
| Manufacturer Part Number | 4062986002535 |
