ConextMatrix Edge Module 4 warm white LEDs 118lm 4x4 cm 24V CRI 90 118lm 0.89W
- 4 warm white 2700K Nichia 757 series LEDs
- CRI above 90, 3-step MacAdam binning
- 118 lm at 0.89 W, about 133 lm/W (calculated)
- Edge Module: has one straight edge and closes the side of a shape
- 24 V constant voltage, dimmable
- Patented Conext puzzle connection: no tools, solder or cables
- Up to 270 modules (10 A) per power supply module
- Made in Germany, 5-year warranty
ConextMatrix Edge Module with 4 Warm White Nichia LEDs, CRI90, 118 lm, 0.89 W, 24 V, 4 x 4 cm

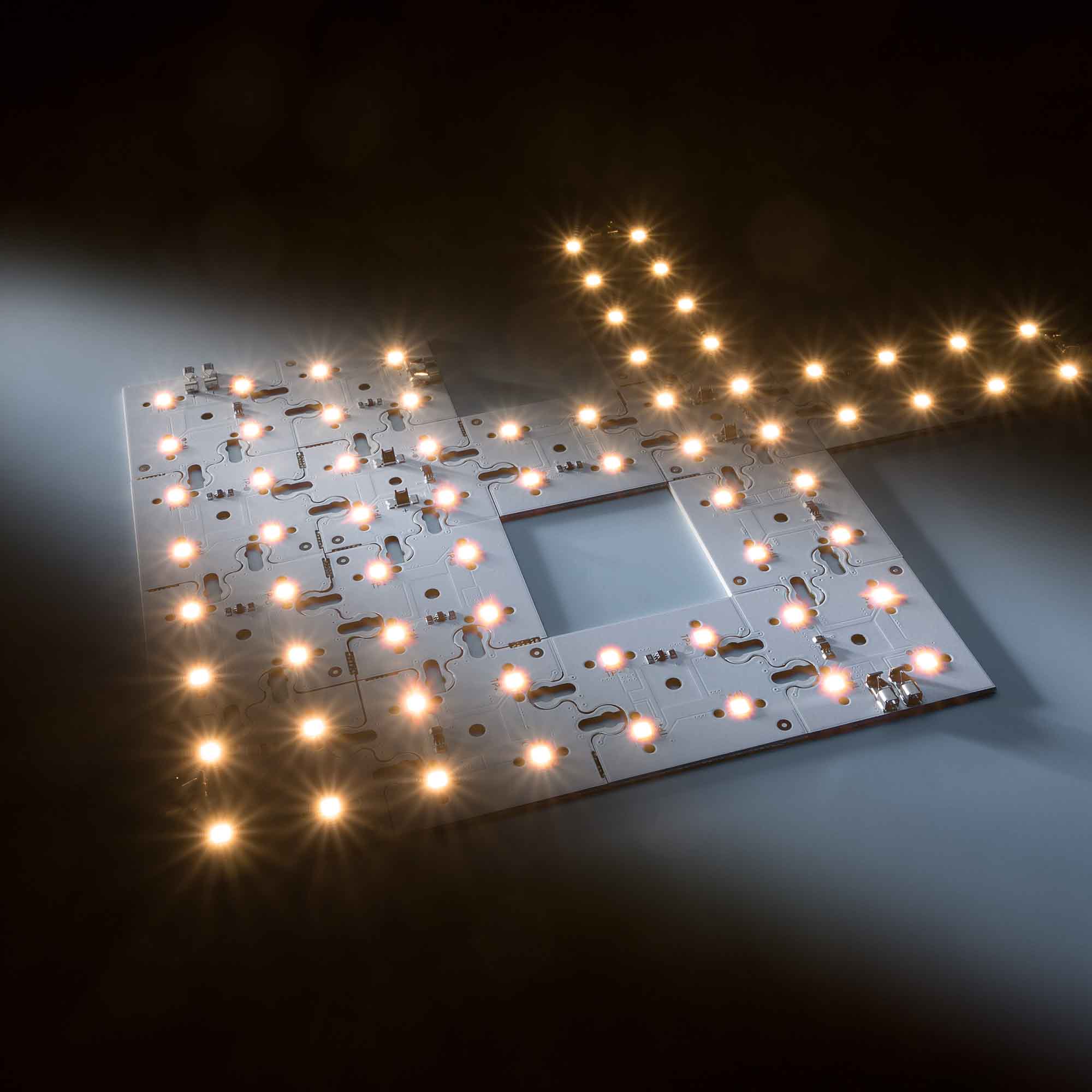

The ConextMatrix Edge Module is part of ConextMatrix, the 24 V LED surface system with the patented Conext puzzle connection. The 40 x 40 mm module has one straight edge and closes the side of a shape. It carries four warm white Nichia 757 series LEDs with a color rendering index above 90 and 3-step MacAdam binning, delivering 118 lm at 0.89 W, an efficacy of about 133 lm/W. Plugged together without tools, solder or cables, up to 625 modules form light surfaces of up to 73,750 lm per square meter in any outline.
Features of the ConextMatrix Edge Module
- 4 warm white 2700K Nichia 757 series LEDs
- CRI above 90, 3-step MacAdam binning
- 118 lm at 0.89 W, about 133 lm/W (calculated)
- Edge Module: has one straight edge and closes the side of a shape
- 24 V constant voltage, dimmable
- Patented Conext puzzle connection: no tools, solder or cables
- Up to 625 modules per square meter (up to 73,750 lm/m²)
- Up to 270 modules (10 A) per power supply module
- Made in Germany
- 5-year warranty
Applications of the ConextMatrix Edge Module
With the Conext system, the ConextMatrix Edge Module is used for the following main applications:
- Signage and illuminated shapes: Letters, logos, symbols and pictograms can be built directly from ConextMatrix modules, without a separate PCB layout, and placed behind a diffuser or in an illuminated sign. More about LED modules for signage backlighting.
- Light surfaces and designer luminaires: Panels, ceiling and wall luminaires of any outline, from rectangles to circles and free-form shapes, built from 40 x 40 mm modules with high color rendering.
- Showcases and shop fittings: Uniform, high-CRI backlighting of shelves, display cases and furniture elements, which brings out the true colors of the products.
- Warm white light: Nichia LEDs provide warm white light for a cozy, inviting atmosphere. The 2700K color temperature gives a cozy, intimate warm white light. Find out which color temperature suits your project in our guide Choosing the right color temperature for LED lighting.

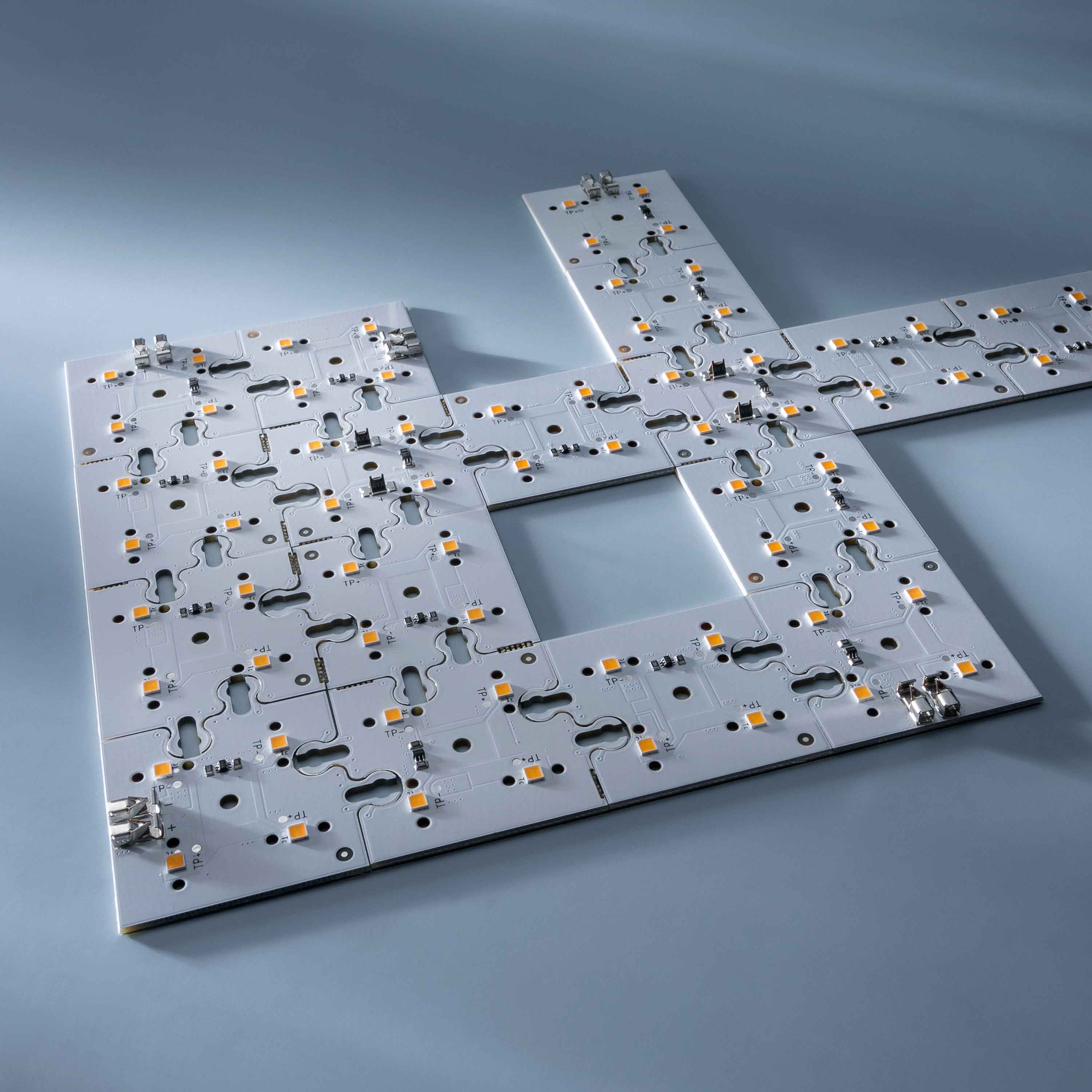

The Conext Connection System: LED Modules That Connect Like Puzzle Pieces

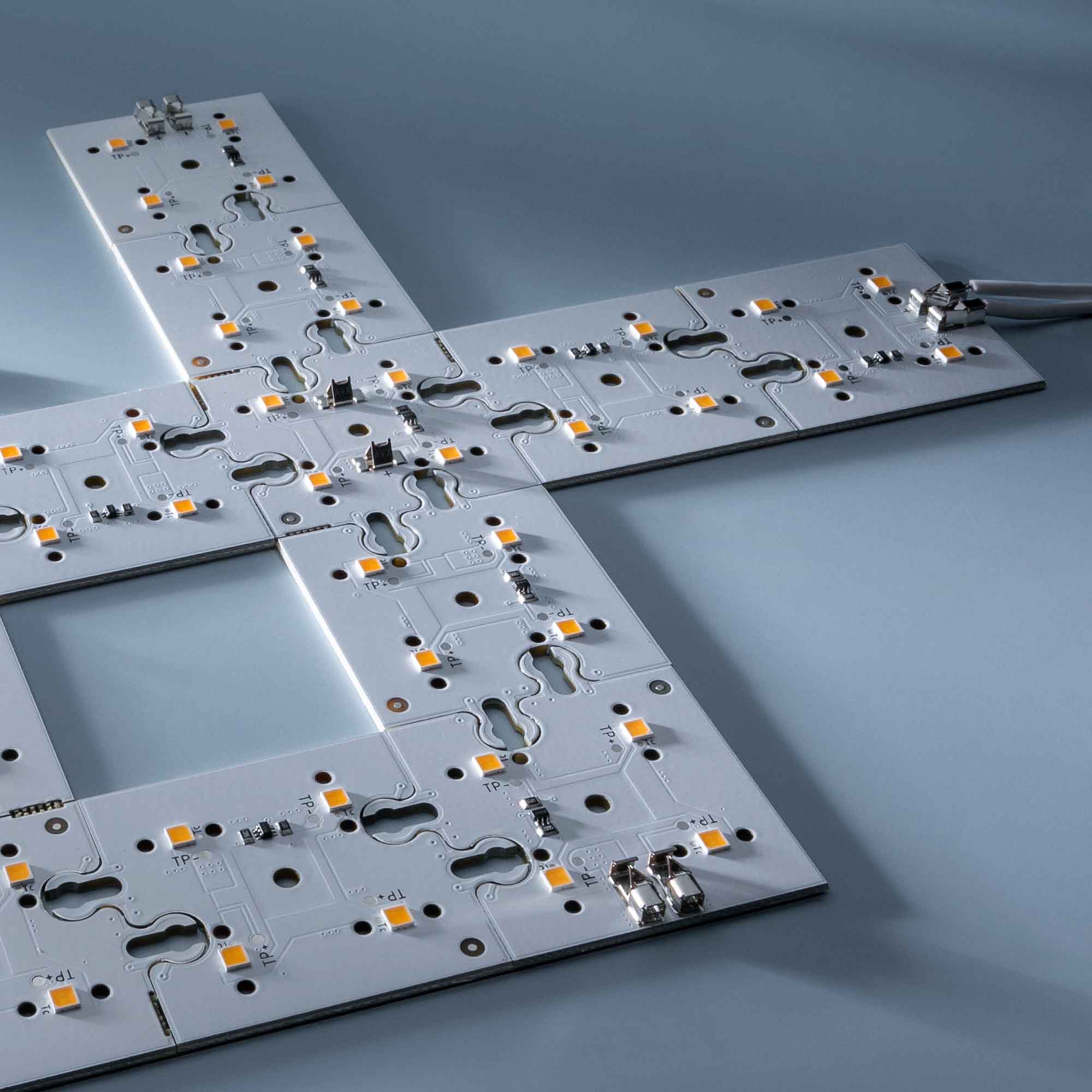

With the patented Conext connection system, LED modules are plugged together like pieces of a puzzle and are electrically connected at the same time: electrical contacts on the noses and in the matching indentations conduct the current reliably from module to module. No soldering, no cables and no plugs are needed, and the modules lie flat without any additional connectors, so they fit into very slim designs. Anyone who has ever done a puzzle can assemble a Conext light shape, without tools or technical knowledge.

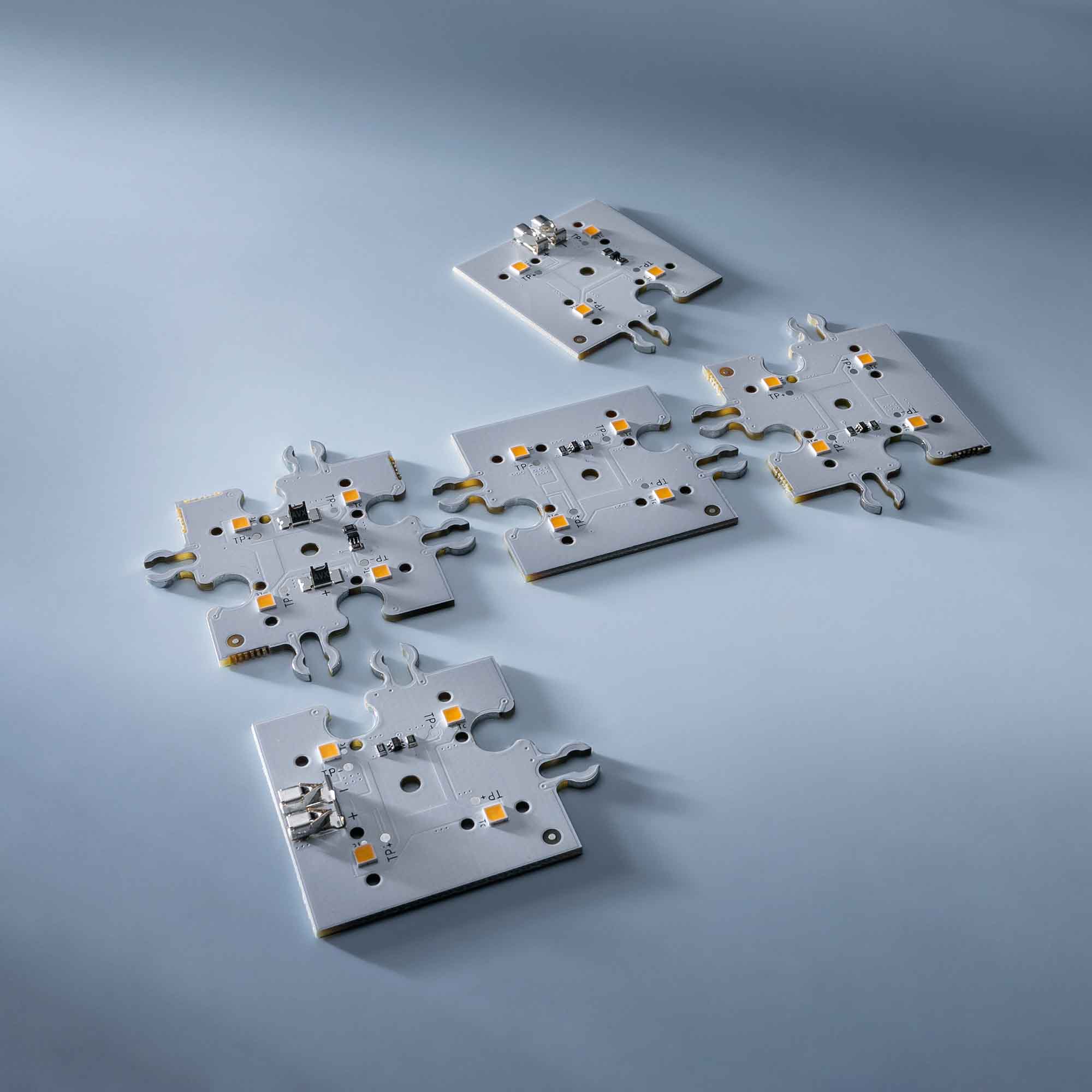

ConextMatrix modules run on 24 V constant voltage. Five 40 x 40 mm forms let you build surfaces and shapes of any outline:
- Corner Module: forms a two-sided end of a shape and is equipped with connection terminals.
- Edge Module: has one straight edge and closes the side of a shape.
- Linear Module: has two straight edges and two connection options opposite each other, for straight lines of light.
- Centre Module: can be connected on all four sides and also from below, for the inner area of larger surfaces.

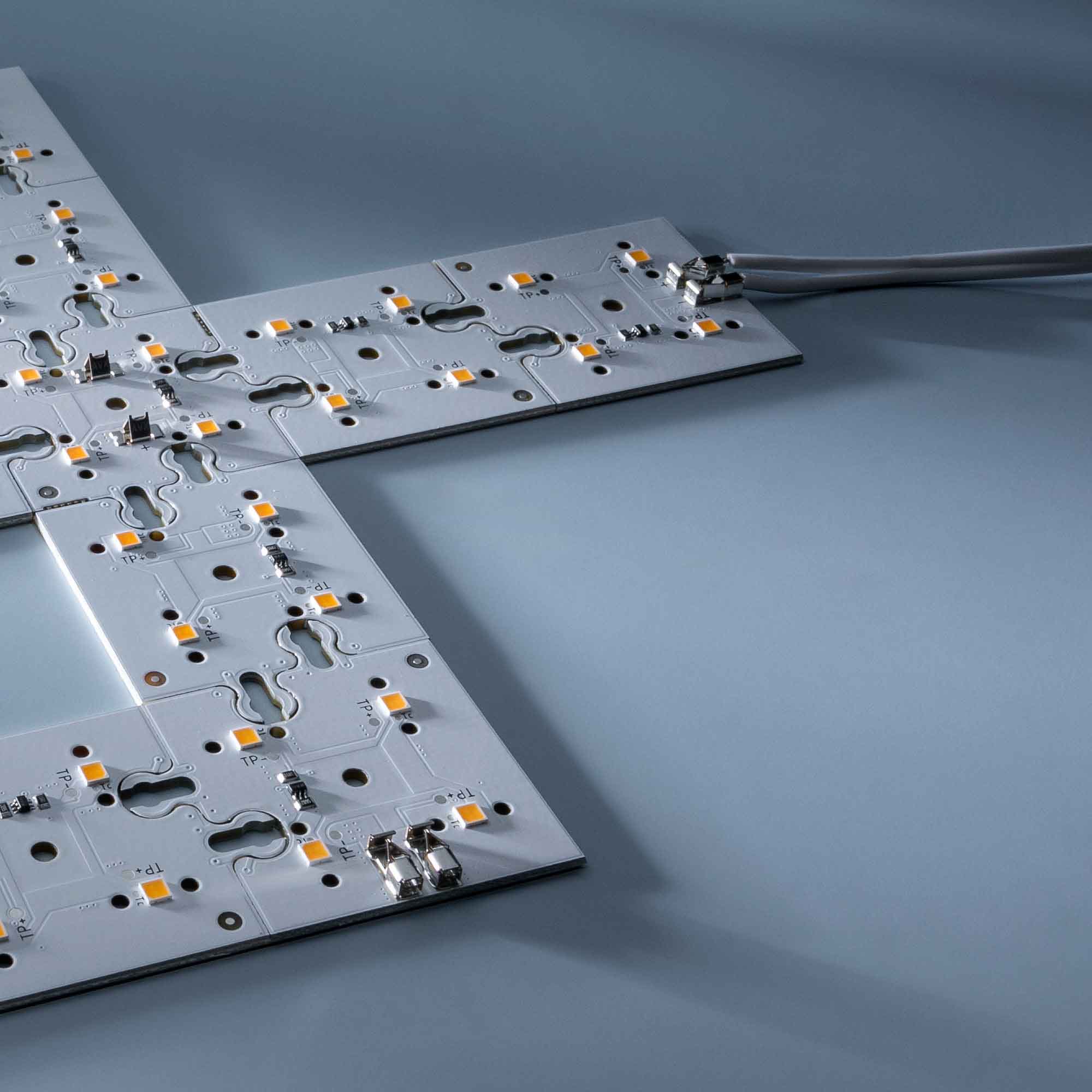

- Power Supply Module: has three straight edges and two connection terminals and feeds the 24 V supply into the connected modules.
One power supply module carries up to 10 A, which corresponds to about 270 modules.
Modules connect within their own series: ConextPlay runs on 5 V, while ConextMatrix and ConextBar run on 24 V.
Technical Data of the ConextMatrix Edge Module
- Article number (SKU): 31848
- LED: Nichia 757 series
- Number of LEDs: 4
- Light color: Warm white, 2700K
- Color rendering index: CRI (Ra) >90
- Binning: 3-step MacAdam ellipse
- Luminous flux: 118 lm
- Efficacy: about 133 lm/W (calculated)
- Operating voltage: 24 V DC constant voltage
- Power: 0.89 W
- Dimensions: 40 x 40 mm
- Module form: Edge Module
Installation and Operation
- Assembly: plug the modules together on a flat surface until the noses sit fully in the indentations; only completely engaged contacts conduct the current reliably.
- Mounting: fix the assembled shape on a flat, non-conductive surface and make sure that no metal parts bridge the contacts.
- Power supply: connect the terminals of the power supply module to a stabilized 24 V DC constant voltage LED driver, sized for the total load plus a safety margin (0.89 W per module). Do not exceed 10 A, or about 270 modules, per supply module; for larger surfaces, use several supply modules. Dimming is done with a dimmable 24 V driver or controller.
- Handling: do not touch or press the LEDs, observe standard ESD precautions, and use the modules only indoors in dry environments.
Why the ConextMatrix Edge Module Outperforms Low-Cost LED Modules
Compared with low-cost LED modules, the ConextMatrix Edge Module differs in two areas that decide how long a lighting installation performs well:
- LED quality: we use only brand-name LEDs from Nichia, the Japanese LED market leader whose researchers invented the blue and white LED technology, with full manufacturer datasheets and performance tested in the lab and in real applications. Low-cost modules often use LED chips of unknown origin, without certified data, so their quality and color vary from one purchase to the next.
- PCB design and materials: high-quality materials and a design without mechanical and electrical weak points, for good current flow, heat transfer and long-term reliability.
Who We Are: Ledrise, Professional LED Strips Made in Germany
Ledrise is the international online shop for high-performance LED strips and modules that we develop and manufacture in our own production facility in Germany and ship directly from there. With more than 20 years of experience in LED technology, our team of more than 70 people in Germany, Hong Kong and Romania has gained extensive application knowledge across many sectors, and thousands of business customers and consumers on five continents rely on us as their LED technology partner.
We use only LEDs from market leaders such as Nichia, Seoul Semiconductor, Cree, Samsung and ams OSRAM. Beyond standard products, we design and prototype custom LED modules, select and integrate optics, housings and drivers, and test and validate every solution in our in-house measuring and testing laboratory, supporting you from the first lighting concept to serial production.
Our Quality Promise
- Certified quality: our quality management is certified to DIN EN ISO 9001 and covers every step, from product development to customer service. Our manufacturing center in Germany is also certified to ISO 14001 for environmental management and ISO 45001 for occupational health and safety.
- Reel-to-reel manufacturing, unique in Europe: our fully automated reel-to-reel flex line uses plasma direct metallization to produce robust, flexible circuit boards in continuous lengths of up to 100 meters, with fewer interconnections and less material waste.
- Precision at every step: automated solder paste printing with inline inspection, high-speed ASM SIPLACE component placement, controlled reflow soldering, and automatic optical inspection that detects missing, offset or misaligned components.
- Full traceability: production batches are marked and tracked with laser-engraved barcodes.
- Honest data: the performance values in our datasheets match those in real-world applications.
- Long-term security: a 5-year warranty on this product (see our warranty terms) and professional support for your lighting projects.
Learn more about Ledrise and our reel-to-reel flexible LED strip manufacturing in Germany.
| SKU | 31848 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color | Warm White |
| Color Temperature | 2700K |
| Color Rendering Index | 90 |
| Luminous Flux Typ (lm) | 118 |
| Efficacy (lm per W) | 133 |
| Energy Class 2022 | E |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 92 |
| Product lifetime (h) | 100000 |
| Lifetime for commercial, 12h daily (yrs) | 23 |
| Manufacturer Product Code | 31848 |
| Product Family | ConextMatrix LED Module |
| Strip Type | Rigid |
| LEDs number per sales unit | 12 |
| Dimensions | 40x40 |
| Dimensions: Length (cm) | 4 |
| Dimensions: Width (mm) | 40 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127454681 |
| Forward Voltage Typ (V) | 24 |
| Availability beyond shown stock: | YES |
