ConextMatrix Linear Module 4 warm white LEDs 118lm 4x4 cm 24V CRI 90 118lm 0.89W
- Patented Conext connection system allows for easy and flexible assembly of LED modules without tools, soldering, cables, or plugs.
- Five different module forms provide creative possibilities for design needs.
- High-quality Nichia LEDs with 3-step MacAdams binning ensure uniform and homogeneous light distribution.
- Outstanding color rendering index (CRI >90) and very high efficiency of up to 133 lm/W.
- Dimmable for individual adjustment of brightness.
- Easy to install and power up to 270 modules with one supply module, making it ideal for large installations.
- Comes with a 5-year warranty and made in Germany for high quality and reliability.

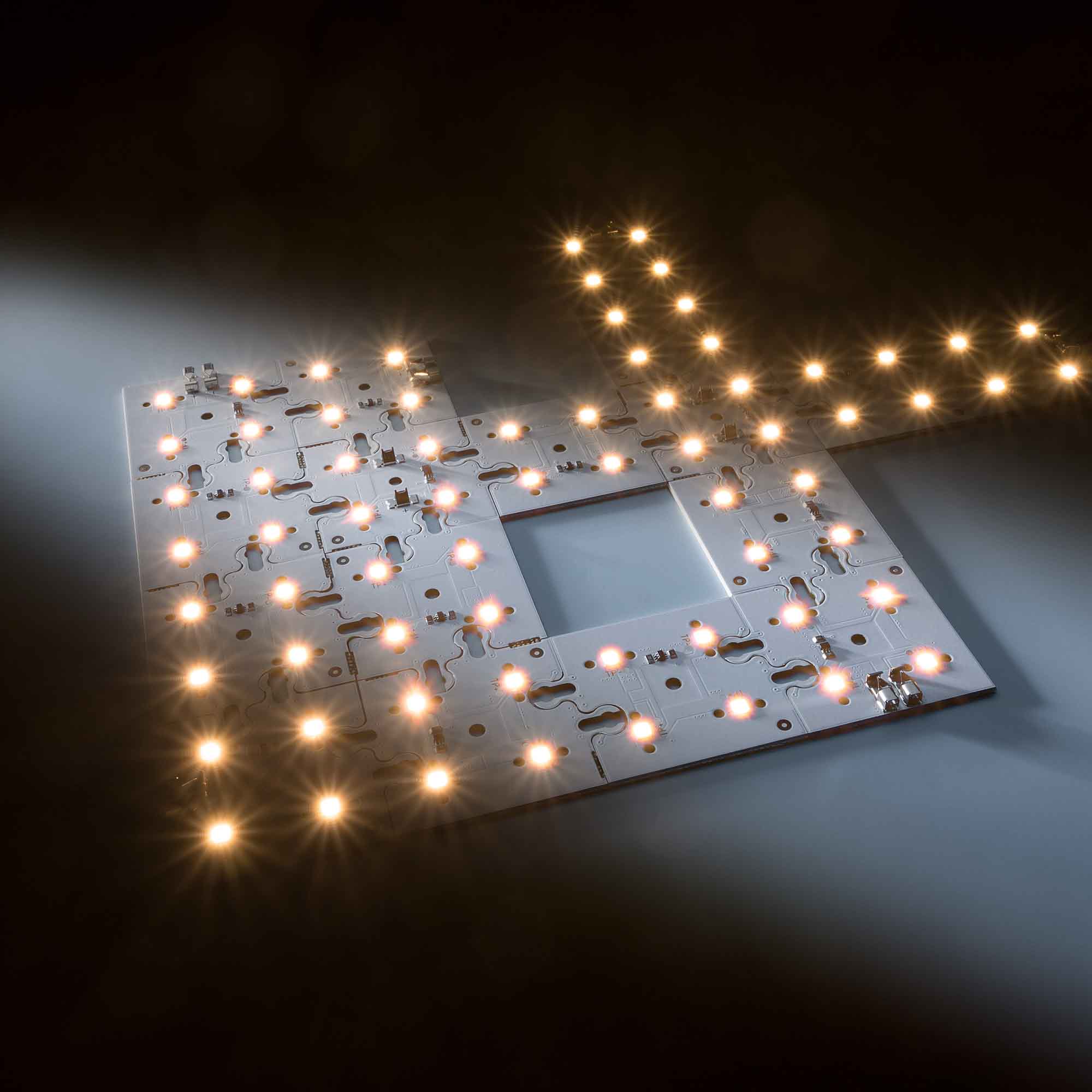

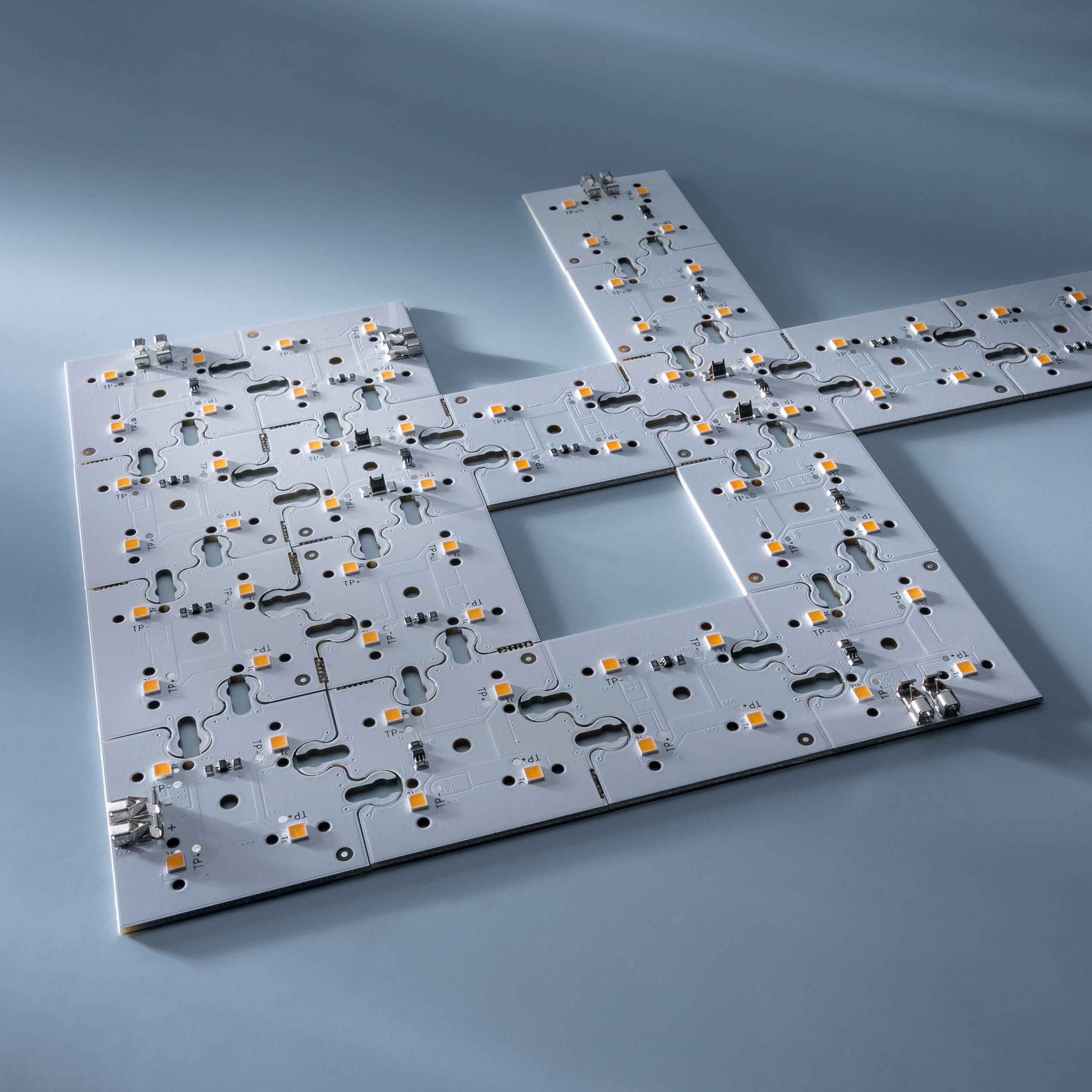

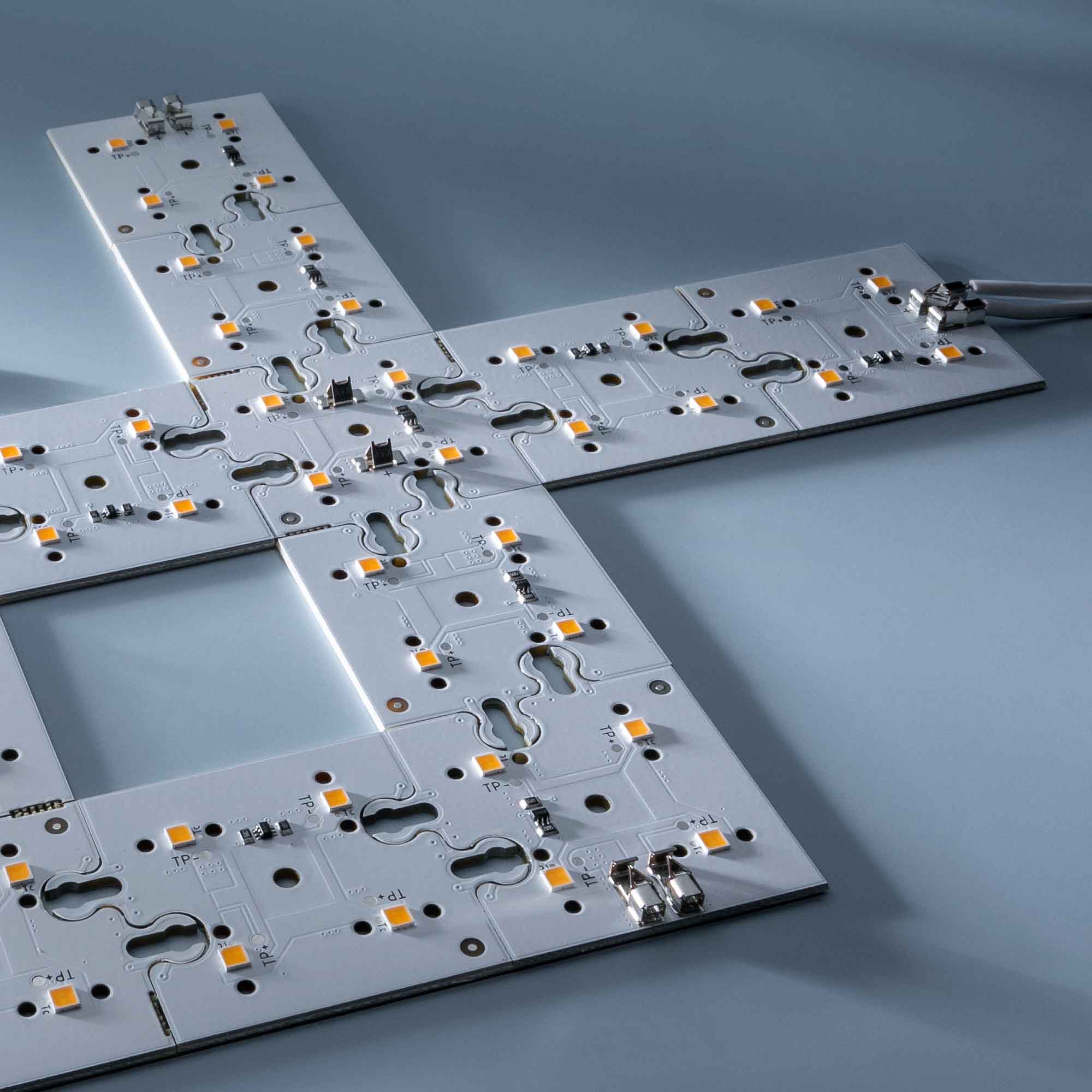

ConextMatrix is a revolutionary LED lighting system that features a patented Conext connection system, allowing you to create a wide variety of shapes with the LED modules. This unique connection system is self-explanatory and playfully simple, making it easy for anyone to connect the ConextMatrix modules. And the best part is that no tools are required for installation!
The connectorless connection of the LED modules is made possible by the electrical contacts located on the noses of the male modules and the bulges of the female modules, which conduct the current reliably and constantly. With the ConextMatrix system, the modules lie flat without any additional superstructures, providing perfect installation.
The system is powered by a 24V constant voltage, with the power supply provided by a supply module that has terminals for a solderless connection. A maximum load of 10 A is allowed with one supply, which corresponds to a maximum of 270 modules. The five different module forms offer creative possibilities, including edge, corner, centre, linear, and feed modules.
All ConextMatrix modules are equipped with four high-quality Nichia LEDs in 3-step MacAdams binning, ensuring uniform and homogeneous light. The modules also have an outstanding colour rendering index (CRI >90) and a very high efficiency of up to 133 lm/W. And, the dimmability of the modules allows for individual adjustment of brightness.
Features of the ConextMatrix system include Plug & Play LED modules with four Nichia 757G LEDs, very high luminous flux of 118lm per module, up to 625 modules that can fit into one square meter, with a luminous flux of up to 73750lm, and a simple connection of modules. Additionally, the system is dimmable, has a very high colour rendering index (CRI >90), has a typical power consumption of 0.89W, a dimension of 40x40mm, and can connect up to 270 modules (max. 10 A). The system comes with a 5-year warranty and is made in Germany.

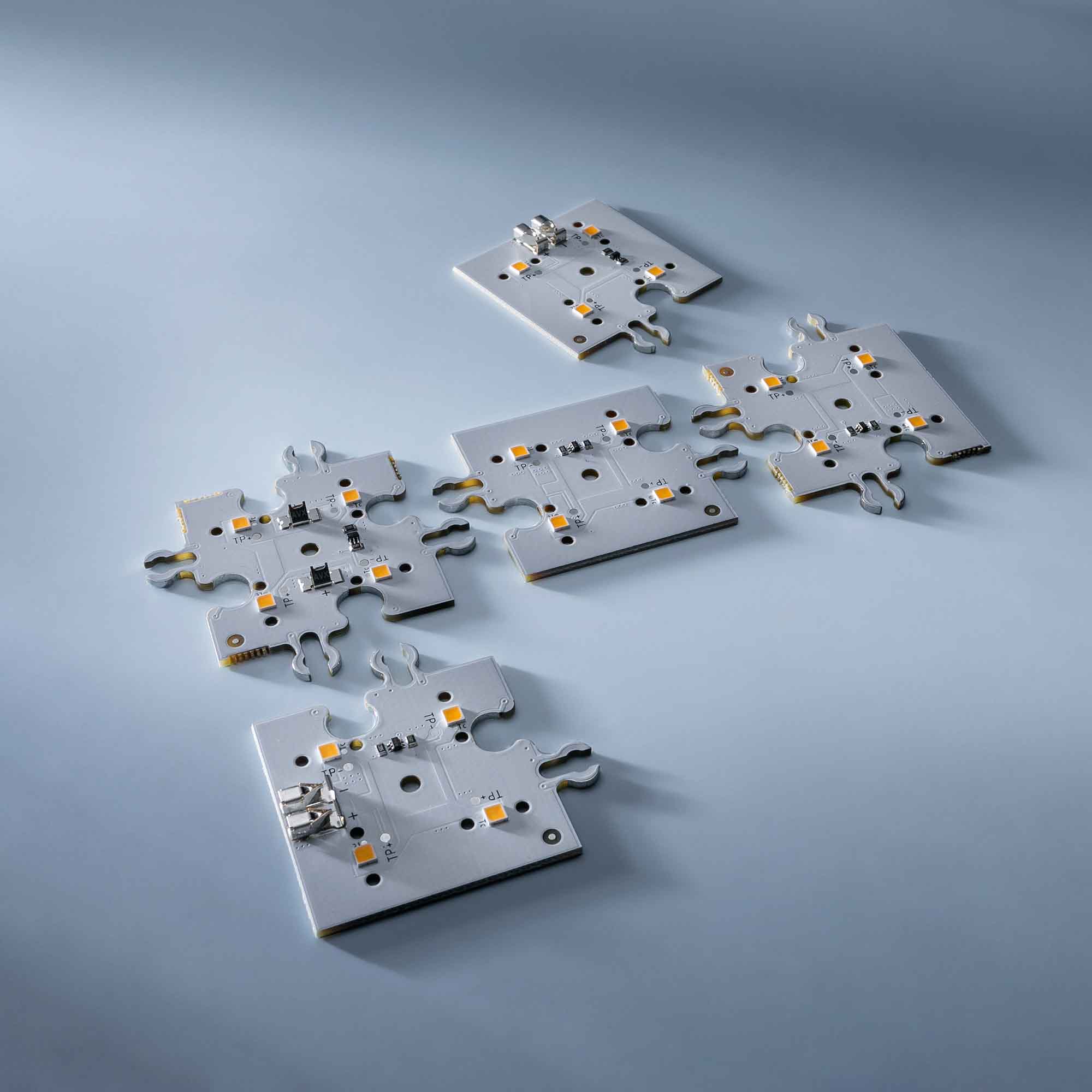

Five different module forms provide many creative possibilities:
- The edge modules have a straight edge on one side.
- The corner modules form a two-sided end and are also equipped with connection terminals.
- The centre modules can be connected to all sides and can also be connected from below.
- The linear modules have two straight edges and two connection options opposite each other.
- The feed module has three straight edges and two connection terminals for easy plug & play.
Features
- Plug & Play LED module with 4 Nichia 757G LEDs
- The linear modules have two straight edges and two connection options opposite each other
- Very high luminous flux of 118lm per module
- Up to 625 modules can fit into one square meter, with a luminous flux of up to 73750lm
- Patented Conext connection system
- Simple connection of modules

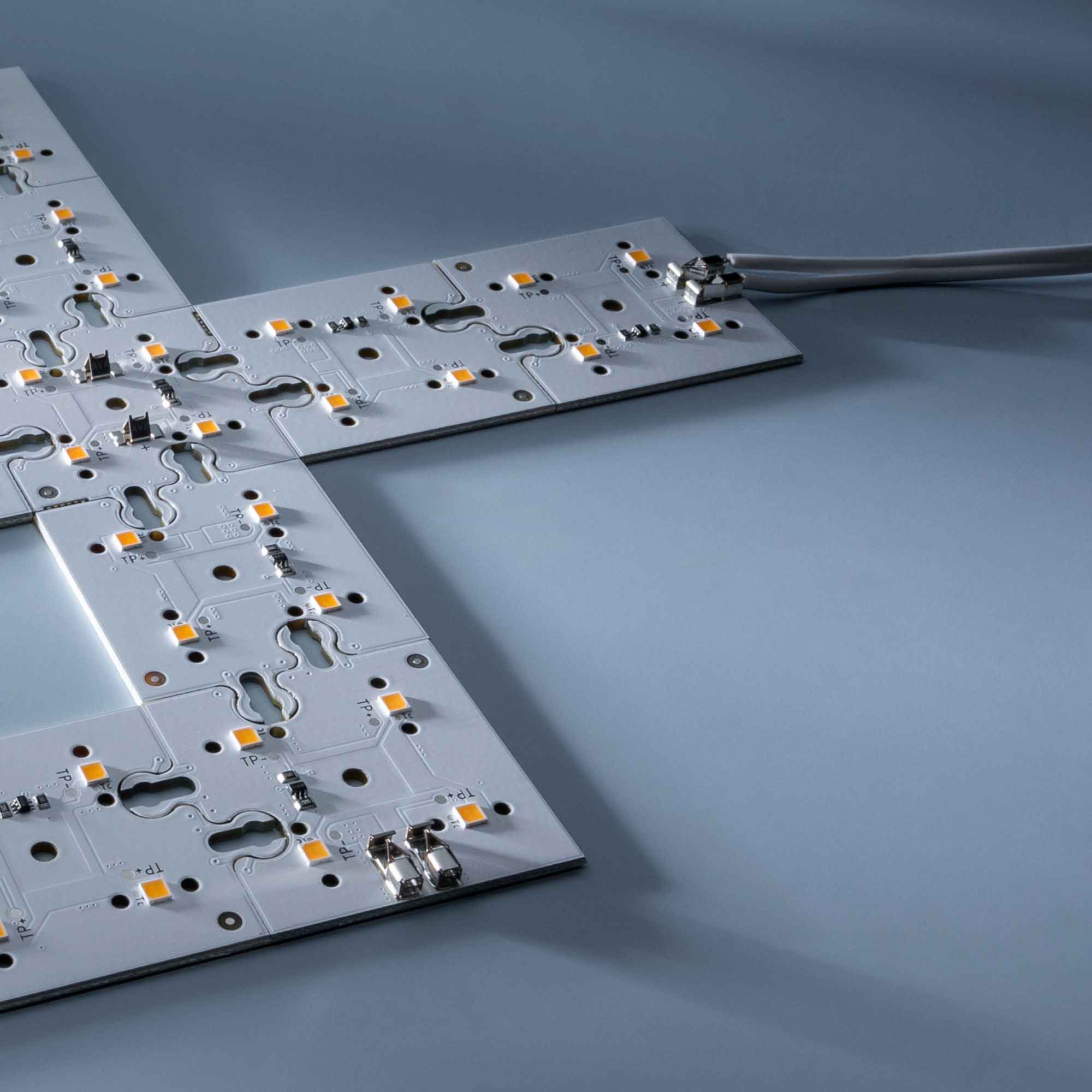

- Power supply via supply module with connection terminals
- Dimmable
- Very high colour rendering index (CRI >90)
- Dimension 40x40mm
- Typical power consumption 0.89W
- 24V constant voltage
- Connect up to 270 modules (max. 10 A)
- 5 years warranty
- Made in Germany
| SKU | 31849 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color | Warm White |
| Color Temperature | 2700K |
| Color Rendering Index | 90 |
| Luminous Flux Typ (lm) | 118 |
| Efficacy (lm per W) | 133 |
| Energy Class 2022 | E |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 92 |
| Product lifetime (h) | 100000 |
| Lifetime for commercial, 12h daily (yrs) | 23 |
| Manufacturer Product Code | 31849 |
| Product Family | ConextMatrix LED Module |
| Strip Type | Rigid |
| LEDs number per sales unit | 26 |
| Dimensions | 40x40 |
| Dimensions: Length (cm) | 4 |
| Dimensions: Width (mm) | 40 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127454865 |
| Forward Voltage Typ (V) | 24 |
| Availability beyond shown stock: | YES |
