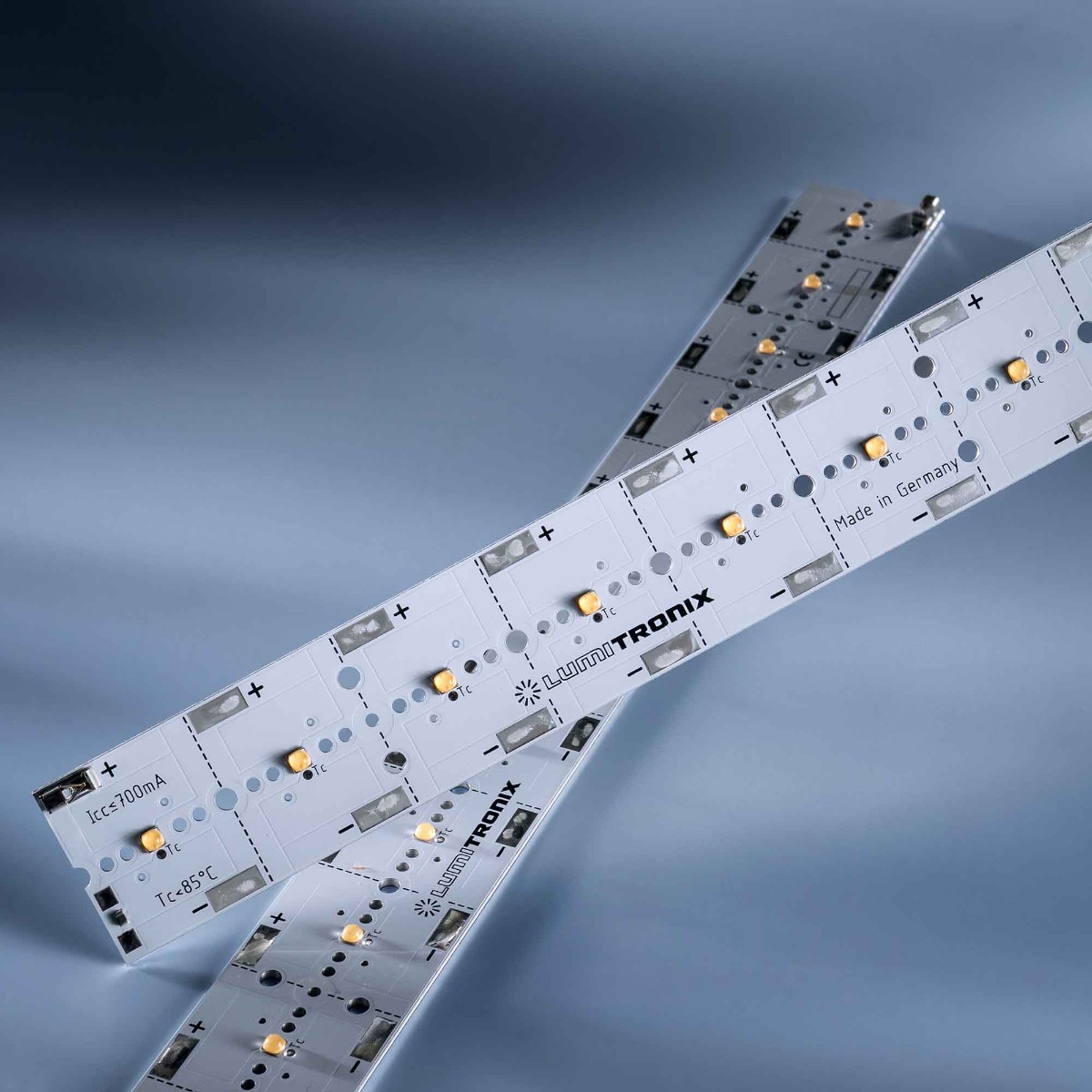

Build Your Own PowerBar Nichia LED Aluminium Module White CRI 70-90 1800-6500K High Power 12x 3W 219 LEDs 700mA 29cm (up to 15000lm/m)
Use this specialized form to order your custom PowerBar LED modules.
- More details below
- Terms & Conditions apply
- Information with * is required.
Build Your Own PowerBar LED Module
- PowerBar LED Module is equipped with 12 x Nichia NVSW219 3W LED from Japan
- LED Module designed for high flux (9924 lm/m) luminaires with lens for spot or flood lighting
- CRI options: 70, 80, 90
- Color temperature options: 1800K to 7800K
- Constant current design: 700-1000mA
- Improved heat management through the use of an aluminium circuit board and NTC resistor for temperature monitoring via an external control unit
- Divisible by each segment, allowing for individual use and simplified connection without soldering
- Compatible with a wide range of lenses from Ledil and Carclo, enabling a broad range of applications
Build Your Own PowerBar-4090-V3 LED Aluminium Module White CRI 70-90 1800-6500K High Power 3W NVSW219 LED 1000mA (up to 15000lm/m)
The PowerBar V3 LED modules are compact and ultra-bright modules perfect for applications where a lot of light is needed per square meter, such as plant growth, medical, industry, commercial or architectural lighting. Measuring 28 cm in length, each PowerBar V3 module is equipped with 12 high-power Nichia 219 series LEDs that emit a powerful white light.
The Nichia 219 Series are highly reliable high-power LEDs (3.5 x 3.5 mm / 3535 size) using a ceramic substrate.
With high output, long life, and high reliability, these LEDs are ideal for outdoor lighting in harsh environments such as streetlights. In addition to a wide range of output options, the 19 Series offers various CCT options ranging from 1800K to 6500K and CRI selections from R70 (Ra≥70) to R9080 (Ra≥90, R9≥80). Additionally, various vivid discrete colors including blue and amber are suitable for spotlights and stage lighting which require both high output and vivid colors.
The PowerBar V3 LED modules are designed with improved heat management thanks to their aluminium circuit board, ensuring long-lasting performance. Additionally, an NTC resistor is incorporated into each module, allowing temperature monitoring via an external control unit. The PowerBar V3 strips consist of 12 connected segments, each with an area of 28.5 x 23.85 mm, and can be divided with a saw, allowing each segment to be used individually. On the first and last sections, a terminal is mounted for simplified connection without soldering.
To further enhance the versatility of the PowerBar V3 modules, they are designed with holes that simplify the mounting of lenses. A wide range of lenses from Ledil and Carclo, which are also available in our shop, are compatible with the PowerBar V3 LED modules, enabling a broad range of applications.
With the matching accessories of our PowerBar V3 system, it is possible to assemble a complete luminaire tailored to your needs. The PowerBar V3 LED modules are compatible with a variety of accessories such as heat sink 31631, heat conductive adhesive pad 31623, mounting clip 32381, Florentina rod lens with different beam angles 32610, 32599, 32600, 32597, 32598, 32596, 30140, shade 30141, plastic cover (not to be used on PowerBar bars with UV LEDs) 32176, and individual lenses.
With our Build Your Own system you can order online the PowerBar with the newest generation LEDs from the Nichia 219 series (link here) on an Aluminum PCB for easy installation in spotlights, flashlights, streetlights and many other applications.
Compile your individual luminaire with our PowerBar V3 strips
With the matching accessories of our PowerBar V3 system, it is possible to assemble a complete luminaire. You have several options:
Option 1
- Powerbar V3 Heat sink 31631

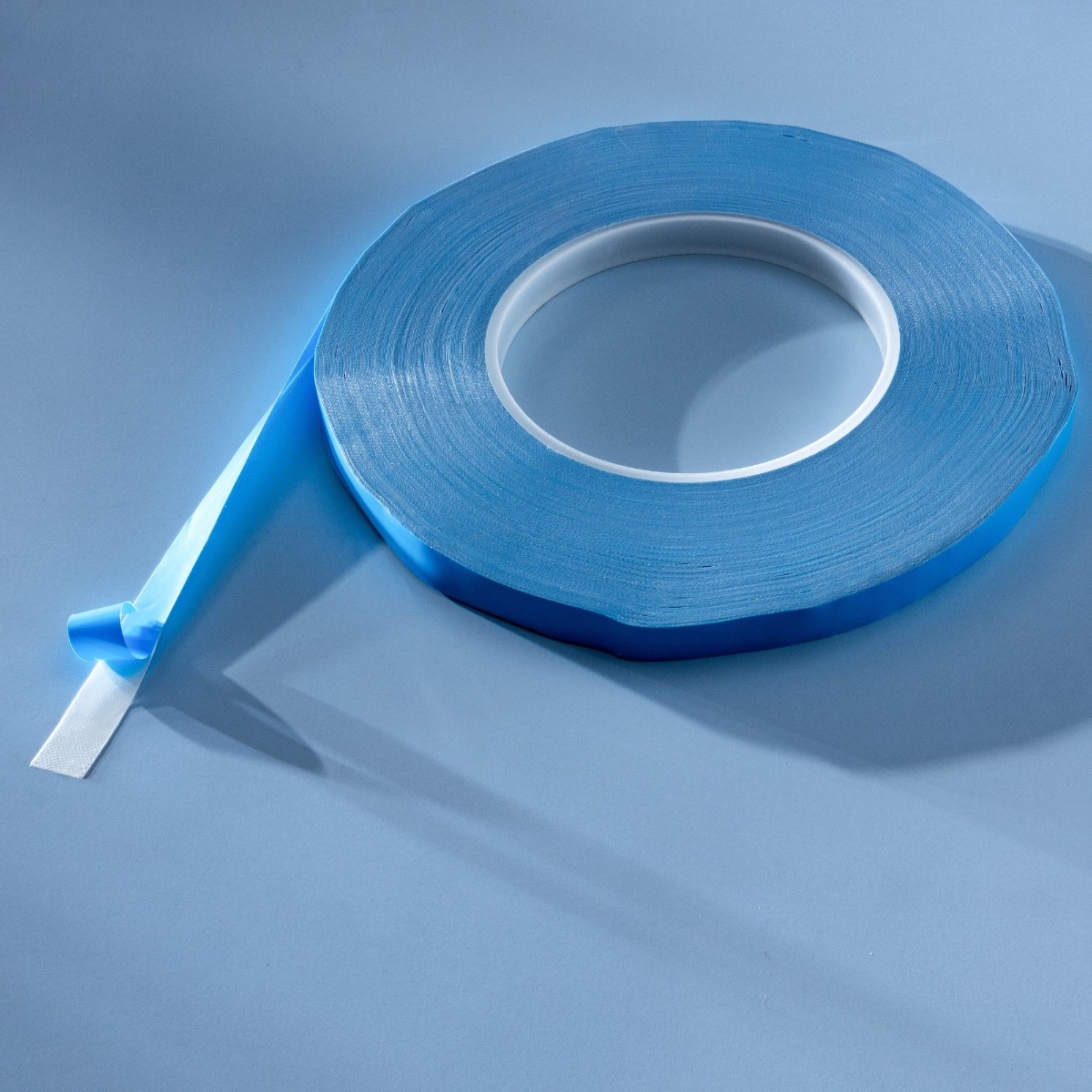

- Heat conductive adhesive pad 31623
- Mounting clip 32381
- Florentina rod lens with different beam angles 32610, 32599, 32600, 32597, 32598, 32596, 30140
- Shade 30141 and Plug-in module 32615
Option 2
- Powerbar V3 Heat sink 31631
- Heat conductive adhesive pad 31623
- -Mounting clip 32381
- Plastic cover (do not use on PowerBar bars with UV LEDs) 32176
Option 3
- Powerbar V3 Heat sink 31631
- Heat conductive adhesive pad 31623
- Mounting clip 32381
- Individual lenses
Custom LED Solutions: Tailored Lighting Excellence
Don't settle for generic LED solutions when our customization service can match your unique needs, avoiding the compromises associated with off-the-shelf products. With over 20 years of industry expertise, we manufacture innovative, quality, and high-performance LED solutions in Germany, tailored to your specifications.
Begin Your Custom LED Project
Ready to transform your vision into reality with the perfect LED module? Order now and let us illuminate your path to innovation, ensuring your project shines brighter than ever.
Build Your Own PowerBar-4090-V3 LED Aluminium Module Order Process Explained & Technical details:
Build Your PowerBar Nichia 219 LED Module, Made in Germany.
Step 1: Order Quantity (pcs)
How many modules do you need. While there is no MOQ, we recommend at least 250 pcs of PowerBar Nichia 219 LED module.
Step 2: Nichia 219 LED CRI
The CRI is a quantitative measure of how the spectrum of an artificial light source compares to a reference standard illuminant modeled after daylight. The highest possible score is 100, indicating a perfect match to the reference illuminant. Nichia 219 can be ordered in CRI selections from R70 (Ra≥70) to R9080 (Ra≥90, R9≥80).
Step 3: LED Color temperature
Different color temperatures create different visual effects and are appropriate for different environments. Color temperature is measured in Kelvin (K) on a scale from 'warm' to 'cool': The 'warmer' the light, the lower the number of Kelvin. The 'cooler' the light, the higher the number of Kelvin. You can read more about the recommended color temperature for a project in our blog.
Not all color temperatures are available for every LED type or CRI. Datasheet will specify Nichia LED part number.
Step 4: Samples Required?
You may request to receive samples, when you order or receive the datasheet. This option has extra cost and adds to the total delivery time of your order. Details will be provided at the time we receive your request. Maximum number of samples is 5 pcs.
PowerBar-4090-V3 LED Module Technical Specifications:
- You will receive a PowerBar V3 LED module equipped with 12 powerful Nichia 219 white LEDs
- 700mA LED module, at 35.2V typical
- Simple plug-and-play system
- 5 years warranty
- Divisible by each segment
- Better heat management thanks to aluminum circuit board
- Dimmable
- Constant current operation
- Optimized for lens systems
- NTC for temperature monitoring via external control unit
- Dimensions: 286 x 28.5 x 4.5 mm
- Mage in Germany
Nichia 219 LED Technical Specifications:
- Nichia NVSW219 LED is a 219 series, Single Chip High-Power LED with Ceramic Housing
- Current version: NVSW219F-V2
- 700-1000mA typical current at 2.89V, 2400mA maximum current
- 365lm at 700mA, 254lm at 1050mA, approx. 1000lm at 2400mA, at CRI80 5000K
- Aluminum rigid PCB
- Constant current design
- 100.000h lifetime
- CRI options: 70, 80, 90
- Color temperature options: 1800K to 7800K
- Rated output up to 7W
- Optimized for outdoor or industrial lighting
- Ideal for spotlights
- Dimmable
- 5-year warranty
- 3-step MacAdam ellipse
- Made in Germany
- LEDs Made in Japan
- CE, ROSH, REACH
| SKU | powerbar_4090_w |
|---|---|
| Weight brut (g) | 1.000000 |
| Luminous Flux per meter | 15000 |
| Dimmable | Dimmable |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 92 |
| Product lifetime (h) | 100000 |
| Lifetime for commercial, 12h daily (yrs) | 23 |
| Product Family | PowerBar V3 LED Strip |
| Strip Type | Rigid |
| LEDs per meter | 42 |
| Dimensions | 286x28.5x4.55 |
| Dimensions: Length (cm) | 28.6 |
| Dimensions: Width (mm) | 28.5 |
| Dimensions: Height (mm) | 4.5 |
| Brand | Lumistrips |
