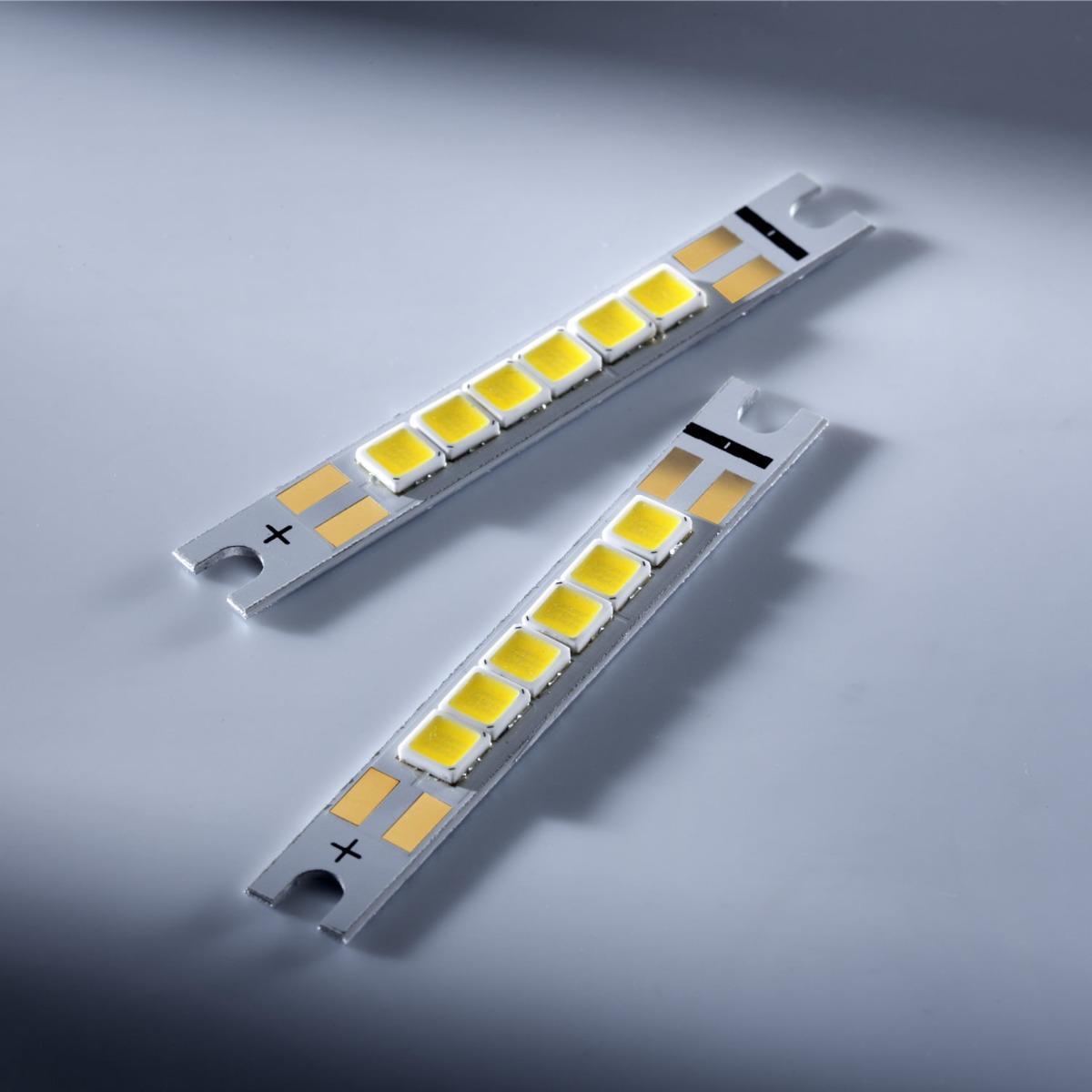

Build Your Own SmartArray_L6 Nichia 757 Compact LED Module White CRI 70-90 1800-7800K 1W LEDs 50x7mm (up to 1200lm)
Use this specialized form to order your custom SmartArray LED modules.
- More details below
- Terms & Conditions apply
- Information with * is required.
Build Your Own SmartArray_L6 Nichia LED Module
- SmartArray_L6 is equipped with 6x 1W Power Nichia 757 LEDs from Japan, with the highest performance on the market
- 50x7mm LED Module with plug-and-play system
- CRI options: 70, 80, 90,
- Color temperature options: 1800K to 7800K
- Special Nichia technology options: H6, HPS
- Constant current design
- With available lens system for focused light
Build Your Own SmartArray_L6 Nichia Compact LED Module White CRI 80-90 1800-7800K 1W LEDs
Designed with the latest technology, the SmartArray L6 LED spotlight source offers maximum efficiency and longevity. It offers powerful light output and high colour rendering suitable for any application, be it effect lighting, general lighting or stage lighting.
By using the Nichia 757 series, the SmartArray LED modules can have even better performance and light quality than COB LEDs.
With the available lens system for SmartArray, compact, high brightness focus light can be obtained. Choices of view angle include 12, 30 or 60 degrees, ideal for building desk lamps and other linear spotlights with the SmartArray.
Custom LED Solutions: Tailored Lighting Excellence
Don't settle for generic LED solutions when our customization service can match your unique needs, avoiding the compromises associated with off-the-shelf products. With over 20 years of industry expertise, we manufacture innovative, quality, and high-performance LED solutions in Germany, tailored to your specifications.
Begin Your Custom LED Project
Ready to transform your vision into reality with the perfect LED module? Order now and let us illuminate your path to innovation, ensuring your project shines brighter than ever.
Custom SmartArray_L6 LED Module Order Process Explained & Technical details:
Build Your Own SmartArray LED module, Made in Germany, with Nichia 757 LED series.
Step 1: Order Quantity (pcs)
How many modules do you need. While there is no MOQ, we recommend at least 833 pcs.
Step 2: LED Color temperature
Different color temperatures create different visual effects and are appropriate for different environments. Color temperature is measured in Kelvin (K) on a scale from 'warm' to 'cool': The 'warmer' the light, the lower the number of Kelvin. The 'cooler' the light, the higher the number of Kelvin. You can read more about the recommended color temperature for a project in our blog.
Step 3: Nichia 757 LED CRI and Special Type
The LED strip will be built with the latest generation Nichia 757 LED series, the industry leading 3030 Mid-power LEDs. The 757 LED series have industry's highest luminous efficacy (up to 222 lm/w) and reliability (up to 100.000h L70 lifetime).
Click here to see the current Nichia line-up.
Special Nichia 757 LED types include:
- H6 757 Series & CRI90: LEDs that achieve a color quality better than traditional LEDs (Ra≥90, R9≥50, R15≥85) while maintaining an efficacy better than Ra≥80 LEDs.
- HPS 757 Series & CRI70: LED that genuinely reproduces the emission color of High-Pressure Sodium lamps (HPS), which is most often used for road lighting and outdoor lighting around the world.
Step 4: SmartArray Lens System
The DBM Reflex Plastic Lens, ideally suited for SmartArray, is specifically designed to provide focused light. Choices of view angle include 12, 30 or 60 degrees, ideal for building desk lamps and other linear spotlights with the SmartArray.
Step 5: Samples Required?
You may request to receive samples, when you order or receive the datasheet. This option has extra cost and adds to the total delivery time of your order. Details will be provided at the time we receive your request. Maximum number of samples is 5 pcs.
SmartArray Technical Specifications:
- 6x Nichia 757 LEDs per module at 1W each
- Aluminum rigid PCB
- Constant current design (350-700mA)
- Very high brightness, up to 5000 lm for CRI80 at 5000K
- 100.000h lifetime
- CRI options: 70, 80, 90
- Color temperature options: 1800K to 7800K
- Special Nichia technology options: H6, HPS
- Rated output up to 8W
- Optimized for outdoor or industrial lighting
- Ideal for spotlights
- Dimmable
- 5-year warranty
- 3-step MacAdam ellipse
- Made in Germany
- LEDs Made in Japan
- CE, ROSH, REACH
| SKU | smartarray_l6 |
|---|---|
| Weight brut (g) | 1.000000 |
| Dimmable | Dimmable |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 92 |
| Product lifetime (h) | 100000 |
| Lifetime for commercial, 12h daily (yrs) | 23 |
| Product Family | Smart Array LED strip |
| Strip Type | Rigid |
| Brand | Lumistrips |
Custom LED Module Order Terms & Conditions
When your order is confirmed, we will manufacture the custom LED strip or module at our factory in Germany, based on the specifications you provided. Payment is required for order confirmation. Orders with successful online payments are considered confirmed.
Here’s how the timeline looks once we confirm your order:
- Design validation: we will check your order details and additionally supplied information (uploaded file), within 5 working days.
- Design Draft: You'll see the first drawing of your custom LED strip or module within 2 weeks.
- Datasheet: After the drawing gets your approval, we'll create for you the custom LED strip datasheet, within 2–4 weeks.
- Samples: You may request to receive samples, when you order or receive the datasheet. This option has an extra cost and adds to the total delivery time of your order. Details will be provided at the time we receive your request.
- Mass Production: Once you approve the datasheet and/or samples, we'll start the full production, which will take 6–10 weeks.
With us, your investment in custom LED technology is transparent, with clear steps and predictable timelines.
Custom order changes, cancelation, refunds, returns:
1. Changes to the specifications of the module can be made during the Design Draft process. These changes can be caused by incorrect data supplied to the online order system, such as technical specifications that are impossible to produce or wrong data.
For LED modules with custom dimensions, the decimal separator is the dot (.)
Changes that lead to additional costs will result in the recalculation of the order value.
2. The custom LED module order can be canceled:
- Within 5 working days for a 5% cancelation fee
- After receiving the design draft for a 15% cancelation fee
- After receiving the datasheet for a 25% cancelation fee
- After receiving the samples for a 25% cancelation fee + samples cost.
Once the datasheet and/or samples are approved, and mass production is initiated, the order cannot be canceled. Custom-made LED products cannot be returned. We reserve the right to cancel orders at any time, up to the point of delivery. Orders canceled by our decision will be refunded in full. We will not be responsible for any costs or associated damages caused by order cancelation or delays in delivery.
Custom LED Module warranty:
We provide a 5-year warranty for all custom LED modules, based on our standard warranty terms.
The operating temperature is a crucial facture in LED module lifetime. The maximum operation temperature (TC) will be specified in the design stage and written on the product and datasheet. It is important that you use thermal management to prevent exceeding of the maximum value. If it is not possible, you have to inform us during the design stage.
Shipping Methods and Cost:
We also accept shipping via your express account with DHL, TNT, UPS or FedEx. After we receive your order please contact us via email with this choice.
For bulky parcels with custom LED products and accessories, the standard shipping costs added via the online order process might not fully cover the safe and timely delivery of your order. If we discover, before shipping your order, that the shipping cost is greater than already paid or what we can cover for free shipping, we may ask you to cover the extra cost. In case of orders the orders free shipping, the maximum ship cost covered by us is 40€.
Custom LED Module certifications:
Built in Germany, the custom LED modules have the following certifications:
- CE
- ROSH
- REACH
On demand, other certifications ca be provided (for a price):
- UL
- CSA
