LumiBar-56-4080 Nichia LED Strip Zhaga warm white 3000K 2120lm 350mA 37.5V 52 LEDs 56cm module (3786lm/m 24W/m)

LumiBar-56-4080 Nichia Rigid LED Strip Warm White 3000K, High-Output Zhaga Module 56 cm

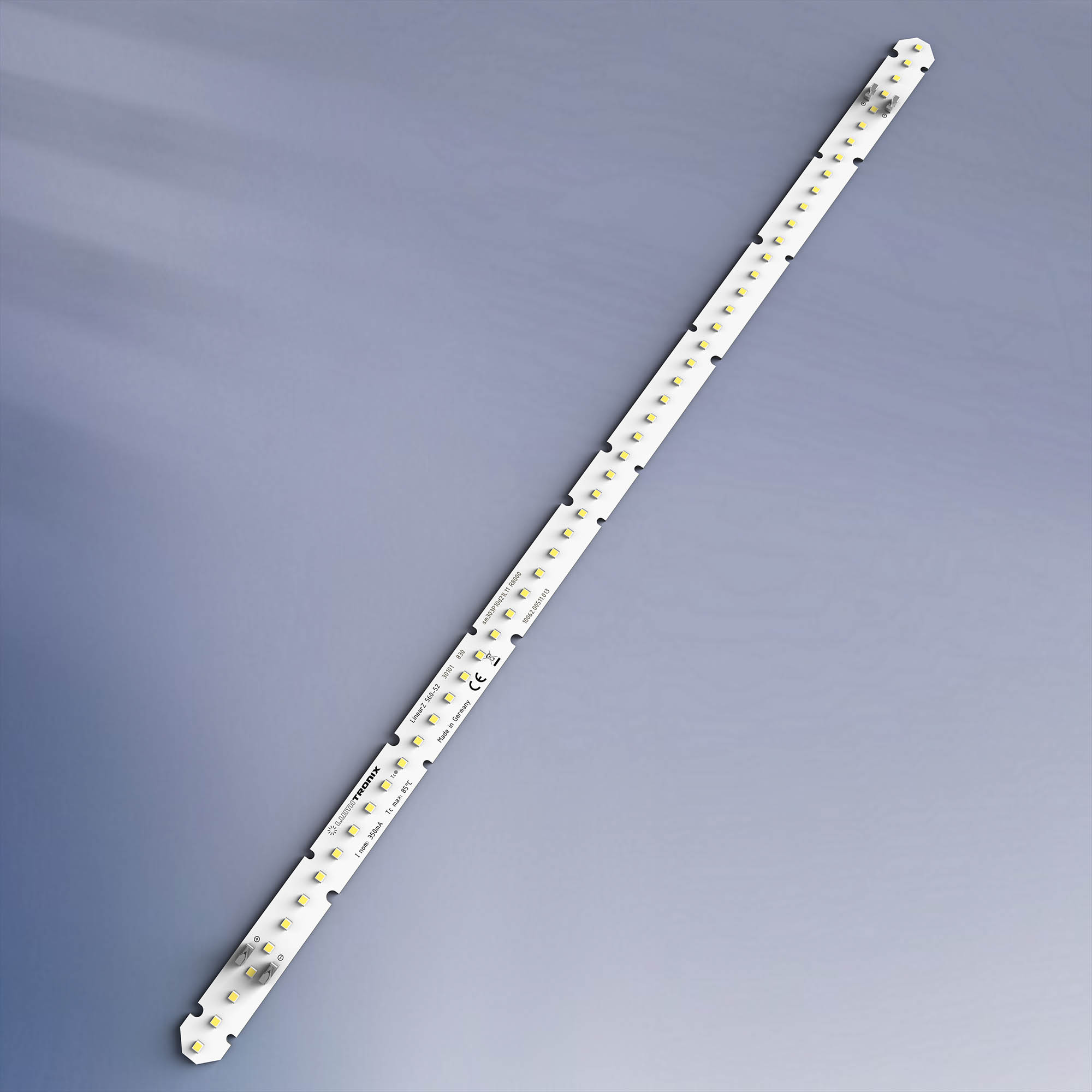

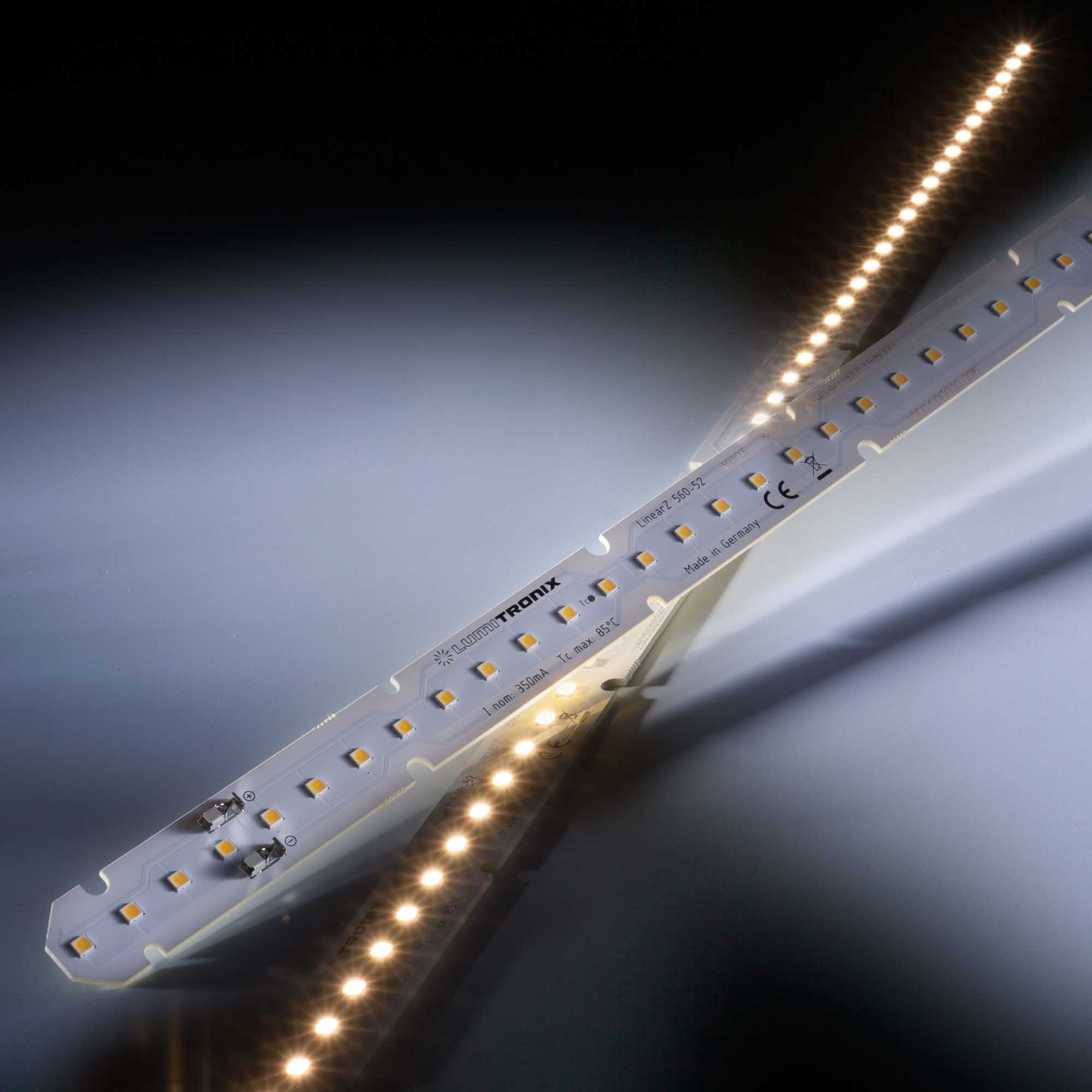

The LumiBar-56-4080 Nichia is a powerful rigid LED module with 52 Nichia 757 series mid-power LEDs on a 56 cm board. It delivers 2120 lm (3786 lm per meter) of warm white 3000K light at 13.1 W, about 160 lm/W, which makes it ideal for bright, efficient linear luminaires and troffers in shops, offices, commercial spaces and workplaces.

Designed according to the Zhaga Book 7 standard, the LumiBar-56-4080 Nichia has a 20 mm wide rigid board with solderless terminals, is operated with a constant current LED driver and needs no additional heat sink. The short LED pitch produces uniform light without light spots behind a diffuser, and binning to a 3-step MacAdam ellipse ensures consistent warm white light. The 3000K light color creates a soothing warm white light that keeps a relaxing atmosphere but adds a little more clarity than 2700K. The module is made in Germany and backed by a 5-year warranty.

Features of the LumiBar-56-4080 Nichia LED Strip 3000K

• 52 Nichia LEDs on a rigid 56 cm module
• Warm White 3000K
• 2120 lm per module, 3786 lm per meter
• Efficacy of about 160 lm/W
• Constant current operation: 350 mA at 37.5 V, 13.1 W per module (24 W per meter)
• Designed according to the Zhaga standard (Book 7)
• Solderless terminals, easy series connection
• No additional heat sink required
• Short LED pitch for uniform light without light spots
• Color consistency to a 3-step MacAdam ellipse
• Dimmable with a dimmable driver
• Made in Germany
• 5-year warranty

Applications of the LumiBar-56-4080 Nichia LED Strip 3000K

With its rigid, Zhaga-compatible format and high efficiency, the LumiBar-56-4080 Nichia 3000K is designed for the following main applications:

• Linear lighting: LumiBar modules are mounted end to end in linear luminaires, recessed or surface-mounted profiles and pendant lights. For example, two LumiBar-56-4080 Nichia modules (1.12 m) fit a 1.2 m luminaire and deliver about 4240 lm at about 26.2 W. With the short LED pitch and a diffuser, the line of light is uniform. Read more in our guides on creating lines of light with LED strips and designing efficient LED linear lamps.
• Troffer and panel lighting: In troffers and LED panels for suspended ceilings, several LumiBar modules are mounted in parallel rows on the base plate behind the diffuser. The rigid, Zhaga-compatible modules are easy to fix and wire, making them a high-quality replacement for fluorescent tubes in reception areas, hotels, shops and other spaces where a warmer, welcoming light is preferred. More about LED strips and modules for troffer lights.
• Efficient white light: The LumiBar 4080 delivers large amounts of uniform white light at low energy cost. Where color accuracy is critical, choose our CRI90 LumiBar 3090 or CRI95/CRI98 LumiBar 3098+ modules. The 3000K color temperature gives a soothing warm white light that keeps a relaxing atmosphere but adds a little more clarity than 2700K. Find out which color temperature suits your project in our guide Choosing the right color temperature for LED lighting.

Built Around the Zhaga Standard (Book 7)

The Zhaga Consortium is a global lighting industry association that defines interface specifications, called Books, so that LED light engines from different manufacturers can be used interchangeably in the same luminaire. Zhaga Book 7 covers linear and square LED modules for indoor lighting that are operated with a separate LED driver and are mounted in the luminaire, and replaced, by professionals. It specifies the mechanical, thermal, photometric and electrical interfaces between the LED module and the luminaire, and defines 18 module categories by their maximum outer dimensions. In 2023, Book 7 became the first Zhaga specification to be published as an IEC standard, IEC 63356-2. More information is available on the Zhaga Book 7 page.

The LumiBar is designed according to Zhaga Book 7. The 56 cm LumiBar follows the same concept as the 28 cm module of Book 7 category L28W2 (maximum 280 x 24 mm): the same 20 mm width, the same connection principle and double the length, so 28 and 56 cm modules can be combined in one luminaire design.

• For luminaire manufacturers: a luminaire body designed around the Zhaga form factor accepts standardized modules, so you can switch to newer, more efficient LED generations or a second source without redesigning the luminaire.
• For maintenance and upgrades: existing luminaires with Zhaga Book 7 modules can be serviced or upgraded with LumiBar modules, extending their service life.
• For sustainable lighting: replaceable, standardized light engines make luminaires serviceable and support the replaceability of light sources required by the EU Ecodesign Regulation (EU) 2019/2020.

Technical Data of the LumiBar-56-4080 Nichia LED Strip 3000K

• Article number (SKU): 40267
• LED manufacturer: Nichia (757 series)
• Light color: Warm White, 3000K
• Binning: 3-step MacAdam ellipse
• Luminous flux: 2120 lm per module, 3786 lm per meter
• Efficacy: about 160 lm/W (calculated)
• Beam angle: 120°
• Operating mode: Constant current, dimmable
• Operating point: 350 mA at 37.5 V
• Power: 13.1 W per module, 24 W per meter
• Number of LEDs: 52 per module
• Length: 56 cm
• Form factor: Designed according to Zhaga Book 7
• Connection: Solderless terminals, 0.75 mm² (AWG 18) recommended

Installation and Operation

• Mounting: mount the module flat on the luminaire body, ideally on a metal surface for good heat transfer; no additional heat sink is required. Do not bend the rigid circuit board and avoid mechanical stress on the components.

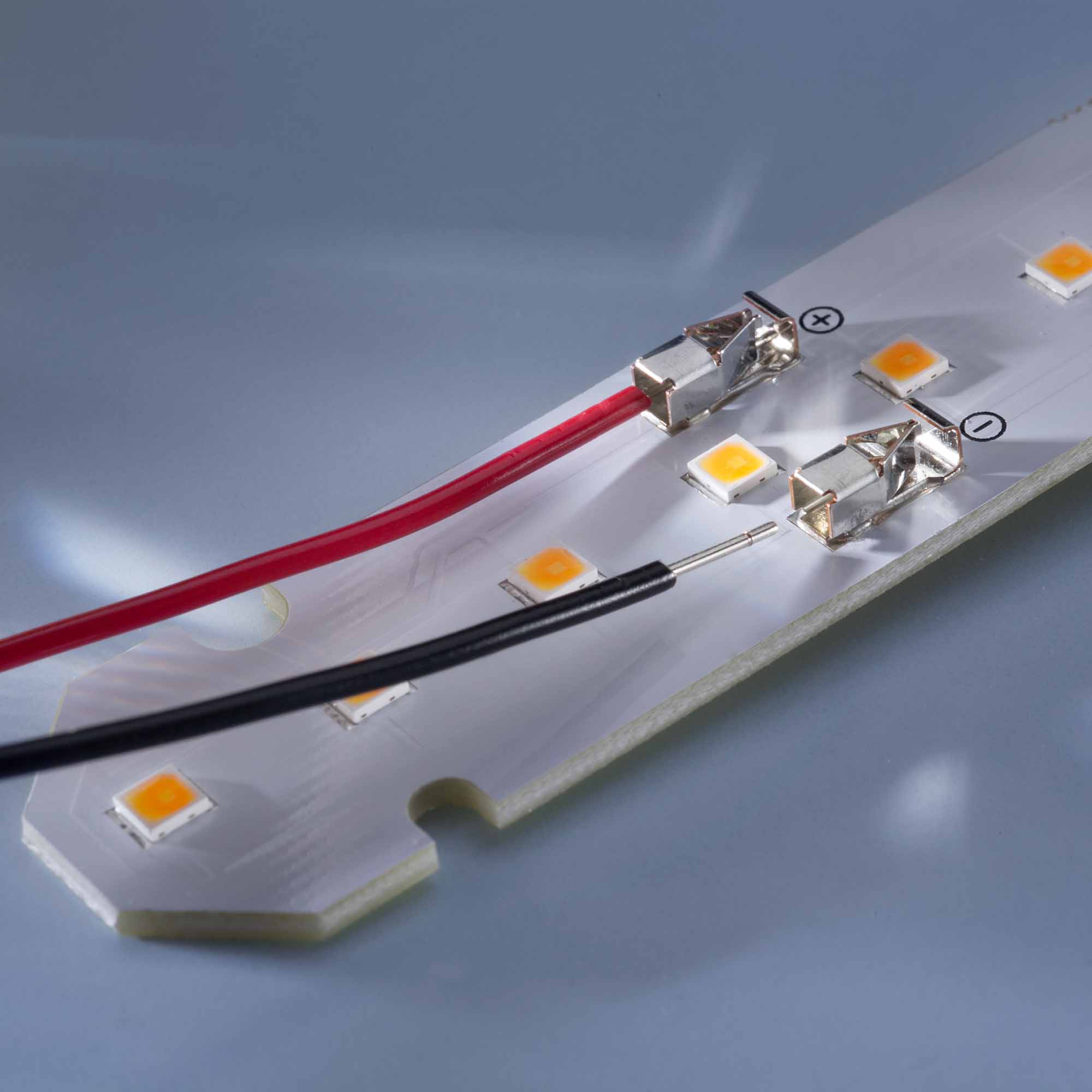

• Connection: the module has solderless push-in terminals. Strip the wire insulation at the connection point and insert the wire; we recommend a conductor cross-section of 0.75 mm² (AWG 18).
• LED driver: operate the modules with a constant current LED driver of 350 mA. Several modules can be connected in series: the current of the string stays the same, and the voltages add up. For example, 2 modules of 56 cm in series (about 1.12 m) need 75.0 V, which must lie within the output voltage range of the driver. Connect only modules of the same length in one series string. For dimming, use a dimmable driver.
• Handling: observe standard ESD precautions, keep the module away from aggressive chemicals, and store and operate it at 10% to 60% relative humidity.
• Safety: the driver must provide short-circuit, overload and overtemperature protection, and installation must comply with all applicable electrical and safety standards and should be carried out by a qualified electrician.

Why the LumiBar-56-4080 Nichia Outperforms Low-Cost LED Modules

• LED quality: we use only brand-name LEDs from Nichia, the Japanese LED market leader whose researchers invented the blue and white LED technology, with full manufacturer datasheets and performance tested in the lab and in real applications.
• Production quality: the modules are assembled in Germany on an ISO-certified line with high-speed automatic placement and vapor phase soldering under a protective gas atmosphere, which prevents oxidation and cold solder joints and improves the thermal connection between LED and circuit board, an important factor for LED lifetime. Laser bar codes ensure traceability.
• Realistic specifications: all values are measured at a junction temperature of 65°C, so the performance in our datasheet matches what you get in a real luminaire.
