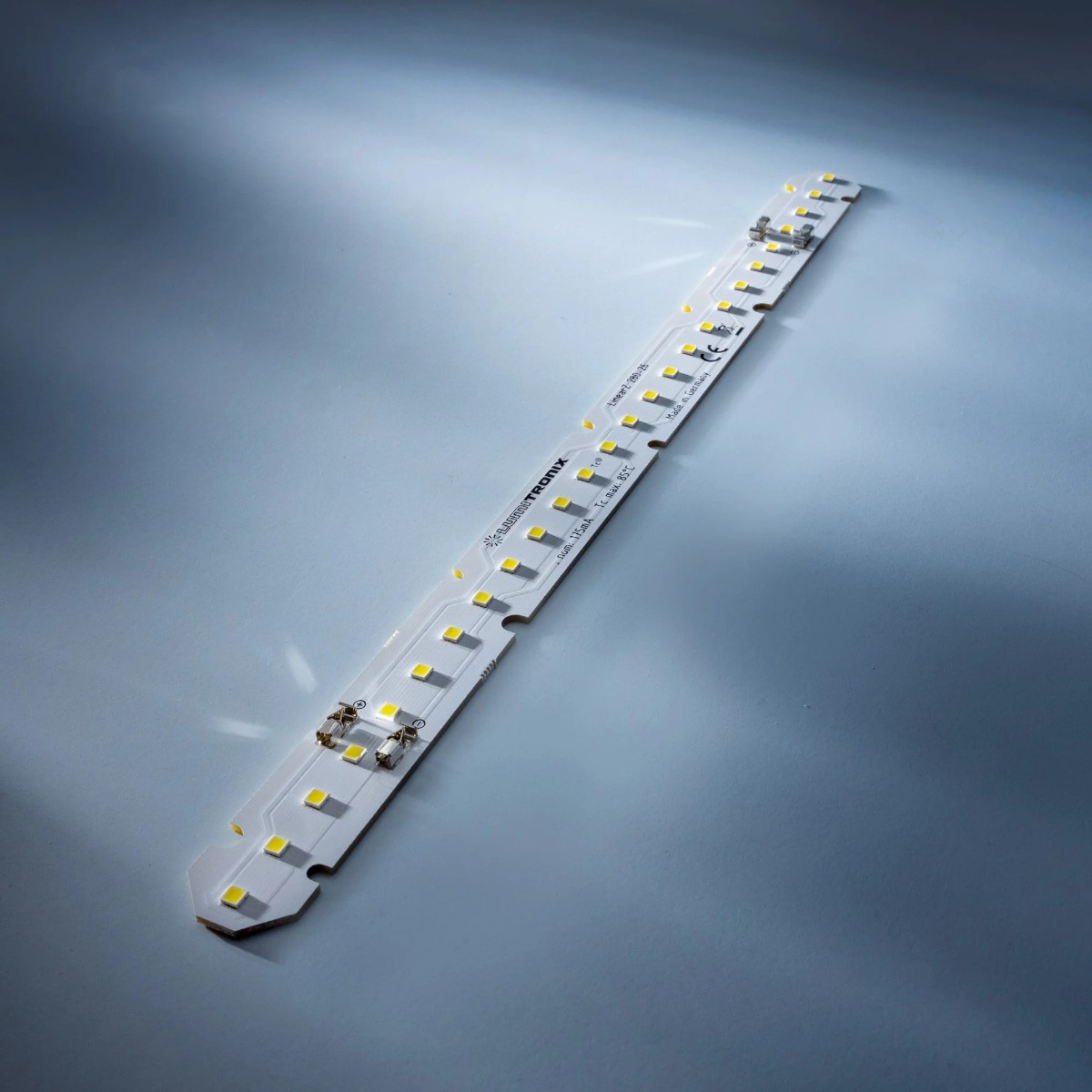

LumiBar-28-3095 Nichia H6 LED Strip warm white CRI95 3000K 940lm 175mA 36V 26 LEDs 28cm module (3100lm/m 22W/m)

LumiBar-28-3095 Nichia H6 Rigid LED Strip Warm White 3000K CRI95, Zhaga Module 28 cm

The LumiBar-28-3095 3000K combines excellent color rendering with high efficacy. Its 26 LEDs of the Nichia H6 series use a narrow-band red phosphor that raises color rendering to CRI95 without the efficacy loss usually associated with high-CRI LEDs. One 28 cm module delivers 940 lm (3360 lm per meter) of warm white 3000K light at about 6.4 W, about 147 lm/W.

Designed according to the Zhaga Book 7 standard, the LumiBar-28-3095 has a 20 mm wide rigid board with solderless terminals, is operated with a constant current LED driver and needs no additional heat sink in many luminaire configurations. The short LED pitch produces uniform light without light spots behind a diffuser. The 3000K light color creates a soothing warm white light that keeps a relaxing atmosphere but adds a little more clarity than 2700K. The module is made in Germany.

Features of the LumiBar-28-3095 LED Strip 3000K

• 26 Nichia H6 series LEDs on a rigid 28 cm module
• Warm White 3000K with CRI95
• 940 lm per module, 3360 lm per meter
• Efficacy of about 147 lm/W
• Constant current operation: 175 mA at 36.7 V, 6.4 W per module (22 W per meter)
• Designed according to the Zhaga standard (Book 7)
• Solderless terminals, easy series connection
• No additional heat sink required in many luminaire configurations
• Short LED pitch for uniform light without light spots
• Dimmable with a dimmable driver
• Made in Germany

Applications of the LumiBar-28-3095 LED Strip 3000K

With its rigid, Zhaga-compatible format and natural light quality, the LumiBar-28-3095 3000K is designed for the following main applications:

• Linear lighting: LumiBar modules are mounted end to end in linear luminaires, recessed or surface-mounted profiles and pendant lights. For example, four LumiBar-28-3095 modules (1.12 m) fit a 1.2 m luminaire and deliver about 3760 lm at about 25.6 W. With the short LED pitch and a diffuser, the line of light is uniform. Read more in our guides on creating lines of light with LED strips and designing efficient LED linear lamps.
• Troffer and panel lighting: In troffers and LED panels for suspended ceilings, several LumiBar modules are mounted in parallel rows on the base plate behind the diffuser. The rigid, Zhaga-compatible modules are easy to fix and wire, making them a high-quality replacement for fluorescent tubes in reception areas, hotels, shops and other spaces where a warmer, welcoming light is preferred. More about LED strips and modules for troffer lights.
• High-quality white light: With a color rendering index of 95 and high efficacy, the LumiBar-28-3095 shows colors and materials naturally, while keeping energy consumption low. The 3000K color temperature gives a soothing warm white light that keeps a relaxing atmosphere but adds a little more clarity than 2700K. Find out which color temperature suits your project in our guide Choosing the right color temperature for LED lighting.

Built Around the Zhaga Standard (Book 7)

The Zhaga Consortium is a global lighting industry association that defines interface specifications, called Books, so that LED light engines from different manufacturers can be used interchangeably in the same luminaire. Zhaga Book 7 covers linear and square LED modules for indoor lighting that are operated with a separate LED driver and are mounted in the luminaire, and replaced, by professionals. It specifies the mechanical, thermal, photometric and electrical interfaces between the LED module and the luminaire, and defines 18 module categories by their maximum outer dimensions. In 2023, Book 7 became the first Zhaga specification to be published as an IEC standard, IEC 63356-2. More information is available on the Zhaga Book 7 page.

The LumiBar is designed according to Zhaga Book 7. With its dimensions of 279.5 x 20 mm, the LumiBar fits the Book 7 category L28W2, which defines a maximum module size of 280 x 24 mm.

• For luminaire manufacturers: a luminaire body designed around the Zhaga form factor accepts standardized modules, so you can switch to newer, more efficient LED generations or a second source without redesigning the luminaire.
• For maintenance and upgrades: existing luminaires with Zhaga Book 7 modules can be serviced or upgraded with LumiBar modules, extending their service life.
• For sustainable lighting: replaceable, standardized light engines make luminaires serviceable and support the replaceability of light sources required by the EU Ecodesign Regulation (EU) 2019/2020.

Technical Data of the LumiBar-28-3095 LED Strip 3000K

• Article number (SKU): 42612
• LED manufacturer: Nichia (H6 series)
• Light color: Warm White, 3000K
• Color rendering index: CRI (Ra) 95
• Luminous flux: 940 lm per module, 3360 lm per meter
• Efficacy: about 147 lm/W (calculated)
• Beam angle: 120°
• Operating mode: Constant current, dimmable
• Operating point: 175 mA at 36.7 V
• Power: 6.4 W per module, 22 W per meter
• Number of LEDs: 26 per module
• Dimensions: 280 x 20 mm (L x W)
• Form factor: Designed according to Zhaga Book 7, category L28W2
• Connection: Solderless terminals, 0.75 mm² (AWG 18) recommended

Installation and Operation

• Mounting: mount the module flat on the luminaire body, ideally on a metal surface for good heat transfer; no additional heat sink is required. Do not bend the rigid circuit board and avoid mechanical stress on the components.
• Connection: the module has solderless push-in terminals. Strip the wire insulation at the connection point and insert the wire; we recommend a conductor cross-section of 0.75 mm² (AWG 18).
• LED driver: operate the modules with a constant current LED driver of 175 mA. Several modules can be connected in series: the current of the string stays the same, and the voltages add up. For example, 4 modules of 28 cm in series (about 1.12 m) need 146.8 V, which must lie within the output voltage range of the driver. Connect only modules of the same length in one series string. For dimming, use a dimmable driver.
• Handling: observe standard ESD precautions, keep the module away from aggressive chemicals, and store and operate it at 10% to 60% relative humidity.
• Safety: the driver must provide short-circuit, overload and overtemperature protection, and installation must comply with all applicable electrical and safety standards and should be carried out by a qualified electrician.

Why the LumiBar-28-3095 Outperforms Low-Cost LED Modules

• LED quality: we use only brand-name LEDs from Nichia, the Japanese LED market leader whose researchers invented the blue and white LED technology, with full manufacturer datasheets and performance tested in the lab and in real applications.
• Production quality: the modules are assembled in Germany on an ISO-certified line with high-speed automatic placement and vapor phase soldering under a protective gas atmosphere, which prevents oxidation and cold solder joints and improves the thermal connection between LED and circuit board, an important factor for LED lifetime. Laser bar codes ensure traceability.
• Realistic specifications: all values are measured at a junction temperature of 65°C, so the performance in our datasheet matches what you get in a real luminaire.
