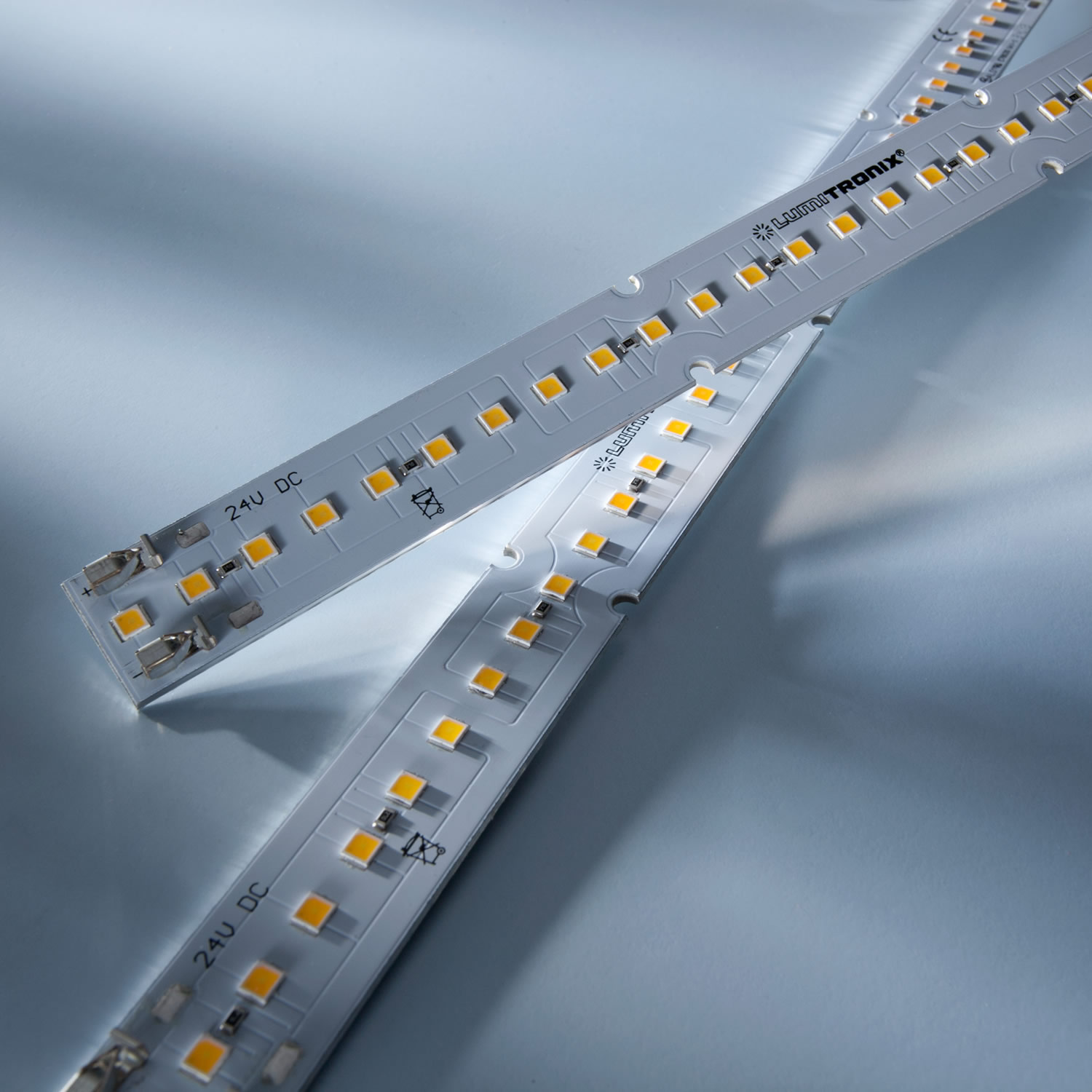

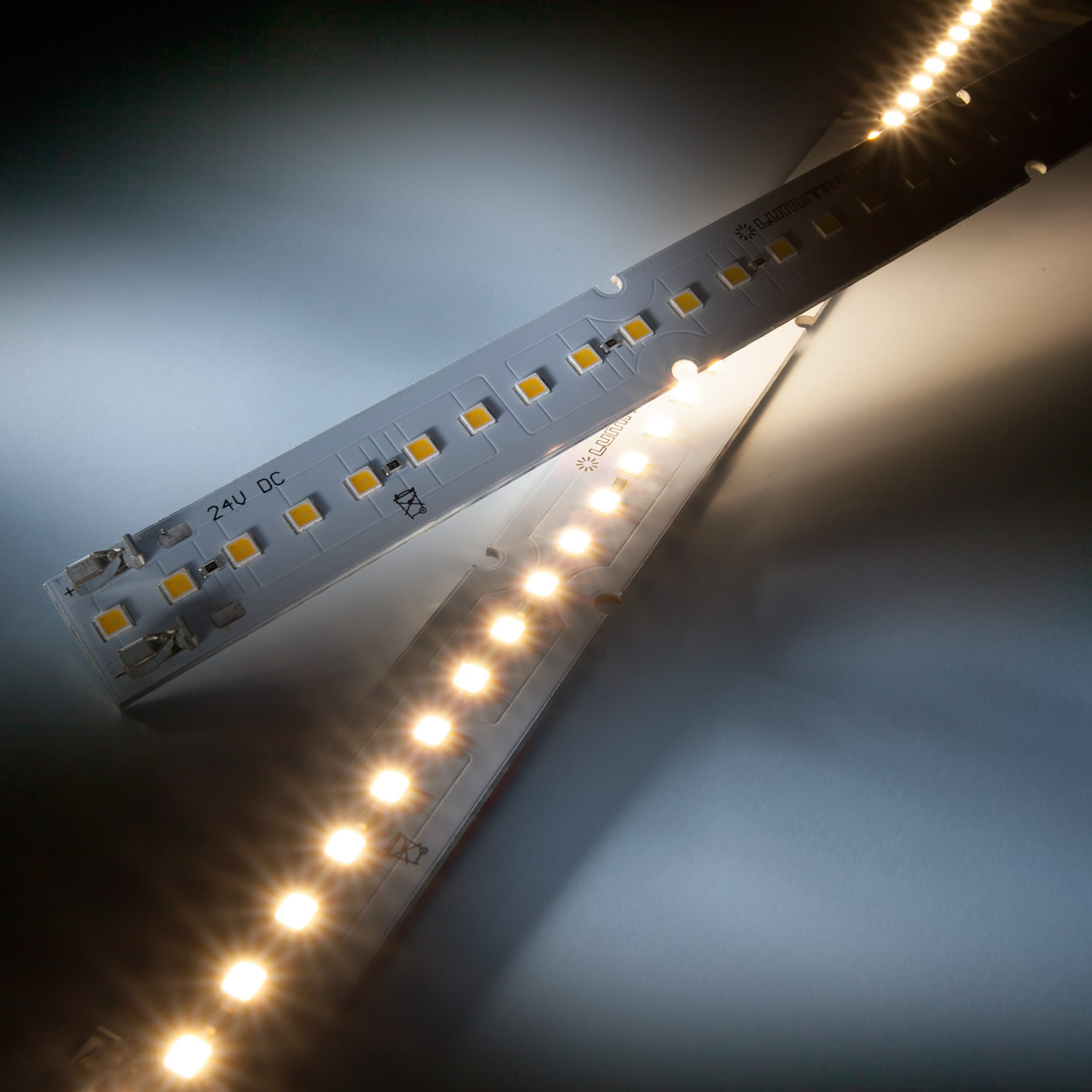

Maxline35 Nichia LED Strip warm white 3000K 1040lm 24V 35 LEDs 28cm module (3715lm/m and 30W/m)
- LED Module designed for general or task lighting luminaires (3715 lm/m)
- Easy to install due to simple plug & play connection system
- Professional product with 5 years warranty
Maxline LED Nichia LED strips have a aluminum PCB that maximizes the potential of the highest performing Mid-Power LEDs on the market: Nichia 757G series. Thus, luminous flux on a linear meter is unparalleled, up to 4000 lm while keeping lifetime and light efficacy and very high levels.
Therefore, one meter of the Maxline35 LED strip has the huge light output of more than 4000 lm (400 Watt bulb equivalent) at a consumption of only 25 watts and using only 125 Nichia 757G LEDs. This performance, combined with a lifetime of more than 100,000 hours, makes Maxline the best choice for building compact and bright luminaires for use in shops, warehouses, factories or offices.
Our Nichia Maxline LED modules are the key to build linear lamps or fixtures with superior performance. Integrated into a T8 LED tube our built into a linear luminaire, the Nichia Maxline modules can easily surpass the performance targets for effective and economical sound replacement of fluorescent LED tubes. This outstanding results arise from the use of Nichia 757 Mid-Power LEDs with the highest performance on the market.
The Nichia Maxline modules are available with 3 LED densities: 14, 35 and 70 LEDs, on a aluminum PCB, in a standard size of 280 x 13 x 4.5 mm. The size standard module size is intended for rapid integration into linear LED fixtures or T8 tubes and on request longer versions can be made available, with various PCB connectors.
We offer the strips in a constant voltage and constant current version, each with 14, 35 or 70 LEDs. The constant voltage version (24 V) is designed for maximum flexibility in use, the constant current version for maximum efficiency. With constant voltage version many modules can be operated with one power unit in a row. The exact number depends on the version and the power unit.
Features Maxline35:
- Nichia LED module with 35 x Nichia 757G LEDs, 125 LEDs per meter
- Ultra high luminous flux, 1040lm or up to 3800lm per meter
- Warm white 3000K
- Good light qualtiy CRI 80+
- Dimensions (WxHxD): 280 x 13 x 4.5 mm
- All values are at high temperature Tc=85°C
- Recess for screw-mounting
- Replacement for tube lights
- Aluminium PCB for efficient cooling
- 24V constant voltage module
- 8.4W per module
- Very bright and efficient
- Simple plug & play system
- 5 years warranty
- Made in Germany
Applications for Maxline LED Nichia Strips:
- Production of compact and very bright luminaires
- Commercial lighting for the presentation of products
- High flux, long-lasting lighting fixtures for shops, offices, TV studios, medical clinics
| SKU | 53312 |
|---|---|
| Weight brut (g) | 0.024100 |
| Color | Warm White |
| Color Temperature | 3000K |
| Luminous Flux per meter | 3715 |
| Bright like (W) | 372 |
| Luminous Flux Typ (lm) | 1040 |
| Efficacy (lm per W) | 106 |
| Power (W) | 8.4 |
| Dimmable | Dimmable |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 92 |
| Product lifetime (h) | 100000 |
| Lifetime for commercial, 12h daily (yrs) | 23 |
| Forward Current Max | 350mA |
| Manufacturer Product Code | 53312 |
| Strip Type | Rigid |
| LEDs per meter | 125 |
| LEDs number per sales unit | 35 |
| Dimensions | 280x16.5x4.5 |
| Dimensions: Length (cm) | 28 |
| Dimensions: Width (mm) | 16.5 |
| Dimensions: Height (mm) | 4.5 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127453998 |
| Forward Voltage Typ (V) | 24 |
| Availability beyond shown stock: | NO |
