BackMatrix-49-2080 Nichia LED Module pure white CRI80 5000K 1300lm 49 LEDs 24V 10.9W 180° 28x28cm (16000 lm/sqm)

BackMatrix-49-2080 Nichia LED Module Neutral White 5000K, 180° Beam Angle, 28 x 28 cm

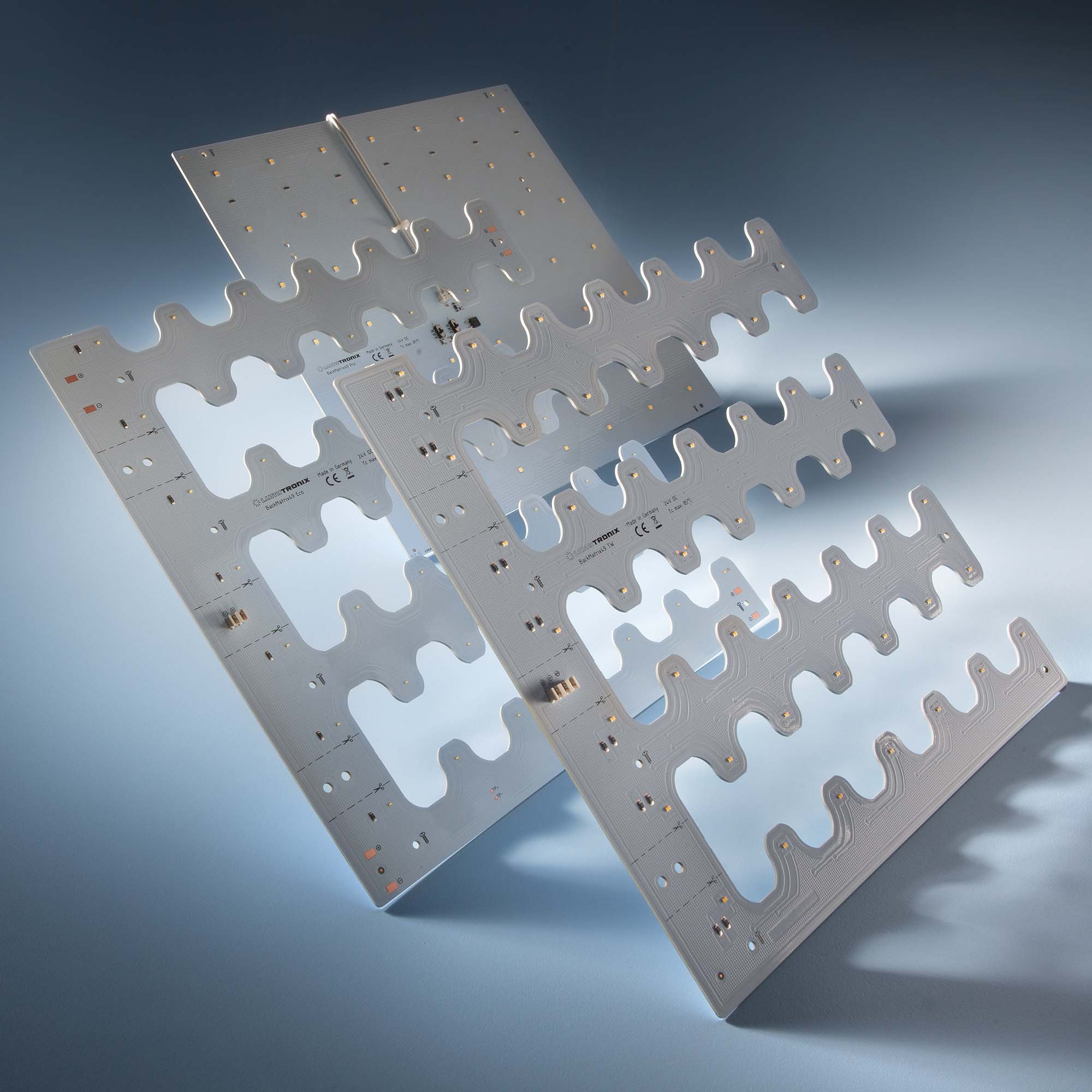

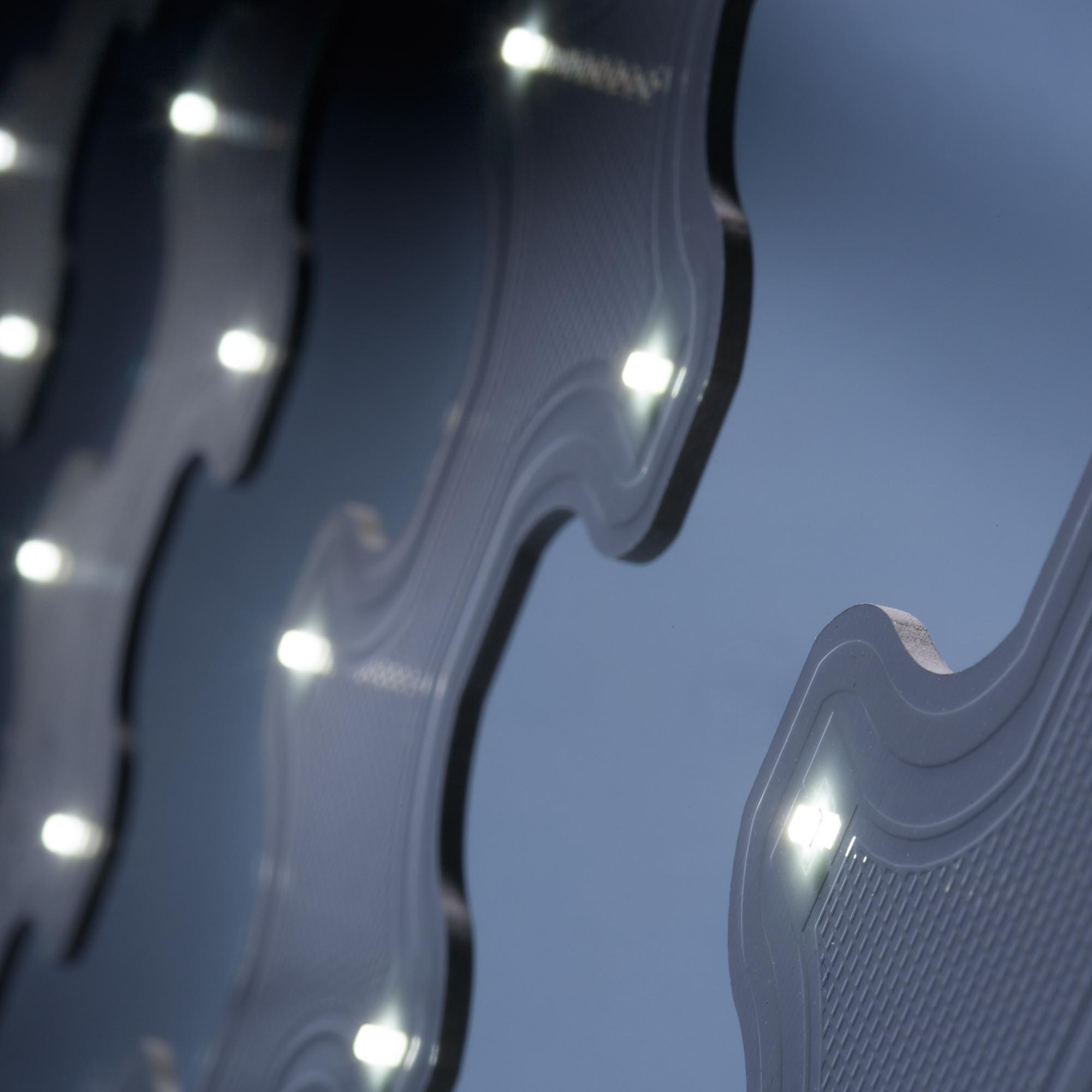

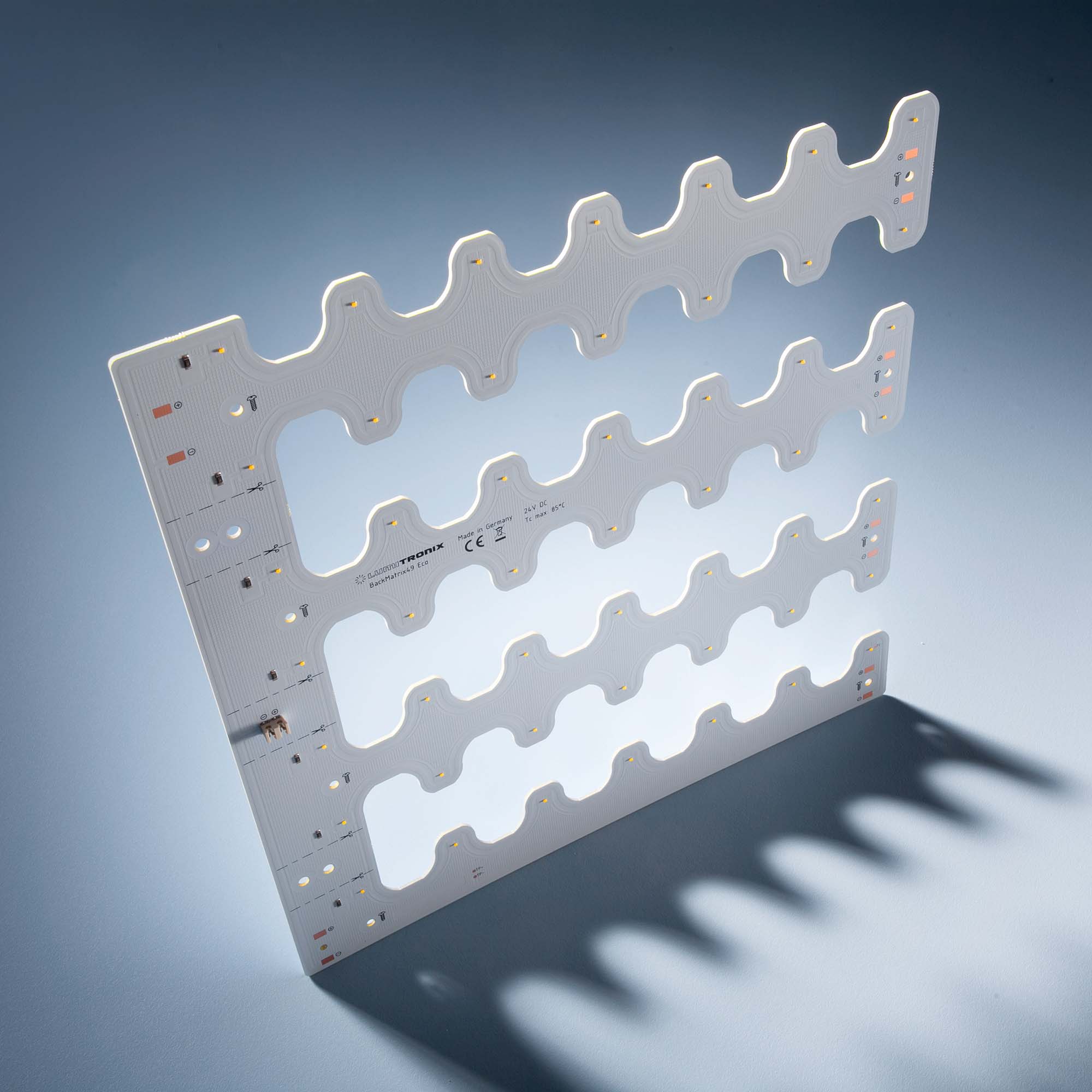

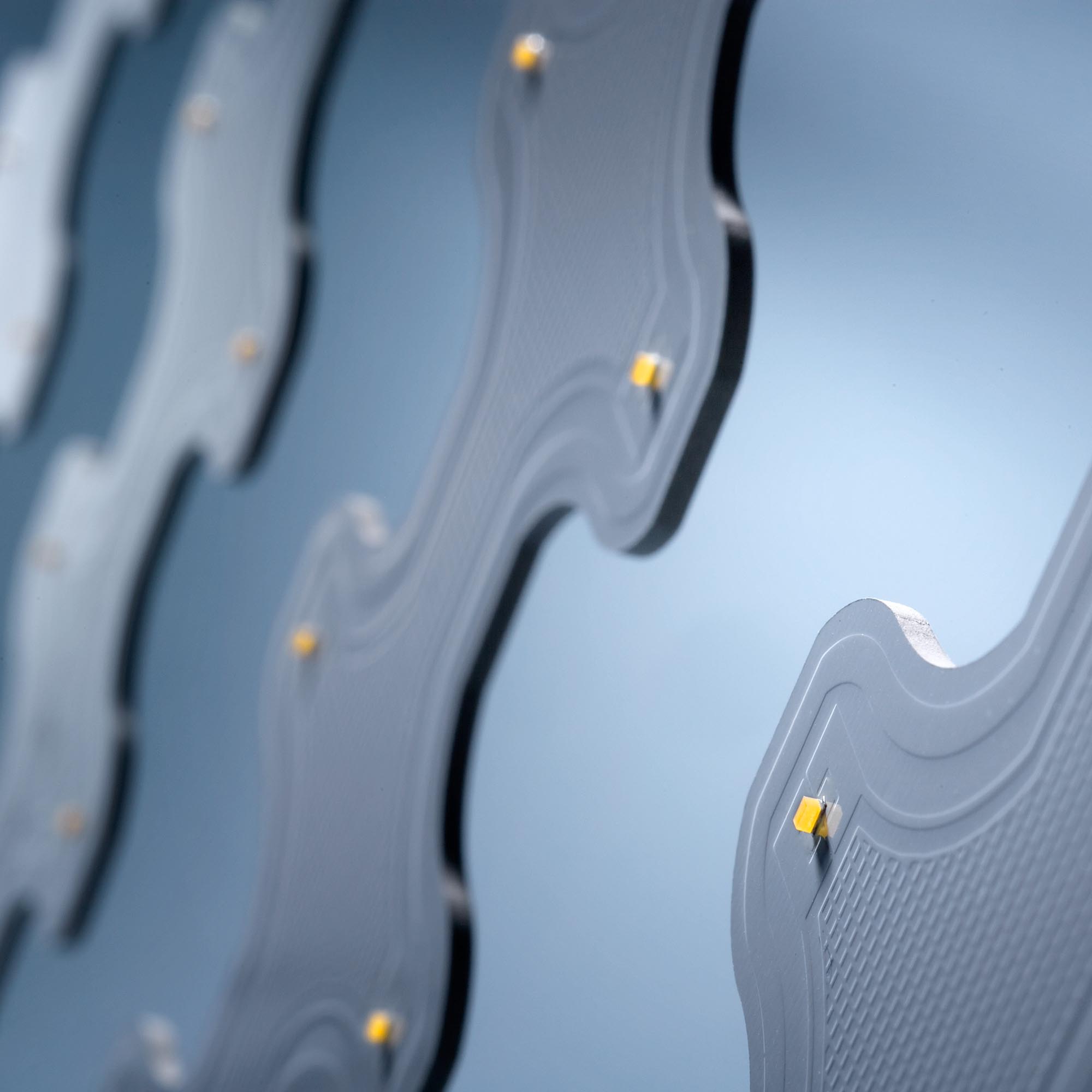

The BackMatrix-49-2080 5000K is a large LED module made for backlighting: light boxes, illuminated signs, billboards and luminous ceilings. Its 49 Nichia LEDs with an ultra-wide 180° beam angle are distributed evenly over a 280 x 280 mm board, so the light blends into a uniform surface behind a diffuser even at a short distance, which allows shallow constructions with fewer visible hotspots. One module delivers 1300 lm of neutral white 5000K light at about 9.91 W, an efficacy of 131 lm/W, about 16,600 lm per square meter.

The module operates at 24 V constant voltage, needs no additional cooling, and LEDs binned to a 3-step MacAdam ellipse keep the light uniform across many modules. The 5000K light color creates a neutral, daylight-like white light that keeps colors crisp and supports concentration. BackMatrix modules are made in Germany and backed by a 5-year warranty.

Features of the BackMatrix-49-2080 LED Module 5000K

• 49 Nichia LEDs with an ultra-wide 180° beam angle
• Neutral White 5000K, CRI>80
• 1300 lm per module, about 16,600 lm/m²
• Efficacy of 131 lm/W at a realistic junction temperature of 65°C, energy efficiency class E
• 24 V DC constant voltage, 9.91 W (413 mA) per module
• Solder-free insulation displacement terminal
• Color consistency to a 3-step MacAdam ellipse
• Lifetime of more than 60,000 hours (L80B10)
• Dimmable
• No additional cooling required
• Dimensions: 280 x 280 x 6.65 mm
• Made in Germany
• 5-year warranty

Applications of the BackMatrix-49-2080 LED Module 5000K

Designed for even backlighting of large surfaces, the BackMatrix-49-2080 is used in the following main applications:

• Billboards and luminous ceilings: For backlit billboards, large light boxes and luminous ceilings, BackMatrix-49-2080 modules are mounted side by side behind the translucent surface to light it evenly from edge to edge. See our LED modules for luminous ceilings.
• Signage: In illuminated signs, logos and display boxes, the modules provide bright, uniform backlighting with a low number of components. The wide light distribution keeps light boxes and signs shallow. More about LED modules for signage backlighting.
• Backlighting behind translucent materials: Behind stretch ceilings, acrylic, onyx, marble, textiles or printed graphics, BackMatrix modules create evenly lit walls, ceilings, counters and 3D elements, as well as displays at trade fairs and exhibitions. Read our guide on how to create a light ceiling with LED modules.
• White light: The module provides clean, uniform white light with CRI above 80 for advertising and architectural surfaces. The 5000K color temperature gives a neutral, daylight-like white light that keeps colors crisp and supports concentration. Find out which color temperature suits your project in our guide Choosing the right color temperature for LED lighting.

Why BackMatrix for Large Illuminated Surfaces

• Fewer parts per square meter: each module covers 280 x 280 mm with an even grid of Nichia LEDs, so about 13 modules light one square meter, much faster to install than rows of LED strips or many small modules.
• Even light distribution: the regular LED grid blends into a uniform surface behind a diffuser, without visible hotspots, the basis for homogeneous light boxes, signs and luminous ceilings. Match the distance to the diffuser to the LED spacing and the beam angle, as described in our guide on LED pitch and distance to cover for optimum backlighting.
• Solder-free connection: an insulation displacement terminal accepts connection cables of up to 1 mm² (AWG 18), for example our cable SKU 37592, without soldering; we recommend the BackMatrix tool bit (SKU 95402). Holes on the board allow the cables to be fixed with cable ties.
• Simple 24 V system: modules are connected in parallel to one 24 V constant voltage power supply, so any number of modules can be combined to the size of the surface, limited only by the power supply and the cable cross-section.
• Consistent color: Nichia LEDs binned to a 3-step MacAdam ellipse keep brightness and light color uniform across all modules of a large surface.

Technical Data of the BackMatrix-49-2080 LED Module 5000K

• Article number (SKU): 36744
• Equivalent model: BackMatrix 49
• LED manufacturer: Nichia
• Light color: Neutral White, 5000K
• Color rendering index: CRI (Ra) >80
• Binning: 3-step MacAdam ellipse
• Photometric code: 850/339
• Luminous flux: 1300 lm per module, about 16,600 lm/m²
• Efficacy: 131 lm/W
• Beam angle: 180°
• Lifetime: >60,000 h (L80B10C1)
• Operating mode: Constant voltage, 24 V DC, dimmable
• Current: 413 mA per module
• Power: 9.91 W per module
• Number of LEDs: 49
• Dimensions: 280 x 280 x 6.65 mm
• Operating temperature at Tc: -40°C to +85°C
• Ambient temperature: -40°C to +50°C
• Storage temperature: -40°C to +100°C
• Certifications: CE, RoHS, REACH
• Photobiological safety (EN 62471): Risk group RG0
• Energy efficiency class: E
• Photometric reference: Values measured at TJ = 65°C, ±10%

Installation and Operation

• Mounting: fix the module flat on a stable surface, supporting the board at suitable mounting points; do not bend the board or clamp the components. No additional cooling is required.
• Connection: connect the modules with the solder-free insulation displacement terminal, using cables of up to 1 mm² (AWG 18), and fix the cables with cable ties through the holes on the board; soldering is possible as an alternative.
• Power supply: connect several modules in parallel to a stabilized 24 V DC constant voltage LED driver with short-circuit, overload and overtemperature protection, sized for the total load (9.91 W per module) plus a safety margin. For large surfaces, feed the modules in groups with adequately sized cables to keep the voltage drop low.
• Handling: observe standard ESD precautions, keep the modules away from aggressive chemicals, and store and operate them at 10% to 60% relative humidity.
• Safety: installation must comply with all applicable electrical and safety standards and should be carried out by a qualified electrician.

Why the BackMatrix-49-2080 Outperforms Low-Cost LED Modules

Compared with low-cost LED modules, the BackMatrix-49-2080 differs in three areas that decide how long a lighting installation performs well:

• LED quality: we use only brand-name LEDs from Nichia, the Japanese LED market leader whose researchers invented the blue and white LED technology, with full manufacturer datasheets and performance tested in the lab and in real applications. Low-cost strips often use LED chips of unknown origin, without certified data, so their quality and color vary from one purchase to the next.
• PCB design and materials: high-quality materials and a design without mechanical and electrical weak points, for good current flow, heat transfer and long-term reliability.
• Realistic specifications: all values are measured at a junction temperature of 65°C, so the performance in our datasheet matches what you get in a real installation.
