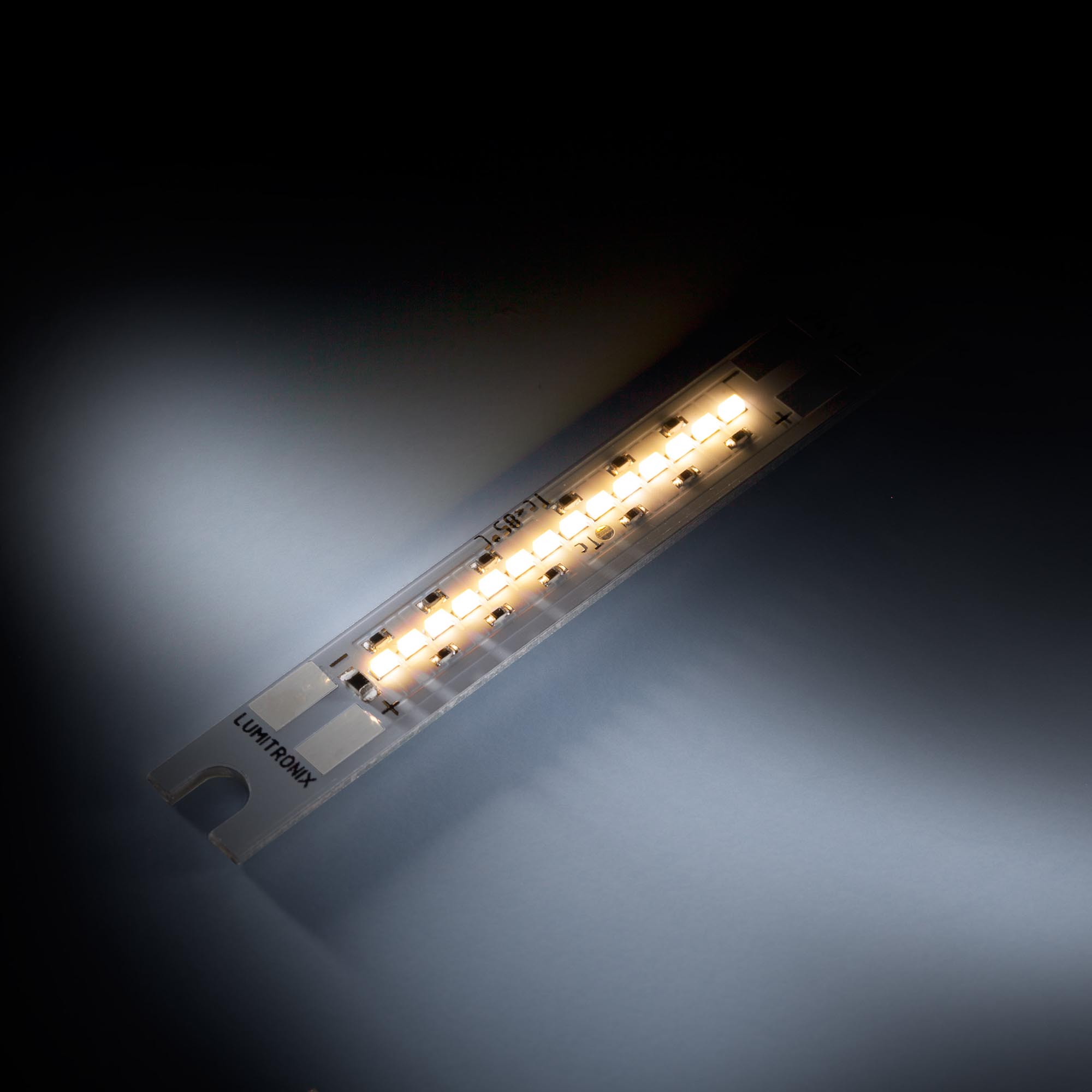

Nichia LED Module SmartArray 5cm 24V 180 deg White 2700K 24V 3.6W 360lm
€3.31
Stock Germany >100 pcs
SKU
53683
- 14 Nichia LEDs on a 50 x 7 x 1.6 mm board
- Warm white 2700K, CRI above 80
- Up to 360 lm at 3.6 W, up to 100 lm/W
- Ultra-wide 180° beam angle
- 24 V DC constant voltage
- Color consistency to a 3-step MacAdam ellipse
- Double-sided, heat-conducting adhesive pad and screw recess
- Made in Germany, 5-year warranty
Nichia LED Module SmartArray 5 cm 24 V Warm White 2700K, 180° Beam Angle, 360 lm

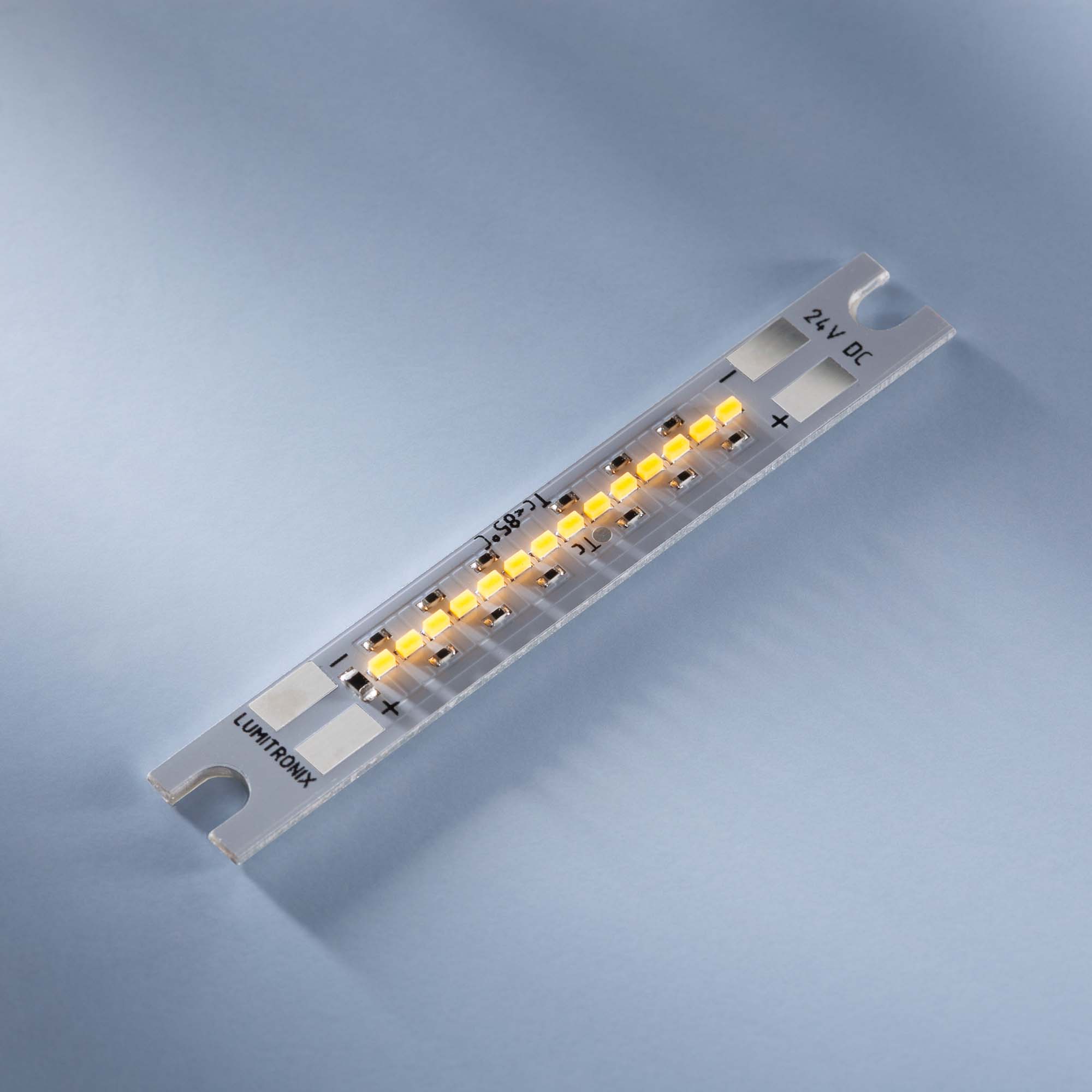

The SmartArray 5 cm 24 V is a compact linear module with 14 Nichia LEDs and an ultra-wide 180° beam angle on a 50 x 7 mm board. It delivers up to 360 lm of warm white 2700K light at only 3.6 W and runs directly on 24 V constant voltage, which gives you more options when choosing a power supply. The wide beam spreads the light evenly in lamps with diffusers, while the double-sided, heat-conducting adhesive pad and a screw recess make mounting quick.
Features of the SmartArray 5 cm 24 V LED Module
- 14 Nichia LEDs on a 50 x 7 x 1.6 mm board
- Warm white 2700K, CRI above 80
- Up to 360 lm at 3.6 W, up to 100 lm/W
- Ultra-wide 180° beam angle
- 24 V DC constant voltage
- Color consistency to a 3-step MacAdam ellipse
- Double-sided, heat-conducting adhesive pad and screw recess
- Made in Germany
- 5-year warranty
Applications of the SmartArray 5 cm 24 V LED Module
As a compact, high-density light source, the SmartArray 5 cm 24 V is designed for the following main applications:
- LED bulbs and retrofit lamps: Thanks to its compact size and high luminous density, the SmartArray 5 cm 24 V is an ideal light engine for E27, E14 and GU10 LED lamps and retrofit lamps. See our LED modules for LED bulb manufacturing.
- Downlights: In recessed and surface-mounted downlights, the module replaces a COB light source and works with standard reflectors and lenses, from homes and hotels to shops and offices. See our LED modules for downlights.
- Spotlights: The concentrated light emitting surface is well suited for secondary optics with narrow beams in track spots, accent and display lighting, shop and museum spots. See our LED modules for spotlights.
- Floodlights: Several modules can be combined in compact floodlights for facades, signs and outdoor areas, with optics for the required beam. See our LED modules for floodlights.
- Flashlights and portable lights: The small footprint and high light output make the module a strong light source for flashlights, work lights and portable lamps. See our LED modules for flashlights.
- White light: The module provides clean white light with Nichia binning to a 3-step MacAdam ellipse for consistent color from module to module. The 2700K color temperature gives a cozy, intimate warm white light. Find out which color temperature suits your project in our guide Choosing the right color temperature for LED lighting.
Technical Data of the SmartArray 5 cm 24 V LED Module
- Article number (SKU): 53683
- LED manufacturer: Nichia
- Number of LEDs: 14
- Light color: Warm white, 2700K
- Color rendering index: CRI (Ra) >80
- Binning: 3-step MacAdam ellipse
- Luminous flux: up to 360 lm
- Beam angle: 180°
- Operating mode: Constant voltage, 24 V DC
- Power: 3.6 W
- Dimensions: 50 x 7 x 1.6 mm
Installation and Operation
- Cooling: mount the module on a heat sink or the metal body of the luminaire, with thermal interface material or the adhesive pad where provided, and make sure the Tc point stays within the specified limits in the finished luminaire.
- Mounting: fix the module with its heat-conducting adhesive pad or a screw through the recess.
- Power supply: connect the modules in parallel to a stabilized 24 V DC constant voltage LED driver with short-circuit, overload and overtemperature protection, sized for the total load plus a safety margin.
- Handling: do not touch or press the LEDs, observe standard ESD precautions, keep the module away from aggressive chemicals, and store and operate it at 10% to 60% relative humidity.
- Safety: installation must comply with all applicable electrical and safety standards and should be carried out by a qualified electrician.
Why Choose a Smart Array Instead of a COB
- Same compact light source, better heat spreading: Smart Array modules concentrate high-quality Nichia LEDs on a small board, so they work with optics and reflectors like a COB, while the heat is spread over several LEDs and a larger board area.
- Flexible formats: square modules from 13 mm and linear 5 cm modules, single color, tunable white or dim-to-warm, for constant current or 24 V constant voltage operation.
- Consistent quality: Nichia LEDs, 3-step MacAdam binning and production in Germany ensure the same light from module to module and from batch to batch.
Why the SmartArray 5 cm 24 V Outperforms Low-Cost LED Modules
Compared with low-cost LED modules, the SmartArray 5 cm 24 V differs in three areas that decide how long a lighting installation performs well:
- LED quality: we use only brand-name LEDs from Nichia, the Japanese LED market leader whose researchers invented the blue and white LED technology, with full manufacturer datasheets and performance tested in the lab and in real applications. Low-cost strips often use LED chips of unknown origin, without certified data, so their quality and color vary from one purchase to the next.
- PCB design and materials: high-quality materials and a design without mechanical and electrical weak points, for good current flow, heat transfer and long-term reliability.
- Realistic specifications: all values are measured at a junction temperature of 65°C, so the performance in our datasheet matches what you get in a real installation.
Who We Are: Ledrise, Professional LED Strips Made in Germany
Ledrise is the international online shop for high-performance LED strips and modules that we develop and manufacture in our own production facility in Germany and ship directly from there. With more than 20 years of experience in LED technology, our team of more than 70 people in Germany, Hong Kong and Romania has gained extensive application knowledge across many sectors, and thousands of business customers and consumers on five continents rely on us as their LED technology partner.
We use only LEDs from market leaders such as Nichia, Seoul Semiconductor, Cree, Samsung and ams OSRAM. Beyond standard products, we design and prototype custom LED modules, select and integrate optics, housings and drivers, and test and validate every solution in our in-house measuring and testing laboratory, supporting you from the first lighting concept to serial production.
Our Quality Promise
- Certified quality: our quality management is certified to DIN EN ISO 9001 and covers every step, from product development to customer service. Our manufacturing center in Germany is also certified to ISO 14001 for environmental management and ISO 45001 for occupational health and safety.
- Reel-to-reel manufacturing, unique in Europe: our fully automated reel-to-reel flex line uses plasma direct metallization to produce robust, flexible circuit boards in continuous lengths of up to 100 meters, with fewer interconnections and less material waste.
- Precision at every step: automated solder paste printing with inline inspection, high-speed ASM SIPLACE component placement, controlled reflow soldering, and automatic optical inspection that detects missing, offset or misaligned components.
- Full traceability: production batches are marked and tracked with laser-engraved barcodes.
- Honest data: the performance values in our datasheets match those in real-world applications.
- Long-term security: a 5-year warranty on this LED strip (see our warranty terms) and professional support for your lighting projects.
Learn more about Ledrise and our reel-to-reel flexible LED strip manufacturing in Germany.
| SKU | 53683 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color | Warm White |
| Color Temperature | 2700K |
| Color Rendering Index | 80 |
| Luminous Flux Typ (lm) | 360 |
| Efficacy (lm per W) | 100 |
| Power (W) | 3.6 |
| Viewing Angle | 180° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 46 |
| Product lifetime (h) | 50000 |
| Lifetime for commercial, 12h daily (yrs) | 12 |
| Forward Current Max | 150mA |
| Manufacturer Product Code | 53683 |
| Product Family | Smart Array LED strip |
| Strip Type | Rigid |
| Dimensions | 50x7x1.5 |
| Dimensions: Length (cm) | 5 |
| Dimensions: Width (mm) | 15 |
| Dimensions: Height (mm) | 0.70 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127455404 |
| Forward Voltage Typ (V) | 24 |
| Availability beyond shown stock: | NO |
