Nichia LED Module SmartArray square 13mm 3+1 LEDs Special Dimming 2700K-2000K 3W 305lm
- 4 Nichia LEDs (3+1) on a 13.5 x 13 mm square board
- Dim-to-warm from 2700K to 2000K, CRI above 80
- Color temperature follows the operating current, no extra control unit
- 305 lm at 350 mA, about 3 W
- Constant current 350 mA at 8.7 V
- Color consistency to a 3-step MacAdam ellipse
- Double-sided, thermally conductive adhesive pad
- Made in Germany, 5-year warranty
Nichia LED Module SmartArray 3+1 Dim-to-Warm 2700K-2000K, 305 lm, 13 mm Square

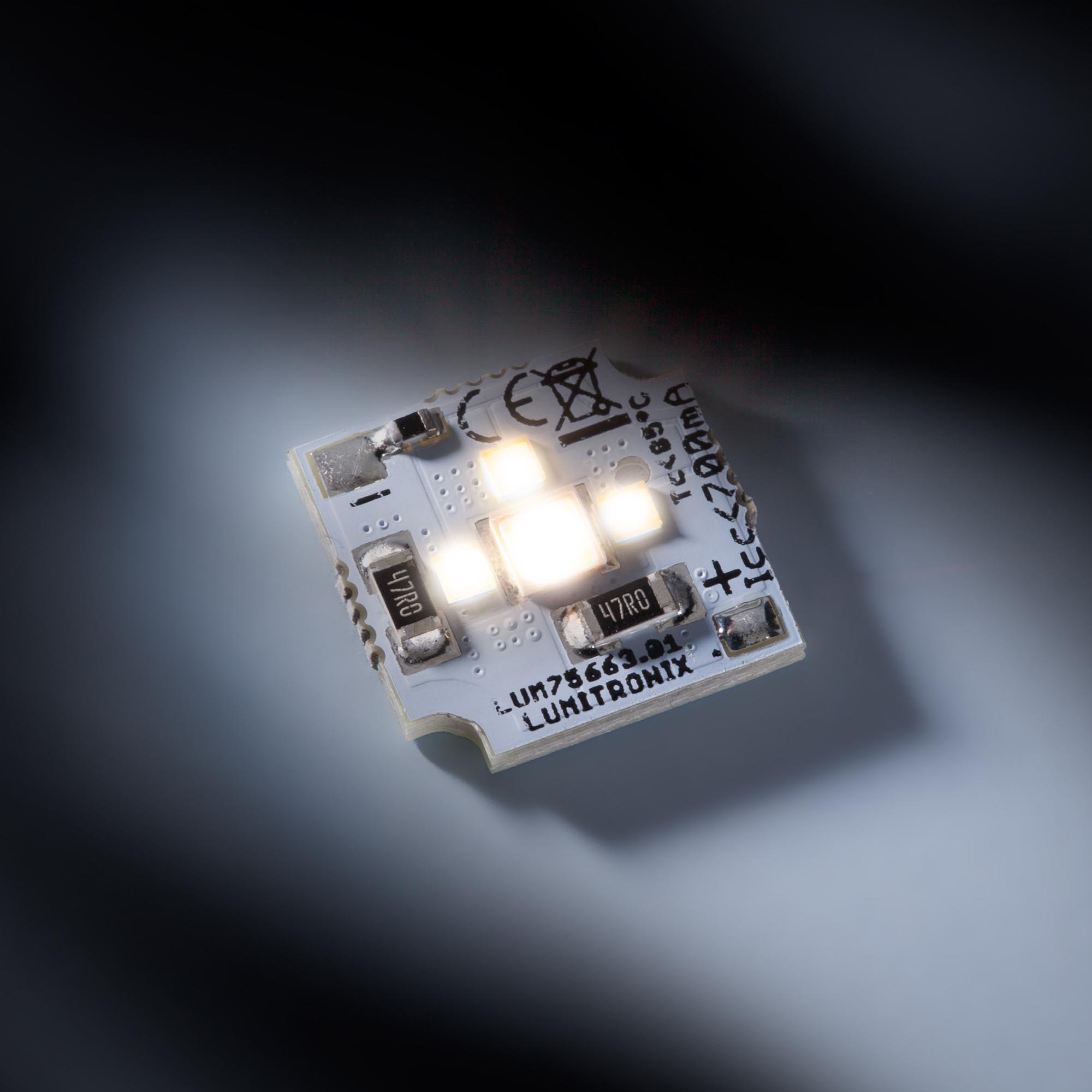

The SmartArray 3+1 Dim-to-Warm behaves like an incandescent lamp: at full power it shines in warm white 2700K, and when dimmed down, an intelligent circuit on the module shifts the color temperature continuously towards a cozy, candle-like 2000K. No additional control unit is needed: the color temperature follows the current of a standard 350 mA constant current driver. With 4 Nichia LEDs on a 13.5 x 13 mm board, it delivers 305 lm at about 3 W, with a color rendering index above 80, ideal for restaurants, hotels, bars, living spaces and decorative LED lamps.
Features of the SmartArray 3+1 Dim-to-Warm LED Module

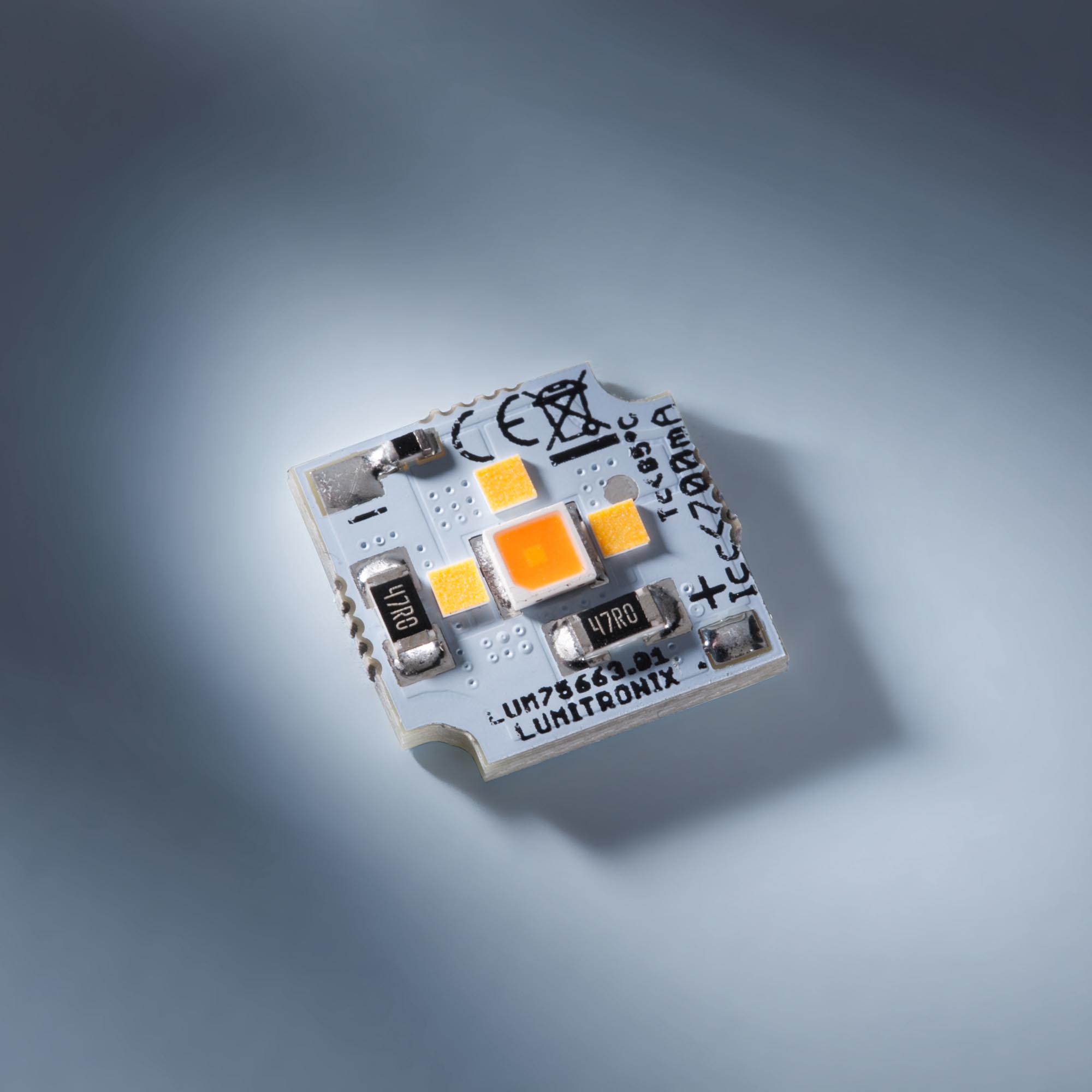

- 4 Nichia LEDs (3+1) on a 13.5 x 13 mm square board
- Dim-to-warm from 2700K to 2000K, CRI above 80
- Color temperature follows the operating current, no extra control unit
- 305 lm at 350 mA, about 3 W
- Constant current 350 mA at 8.7 V
- Color consistency to a 3-step MacAdam ellipse
- Double-sided, thermally conductive adhesive pad
- Recesses for screw fixing

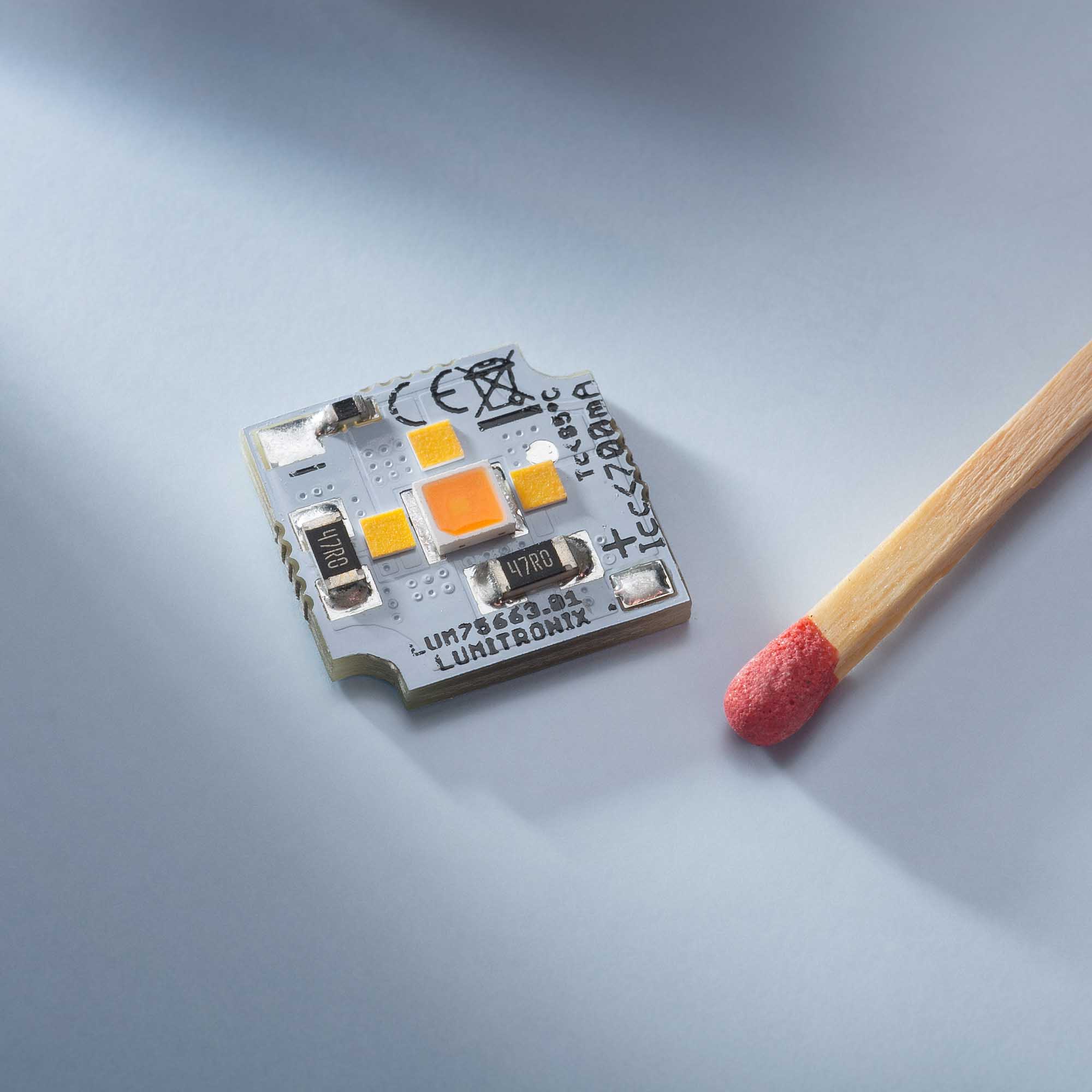

- Dimensions: 13.5 x 13 x 3 mm
- Made in Germany
- 5-year warranty
Applications of the SmartArray 3+1 Dim-to-Warm LED Module
As a compact, high-density light source, the SmartArray 3+1 Dim-to-Warm is designed for the following main applications:
- LED bulbs and retrofit lamps: Thanks to its compact size and high luminous density, the SmartArray 3+1 Dim-to-Warm is an ideal light engine for E27, E14 and GU10 LED lamps and retrofit lamps, where the dim-to-warm behavior reproduces the warm glow of incandescent lamps when dimmed. See our LED modules for LED bulb manufacturing.
- Downlights: In recessed and surface-mounted downlights, the module replaces a COB light source and works with standard reflectors and lenses, from homes and hotels to shops and offices. See our LED modules for downlights.
- Spotlights: The concentrated light emitting surface is well suited for secondary optics with narrow beams in track spots, accent and display lighting, shop and museum spots. See our LED modules for spotlights.
- Floodlights: Several modules can be combined in compact floodlights for facades, signs and outdoor areas, with optics for the required beam. See our LED modules for floodlights.
- Flashlights and portable lights: The small footprint and high light output make the module a strong light source for flashlights, work lights and portable lamps. See our LED modules for flashlights.
Technical Data of the SmartArray 3+1 Dim-to-Warm LED Module
- Article number (SKU): 53678
- LED manufacturer: Nichia
- Number of LEDs: 4 (3+1)
- Light color: Dim-to-warm, 2700K to 2000K
- Color rendering index: CRI (Ra) >80
- Binning: 3-step MacAdam ellipse
- Luminous flux: 305 lm at 350 mA
- Operating mode: Constant current, dimmable
- Operating point: 350 mA at 8.7 V, about 3 W
- Dimensions: 13.5 x 13 x 3 mm
Installation and Operation
- Cooling: mount the module on a heat sink or the metal body of the luminaire, with thermal interface material or the adhesive pad where provided, and make sure the Tc point stays within the specified limits in the finished luminaire.
- Dimming: use a dimmable 350 mA constant current driver; the color temperature becomes warmer as the current is reduced.
- LED driver: operate the module with a constant current LED driver with short-circuit, overload and overtemperature protection; never connect it directly to a constant voltage supply. Several modules can be connected in series: the current stays the same and the voltages add up, so the driver output voltage must cover the sum.
- Handling: do not touch or press the LEDs, observe standard ESD precautions, keep the module away from aggressive chemicals, and store and operate it at 10% to 60% relative humidity.
- Safety: installation must comply with all applicable electrical and safety standards and should be carried out by a qualified electrician.
Why Choose a Smart Array Instead of a COB
- Same compact light source, better heat spreading: Smart Array modules concentrate high-quality Nichia LEDs on a small board, so they work with optics and reflectors like a COB, while the heat is spread over several LEDs and a larger board area.
- Flexible formats: square modules from 13 mm and linear 5 cm modules, single color, tunable white or dim-to-warm, for constant current or 24 V constant voltage operation.
- Consistent quality: Nichia LEDs, 3-step MacAdam binning and production in Germany ensure the same light from module to module and from batch to batch.
Why the SmartArray 3+1 Dim-to-Warm Outperforms Low-Cost LED Modules
Compared with low-cost LED modules, the SmartArray 3+1 Dim-to-Warm differs in three areas that decide how long a lighting installation performs well:
- LED quality: we use only brand-name LEDs from Nichia, the Japanese LED market leader whose researchers invented the blue and white LED technology, with full manufacturer datasheets and performance tested in the lab and in real applications. Low-cost strips often use LED chips of unknown origin, without certified data, so their quality and color vary from one purchase to the next.
- PCB design and materials: high-quality materials and a design without mechanical and electrical weak points, for good current flow, heat transfer and long-term reliability.
- Realistic specifications: all values are measured at a junction temperature of 65°C, so the performance in our datasheet matches what you get in a real installation.
Who We Are: Ledrise, Professional LED Strips Made in Germany
Ledrise is the international online shop for high-performance LED strips and modules that we develop and manufacture in our own production facility in Germany and ship directly from there. With more than 20 years of experience in LED technology, our team of more than 70 people in Germany, Hong Kong and Romania has gained extensive application knowledge across many sectors, and thousands of business customers and consumers on five continents rely on us as their LED technology partner.
We use only LEDs from market leaders such as Nichia, Seoul Semiconductor, Cree, Samsung and ams OSRAM. Beyond standard products, we design and prototype custom LED modules, select and integrate optics, housings and drivers, and test and validate every solution in our in-house measuring and testing laboratory, supporting you from the first lighting concept to serial production.
Our Quality Promise
- Certified quality: our quality management is certified to DIN EN ISO 9001 and covers every step, from product development to customer service. Our manufacturing center in Germany is also certified to ISO 14001 for environmental management and ISO 45001 for occupational health and safety.
- Reel-to-reel manufacturing, unique in Europe: our fully automated reel-to-reel flex line uses plasma direct metallization to produce robust, flexible circuit boards in continuous lengths of up to 100 meters, with fewer interconnections and less material waste.
- Precision at every step: automated solder paste printing with inline inspection, high-speed ASM SIPLACE component placement, controlled reflow soldering, and automatic optical inspection that detects missing, offset or misaligned components.
- Full traceability: production batches are marked and tracked with laser-engraved barcodes.
- Honest data: the performance values in our datasheets match those in real-world applications.
- Long-term security: a 5-year warranty on this LED strip (see our warranty terms) and professional support for your lighting projects.
Learn more about Ledrise and our reel-to-reel flexible LED strip manufacturing in Germany.
| SKU | 53678 |
|---|---|
| Weight brut (g) | 13.000000 |
| Color | Warm White |
| Color Rendering Index | 80 |
| Luminous Flux Typ (lm) | 305 |
| Efficacy (lm per W) | 102 |
| Energy Class 2022 | F |
| Power (W) | 3 |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 46 |
| Product lifetime (h) | 50000 |
| Lifetime for commercial, 12h daily (yrs) | 12 |
| Forward Current Max | 350mA |
| Manufacturer Product Code | 53678 |
| Product Family | Smart Array LED strip |
| Strip Type | Rigid |
| LEDs number per sales unit | 4 |
| Dimensions | 13x13x2 |
| Dimensions: Length (cm) | 1.3 |
| Dimensions: Width (mm) | 2 |
| Dimensions: Height (mm) | 1.30 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127455459 |
| Forward Voltage Typ (V) | 8.7 |
| Availability beyond shown stock: | NO |
