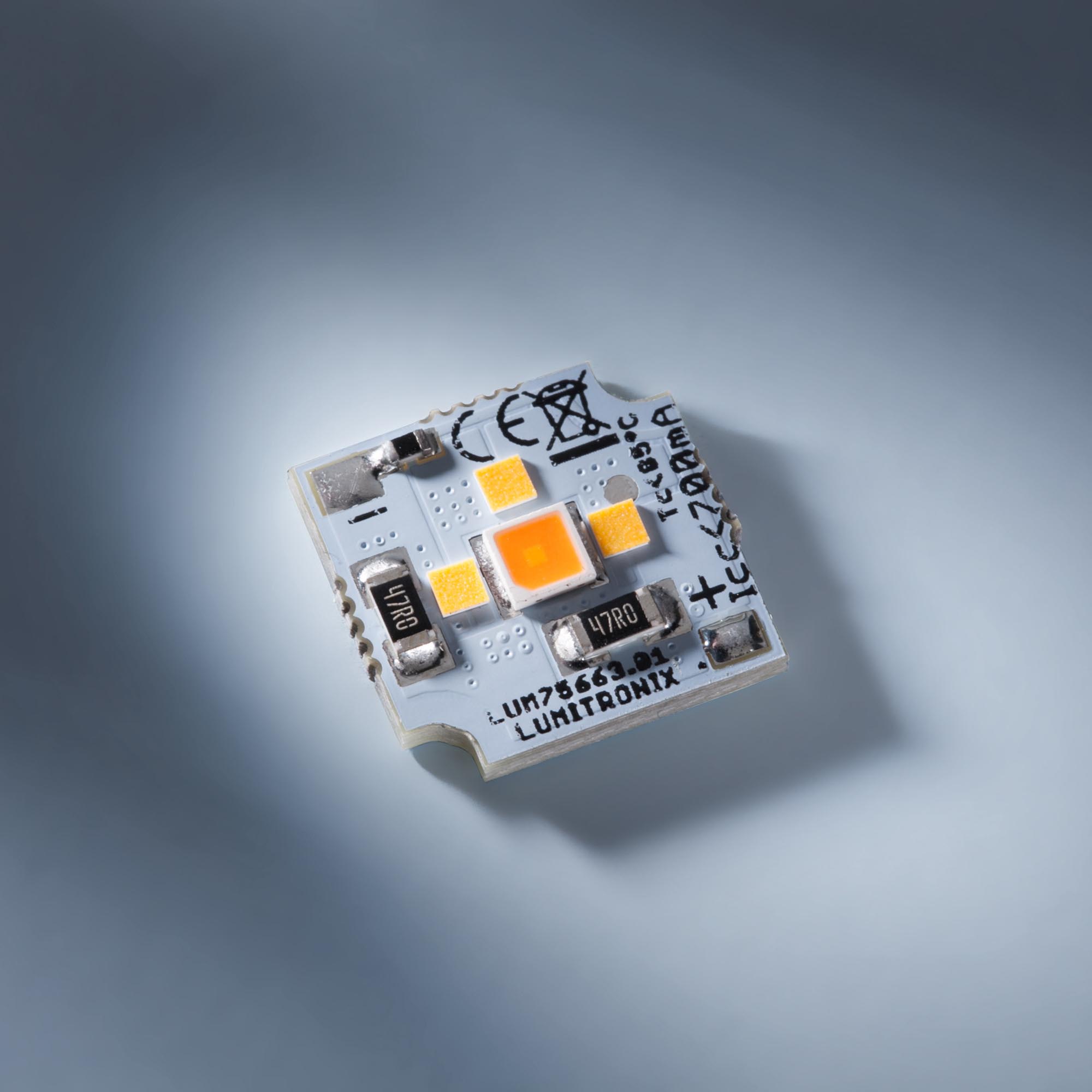

Nichia LED Module SmartArray square 13mm 3+1 LEDs Special Dimming 2700K-2000K 3W 305lm
- Dim2Warm technology provides a warm, incandescent-like light with reduced brightness
- Equipped with 4 Nichia E17A LEDs for uniform and consistent white light
- Excellent efficiency of up to 105lm/W and typical luminous flux of up to 315lm
- Small dimensions of only 13.5x13x3mm make it suitable for various applications
- Easy installation with cut-outs on the printed circuit board and double-sided adhesive pad
- Constant current LED module ensures optimal performance and long service life
- 5-year warranty and ideal replacement for COB modules in lighting and industrial applications.
The SmartArray Dim2Warm Q3+1 3000K-2000K is a high-quality LED module designed specifically for luminaire manufacturers. It is part of the SmartArray series, which is known for its excellent price-performance ratio, high efficiency, and outstanding photometric properties.
One of the unique features of this LED module is its Dim2Warm technology. This intelligent circuit automatically adjusts the colour temperature when dimming down, providing a warm, incandescent-like light with reduced brightness. The technology does not require any additional control unit, making it an easy and cost-effective solution for achieving a warm, cozy atmosphere in any setting.
The SmartArray Q3+1 Dim2Warm is equipped with 4 Nichia E17A LEDs that are binned to a 3-Step MacAdam, ensuring uniform and consistent white light. The LEDs provide excellent efficiency of up to 105lm/W, with a typical luminous flux of up to 315lm from a power of 3W. The small dimensions of only 13.5x13x3mm make this Plug&Play module suitable for various applications, including designer lamps and high-performance industrial luminaires.
Installation is made easy with cut-outs on the printed circuit board for screw fixing and the double-sided heat-conducting adhesive pad. The constant current LED module operates at 350mA and 8.7V, ensuring optimal performance and long service life. The module comes with a 5-year warranty and is an ideal replacement for COB modules, offering lighting manufacturers and industrial applications a reliable and high-quality lighting solution. The SmartArray Dim2Warm Q3+1 3000K-2000K is made in Germany, further ensuring its excellent quality and reliability.
Features
- With 4 Nichia E17A LEDs
- Dim2Warm technology = light bulb-like colour temperature behaviour when dimmed down
- Color temperature 3000K to 2000K
- Constant current LED module (350mA) at 8.7V
- Typical efficiency of up to 105lm/W
- typical luminous flux of up to 315
- Natural colour rendering with a CRI >80

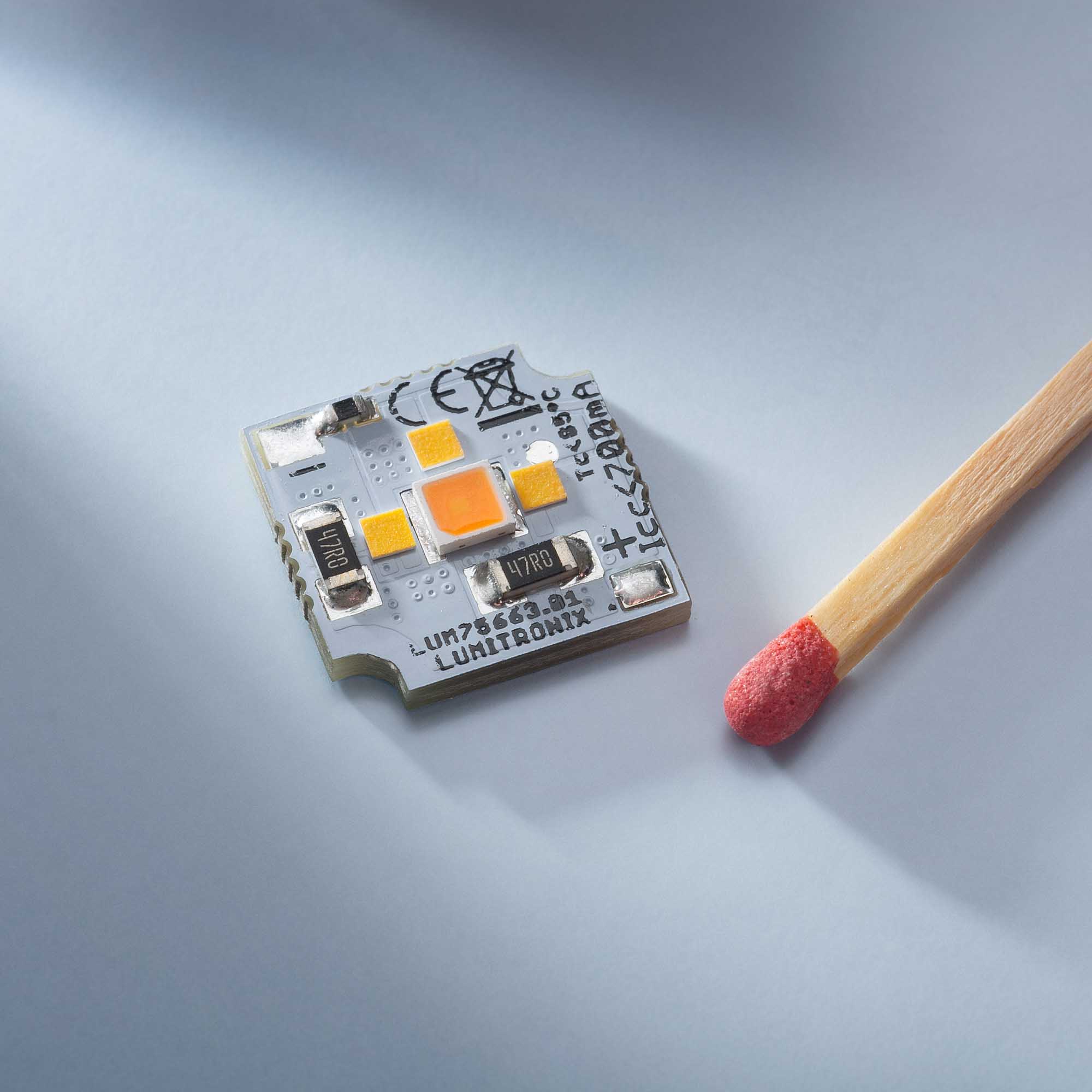

- Very small dimensions: only 13.5x13x3mm
- Easy mounting thanks to recess for screw fixing
- Double-sided, thermally conductive adhesive pad
- Equal white light through Nichia Binning (3-Step MacAdam)
- Long service life with 5 years warranty
- replacement for COB modules
- Ideal for lighting manufacturers and industrial applications
- Made in Germany
| SKU | 53687 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color | Warm White |
| Color Rendering Index | 80 |
| Luminous Flux Typ (lm) | 314 |
| Efficacy (lm per W) | 105 |
| Energy Class 2022 | F |
| Power (W) | 3 |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 46 |
| Product lifetime (h) | 50000 |
| Lifetime for commercial, 12h daily (yrs) | 12 |
| Forward Current Max | 350mA |
| Manufacturer Product Code | 53687 |
| Product Family | Smart Array LED strip |
| Strip Type | Rigid |
| LEDs number per sales unit | 4 |
| Dimensions | 13x13x2 |
| Dimensions: Length (cm) | 1.3 |
| Dimensions: Width (mm) | 2 |
| Dimensions: Height (mm) | 1.30 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127456852 |
| Forward Voltage Typ (V) | 8.7 |
| Availability beyond shown stock: | NO |
