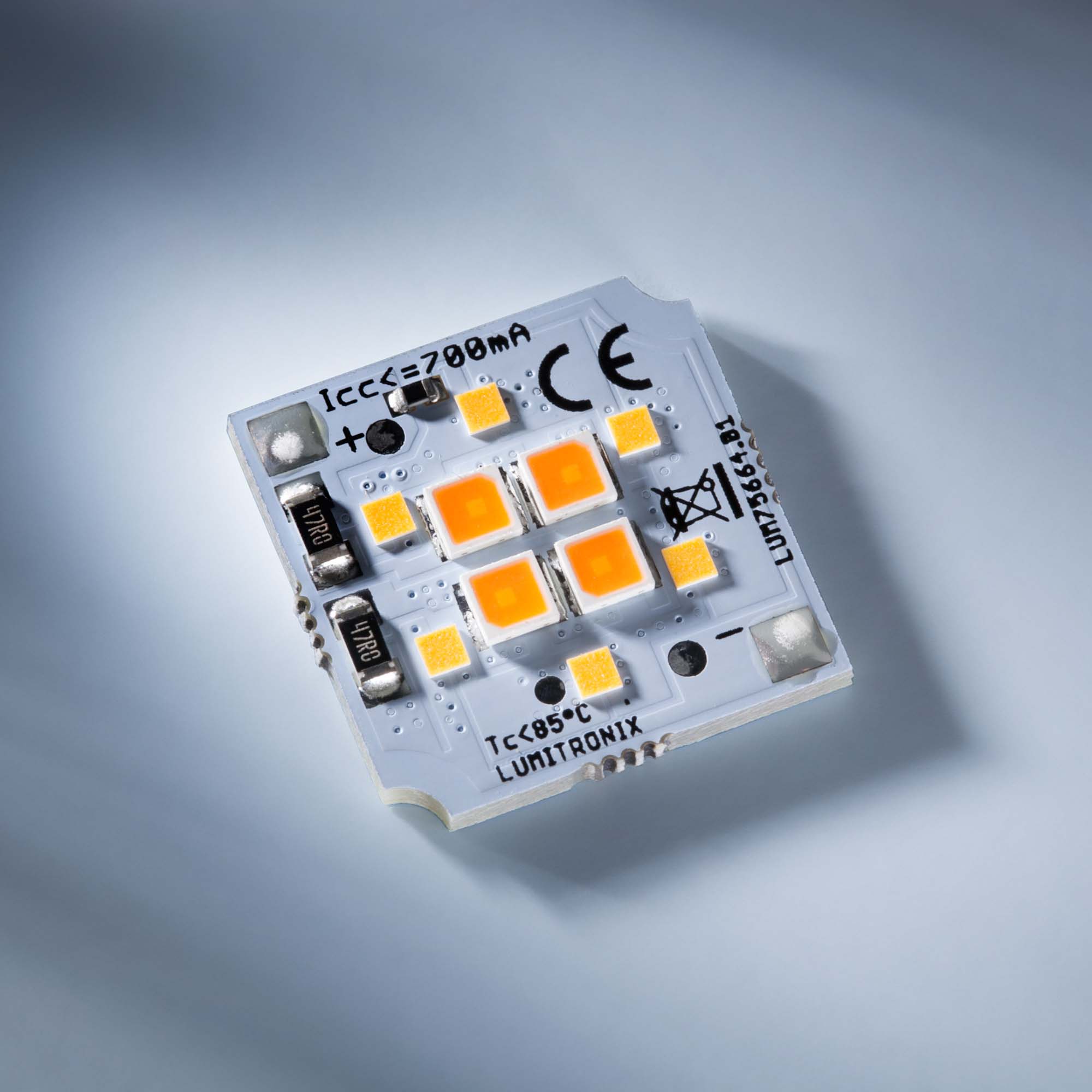

Nichia LED Module SmartArray square 19mm 6+4 LEDs Special Dimming 2700K-2000K 5.5W 631lm
- Dim2Warm technology: Changes color temperature when dimming down, simulating the behavior of an incandescent lamp
- Efficient: Offers excellent efficiency of up to 118lm/W, delivering a typical luminous flux of up to 631lm at a power of 5.5W
- High-performance Nichia LEDs: Features 10 high-performance Nichia LEDs in the 3-step MacAdam binning
- Easy installation: Mounting is easy thanks to the cut-outs on the printed circuit board for screw fixing and the double-sided heat-conducting adhesive pad
- Natural color rendering: Provides natural color rendering with a CRI of over 80 and equal white light through Nichia Binning (3-Step MacAdam)
- Versatile: Suitable for a wide range of applications, from designer lamps to high-performance industrial luminaires
- 5-year warranty: The product comes with a 5-year warranty, ensuring a long service life.
SmartArray Dim2Warm Q6+4 2700K-2000K is a highly efficient LED module designed for luminaire manufacturers. The SmartArray series has a remarkable price-performance ratio, excellent photometric properties, and high efficiency. The Q6+4 module features an intelligent circuit that changes the color temperature depending on the operating current. This technology is known as Dim2Warm and creates a light bulb-like color temperature behavior when dimmed down. The color temperature ranges from 2700K to 2000K, achieving a similar color behavior to an incandescent lamp, warmer light with reduced brightness.
The SmartArray Q6+4 Dim2Warm module features 10 high-performance Nichia LEDs in the 3-step MacAdam binning, delivering excellent efficiency of up to 118lm/W. With a power of 5.5W, the module produces a typical luminous flux of up to 631lm from the 19x19mm LED module. This Plug&Play module can be used for a wide range of applications, from designer lamps to high-performance industrial luminaires. The cut-outs on the printed circuit board for screw fixing and the double-sided heat-conducting adhesive pad allow for easy and installation-friendly mounting.
The SmartArray Dim2Warm Q6+4 2700K-2000K is designed to replace COB modules, providing natural color rendering with a CRI of over 80. The module's small dimensions of only 19x19x3mm make it easy to install and mount. With equal white light through Nichia Binning, the module offers an extended service life of 5 years. The SmartArray series is made in Germany, and the Q6+4 module is ideal for lighting manufacturers and industrial applications.
Features
- With 10 high performance Nichia LEDs
- Dim2Warm technology = light bulb-like colour temperature behaviour when dimmed down
- Color temperature 2700K to 2000K
- Constant current LED module (350mA) at 17.5V
- Max 6.1W power
- Typical efficiency of up to 118lm/W
- Typical luminous flux of up to 651lm
- Natural colour rendering with CRI >80
- Very small dimensions: only 19x19x3mm
- Easy mounting thanks to recess for screw fixing
- Double-sided, thermally conductive adhesive pad
- Equal white light through Nichia Binning (3-Step MacAdam)
- Long service life with 5 years warranty
- replacement for COB modules
- Ideal for lighting manufacturers and industrial applications
- Made in Germany
| SKU | 53679 |
|---|---|
| Weight brut (g) | 19.000000 |
| Color | Warm White |
| Color Rendering Index | 80 |
| Luminous Flux Typ (lm) | 631 |
| Efficacy (lm per W) | 115 |
| Energy Class 2022 | E |
| Power (W) | 5.5 |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 46 |
| Product lifetime (h) | 50000 |
| Lifetime for commercial, 12h daily (yrs) | 12 |
| Forward Current Max | 350mA |
| Manufacturer Product Code | 53679 |
| Product Family | Smart Array LED strip |
| Strip Type | Rigid |
| LEDs number per sales unit | 10 |
| Dimensions | 19x19x2 |
| Dimensions: Length (cm) | 1.9 |
| Dimensions: Width (mm) | 2 |
| Dimensions: Height (mm) | 1.90 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127455466 |
| Forward Voltage Typ (V) | 15.8 |
| Availability beyond shown stock: | NO |
