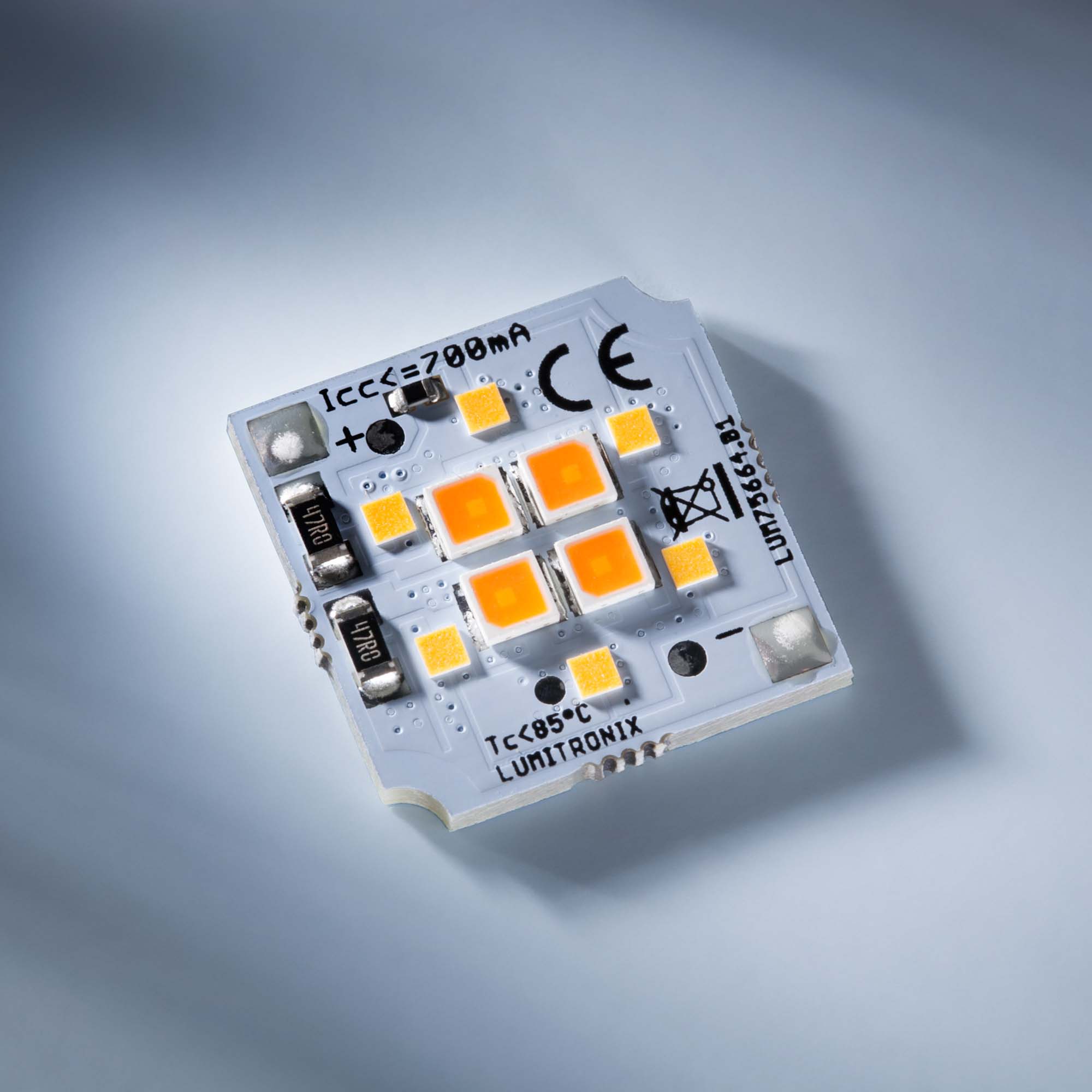

Nichia LED Module SmartArray square 19mm 6+4 LEDs Special Dimming 3000K-2000K 5.5W 631lm
- Dim2Warm technology: simulates the behavior of an incandescent lamp by changing the color temperature when dimming down
- High performance: 10 high performance Nichia LEDs provide excellent efficiency of up to 118lm/W and a typical luminous flux of up to 650lm at a power of 6.1W
- Natural color rendering: CRI >80 and equal white light through Nichia Binning (3-Step MacAdam) ensure high-quality light output
- Easy installation: cut-outs on the printed circuit board for screw fixing and double-sided heat-conducting adhesive pad
- Compact design: very small dimensions of only 19x19x3mm make it suitable for almost any luminaire design
- 5-year warranty: provides a long service life and peace of mind to customers
- Replacement for COB modules: ideal choice for lighting manufacturers and industrial applications.
The SmartArray Dim2Warm Q6+4 3000K-2000K LED module is a part of the SmartArray series, a product line aimed at luminaire manufacturers. This LED module is designed to provide an outstanding price-performance ratio, high efficiency, and excellent photometric properties.
The SmartArray Q6+4 Dim2Warm is a unique module that changes its color temperature when dimming down, simulating the behavior of an incandescent lamp - warmer light with reduced brightness. This feature is made possible through an intelligent circuit that varies the operating current generated by most phase-controllable current sources with a phase-angle dimmer, eliminating the need for an additional control unit.
With ten high-performance Nichia LEDs, this 19x19mm LED module provides an excellent efficiency of up to 118lm/W and a typical luminous flux of up to 650lm at a power of 6.1W. The natural color rendering with CRI >80 and the equal white light through Nichia Binning (3-Step MacAdam) ensure a high-quality light output.
Installation and mounting are easy thanks to the cut-outs on the printed circuit board for screw fixing and the double-sided heat-conducting adhesive pad. The SmartArray Dim2Warm Q6+4 3000K-2000K LED module is a suitable replacement for COB modules, making it an ideal choice for lighting manufacturers and industrial applications.
The product comes with a 5-year warranty, ensuring a long service life.
Features
- 10 high performance Nichia LEDs
- Dim2Warm technology = light bulb-like colour temperature behaviour when dimmed down
- Color temperature 3000K to 2000K
- Constant current LED module (350mA) at 17.5V
- 6.1W power
- Typical efficiency of up to 118lm/W
- Typical luminous flux of up to 650lm
- Natural colour rendering with CRI >80
- Very small dimensions: only 19x19x3mm
- Easy mounting thanks to recess for screw fixing
- Double-sided, thermally conductive adhesive pad
- Equal white light through Nichia Binning (3-Step MacAdam)
- Long service life with 5 years warranty
- replacement for COB modules
- Ideal for lighting manufacturers and industrial applications
| SKU | 53688 |
|---|---|
| Weight brut (g) | 1.000000 |
| Color | Warm White |
| Color Rendering Index | 80 |
| Luminous Flux Typ (lm) | 651 |
| Efficacy (lm per W) | 119 |
| Energy Class 2022 | E |
| Power (W) | 5.5 |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 46 |
| Product lifetime (h) | 50000 |
| Lifetime for commercial, 12h daily (yrs) | 12 |
| Forward Current Max | 350mA |
| Manufacturer Product Code | 53688 |
| Product Family | Smart Array LED strip |
| Strip Type | Rigid |
| LEDs number per sales unit | 10 |
| Dimensions | 19x19x2 |
| Dimensions: Length (cm) | 1.9 |
| Dimensions: Width (mm) | 2 |
| Dimensions: Height (mm) | 1.90 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127456869 |
| Forward Voltage Typ (V) | 15.8 |
| Availability beyond shown stock: | YES |
