Build Your Own Nichia Violet UVC UVB Linear LED Module 12 x Nichia LEDs 280-308nm 744-2400mW
€0.00
Production Order: 6-12 weeks
SKU
nichia_uvc_module
Use this specialized form to order your custom Nichia Violet UV Linear LED modules.
- More details below
- Terms & Conditions apply
- Information with * is required.
Build Your Own Nichia UV Linear LED Module

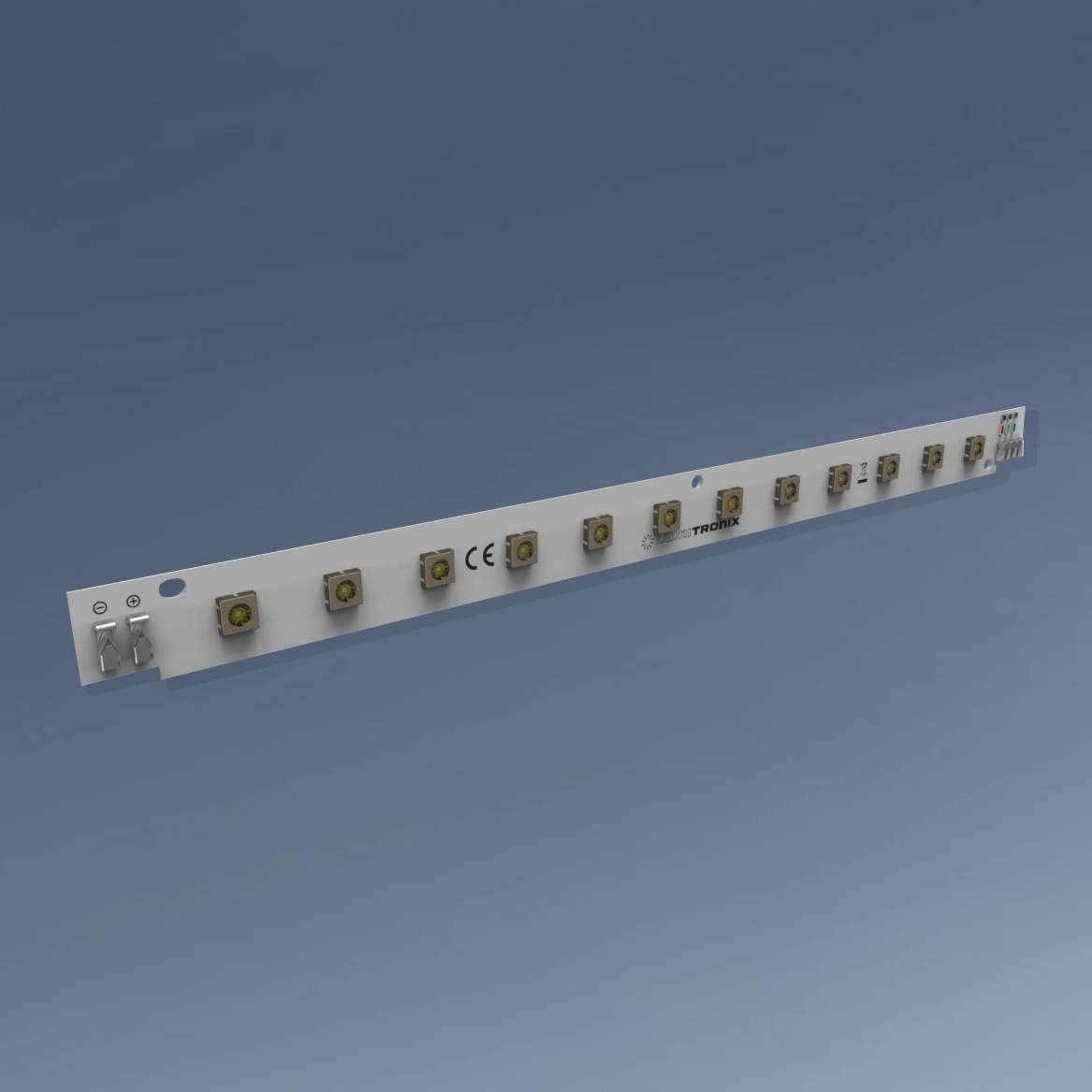

- Nichia UVC LED Module is equipped with 12 x Nichia 434, 334 UVC or UVB Series LED from Japan
- PCB dimensions: 281x19.2mm
- Compatible with Ledil FN17294 VIOLET Linear Lens System for 26°-53° focus angle
- Wavelength options: 280nm, 308nm
- Radiant power: 744-2400mW
- Constant current design: 1050-1500mA
- Status LEDs included
- Plug & Play connectors
Build Your Own Nichia Violet UVC UVB Linear LED Module 12 x Nichia LEDs 280-308nm
The Nichia UV Series are the highest output UV LEDs with long lifetime and high efficiency.
UV LEDs are LEDs that emit ultraviolet and are generally considered difficult to ensure reliability due to the high energy of UV. However, Nichia ensures the high reliability of its UV LEDs through integrated management of the entire process, from the wafer manufacturing to product shipment.
A wavelength range equal to or less than 280nm is called UV-C. Although UV-C can be dangerous to the human body depending on the energy levels, it is widely used in disinfection applications due to its strong virucidal power.
The UV-B range encompasses wavelengths 280-315nm. Nichia expects that UV-B LEDs, such as its newly launched 308nm LEDs, will not only become an alternative technology to mercury lamps, but will also be used in agricultural applications and more.
The current Nichia UVC and UVB line-up contains:
With our Build Your Own system, you can order online the newest generation UV LEDs from the Nichia UVC series (link here) on an Linear Aluminum Module with 12 LEDs, plug & play connectors and status LEDs, for easy installation in many industrial, medical or commercial applications.
Custom LED Solutions: Tailored Lighting Excellence
Don't settle for generic LED solutions when our customization service can match your unique needs, avoiding the compromises associated with off-the-shelf products. With over 20 years of industry expertise, we manufacture innovative, quality, and high-performance LED solutions in Germany, tailored to your specifications.
Begin Your Custom LED Project
Ready to transform your vision into reality with the perfect LED module? Order now and let us illuminate your path to innovation, ensuring your project shines brighter than ever.
Build Your Own Nichia UVC UVB Linear LED Module 12 x Nichia LEDs 280-308nm Order Process Explained & Technical details:
Build Your Own Linear Nichia UV LED Module, Made in Germany.
Step 1: Order Quantity (pcs)
How many modules do you need. While there is no MOQ, we recommend at least 100 pcs of Nichia UVA LED module.
Step 2: UV LED Wavelength (nm)
Select the desired wavelength for the Nichia LED.
A wavelength range equal to or less than 280nm is called UV-C. Although UV-C can be dangerous to the human body depending on the energy levels, it is widely used in disinfection applications due to its strong virucidal power.
The UV-B range encompasses wavelengths 280-315nm. UV-B LEDs are alternative technology to mercury lamps and can also be used in agricultural applications and others.
Step 3: Nichia UV LED
The LED module will be built with the latest generation Nichia UV LED series, the industry-leading UVA High-power LEDs.
Click here to see the current Nichia UV LED line-up.
Nichia UVC and UVB LEDs include*:
- NCSU434C (280nm): 3535 Glass Package, 3.5×3.5mm
- NCSU434B (280nm): 3535 Glass Package, 3.5×3.5mm
- NCSU334B (280nm): 6868 Glass Package, 6.8×6.8mm
- NC4U334BR (280nm): 6868 Glass Package, 6.8×6.8mm
- NCSU434B (308nm): 3535 Glass Package, 3.5×3.5mm
*See image table for Nichia LED radiant flux and power.
The datasheet will specify Nichia LED part number.
Step 4: UVC Lens System
You may add the LEDiL Lens system, FN17294_VIOLET-12X1-S to your order.
The LEDiL UVC rod lens FN17294_VIOLET-12X1-S, the first of its kind, specifically designed for surface, air and water disinfection. With its unique UV-resistant silicone structure and robust stainless-steel frame, this rod lens sets new standards in UVC application.
- Material property: Made of highly UV-resistant silicone
- Design: Specially developed for UVC applications
- Lens array: Consists of 12 individual lenses
- Protection: Waterproof (IP67) with robust stainless-steel frame
- Performance: Requires only half the dosing time compared to quartz glass
- Dimensions: 294.8 x 41.6 x 8.8 mm
Step 5: Samples Required?
You may request to receive samples, when you order or receive the datasheet. This option has an extra cost and adds to the total delivery time of your order. Details will be provided at the time we receive your request. Maximum number of samples is 2 pcs.
Nichia UV LED Module Technical Specifications:
- LED module with 12 Nichia UV LEDs
- Dimensions: 281x19.2x4 mm (LxWXH)
- Nichia LEDs with a wavelength of 280nm scientifically proven to sterilize and clean air, liquids, and surfaces
- Radiant flux up to 2400mW at 280nm, greatly reducing the need for irradiation time
- 110 degree radiation angle without lens
- 3 signal LEDs (red, blue and green) can indicate whether the LED module is ready for operation, not usable or in operation
- Compatible with the UVC rated lens for LEDIL, FN17294_VIOLET-12X1-S with 26-52 degree wide beam for each LED (available separately)
- Suitable for industrial sectors, such as lighting manufacturers and medical technology companies
- The module can be operated with 1050mA - 1500 mA constant current LED driver at 22-24V.
- Easy to operate with signal LEDs indicating readiness for operation, usability, and ongoing operation
- Can be used with a Mean Well LCM driver for simple dimming via 0-10V DALI, wireless button or phone app
Nichia UV LED Technical Specifications:
- Nichia UV LED 3535 or 6868 package
- 3.5x3.5mm or 6.8x6.8mm
- 280nm to 308nm
- 2W to 8W power
- 70mW to 200mW radiant flux
- 350mA typical current
- Constant current design
- Dimmable
- 3-step MacAdam ellipse
- Made in Germany
- LEDs Made in Japan
- CE, ROSH, REACH
| SKU | nichia_uvc_module |
|---|---|
| Brand | Lumistrips |
