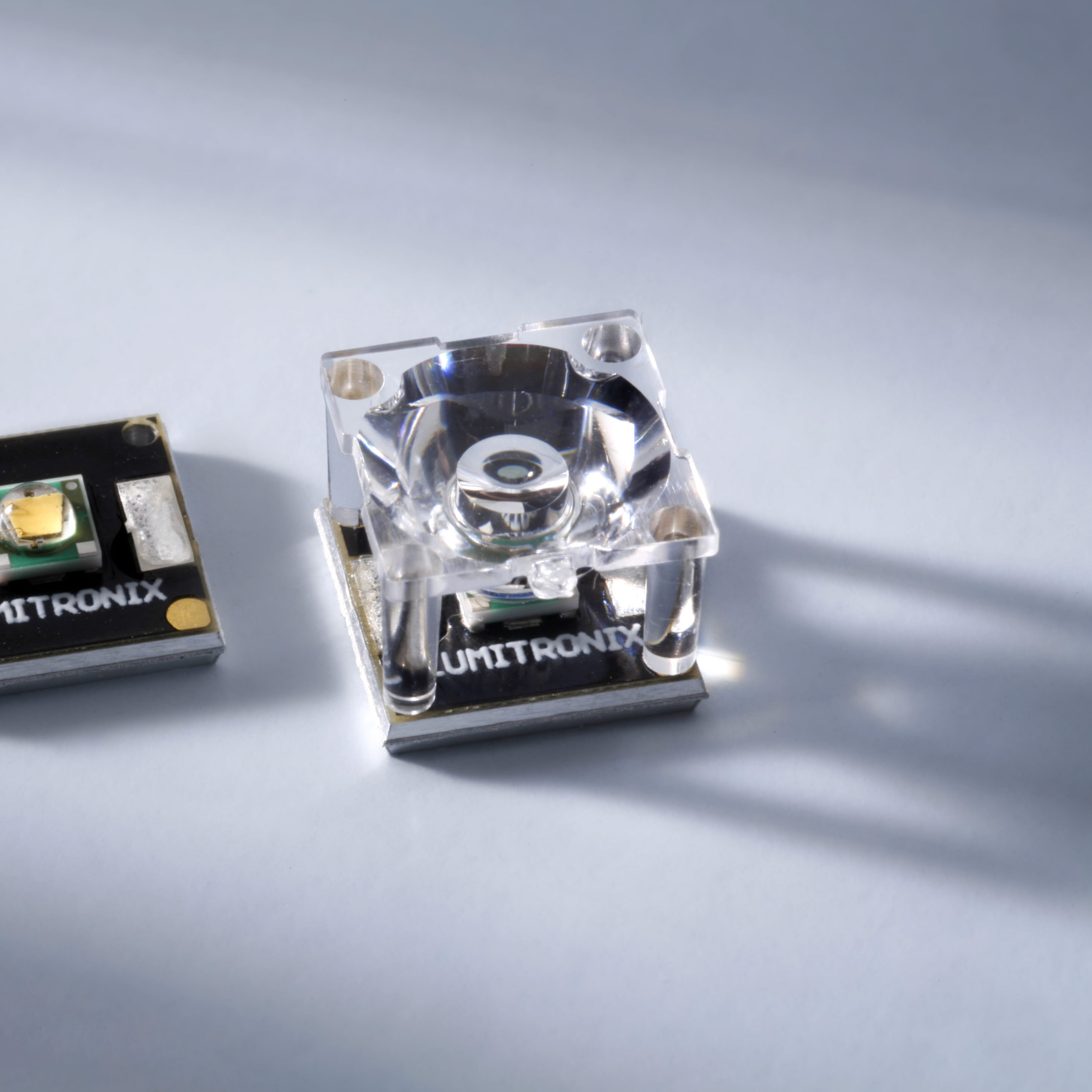

Carclo Linse 10mm for Cree XP-E 25.9 deg & XP-G 30 deg frosted
€1.35
Stock Germany >10 pcs
SKU
60387
The versatile range of products by Carclo offers you the suitable lens for every lighting application. Select the lens in due consideration of its radiation parameters and compatibility with LEDs.
The lenses can be directly adhered to the respective LEDs or fixed with the Carclo lens holder. Always use an appropriate adhesive! The lens must not be applied to the LED with high pressure.
Features- 60386: Plain Tight, for long distances, very narrow radiation angle
- 60387: Frosted Medium, for short distances, narrow radiation angle
- 60388: Elliptical, elliptical light, particularly suited for the illumination of surfaces
- Diameter: 10mm
- Cree: XP-E, XP-G
- Osram: Oslon SSL
- Nichia: 119, 219, E21A
- Lumileds: Luxeon Rebel, Luxeon C, Luxeon ES Rebel
- Seoul: Z5
| Cree | Osram | Nichia | ||
|---|---|---|---|---|
| XP-E | XP-G | Oslon SSL | 119 | |
| Plain tight | 16.5 | 24.0 | 18.8 | 16.2 |
| Frosted medium | 25.9 | 30.0 | 30.0 | 28.8 |
| Elliptical | 43.0×16.0 | 43.6×23.3 | 44.8×19.7 | 44.7×21.7 |
| Luxeon | Seoul | |||
|---|---|---|---|---|
| Lumileds Rebel | Lumileds C | Lumileds ES Rebel | Z5 | |
| Plain tight | 18.4 | 14.2 | 23.7 | 16.1 |
| Frosted medium | 29.8 | 22.8 | 30.4 | 26.0 |
| Elliptical | 46.0×16.0 | 46.3×13.6 | 43.9×23.8 | 44.5×16.2 |
Further technical details can be found in the data sheet.
Ledrise is official Carclo distributor
| SKU | 60387 |
|---|---|
| Weight brut (g) | 1.000000 |
| Availability beyond shown stock: | YES |
| Lens Usage | Cree XP-G2 |
| Lens Viewing Angle | 30 |
| Brand | Carclo |
| Manufacturer Product Code | 10413 |
