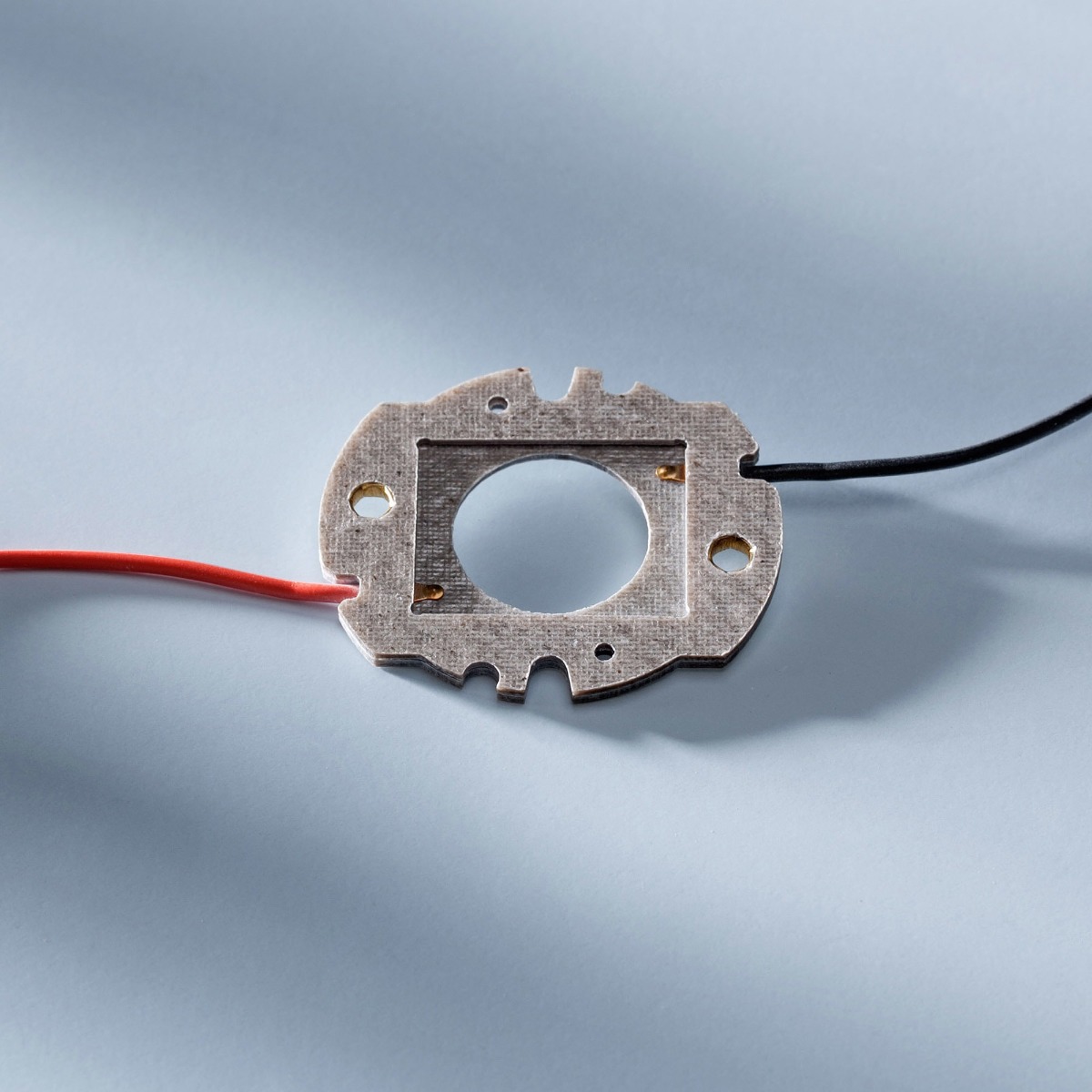

Bender&Wirth Connector element for Nichia COB-B family 24x19mm, type 084/096/108/120/130
€7.01
Stock Germany >10 pcs
SKU
60808
- Buy 10 for €3.60 each and save 49%
- Buy 100 for €3.27 each and save 53%
This connecting element by Bender + Wirth is perfectly suited for the fast and uncomplicated installation of Nichia Chip on Board series 024, 036, 066, 108, 121, 130 and 216 on a fitting cooling device. Thanks to the screw connection with M3 screws no soldering is required.
Features- Safe heat management for long-term operation
- Fast and efficient cabling with push wire contacts
- Easy replacement of the LED modules
- Screw connection
- Casing: Mica
- Contact: CuSn gilded
- Screw connection for M3 screws
- Max. torque for screw connection 0.3Nm
Please mind the polarity of the LEDs when installing the connecting element.
| SKU | 60808 |
|---|---|
| Weight brut (g) | 1.000000 |
| Brand | Ledil |
| Manufacturer Product Code | 463 Typ L2 463/44488/TypL2 |
| Availability beyond shown stock: | YES |
