Build Your Own Star or Square PCB Nichia 219 LED Module White CRI 70-90 1800-6500K High Power 3W NVSW219 LED 1000mA (up to 1000lm)
Use this specialized form to order your custom PCB Nichia 219 LED modules.
- More details below
- Terms & Conditions apply
- Information with * is required.
Build Your Own Star Or Square PCB Nichia 219 LED Module
- 219 LED Module is equipped with one Nichia NVSW219 3W LED from Japan
- CRI options: 70, 80, 90
- Color temperature options: 1800K to 7800K
- Constant current design: 700-2400mA
Build Your Own Star or Square PCB Nichia 219 LED Module White CRI 70-90 1800-6500K High Power 3W LED 1000mA (up to 500lm)
The Nichia 219 Series are highly reliable high-power LEDs (3.5 x 3.5 mm / 3535 size) using a ceramic substrate.
With high output, long life, and high reliability, these LEDs are ideal for outdoor lighting in harsh environments such as streetlights. In addition to a wide range of output options, the 19 Series offers various CCT options ranging from 1800K to 6500K and CRI selections from R70 (Ra≥70) to R9080 (Ra≥90, R9≥80). Additionally, various vivid discrete colors including blue and amber are suitable for spotlights and stage lighting which require both high output and vivid colors.

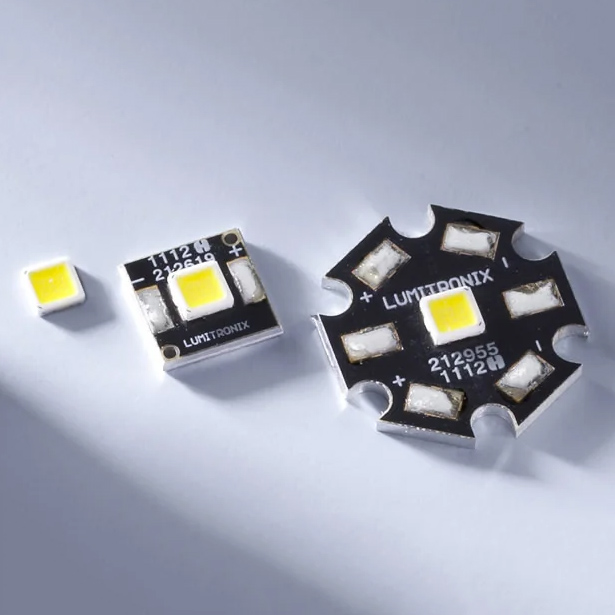

With our Build Your Own system you can order online the newest generation LEDs from the Nichia 219 series (link here) on an Aluminum PCB for easy installation in spotlights, flashlights, streetlights and many other applications. The aluminum PCB can be 10x10mm Square or 21x19mm Star PCB (see image for exact dimensions).
Custom LED Solutions: Tailored Lighting Excellence
Don't settle for generic LED solutions when our customization service can match your unique needs, avoiding the compromises associated with off-the-shelf products. With over 20 years of industry expertise, we manufacture innovative, quality, and high-performance LED solutions in Germany, tailored to your specifications.
Begin Your Custom LED Project
Ready to transform your vision into reality with the perfect LED module? Order now and let us illuminate your path to innovation, ensuring your project shines brighter than ever.
Star or Square PCB Nichia 219 LED Module White CRI 70-90 1800-6500K High Power 3W LED 1000mA Order Process Explained & Technical details:
Build Your Own Star or Square PCB Nichia 219 LED Module, Made in Germany.
Step 1: Aluminum PCB size and Shape:
The Aluminum PCB shape and size of the Nichia 219 LED Module can be:
- Square PCB: 10x10mm
- Star PCB: 19x19mm
Step 2: Order Quantity (pcs)
How many modules do you need. While there is no MOQ, we recommend at least 3000 pcs of Nichia 219 LED module.
Step 3: Nichia 219 LED CRI
The CRI is a quantitative measure of how the spectrum of an artificial light source compares to a reference standard illuminant modeled after daylight. The highest possible score is 100, indicating a perfect match to the reference illuminant. Nichia 219 can be ordered in CRI selections from R70 (Ra≥70) to R9080 (Ra≥90, R9≥80).
Step 4: LED Color temperature
Different color temperatures create different visual effects and are appropriate for different environments. Color temperature is measured in Kelvin (K) on a scale from 'warm' to 'cool': The 'warmer' the light, the lower the number of Kelvin. The 'cooler' the light, the higher the number of Kelvin. You can read more about the recommended color temperature for a project in our blog.
Not all color temperatures are available for every LED type or CRI. Datasheet will specify the Nichia LED part number.
Step 5: Samples Required?
You may request to receive samples, when you order or receive the datasheet. This option has extra cost and adds to the total delivery time of your order. Details will be provided at the time we receive your request. Maximum number of samples is 5 pcs.
Nichia 219 LED Technical Specifications:
- Nichia NVSW219 LED is a 219 series, Single Chip High-Power LED with Ceramic Housing
- Current version: NVSW219F-V2
- 700-1000mA typical current at 2.89V, 2400mA maximum current
- 365lm at 700mA, 524lm at 1050mA, approx. 1000lm at 2400mA, at CRI80 5000K
- Aluminum rigid PCB
- Constant current design
- 100.000h lifetime
- CRI options: 70, 80, 90
- Color temperature options: 1800K to 7800K
- Rated output up to 7W
- Optimized for outdoor or industrial lighting
- Ideal for spotlights
- Dimmable
- 5-year warranty
- 3-step MacAdam ellipse
- Made in Germany
- LEDs Made in Japan
- CE, ROSH, REACH
| SKU | nichia219_pcb_w |
|---|---|
| Weight brut (g) | 1.000000 |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 92 |
| Product lifetime (h) | 100000 |
| Lifetime for commercial, 12h daily (yrs) | 23 |
| Brand | Lumistrips |
Custom LED Module Order Terms & Conditions
When your order is confirmed, we will manufacture the custom LED strip or module at our factory in Germany, based on the specifications you provided. Payment is required for order confirmation. Orders with successful online payments are considered confirmed.
Here’s how the timeline looks once we confirm your order:
- Design validation: we will check your order details and additionally supplied information (uploaded file), within 5 working days.
- Design Draft: You'll see the first drawing of your custom LED strip or module within 2 weeks.
- Datasheet: After the drawing gets your approval, we'll create for you the custom LED strip datasheet, within 2–4 weeks.
- Samples: You may request to receive samples, when you order or receive the datasheet. This option has an extra cost and adds to the total delivery time of your order. Details will be provided at the time we receive your request.
- Mass Production: Once you approve the datasheet and/or samples, we'll start the full production, which will take 6–10 weeks.
With us, your investment in custom LED technology is transparent, with clear steps and predictable timelines.
Custom order changes, cancelation, refunds, returns:
1. Changes to the specifications of the module can be made during the Design Draft process. These changes can be caused by incorrect data supplied to the online order system, such as technical specifications that are impossible to produce or wrong data.
For LED modules with custom dimensions, the decimal separator is the dot (.)
Changes that lead to additional costs will result in the recalculation of the order value.
2. The custom LED module order can be canceled:
- Within 5 working days for a 5% cancelation fee
- After receiving the design draft for a 15% cancelation fee
- After receiving the datasheet for a 25% cancelation fee
- After receiving the samples for a 25% cancelation fee + samples cost.
Once the datasheet and/or samples are approved, and mass production is initiated, the order cannot be canceled. Custom-made LED products cannot be returned. We reserve the right to cancel orders at any time, up to the point of delivery. Orders canceled by our decision will be refunded in full. We will not be responsible for any costs or associated damages caused by order cancelation or delays in delivery.
Custom LED Module warranty:
We provide a 5-year warranty for all custom LED modules, based on our standard warranty terms.
The operating temperature is a crucial facture in LED module lifetime. The maximum operation temperature (TC) will be specified in the design stage and written on the product and datasheet. It is important that you use thermal management to prevent exceeding of the maximum value. If it is not possible, you have to inform us during the design stage.
Shipping Methods and Cost:
We also accept shipping via your express account with DHL, TNT, UPS or FedEx. After we receive your order please contact us via email with this choice.
For bulky parcels with custom LED products and accessories, the standard shipping costs added via the online order process might not fully cover the safe and timely delivery of your order. If we discover, before shipping your order, that the shipping cost is greater than already paid or what we can cover for free shipping, we may ask you to cover the extra cost. In case of orders the orders free shipping, the maximum ship cost covered by us is 40€.
Custom LED Module certifications:
Built in Germany, the custom LED modules have the following certifications:
- CE
- ROSH
- REACH
On demand, other certifications ca be provided (for a price):
- UL
- CSA
