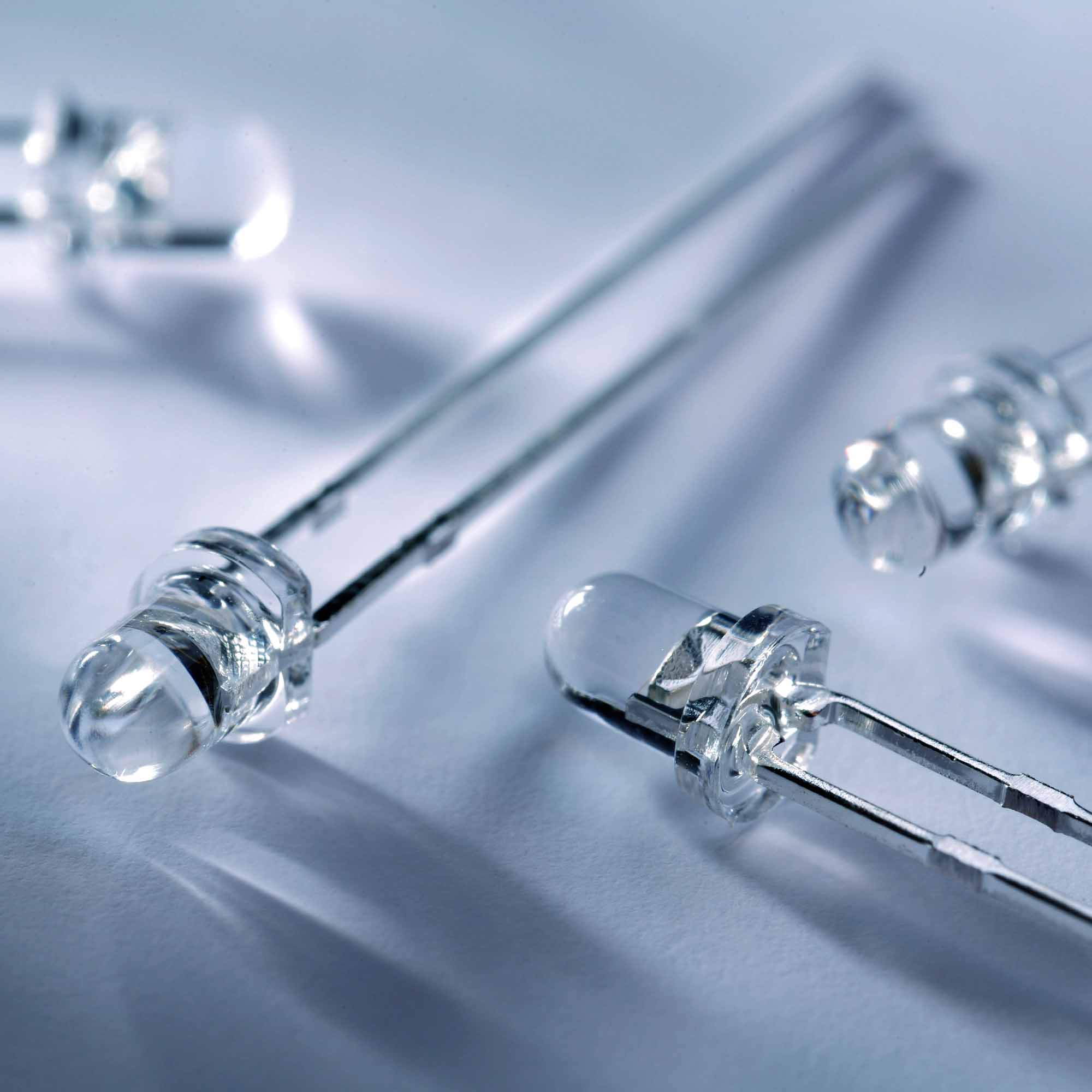

Nichia 3mm White LED 9220mcd 50deg 20mA NSPW310DS
€0.53
Stock Germany >1000 pcs
SKU
13004
Nichia is one of the World’s largest producers of light-emitting diodes and inventor of the blue and white LED. Nichia’s extraordinarily innovative research department is at the top when it comes to efficiency and regularly sets new records.
Durability, brightness and homogeneity are the strong points of the Nichia brand. Challenging projects with Superflux LEDs cannot escape these elite LEDs.
- High brightness
- High homogeneity (colour fidelity)
- Marvellous efficiency
- High durability
- High workmanship quality
| SKU | 13004 |
|---|---|
| Weight brut (g) | 1.000000 |
| LED Family | Nichia 3mm |
| Color | Neutral White |
| Color Temperature | 5000K |
| Viewing Angle | 50° |
| Luminous Flux Typ (lm) | 4 |
| Luminous Intensity Typ. | 9220 |
| Forward Current Typ | 15ma |
| Forward Voltage Typ (V) | 3.1 |
| LED Power (W) | 0.05 |
| Forward Current Max | 30mA |
| Power Max. (W) | 0.1 |
| Efficacy (lm per W) | 80 |
| Manufacturer Product Code | NSPW310DS C0 V/W |
| Brand | Nichia |
| Availability beyond shown stock: | YES |
| Dimensions: Length (cm) | 0.30 |
| Dimensions: Width (mm) | 0.30 |
| Dimensions: Height (mm) | 2.89 |
