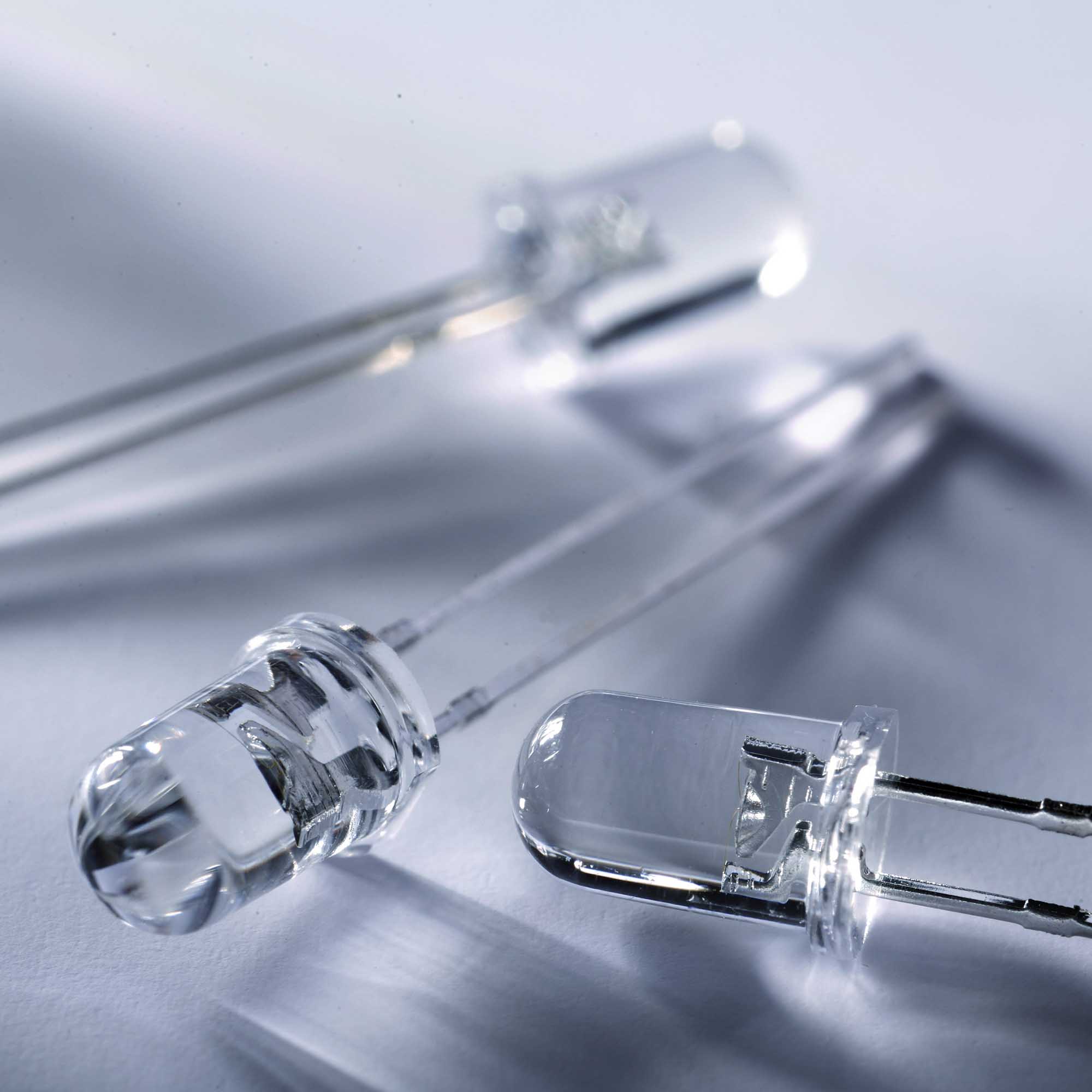

Nichia 5mm Blue LED 13950mcd 15deg 20mA NSPB500AS-V/W-W

€0.63
Low Stock Germany, only 7 pcs.
SKU
15409
  • Buy 1000 for €0.48 each and save 24%

With 24% global market share, Nichia is the largest LED manufacturer in the world and inventor of the blue (and also white) light emitting diode. The innovative Nichia research department is a pioneer when it comes to durability, brightness and efficiency, reaching new records on a regular basis.

Blog Posts

Nichia is one of the World’s largest producers of light-emitting diodes and inventor of the blue and white LED. Nichia’s extraordinarily innovative research department is at the top when it comes to efficiency and regularly sets new records.

Durability, brightness and homogeneity are the strong points of the Nichia brand. Challenging projects with Superflux LEDs cannot escape these elite LEDs.

  • High brightness
  • High homogeneity (colour fidelity)
  • Marvellous efficiency
  • High durability
  • High workmanship quality
Technical Data
SKU 15409
Weight brut (kg) 0.0003
LED Size 5x5 mm
LED Family Nichia 5mm
Color Blue
Viewing Angle 15°
Luminous Flux Typ (lm) 1
Luminous Intensity Typ. 13950
Forward Current Typ 20 ma
Forward Voltage Typ (V) 3
Power (W) 0.06
Forward Current Max 35mA
Power Max. (W) 0.2
Product lifetime (h) 50000
Luminous Efficacy (lm per W) 17
Wavelength (nm) 470
Manufacturer Product Code NSPB500AS W V/W
Manufacturer Nichia
Availability beyond shown stock: YES
