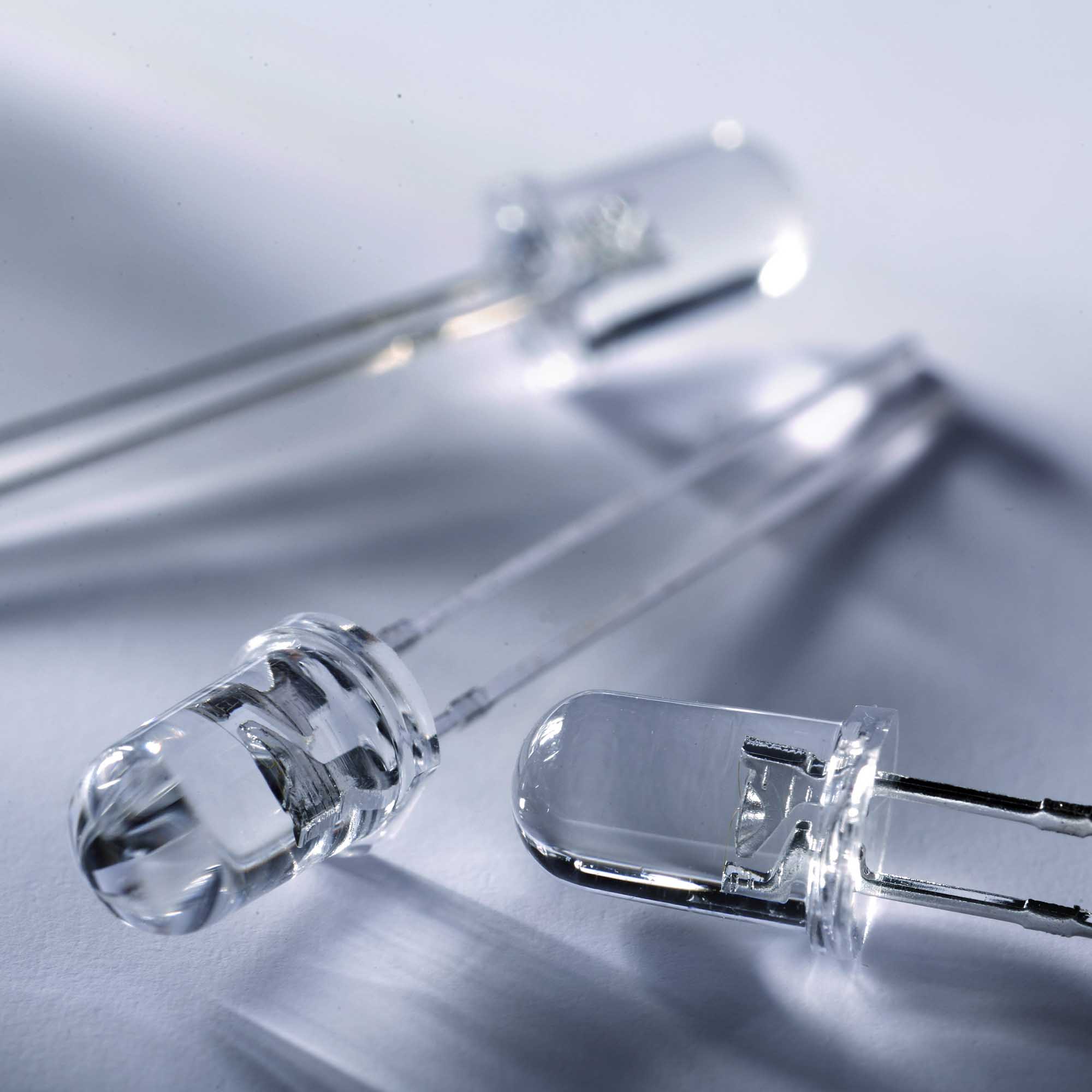

Nichia 5mm NSPL500DS Warm White LED 22000mcd 15deg 20mA

Rating:
100% of 100
€0.63
Stock Germany >1000 pcs
SKU
15021
  • Buy 1000 for €0.48 each and save 24%

With 24% global market share, Nichia is the largest LED manufacturer in the world and inventor of the blue (and also white) light emitting diode. The innovative Nichia research department is a pioneer when it comes to durability, brightness and efficiency, reaching new records on a regular basis.

Blog Posts

With 24% Nichia is the largest LED manufacturer in the world and inventor of the blue (and so also white) light emitting diode. The innovative Nichia research department is a pioneer when it comes to efficiency and establishes records on a regular basis.

Durability, brightness and homogeneity are among the major strengths of the Nichia brand. Further, the fine selection allows a large added value for professional processing.

In a long-term laboratory study with more than 50 different white LED types and several thousands of individual measurements, Ledrise detected a much longer durability as well as a significantly lower degradation (loss of brightness) of Nichia LEDs compared to the average of all other light emitting diodes.

Technical Data
SKU 15021
Weight brut (kg) 0.0003
LED Size 5x5 mm
LED Family Nichia 5mm
Color Warm White
Color Temperature 3000K
Viewing Angle 15°
Luminous Flux Typ (lm) 2
Luminous Intensity Typ. 22000
Forward Current Typ 10 ma
Forward Voltage Typ (V) 3
Power (W) 0.03
Forward Current Max 30mA
Power Max. (W) 0.1
Luminous Efficacy (lm per W) 67
Manufacturer Product Code NSPL500DS F5/F3 U/V
Manufacturer Nichia
Availability beyond shown stock: YES
