Nichia is the largest LED manufacturer in the world and inventor of the blue (and so also white) light emitting diode. The particularly innovative Nichia research department is a pioneer when it comes to efficiency and establishes records on a regular basis.
Durability, brightness and homogeneity are among the major strengths of the Nichia brand. If your demanding projects require Superflux LEDs, you can't do without these elite-LEDs.

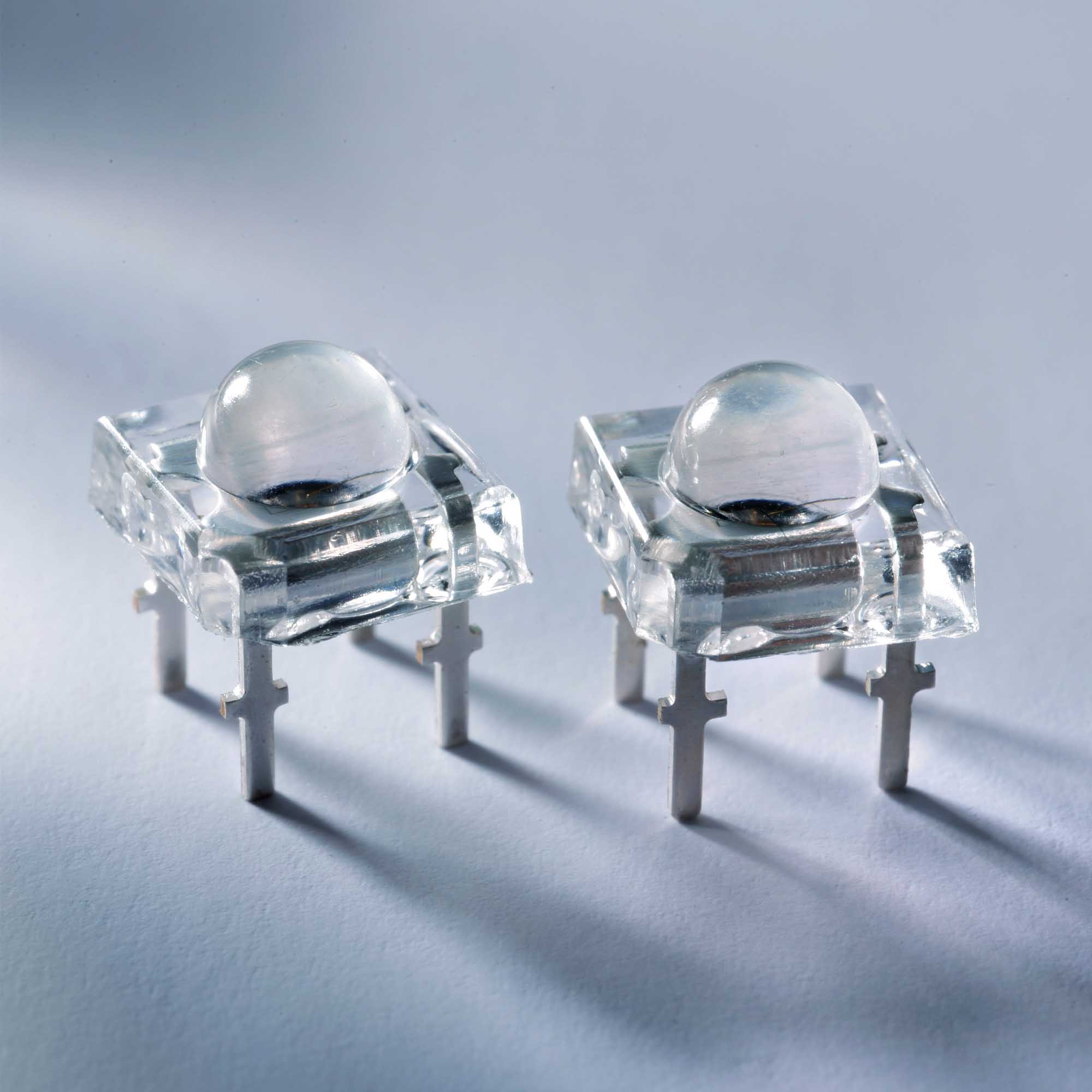

This highly efficient SuperFlux LED is perfectly suitable for LED-modules. Therefore Ledrise uses this Nichia Raijin LED in the Power SuperFlux LED stripe warmwhite. This LED strip reaches more than 600lm and has a guaranteed life expectancy of 5 years.
| SKU | 11010 |
|---|---|
| Weight brut (kg) | 0.0003 |
| LED Size | 7.62x7.62 mm |
| LED Family | Nichia Superflux |
| Color | Warm White |
| Color Temperature | 2700K |
| Viewing Angle | 70° |
| Luminous Flux Typ (lm) | 9 |
| Luminous Efficacy (lm/W) | 150 |
| Forward Current Typ | 20 ma |
| Forward Voltage Typ (V) | 2.8 |
| Power (W) | 0.06 |
| Forward Voltage Max (V) | 3.2 |
| Forward Current Max | 60mA |
| Luminous Flux Max (lm) | 20 |
| Power Max. (W) | 0.2 |
| Manufacturer Product Code | NSPLR70CSS-K1 F3-6 P6-8 |
| Manufacturer | Nichia |
| Availability beyond shown stock: | YES |
