Plastic lens for Citizen L103 series and SmartArray 30 deg
€10.59
Stock Germany >10 pcs
SKU
60396

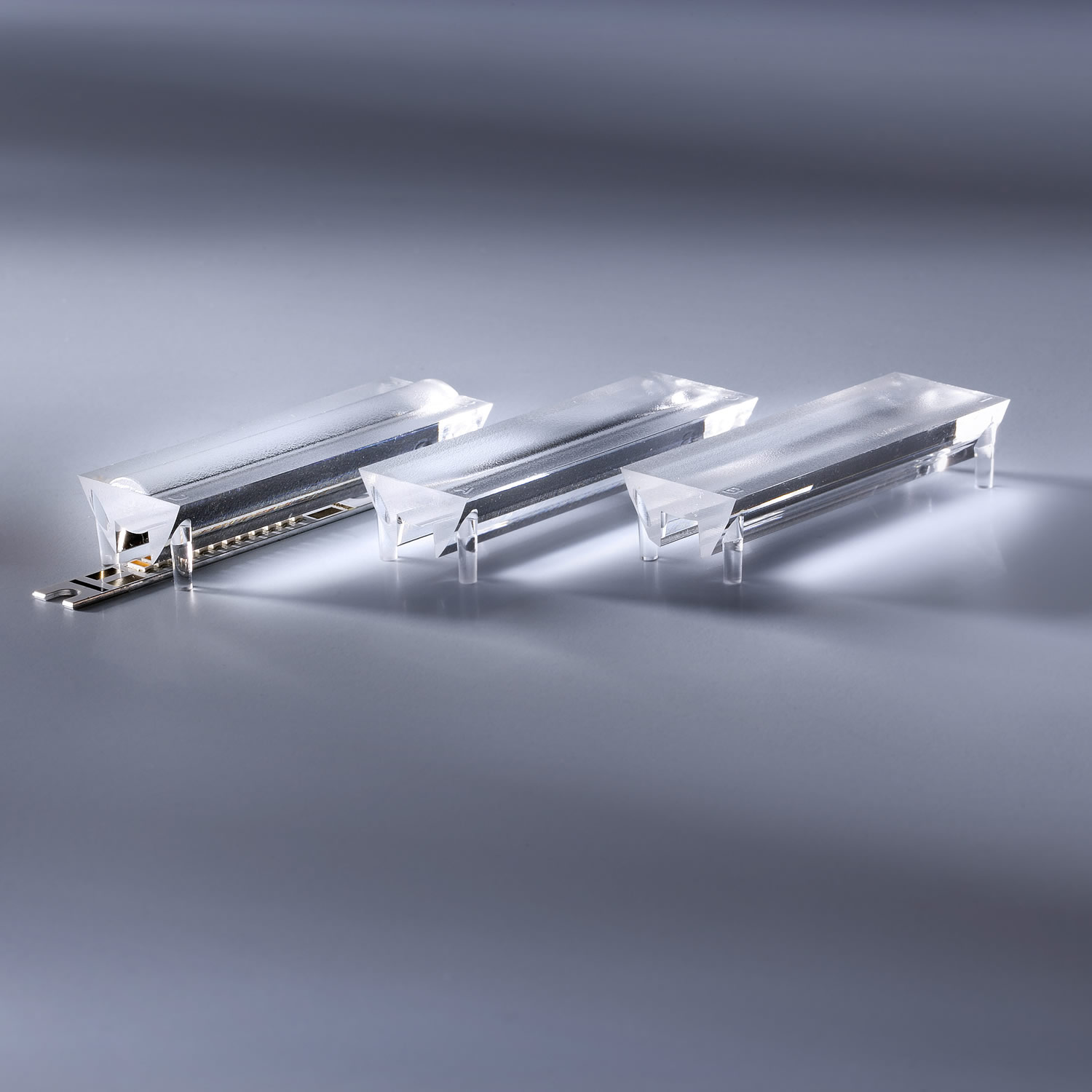

LED lens perfectly suited for the application on our Ledrise SmartArrays and the Citizen L103 LED modules. The lenses provide a focussed and bundled light. In combination with our cooling element item no. 6009 a perfect completion to our SmartArray range of products.
Features- operating temperature: -40°C + 110°C
- lens material: PMMA HT

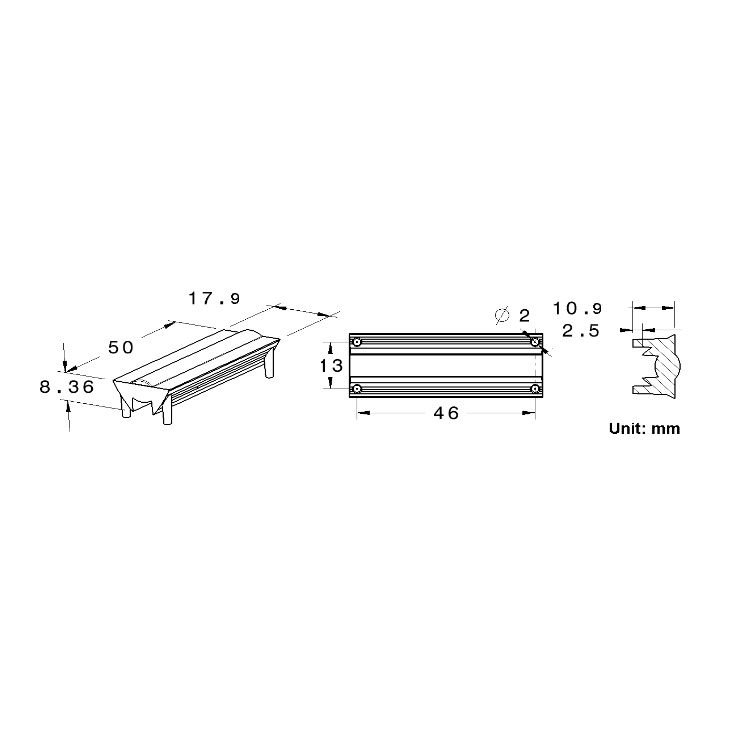

- dimensions (LxWxH): 50.0x17.9x11.0mm
- 60395: radiation angle 12°
- 60396: radiation angle 30°
- 60397: radiation angle 60°
| SKU | 60396 |
|---|---|
| Weight brut (g) | 1.000000 |
| Availability beyond shown stock: | YES |
| Lens Usage | Smart Array |
| Lens Viewing Angle | 30 |
| Brand | Lumistrips |
| Manufacturer Product Code | C-003 |
| Dimensions: Height (mm) | 1.79 |
| Dimensions: Width (mm) | 0.84 |
| Dimensions: Length (cm) | 5.00 |
