Violet UVC NKFG NFPD6C LED Strip 280nm 12 LEDs 336mW 28.1cm 1050mA 20.4V 21.4W for disinfection

Violet UVC LED Strip 280 nm, 336 mW, 12 NKFG NFPD6C LEDs, 1050 mA, 21.4 W, 28.1 cm

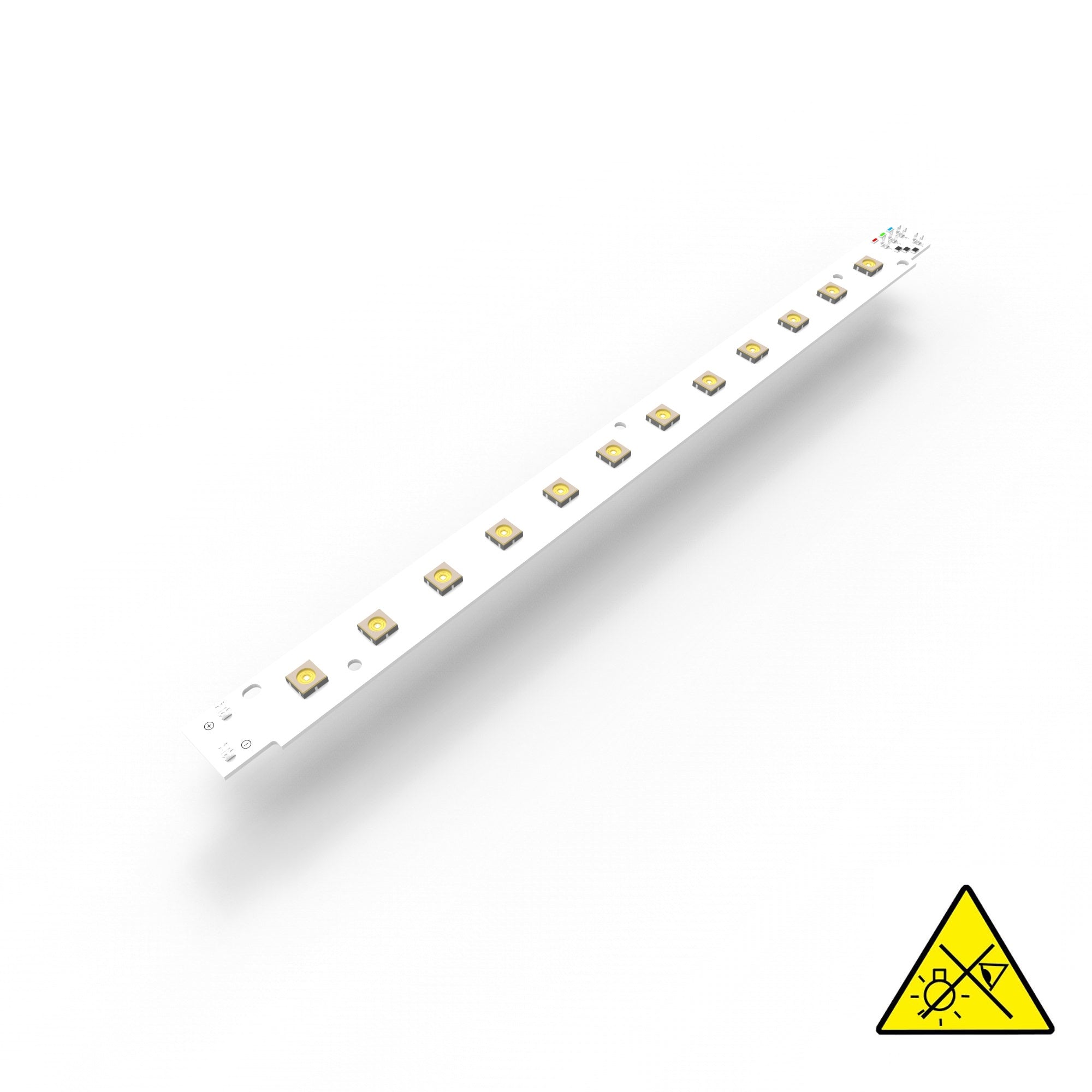

The Violet UVC 280 nm is a 281 mm rigid UV-C LED strip with 12 NKFG NFPD6C LEDs, delivering a radiant power of 336 mW at 280 nm with 21.4 W of power consumption, a radiant efficiency of about 1.6%. As part of the Violet modular UV irradiation system, its LED pitch is matched to the LEDiL VIOLET-12X1 optics, so it can be configured for narrow, wide or oval beams and engineered for a defined UV dose in disinfection of air, surfaces and water.

Features of the Violet UVC 280 nm LED Strip

• 12 NKFG NFPD6C UV LEDs, UV-C 280 nm
• Radiant power 336 mW
• Constant current 1050 mA at 20.4 V, 21.4 W, dimmable
• Beam angle 130° without optics
• Fixed LED pitch matched to LEDiL VIOLET-12X1 optics
• Dimensions: 281 x 19.2 x 4 mm
• Lifetime of 12,000 hours (L80B10)
• Made in Germany
• 1-year warranty

Applications of the Violet UVC 280 nm LED Strip

Combined with VIOLET-12X1 optics, a housing and a suitable driver, the Violet UVC 280 nm is designed for the following main applications:

• Disinfection: UV-C radiation at 280 nm is absorbed by the DNA and RNA of microorganisms and prevents their replication, which inactivates bacteria, viruses and molds. With Violet strips and VIOLET-12X1 optics, closed irradiation systems for air (in-duct and enclosed air purifiers), surfaces (conveyors, packaging, equipment and work areas) and water can be designed around a defined dose: irradiance on the target multiplied by exposure time. Read more about disinfection with UV light and UV-C LED disinfection technology.

Violet Modular UV Irradiation System: 265 to 330 nm

The Violet UV irradiation platform is a modular system for building compact, precisely controlled UV light sources from 265 nm UV-C to 330 nm UV-A. At the heart of the system is our 281 mm Violet LED strip. Each board carries 12 UV LEDs positioned at a fixed pitch specifically matched to the LEDiL VIOLET-12X1 optics family. This allows the same LED platform to be configured with narrow, wide or oval beam distributions, depending on the required irradiation area, working distance and target geometry.

Instead of designing a UV fixture around a generic LED board, the Violet platform combines the LED source, optics, thermal and mechanical housing and driver electronics into a coordinated system. The result is a practical starting point for applications where UV wavelength, irradiance, beam geometry and dose must be engineered rather than simply approximated. The system can be purchased at different levels of integration: from the bare LED strip and optic through to a complete assembled UV irradiation fixture.

A Modular Platform Built Around a 281 mm UV LED Strip

Every Violet strip uses the same basic mechanical platform:

• 281 mm LED board length
• 12 UV LEDs
• Fixed LED pitch matched to LEDiL VIOLET-12X1 optics
• Multiple UVA, UVB and UVC wavelengths
• Constant current operation
• Compatible mechanical housing available
• Different driver and dimming architectures
• IP67 optical configurations possible with suitable VIOLET-12X1 components

Because the LED positions and optic geometry are defined, we can use the LED radiant output, the selected optic and the working distance as inputs when calculating the expected irradiation pattern at the target surface. This is particularly useful when designing equipment where a specific UV dose or irradiation area is required.

LEDiL VIOLET-12X1 Optics for the Violet UV Strip

The 12 LEDs of the strip sit exactly under the 12 lens elements of the LEDiL VIOLET-12X1 optics, which are made of UV-rated materials that stay transparent and do not yellow under UV-B and UV-C radiation, unlike standard PMMA lenses. Choose the beam that matches the irradiation area and working distance:

• LEDiL FN17810_VIOLET-12X1-RS: narrow beam of 14°, IP67 (SKU 37454)
• LEDiL FN17294_VIOLET-12X1-S: 20° to 40° depending on the LED, UV-resistant silicone in a stainless steel frame, IP67 (SKU 36480)
• LEDiL FN17818_VIOLET-12X1-W: wide beam of 50° to 65° (SKU 37455)
• LEDiL FN18590_VIOLET-12X1-O: oval beam of 52 x 12°, for long, narrow targets such as conveyor belts (SKU 42076)

The optics are designed and simulated for this LED footprint, and photometric data is available, so the irradiance on the target can be calculated before the first prototype is built.

Technical Data of the Violet UVC 280 nm LED Strip

• Article number (SKU): 45065
• LED: NKFG NFPD6C
• Number of LEDs: 12
• Peak wavelength: 280 nm (UV-C)
• Radiant power: 336 mW (typical)
• Radiant efficiency: about 1.6% (calculated)
• Beam angle: 130° (FWHM, without optics)
• Lifetime: 12,000 h (L80B10C1)
• Operating mode: Constant current, dimmable
• Operating point: 1050 mA at 20.4 V (max. 1500 mA)
• Power: 21.4 W
• Dimensions: 281 x 19.2 x 4 mm
• Operating temperature at Tc: -40°C to +65°C
• Ambient temperature: -40°C to +50°C
• Storage temperature: -40°C to +100°C
• Photobiological safety (EN 62471): Risk group RG3
• Certifications: CE, RoHS, REACH

Installation, Operation and Safety

• Cooling: always mount the strip on an adequate heat sink or the compatible Violet housing and make sure the Tc point stays below +65°C. UV LEDs are considerably more sensitive to temperature than white LEDs: their radiant output and lifetime fall as the junction temperature rises, so the thermal design must be verified in the final application.
• LED driver: operate the strip with a constant current LED driver set to 1050 mA (maximum 1500 mA); never connect it directly to a constant voltage supply. Connect it only according to the marked terminals.
• Optical radiation safety: the strip emits intense UV-C radiation and is classified in risk group RG3 (EN 62471), the highest risk group. Never look into the operating strip and protect skin and eyes from direct and reflected radiation. The complete product must provide the shielding, access control, interlocks, warning labels and procedures required for the wavelength and application, and the national regulations on artificial optical radiation at the workplace must be observed.
• Materials: UV radiation degrades many plastics; use only UV-resistant materials and optics in the irradiation path, such as the LEDiL VIOLET-12X1 optics.
• Professional use: the strip is a component for integration by qualified personnel into professional and industrial equipment.

UV LEDs from NKFG

NKFG is a Taiwanese deep-ultraviolet specialist, a joint venture of Formosa Plastics Group and the Japanese Nikkiso group, which produces its own UV-C chips and LED packages. For UV applications, a branded LED with documented radiant power and degradation behavior is essential: it lets you design an irradiation system for a defined dose and service interval, instead of relying on a nominal wavelength alone.
