LEDIM/D2 TouchDim LED Driver 700mA 6-24VDC to 5-22VDC DIM flicker-free

LEDIM/D2 TouchDim LED Driver 700mA 6-24VDC to 5-22VDC DIM flicker-free

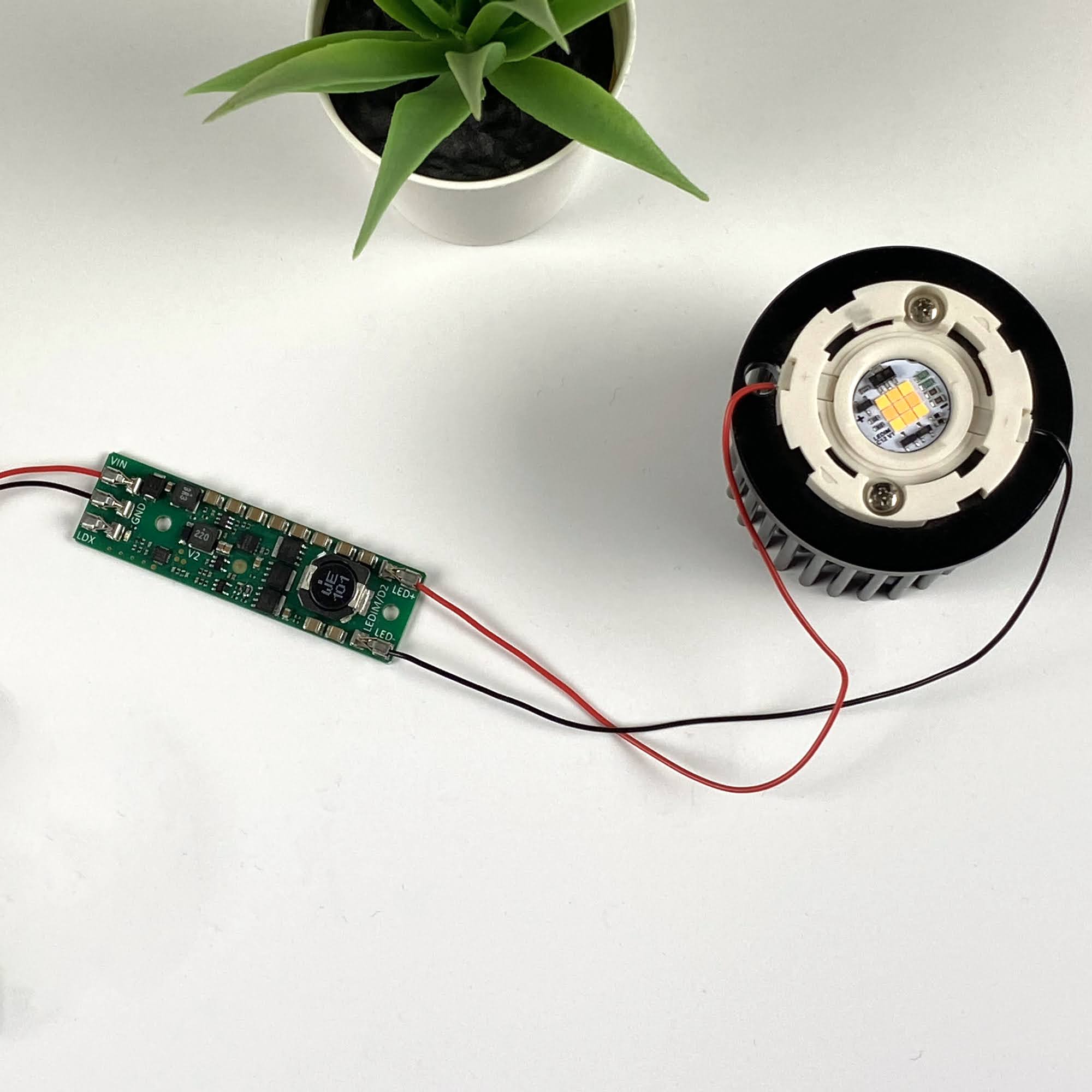

This product is a compact constant current LED driver with integrated dimming, supplying a regulated 700 mA to the connected LED module.

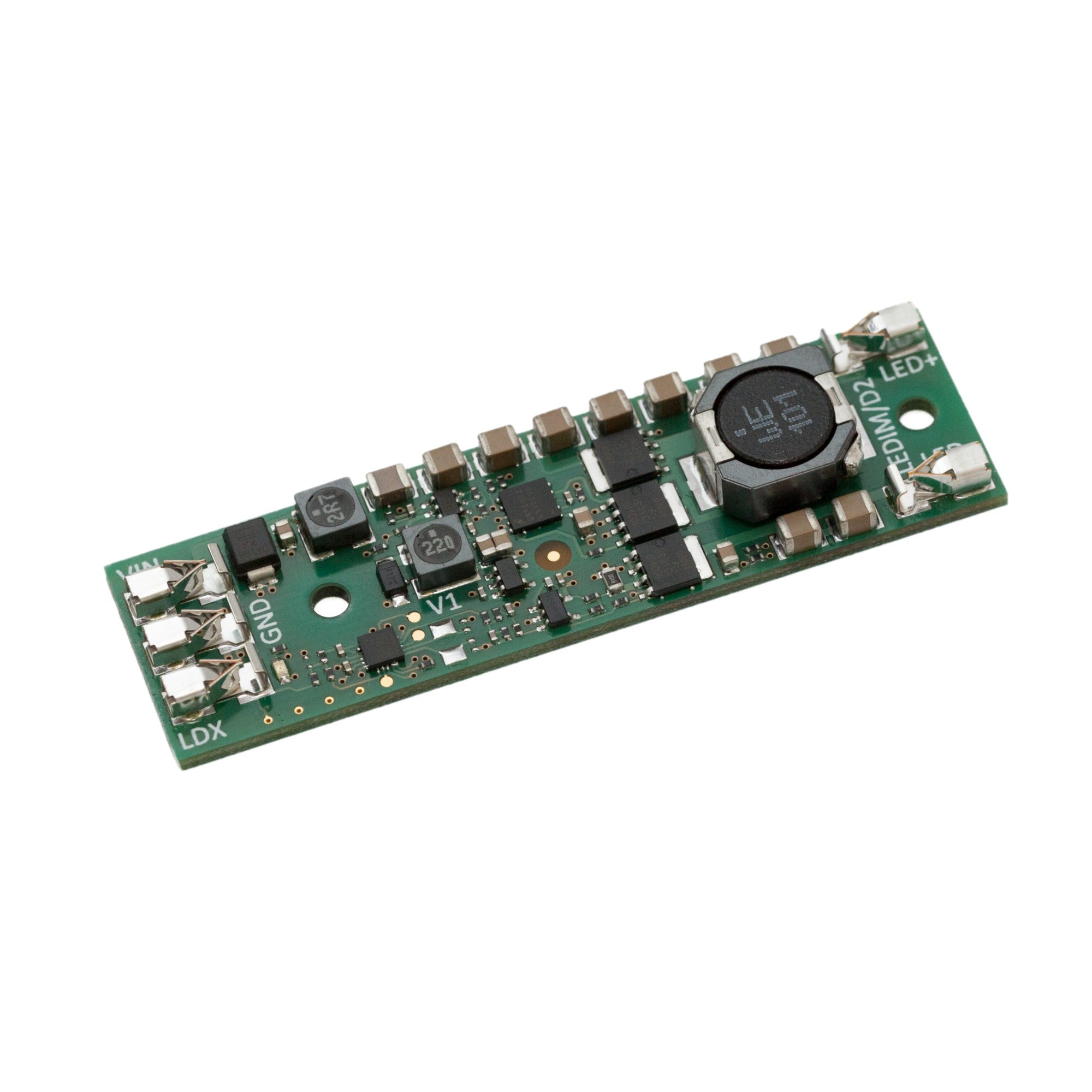

The LEDIM series combines driver and dimmer on a single board small enough to be built into the luminaire itself. The dimming is flicker-free across the whole range, including at the bottom of the curve where simple PWM circuits start to shimmer visibly – which matters for any luminaire that will be filmed, used in an office, or run at low levels for long periods.

The TouchDim version is operated with an ordinary momentary push button: a short press switches, a long press dims. No dimmer module, no bus system and no programming are needed, which makes it a very economical way to add proper dimming to a luminaire.

Constant current operation is what LED modules need: it is the current, not the voltage, that determines the light output and the thermal load, and a regulated current keeps both stable regardless of temperature drift or supply variation.

About LEDIM

LEDIM develops compact constant-current LED drivers with integrated dimming electronics. The design goal of the LEDIM series is to put driver and dimmer into a single board small enough to disappear inside the luminaire, and to dim without visible flicker across the whole range, including at the very bottom of the dimming curve where simple PWM solutions start to shimmer.

Technical features

• Maximum output power: 50 W
• Output current: 700 mA constant current

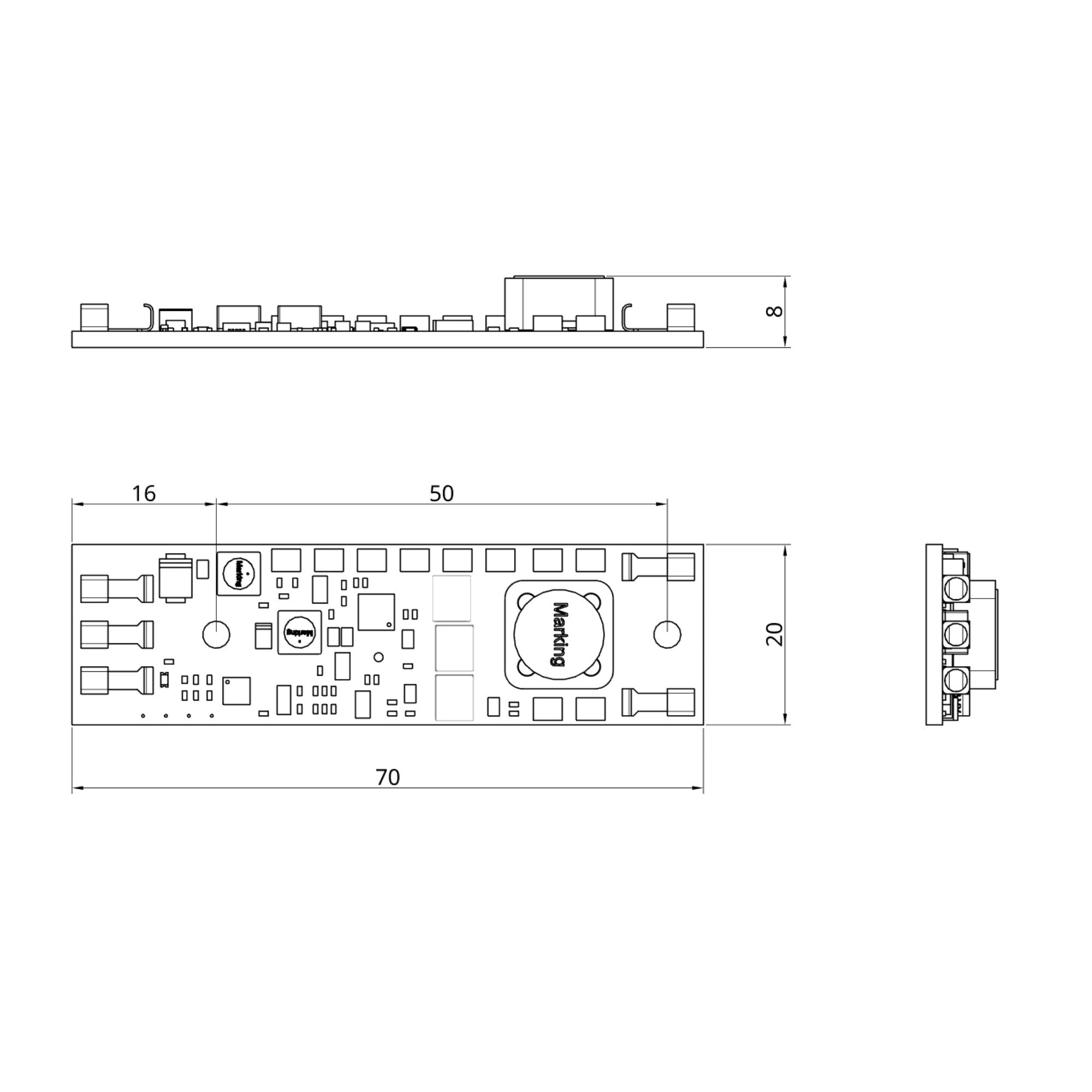

• Dimensions: 70 x 20 x 8 mm
• Dimmable
• Weight: 35 g
• Manufacturer part number: LD2-G1-DT-C0700
• EAN: 4062986002009

Applications

• Custom and OEM luminaires
• Furniture and shopfitting lighting
• Architectural and accent lighting
• Retrofitting dimming into existing fixtures
