2-Channel LED Strips & Modules (Tunable White, Dynasolis, Two-Color)

2-Channel LED Strips and Modules for Tunable White, Dynasolis or Two Color applications

Nichia 2-Channel LED Modules: Dynamic and Bright, High-Tech LED Lighting

Our range of 2-channel LED modules and strips can meet a wide range of dynamic lighting applications, including Tunable White, Nichia Dynasolis or Two Color.

These LED modules use Nichia 757 LEDs or direct mountable, packageless, Direct Mountable Chip LEDs, both with cutting edge innovative technologies such Nichia Optisolis, Vitasolis or H6 (Highest Efficacy CRI90 LEDs).

• Nichia 757 LEDs are the Industry leading 3030 Mid-power LED, with the highest luminous efficacy (up to 222 lm/w) and reliability (up to 100.000h L70 lifetime). Each LED has a typical consumption of 0.2W at 65mA, for a luminous flux up to 45 lm.
• Nichia Direct Mountable Chip is a chip scale LED which has been developed through Nichia's technology and expertise in phosphors and LEDs. By making the LED package size equal to the light-emitting surface size, it is possible to achieve the largest class of luminous flux density in a limited space within a luminaire.

Tunable White lighting

Tunable white LED modules and strips can easily and accurately reproduce the color shade of natural sunlight, by using a combination of two types of white LEDs.

Scientifically, the shade of natural light is called color temperature and is measured in degrees Kelvin (K). Thus, at sunrise and sunset on a clear day, the color temperature of natural light is 2000-3500K, what we call warm white. In the morning sunlight is of pure white, color temperature of 3500-4500K, and at noon cold white 5500-6500K.

Tunable white light is the key ingredient of Human Centric Lighting (HCL), a type of lighting that aims at harmonizing lighting with our specific needs, positively influencing fundamental psychological processes such as concentration, productivity, mood, sleep-wake cycles and more.

With HCL lighting, we can be influenced to feel and act the same under artificial light as under natural light, at a particular time of day. For example, a warm white can make us feel relaxed, sentimentalist as we fell when the sun is at sunset, while a pure white light can energize, just as midday sunlight. HCL can also tell us what moment of the day it is while indoors, the same way as we instinctively know when outside.

To achieve its aim, a Human Centric Lighting solution must be with high-quality spectrum and offer easy adjustments of color temperature and brightness. The lighting system must also have high-energy efficiency and low maintenance costs.

With our Tunable White LED strip or modules and Powercontroler light control system, you have a complete, high-quality system for Human Centric Lighting, with easy control, best light quality, the highest energy efficiency and the longest life possible, up to 100,000 hours. You can choose from:

• LumiBar 2-channel LED modules from HCL with natural spectrum for linear lighting systems
• Daisy LED 2-channel LED modules with lens for Human Centric Lighting from downlights or wall washers
• SmartArray 2-channel LED modules for compact lighting fixtures
• LumiFlex and SlimFlex 2-channel LED strips for Human Centric Lighting via cove lights with indirect light or linear lighting systems with direct light

Nichia Dynasolis

Nichia's Dynasolis™ is an innovative LED tuning solution designed to regulate circadian rhythms by simultaneously adjusting melanopic illuminance and color temperature while maintaining high CRI and efficacy. Unlike traditional human-centric lighting systems that only alter correlated color temperature (CCT), Dynasolis™ also focuses on the non-visual elements affecting circadian rhythms, supporting modern indoor lifestyles by providing both color and spectrum tuning. This system uses Azure LEDs to supply 480nm light, a wavelength abundant in morning sunlight that stimulates serotonin production, promoting alertness and mental well-being. By optimizing this light exposure, Dynasolis™ enhances the secretion of melatonin in the evening, helping to regulate sleep patterns and overall circadian health.

The importance of 480nm light lies in its dual role of activating the human body and mind in the morning and preparing the body for sleep later in the day. Nichia's Dynasolis™ addresses the shortcomings of conventional indoor lighting by focusing on this critical wavelength to maximize melanopic illuminance. This solution replaces conventional high CCT LEDs with Azure LEDs to maintain a balance of energizing and calming spectra throughout the day, ensuring comfort and efficiency. The Dynasolis™ system is versatile, allowing flexible color and spectrum tuning through its implementation with Direct Mountable Chip Series or 757 Series LEDs. This adaptability makes Dynasolis™ a valuable tool for human-centric lighting applications, fostering environments that promote well-being and productivity.

To order a Dynasolis LED module, choose our 2-channel customizable LED modules and select the Azure LED for channel one and a warm white LED for channel two.

Two-Color Lighting

Special Two-Color LED modules can be configured in our customizable LED modules. For example, a module with White LEDs for daylight lighting and Red LEDs for night lighting or certain emergency scenarios.

Enhanced Horticulture LED modules can be Hortisolis LEDs combined with Blue or Red LEDs.

Ready to transform your vision into reality with the perfect 2-channel LED system? Order now and let us illuminate your path to innovation, ensuring your project shines brighter than ever.

Customizable 2-Channel LED Modules, Made in Germany

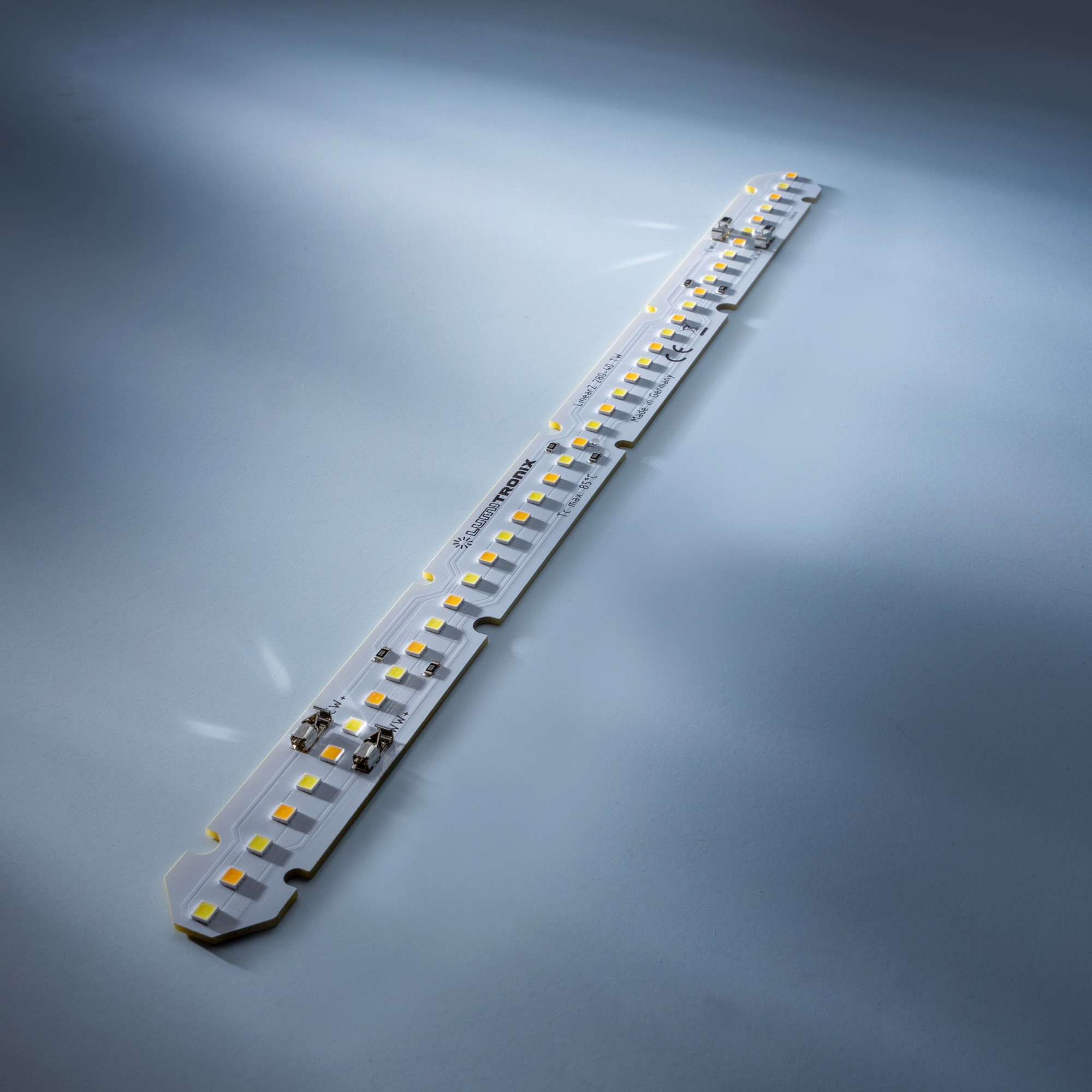

LumiBar 2-CH Zhaga Nichia LED Modules

LUMIBAR 2-CHANNEL ZHAGA NICHIA LED MODULES

(20 + 20) x Nichia 757 LED, up to 800 lm / channel

White 1800-7800K with CRI70-90 & Color LEDs

FR4 PCB, 280 mm Length, 20 mm Width

Constant current

CUSTOMIZE & BUY

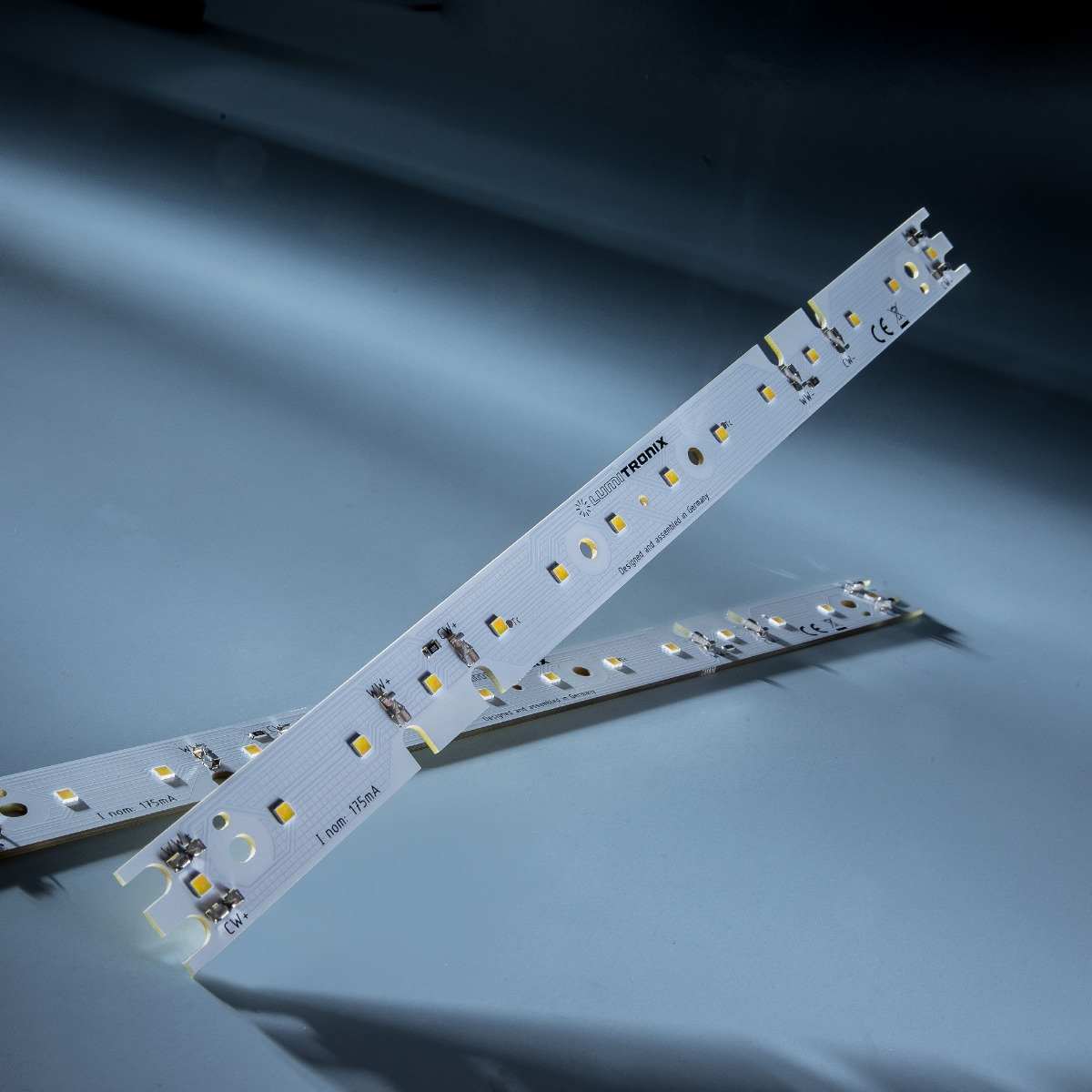

Daisy 2-CH Nichia LED Modules

DAISY 2-CHANNEL NICHIA LED MODULES

(8 + 8) , (14 + 14) or (28 + 28) x Nichia 757 LED, up to 1200 lm / channel

White 1800-7800K with CRI70-90 & Color LEDs

FR4 PCB, 60 , 280 or 560 mm Length, 28 mm Width

With Lens System for 50 or 80° viewing angle

CUSTOMIZE & BUY

SmartArray Q4 2-CH CSP LED Modules

SMARTARRAY Q4 2-CHANNEL NICHIA CSP LED MODULES

(2 + 2) x Nichia CSP 1W LED, up to 450 lm / channel

White 1800-6500K with CRI80-90 & Color LEDs

Aluminum PCB, 13x13mm Square, optional COB holder

Constant current 300-700mA

CUSTOMIZE & BUY

SmartArray L6 2-CH CSP LED Modules

SMARTARRAY L6 2-CHANNEL NICHIA CSP LED MODULES

(3 + 3) x Nichia CSP 1W LED, up to 675 lm / channel

White 1800-6500K with CRI80-90 & Color LEDs

Aluminum PCB, 50x7mm Square

Constant current 300-700mA

CUSTOMIZE & BUY

SmartArray Q12 2-CH CSP LED Modules

SMARTARRAY Q12 2-CHANNEL NICHIA CSP LED MODULES

(6 + 6) x Nichia CSP 1W LED, up to 1350 lm / channel

White 1800-6500K with CRI80-90 & Color LEDs

Aluminum PCB, 19x19mm Square, optional COB holder

Constant current 700-1400mA

CUSTOMIZE & BUY

Ready-made 2-Channel LED modules, Made in Germany

For sample evaluation, prototypes or small-scale projects, our ready-made 2-channel LED modules or strips are available in several configurations.

PowerControler for multichannel control

With our new PowerControler range of control units, you are empowered to control 2-channel LED modules, including the color, white color temperature and intensity levels of light in all the required ways of Human Centric Lighting and beyond. Tunable White, RGBW and even single color LEDs can be controlled via dimmers, switches, your smartphone or the DALI protocol.

The PowerControler can control constant voltage 12V or 24V LED strips by using only a dimmable power supply, or modules with constant current (in connection with the compatible LED driver as below).

Accessories for LED strips

The LumiFlex LED strips that are 8mm wide can be combined with profiles, to create luminaires with a minimalist design. Our profiles use high-quality materials and finishes, being aimed at the German market. The profiles protect the strips from dust, mechanical shocks and provide cooling for even longer life.

The Nichia LED quality

The Japanese company Nichia, our recommended choice for the LEDs used on LED strips or modules, is the world leader in the LED market, with a market share of over 25% and the longest experience in the field. Nichia is the inventor of the white LED production technology, receiving the Nobel Prize for this invention.

The very long life of Nichia 757 LEDs (minimum 100,000 hours), exceptional luminous efficacy, superior light output and spectrum qualify our LED strips for long-term use even for the most demanding applications.

The difference between the quality and performance of the a strip with Nichia LEDs and a low-cost LED strip, is evident from the first light, and in time the gap increases even more.

1. Longest-lasting light: Nichia LEDs last 90% longer

After 10,000 hours of operation, a Nichia 757 LED keeps 97% of the initial luminous flux, under high operating conditions, shining like in the beginning, while 90% is maintained even after 60.000 hours.

In most applications, this translates into an effective 100,000 hours lifetime or 10 years of continuous operation in a shopping center, decades of operation in a home.

In contrast, a low-cost LED loses up to 60% of the initial value in less than 10,000 hours, approximately one year of operation. It becomes too weak for the initial purpose in just 1,000-3,000 hours.

The evolution of light output for the Nichia 757 LEDs is demonstrated by 10,000 hours of testing, according to the LM-80 standard. Lifetime (light at 70%, 80% and 90%) is calculated using TM-21, both internationally recognized standards and used by all major manufacturers.

Click here to download the 10000 hours, Nichia 757 LED L80 lifetime test.

2. More light for less power: Nichia LEDs are 65% more energy efficient

The design and material quality influence the luminous efficacy and the LED light output. Nichia 757 LEDs have the highest luminous efficacy on the market, more than 230 lumens per watt, compared to a low-cost LED that has less than 80 lumens per watt.

The difference of more than 65% in luminous efficacy is outstanding when seen in practice. After a cove light retrofit from low-cost LED strips to Nichia LED strips, the illumination increased by three to five times for the same power consumption:

3. Uniform white light: Nichia 757 LEDs are color temperature sorted

By implementing the 3 Macadam Elipse sorting standard in our manufacturing, ensures that Nichia LED strips for a project will have the same white color temperature. Uniformity is also be maintained for future projects.

In contrast, low-cost LED strips are not manufactured with the Macadam Elipse sorting standard, being delivered with many different color temperatures of white. Often, differences are even on the same reel. Moreover, after just a few thousand hours, the low-cost LEDs change their color temperature, resulting in a rainbow effect with yellow and blue hues.

After a cove-light retrofit from low-cost LED strips to Nichia LED strips, the importance of the 3 Macadam Elipse sorting standard is clear.

4. Natural light spectrum: Nichia 757 LEDs have CRI up to 99

Nichia LEDs, with CRI up to 99, reproduce colors as naturally as possible, closely matching the spectrum of sunlight. This capability ensures that colors are rendered accurately and vividly, enhancing the visual experience in any application

Low-cost LEDs only have a maximum CRI of 80, their light distorting color shades, especially warm colors, such as red, orange or brown.
