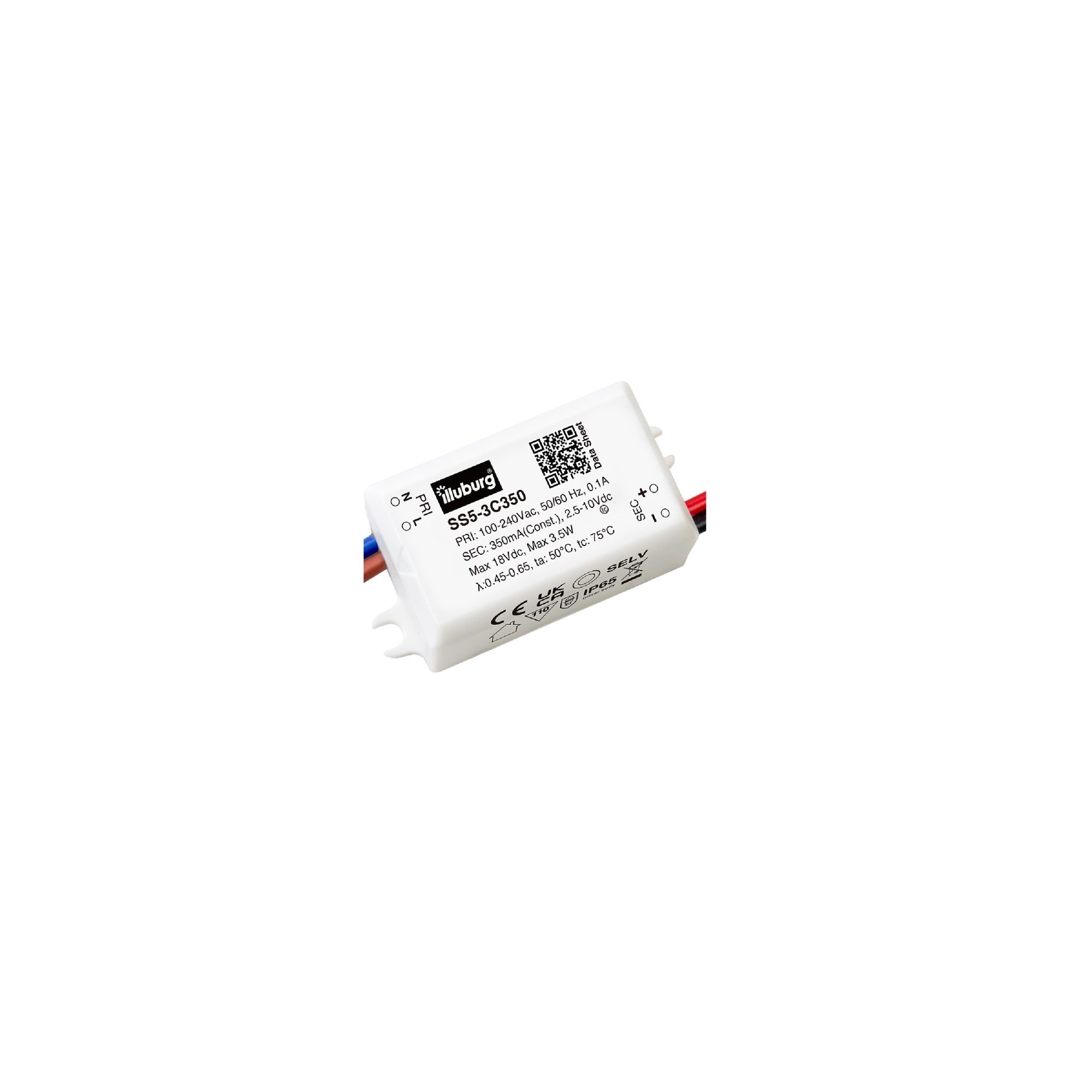

Constant Current LED Driver illuburg SS5-3C350 IP65 350mA 2.5-10VDC
- IP65 constant current driver for damp and industrial locations
- Power consumption 3.5 W
- Dimensions 53 x 27 x 21 mm
- Protection class IP65
- Dimmable
- IP65 rated – no separate protective enclosure needed
- Flicker-free according to IEEE 1789
Constant Current LED Driver illuburg SS5-3C350 IP65 350mA 2.5-10VDC
This product is a fully potted IP65 constant current LED driver from the illuburg SS5 series, supplying a regulated 350 mA into an output range of 2.5–10 V DC for LED loads up to roughly 3.5 W.
The IP65 rating means the driver can be installed where dust and splashing water are present, so no separate protective enclosure is needed in many outdoor, damp-location and industrial applications. The housing is designed for built-in installation inside the luminaire.
The SS5 series is certified flicker-free according to IEEE 1789. Light modulation that the eye does not consciously notice still appears as banding on camera and is linked to eye strain over long exposure, so an IEEE 1789 driver is the right choice for offices, workshops and anywhere that will be filmed. This version is not dimmable; dimmable variants are available in the same series.
Constant current operation is what an LED module needs: it is the current, not the voltage, that sets the light output and the thermal load, and a regulated current keeps both stable regardless of temperature drift or supply variation.
About illuburg
illuburg is the LED electronics brand of HUATEC GmbH, based in Hamburg, Germany. Its range covers constant-voltage and constant-current LED drivers in IP20 and IP65 versions, built in normal, compact and slim housings for furniture, shopfitting and built-in luminaire applications.
The SS5 constant-current series is certified flicker-free according to IEEE 1789. That standard is worth taking seriously: light modulation that the eye does not consciously register still shows up as banding on camera and is associated with eye strain and headaches over long exposure, so a driver that meets IEEE 1789 is the right choice for any luminaire in an office, a workshop or a filmed environment.
Technical features
- Power consumption: 3.5 W
- Output current: 350 mA constant current
- Output voltage range: 2.5 to 10 V
- Dimensions: 53 x 27 x 21 mm
- Protection class: IP65
- Dimmable
- Rated lifetime: 30000 h
- Weight: 42 g
- Manufacturer part number: SS5-3C350
- EAN: 4062986004164
Applications
- Outdoor and damp-location luminaires
- Industrial and machine lighting
- Furniture and shopfitting lighting
- Custom and OEM luminaires
| SKU | 42231 |
|---|---|
| Weight brut (g) | 42.000000 |
| Output Current | 350mA |
| Driver Voltage Range (V) | 2.5 to 10 |
| Dimmable | Not Dimmable |
| Dimensions | 53 x 27 x 21 mm |
| Manufacturer Part Number | 4062986004164 |
| Brand | illuburg |
| Manufacturer Product Code | SS5-3C350 |
| Dimensions: Length (cm) | 5.3 |
| Dimensions: Width (mm) | 27 |
| Dimensions: Height (mm) | 21 |
