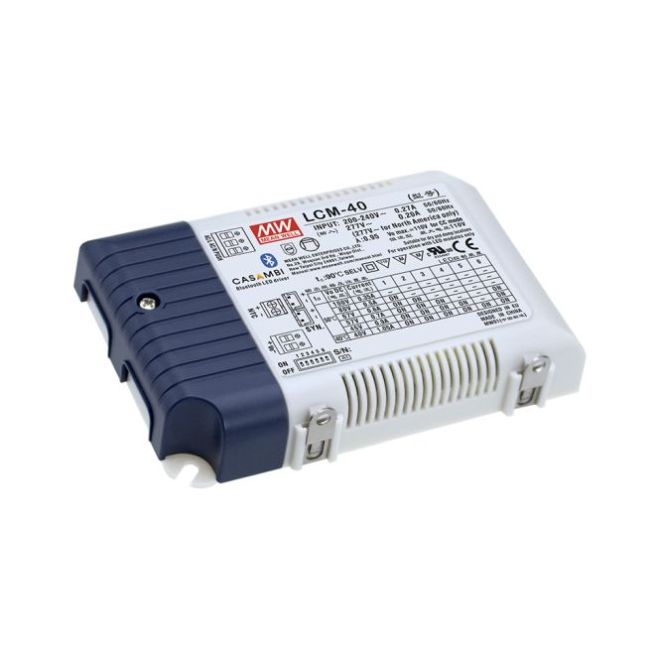

Constant Current LED Driver Mean Well LCM-40BLE 230V to 2-100V 350 > 1050mA Dimmable via Casambi App

Constant Current LED Driver Mean Well LCM-40BLE 230V to 2-100V 350 > 1050mA Dimmable via Casambi App

Constant Current LED Driver Mean Well LCM-40BLE 230V to 2-100V 350 > 1050mA Dimmable via Casambi App
Constant Current LED Driver Mean Well LCM-40BLE 230V to 2-100V 350 > 1050mA Dimmable via Casambi App

Constant Current LED Driver Mean Well LCM-40BLE 230V to 2-100V 350 > 1050mA Dimmable via Casambi App

€143.00
Low Stock Germany, only 4 pcs.
SKU
40192
  • For dim & control of LED strips and modules in indoor applications
  • Wireless control via integrated CASAMBI module
  • Constant current adjustable 350/500/600/700/900/1050mA adjustable via DIP switch

Established in 1982, MEAN WELL is considered a pioneer and a leader in standard switching power supplies all over the world.

MEAN WELL is ranked the 6th in global power supply (DC output) makers according to a report by Micro Technology Consultant released in March 2016. For the product coverage of industrial power supplies and the sales volume of LED drivers, we have the confidence to say that MEAN WELL is ranked the No.1 standard power supply manufacturer in the world.

Blog Posts (4)

With the Meanwell LCM-40BLE, the connected modules, strips or luminaires can be conveniently controlled and dimmend via smartphone or tablet. This is made possible by the built-in Casambi module, which transmits the signals from the app directly to the connected light source via Bluetooth. The Casambi app is available free of charge for both iOS- and Android-based devices.

Casambi enables indoor and commercial luminaires to be controlled via Bluetooth Low Energy 4.0 mesh protocol. Casambi's Bluetooth mesh network solution integrated into the series automatically connects to wireless mesh networks, allowing control of numerous luminaires from a single point without additional gateways. The Casambi Bluetooth app even connects to the cloud for data storage, and many Bluetooth control devices are available for instant use.

Before starting, all that is required is to download the app to a smartphone or tablet for setting up scenes, timers, etc. To expand the network and develop personalized intelligent lighting control systems, it is also possible to connect LCM-40BLE to all Casambi-compatible devices such as wall switches or light sensors. The series is equipped with a DIP switch for setting the output current and includes an AC input with push functionality. With the conventional wall switches installed, programming allows flexible control not only of the wired LED driver but also of the available luminaires and assigned groups or scenes. The Meanwell LCM-40BLE LED driver is installed in a plastic housing of protection class II, has a built-in active PFC function and an efficiency of up to 90%. This offers protection against short-circuits, overvoltage and overheating, overvoltage protection of 2kV (L-N) and has a service life of over 50,000 hours.

Features of the Meanwell LCM-40BLE Casambi power supply unit

  • With integrated CASAMBI module
  • Can be controlled via CASAMBI app using smartphone, tablet and CASAMBI-capable switch (e.g. CASAMBI Xpress) for dimming or on/off of LED modules and strips
  • Input voltage range: 180- 295 V AC (50 - 60Hz)
  • Output voltage: 2 V - 90 V (depending on the set constant current also higher, see data sheet)
  • Output current: 350/500/600/700/900/1050 mA adjustable via DIP switch
  • Recommended for all LumiBar LED strips, including LumiBar3098+, LumiBar3090, Lumibar3080
  • Output power: 42 W
  • Efficiency: up to 90%
  • Dimming range: 10% - 100%
  • Protected against overheating, overvoltage, overload and short circuit
  • Protection class II
  • Complies with the following standards, among others: EN61547, EN61000-3-2, 3, EN61547, EN55015, EN61000-4-2, 3, 4, 5, 6, 8, 11
  • For LED and lighting applications
  • Built-in PFC circuit, auto recovery
  • Operating temperature: -25° C - +90° C
  • Protection class: IP20
  • Dimensions (L x W x H): 124 x 82 x 23 mm
  • Weight: 240 g
Technical Data
SKU 40192
Driver Voltage Range (V) 2 to 100
Output Current (Range) 350 to 1050 mA
Dimmable Dimmable, Wifi control
Dimensions 124x82x23 mm
Brand Mean Well
Manufacturer Product Code 4062986003532
Product Family LCM
Availability beyond shown stock: YES
Dimensions: Length (cm) 12.4
Dimensions: Width (mm) 82
Dimensions: Height (mm) 23
